REM MIRA 3.9mm
A high-performance indoor video wall solution that combines a slim, easy-to-install, front-serviceable design with premium processing for superior, low-latency, and camera-friendly visuals.
Perfect for broadcast studios, virtual production sets, and premium corporate installations demanding flawless on-camera performance and a sleek, wall-hugging design.
-
Features a high-resolution 3.9 mm pixel pitch for crisp, detailed visuals.
-
Reproduces a wide DCI-P3 color gamut with premium NovaStar processing and 22-bit+ grayscale.
-
Delivers flicker-free, on-camera visuals with a 3,840 Hz refresh rate and HDR10 support.
-
Simplifies maintenance with a slim, front-serviceable design and universal magnetic LED modules.
-
Offered in 0.5 x 1.0 m and 0.5 x 0.5 m cabinet sizes for versatile configurations.
-
Reduces installation time with linking hardware integrated directly into the cabinet frames.
Request A Product Demo
Request a personalized demo or speak directly with our sales team today.
REM MIRA 3.9mm
REM MIRA is a high-performance indoor video wall solution with a thin profile that simplifies direct wall mounting and offers easy front installation and servicing of its universal magnetic LED modules. Premium NovaStar A10s Pro receiver cards, MX series processors and COEX VMP software work together to deliver a wide DCI-P3 color gamut and low-latency signal processing, resulting in a top-tier, camera-friendly system in a slim, wall-hugging design that comes with integrated frame linking hardware to save installation labor and time.
Features
High Resolution Modular Panel
This indoor permanent install video panel features a high-resolution 3.9 mm pixel pitch for crisp, detailed visuals.
Flexible Cabinet Sizes

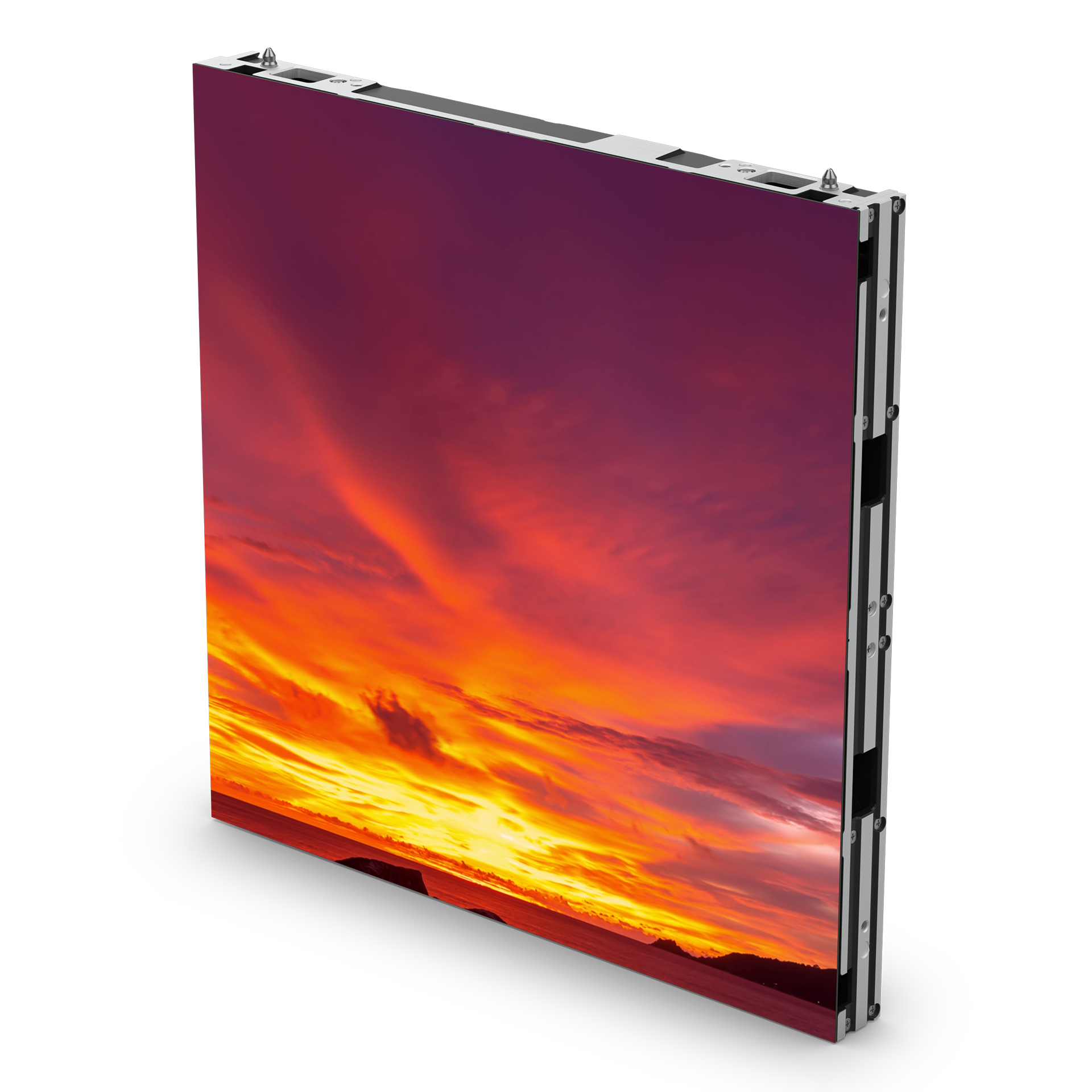

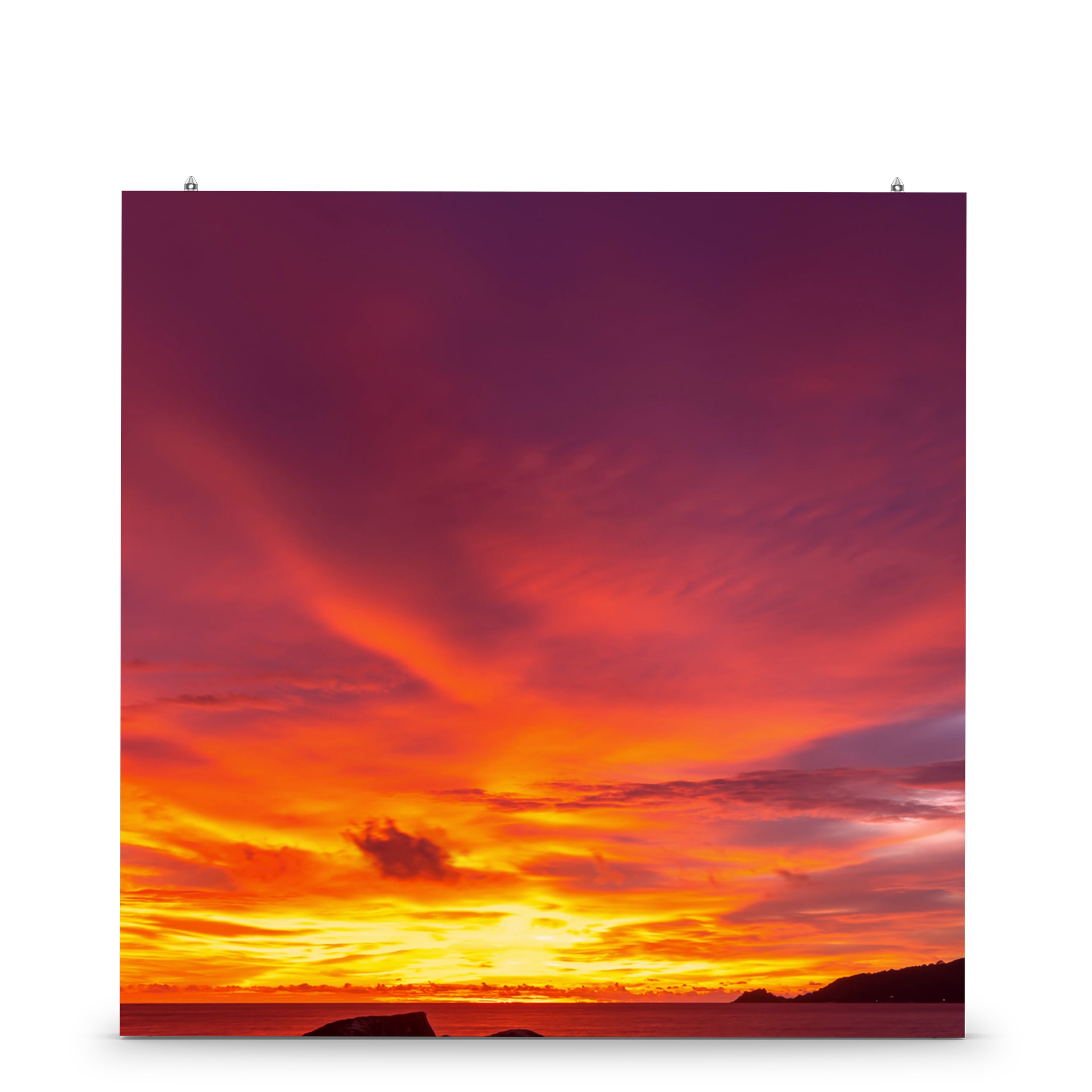

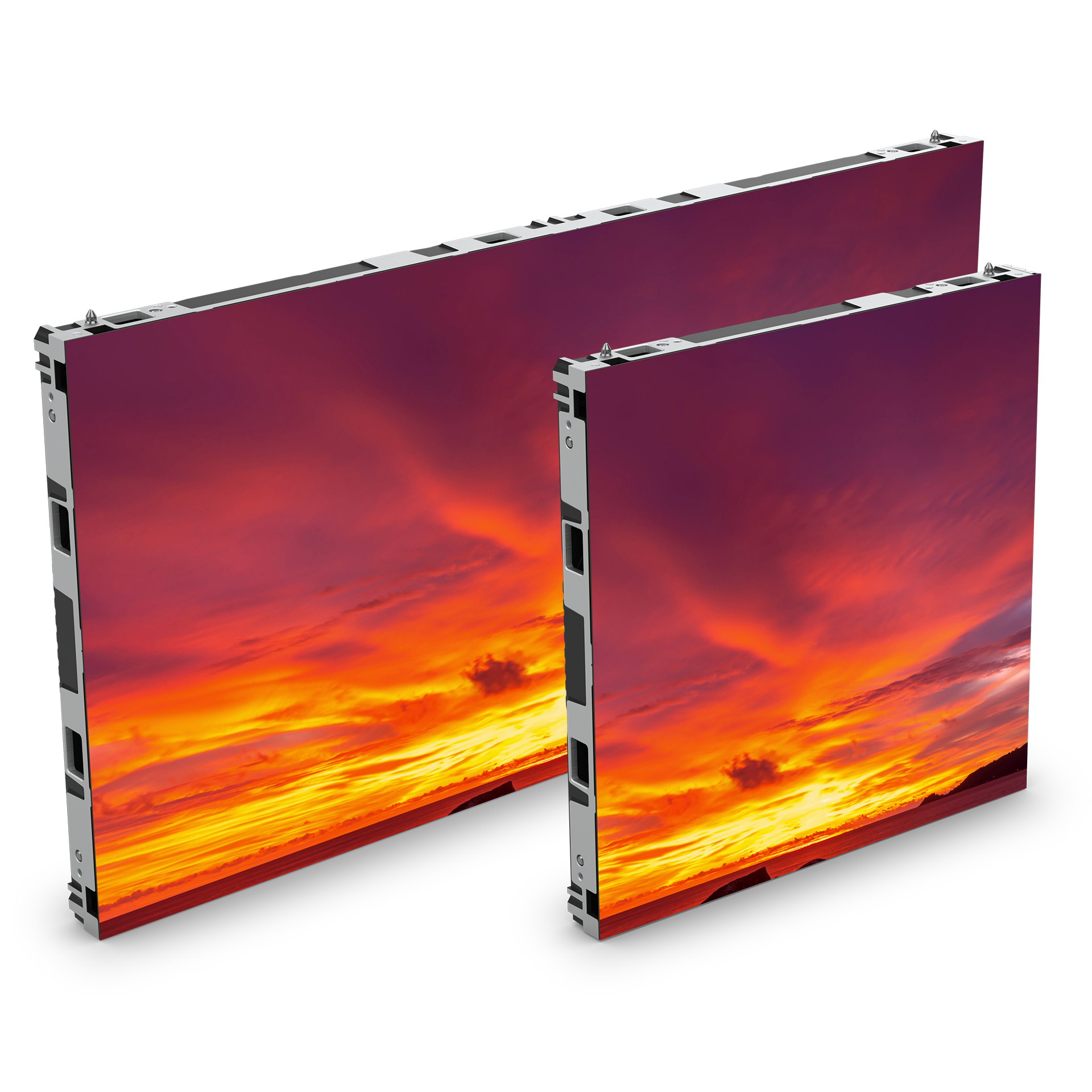

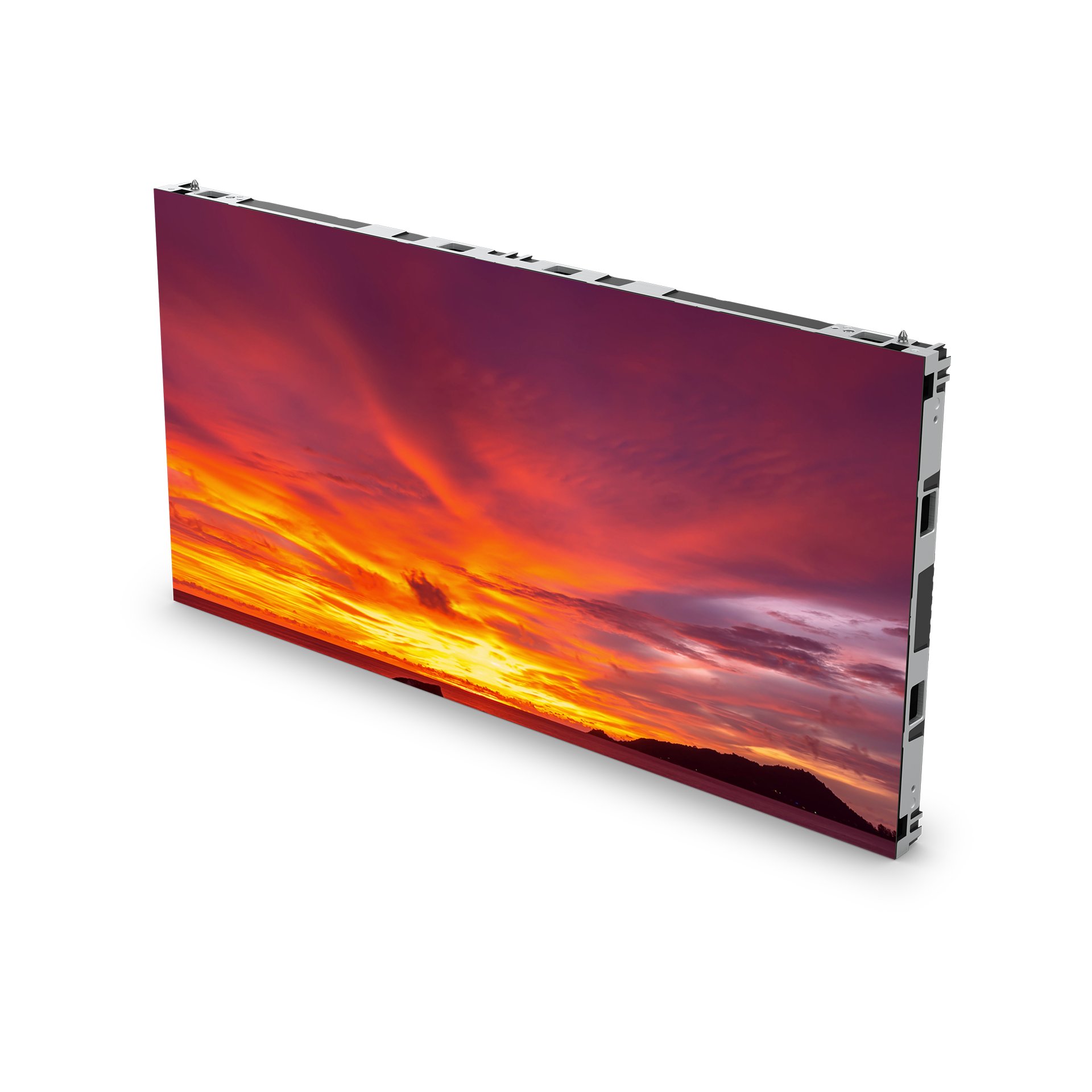

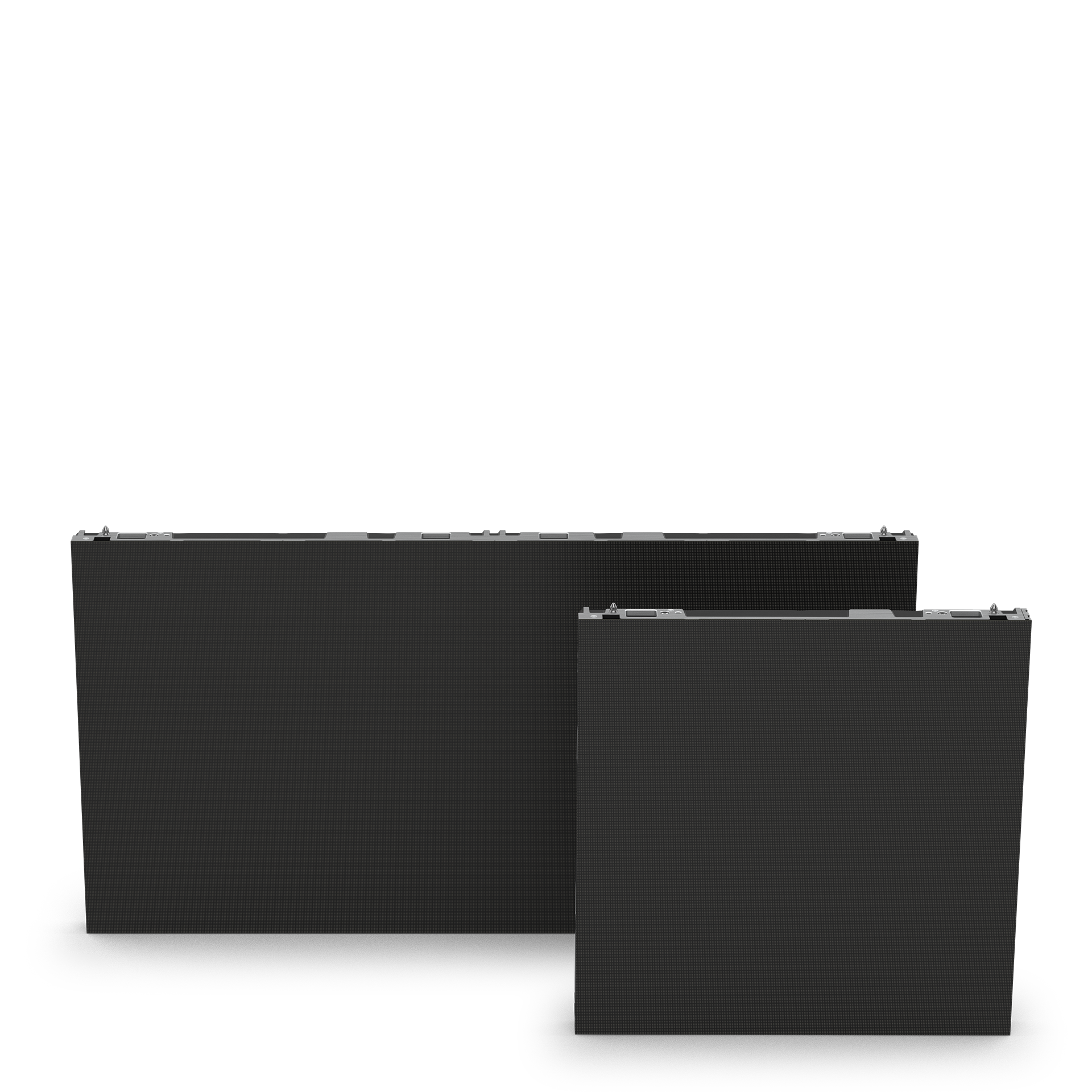

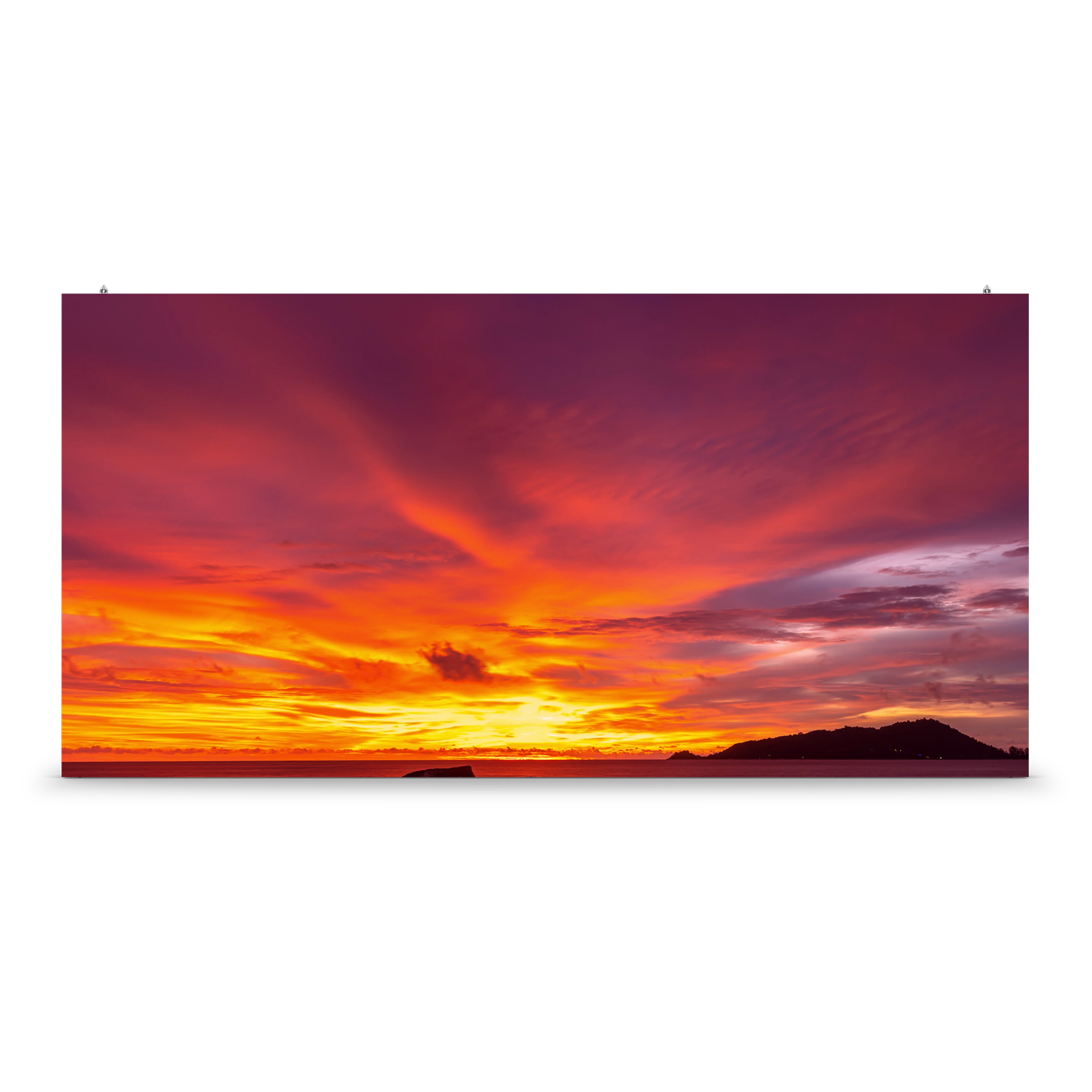

The REM Mira is offered in two physical sizes, 0.5 m x 1.0 m and 0.5 m x 0.5 m, for versatile configurations.
Seamless System Integration
Designed to work natively with the COEX VMP platform and MX-series processors and senders.
Magnetic LED Modules
Universal, magnetic modules allow for quick and effortless replacement and servicing.
Integrated Linking Hardware
Building a screen is fast and easy with minimal labor thanks to linking hardware integrated into the frames.
Ultra-Slim Profile
The slim cabinet design allows for mounting very close to a wall, reducing the overall side profile.
Exceptional Color Reproduction
Operating in the DCI-P3 color space, it accurately reproduces video with a wide color gamut and 22-bit+ grayscale.
High Refresh Rate
High-performance LED drivers deliver a 3,840 Hz refresh rate for camera-friendly operation in demanding applications.
Low Latency and HDR Support
Enjoy responsive, high-dynamic-range video with support for low latency and the HDR10 standard.
Front Serviceable Design
These panels are designed for wall mounting and allow for convenient service access from the front.
Complete Your Rig
Specifications
Optical
-
Light Source
SMD 2121 LEDs (tricolor RGB) (black body, white reflector)
-
LED Lifespan
100,000 hours life expectancy
-
Color Wavelength
red (620 to 625 nm), green (510 to 535 nm), blue (458 to 475 nm)
-
Color Space
DCI-P3
-
Viewing Angle (H/V)
140°/140°
-
Calibrated Illuminance
1200 NITS (calibrated)
-
Maximum Illuminance
>1,260 NITS (calibration disabled)
-
Contrast Ratio
8,500:1
-
Grayscale
22-bit+
-
Receiver Card
A10s Pro
-
Drive Type
1/16
-
Pixels
256 x 256
-
Pixel Pitch
3.9 mm
-
Minimum Viewing Distance
16.4 ft (5 m)
-
Pixel Density
65,536/m2
-
Display Refresh Rate
3,840 Hz (S-PWM)
Construction/Physical
-
Dimensions
39.37 x 19.69 x 1.84 in (1000 x 500 x 46.8 mm)
-
Weight
24.38 lb (11.06 kg)
-
Threaded Bolt
M10, 1.5
-
Exterior Color
Black
-
Housing Material
Aluminum ADC12
Connections
-
Power Connection
IEC to bare ended (sold separately)
-
Power Input
IEC
-
Power Output
IEC
-
Data Connectors
Ethernet RJ-45
-
-
Cable Length
-
(Signal Extension)
2 ft (0.61 m)
-
(Power)
32.9 ft (10 m)
-
(Power Extension)
2 ft (0.61 m)
-
-
Cable Length
Control
-
Control Protocol
Novastar VMP platform
-
Recommended Processor/Driver
Novastar MX40 Pro
-
Panel Resolution (L x H)
256 x 128
-
-
Maximum Panels Tall / Novastar MX40 Pro (adjust input/source resolution as needed)
-
1080 height
8
-
1344 height
10
-
1680 height
13
-
2160 height
16
-
-
Maximum Panels Tall / Novastar MX40 Pro (adjust input/source resolution as needed)
-
-
Maximum Panels Wide / Novastar MX40 Pro (adjust input/source resolution as needed)
-
1920 width
7
-
3840 width
15
-
8192 width
32
-
-
Maximum Panels Wide / Novastar MX40 Pro (adjust input/source resolution as needed)
Electrical
-
Input Voltage
100 to 240 VAC, 50/60 Hz (auto-ranging)
-
Power Linking
6 units @ 120 V; 10 units @ 208 V; 11 units @ 230 V
-
Power and Current
253 W, 2.1 A @ 120 V, 60 Hz
-
Power and Current
253 W, 1.21 A @ 208 V, 60 Hz
-
Power and Current
253 W, 1.1 A @ 230 V, 50 Hz
-
Power and Current
253 W, 1.05 A @ 240 V, 50 Hz [# A inrush]
Certifications/Qualifications
-
IP Rating
IP20 (indoor)
-
Operating Temperature
-4 °F to 122 °F (-20 °C to 50 °C)
Required Accessories
- Required Software: Novastar COEX VMP
- Controller (required): Novastar MX-series

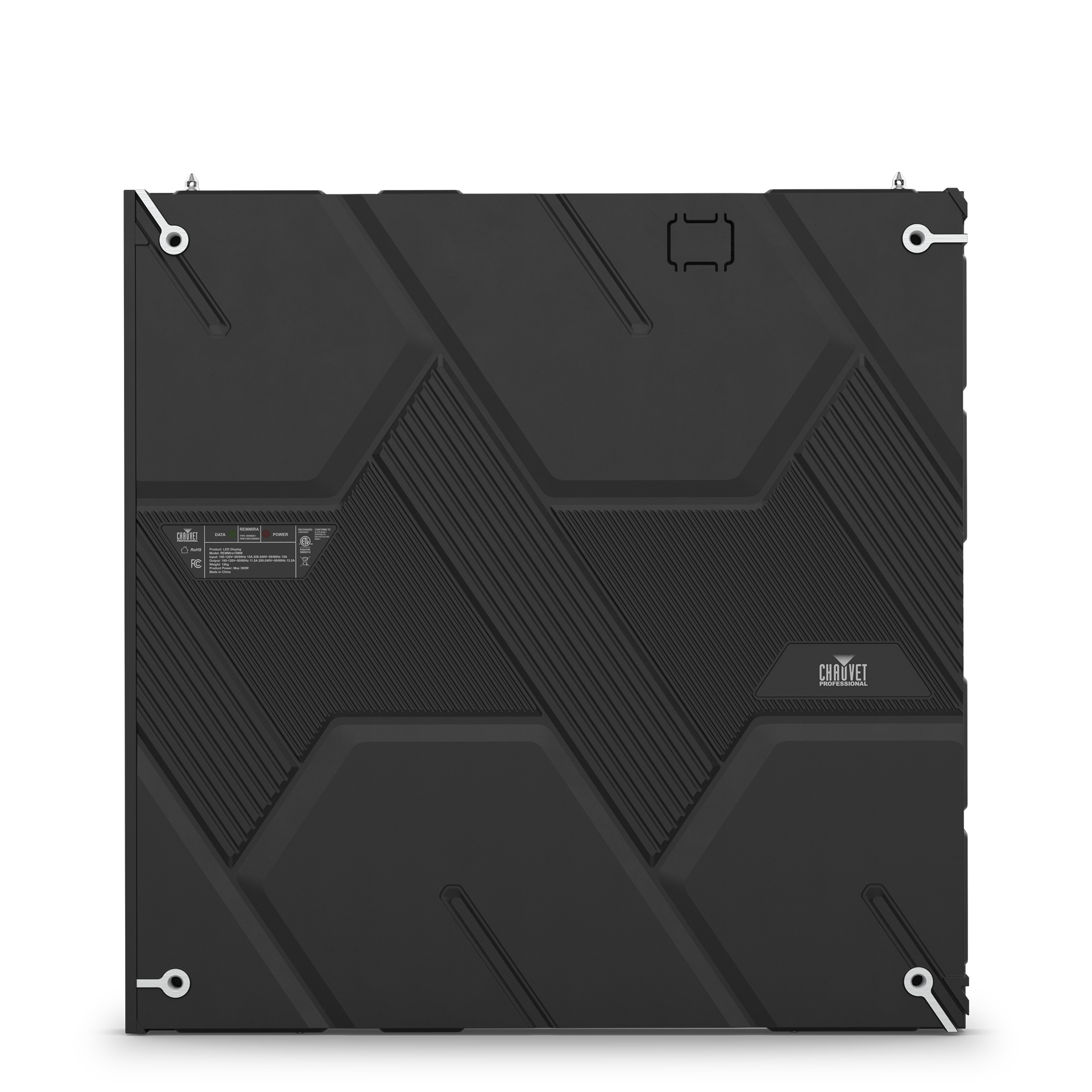

- Compatible Mounting Options: Rear M10 threaded inserts.
- MT-07
Compatible Accessories
- REM Mira 10m power cable (bare ended)
What's Included
- 1pc REMMira1000x500mm
- 8pc REMMIRALDM39mm
- 1pc Ethernet RJ45 linking cable
- 1pc IEC power linking cord
- Warranty Card
- Quick Reference Guide or User Manual
Questions or Concerns?
Let us know, we’re here to help! Contact Us
Downloads
Manuals | REM MIRA Installation Guide | Download |
REM MIRA 3.9mm FAQ’s
The REM MIRA 3.9mm is designed for simple and fast installation. Its ultra-slim profile allows it to be mounted very close to a wall, and built-in linking hardware lets you connect panels together with minimal effort. For maintenance, it’s fully front-serviceable, and its LED modules are magnetic, allowing for quick and easy replacement without needing to take the panel down.
Yes, it is excellent for on-camera use. The REM MIRA 3.9mm is designed to be camera-friendly with a high refresh rate that prevents flickering during recording. It also reproduces a wide range of vibrant and accurate colors, ensuring your video content looks professional and true-to-life on screen.
REM MIRA 3.9mm is ideal for creating high-resolution, permanent indoor video walls. Its slim, wall-hugging design and superb video quality make it perfect for corporate lobbies, broadcast studios, conference rooms, and any indoor space requiring a large, seamless, and high-performance display.
