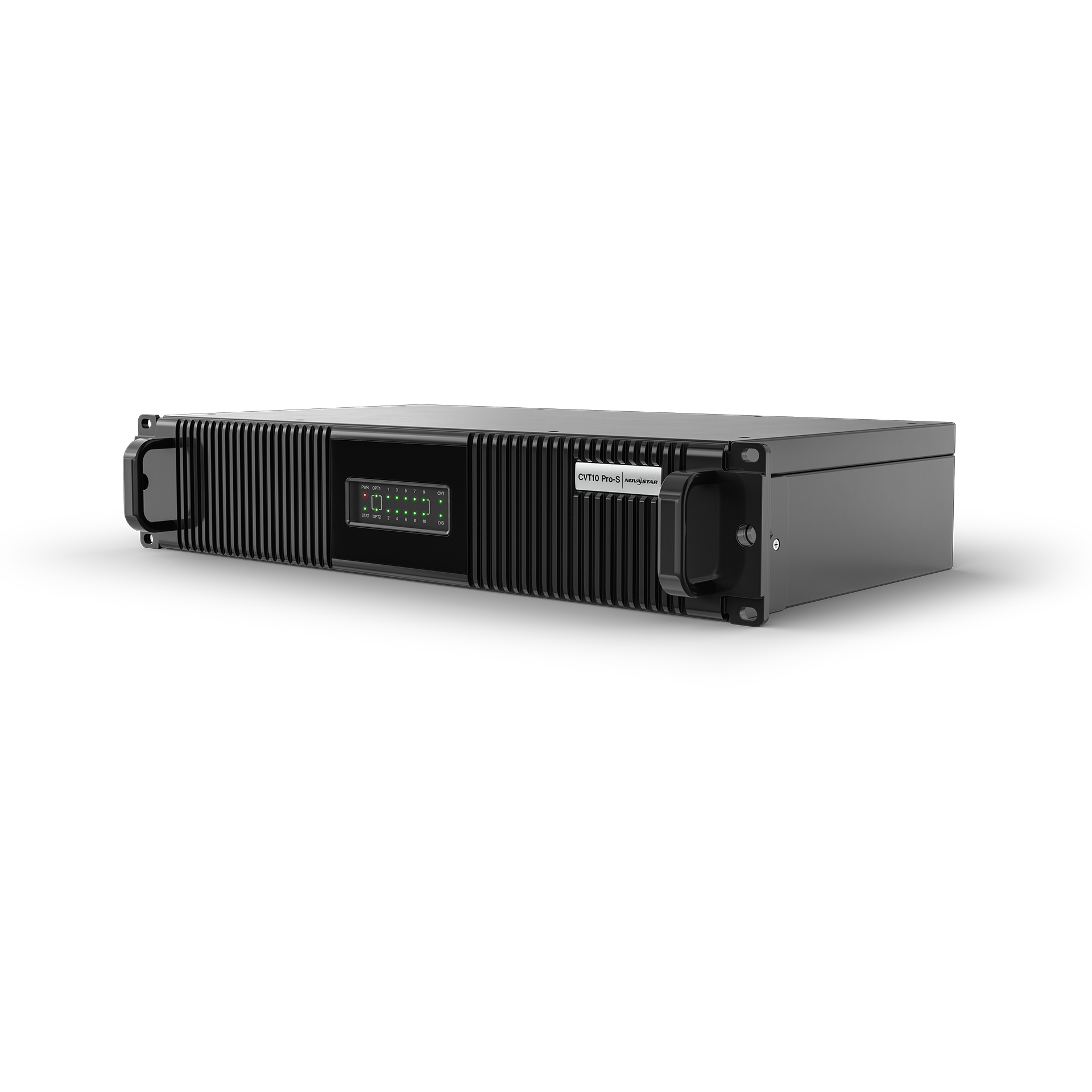

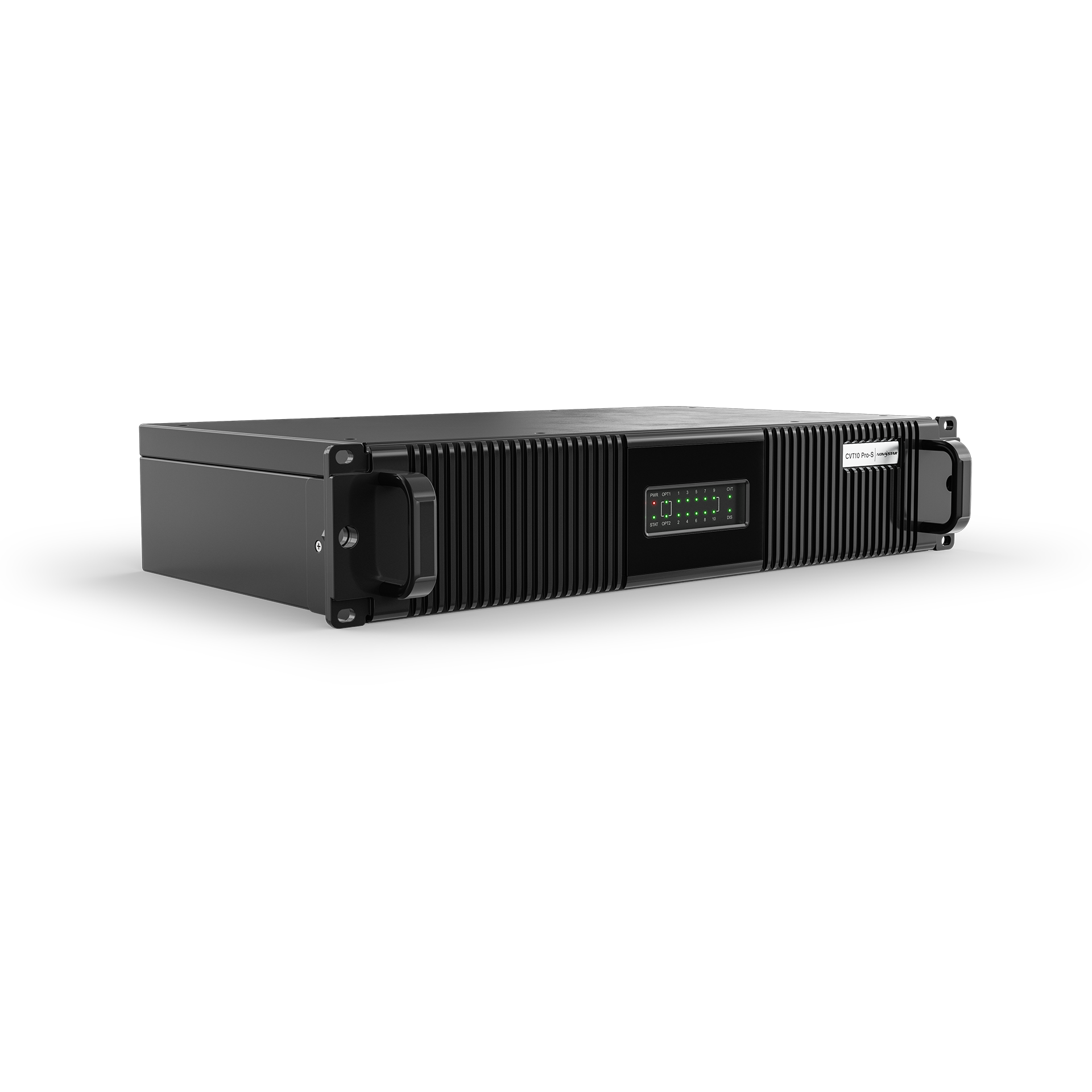

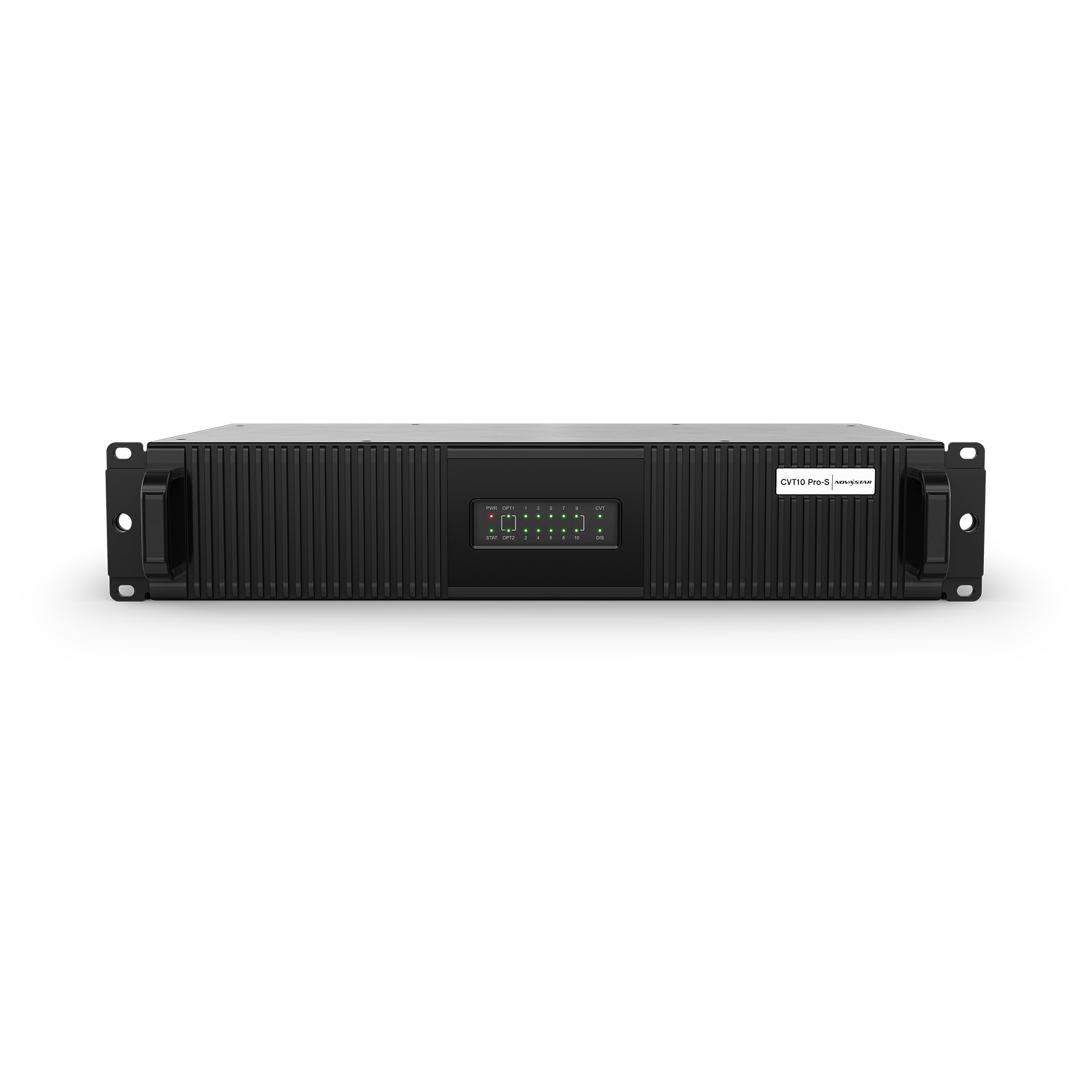

    NovaStar CVT-10 Pro

    The NovaStar CVT10 Pro is a rugged, IP65-rated single-mode fiber converter featuring ten Gigabit Ethernet ports that reliably bridges long-distance signal runs for NovaStar LED display systems.

    Its versatile, outdoor-rated 2U design for both truss and rack mounting makes it ideal for demanding event production and touring applications requiring stable, long-distance signal transmission.

    Request Demo

    Request A Product Demo

    Request a personalized demo or speak directly with our sales team today.

    Authorized Vendors
    Download Product Information
    SKU: NOVASTARCVT10PRO

    NovaStar CVT-10 Pro

    Specifications
    		 Download
    Download All Resources

    NovaStar CVT-10 Pro

    SKU: NOVASTARCVT10PRO

    NovaStar CVT10 Pro EO Converter is a rugged IP65-rated single-mode fiber converter that works with all NovaStar processors and supports 10x Gigabit Ethernet ports when used with the NovaStar MX40 Pro LED display controller. Full-duplex low-interference data transmission makes this converter suitable for bridging long-distance signal runs. Its outdoor-rated 19″ 2U design is suited to both truss and rack mounting, making it ideal for event production. Features include 10G optical modules, 1G Ethernet ports and a USB-B control port, along with durable Neutrik PowerCON and etherCON connectors and 2x M10 receivers for truss clamp attachment.

    Features

    Novastar Fiber to Ethernet Converter

    Converts fiber optic signals to Ethernet for reliable data distribution to video panels using the Novastar control protocol.

    Ten Ethernet Outputs

    Features ten full-duplex Ethernet output ports to connect to multiple video panel sections or devices.

    Redundant Fiber Inputs

    Includes both primary and backup fiber inputs to ensure a stable and uninterrupted signal connection.

    Redundant Ethernet Mode

    Supports a primary and backup working mode for the Ethernet outputs, guaranteeing continuous operation.

    Single Mode Fiber Technology

    Utilizes standard single-mode, 1310nm fiber converters for efficient long-distance signal transmission.

    Complete Your Rig

    Ensure flawless results with gear designed to complement and complete your professional setup.

    Specifications

    Download Product Specs

    Construction/Physical

    • Dimensions

      19x11x3.5 in (482.6x280x88.1 mm)

    • Weight

      13 lb (5.9 kg)

    • Mounting

      2U Rackmount Screws, 2x M10 Clamps

    Connections

    • Fiber Port(s) Type

      10 G, 1,310 nm Single Mode, 10 km Transmission Distance

    • Signal Connector (Fiber)

      Dual LC, Neutrik opticalCON DUO

    • Signal Connector (Ethernet)

      Neutrik etherCON

    • Firmware Update Port

      USB type-B

    • Fiber Module Config

      Primary & Backup (both preinstalled)

    • Display

      LED Power/Signal Indicators

    Electrical

    • Input Voltage

      100 to 240 VAC, 50/60 Hz (auto-ranging)

      • Power/Current
        • 120V, 60 Hz

          150 W / 1.25 A

        • 280V, 60 Hz

          150 W / 0.73 A

        • 230V, 50 Hz

          150 W / 0.66 A

        • 240V, 50 Hz

          150 W / 0.63 A

    Certifications/Qualifications

    • Listings

      EMC, LVD, FCC, CE, RCM, RoHS

    • IP Rating

      IP65 (temporary outdoor)

    • Thermal Dissipation

      512 BTU/hour

    • Operating Temperature

      -4 °F to 158 °F (-20 °C to 70 °C)

    Questions or Concerns?

    Let us know, we’re here to help! Contact Us

    NovaStar CVT-10 Pro FAQ’s

    Quickly find answers to common questions about setup, operation, and features of the NovaStar CVT-10 Pro
    What is the NovaStar CVT-10 Pro used for?

    The NovaStar CVT-10 Pro is a signal converter for large-scale LED video displays. It takes the signal from your video controller and sends it over very long distances using fiber optic cables. This is ideal for live events, concerts, or large installations where the control booth is far from the actual LED screen, ensuring a stable, high-quality signal reaches your display without interference.

    Is the NovaStar CVT-10 Pro durable enough for outdoor events?

    Yes, absolutely. The CVT-10 Pro is specifically built to handle the demands of outdoor and touring events. It features a tough, weather-resistant body and uses professional-grade, locking connectors for power and data, ensuring that all connections remain secure and reliable, even in busy or challenging environments.

    How do I set up and connect the NovaStar CVT-10 Pro?

    Setting up the CVT-10 Pro is designed to be straightforward. It can be easily mounted in a standard equipment rack or attached directly to a stage truss. You simply connect the main fiber optic cable from your video source to its input, and it provides ten standard network outputs to run cables to different sections of your LED wall, making signal distribution simple and organized.
