    Maverick MK1 Spot

    A versatile 350W LED moving head spot fixture featuring CMY color mixing, a 5:1 zoom, dual gobo wheels, variable frost, a 3-facet prism, and multiple control options.
    Perfect for theatrical productions, concert stages, and event installations where a compact, feature-rich spot luminaire is required.

    Read More Read Less
    Read More Read Less
    Request Demo

    Request A Product Demo

    Request a personalized demo or speak directly with our sales team today.

    Authorized Vendors
    Download Product Information
    Maverick MK1 Spot User Manual
    		 Download
    Maverick MK1 Spot Quick Reference Guide
    		 Download
    Maverick MK1 Spot CAD File
    		 Download
    Maverick MK1 Spot Photometric Report
    		 Download
    Maverick MK1 Spot IES Files
    		 Download
    Maverick MK1 Spot DMX Chart
    		 Download
    Case Study: Washington’s Ravens Night Masquerad…
    		 Download
    Case Study: Tom Willis Calls Accents Emotions O…
    		 Download
    Case Study: Blue Audio Ensures Bright Future fo…
    		 Download
    Firmware
    		 Download

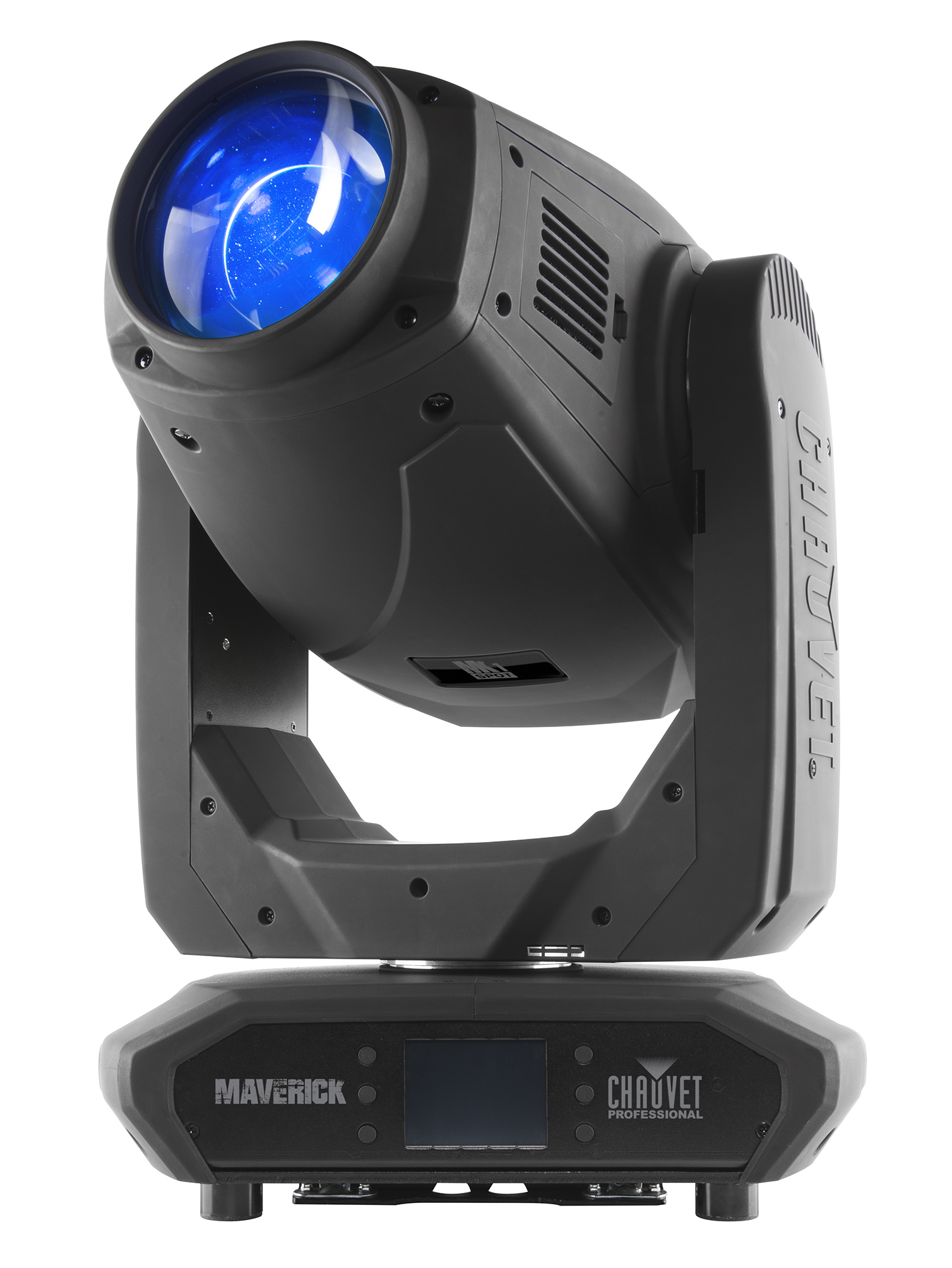

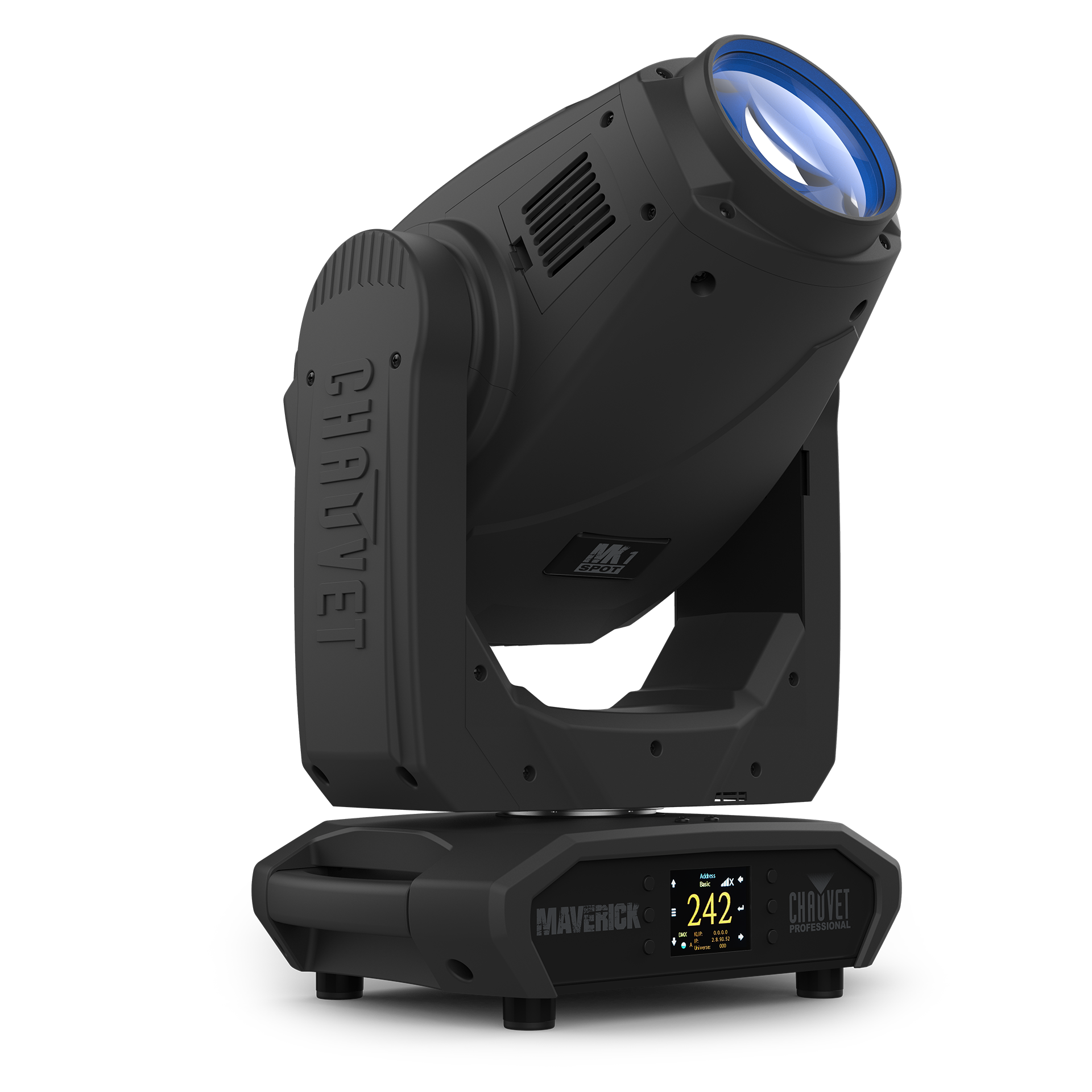

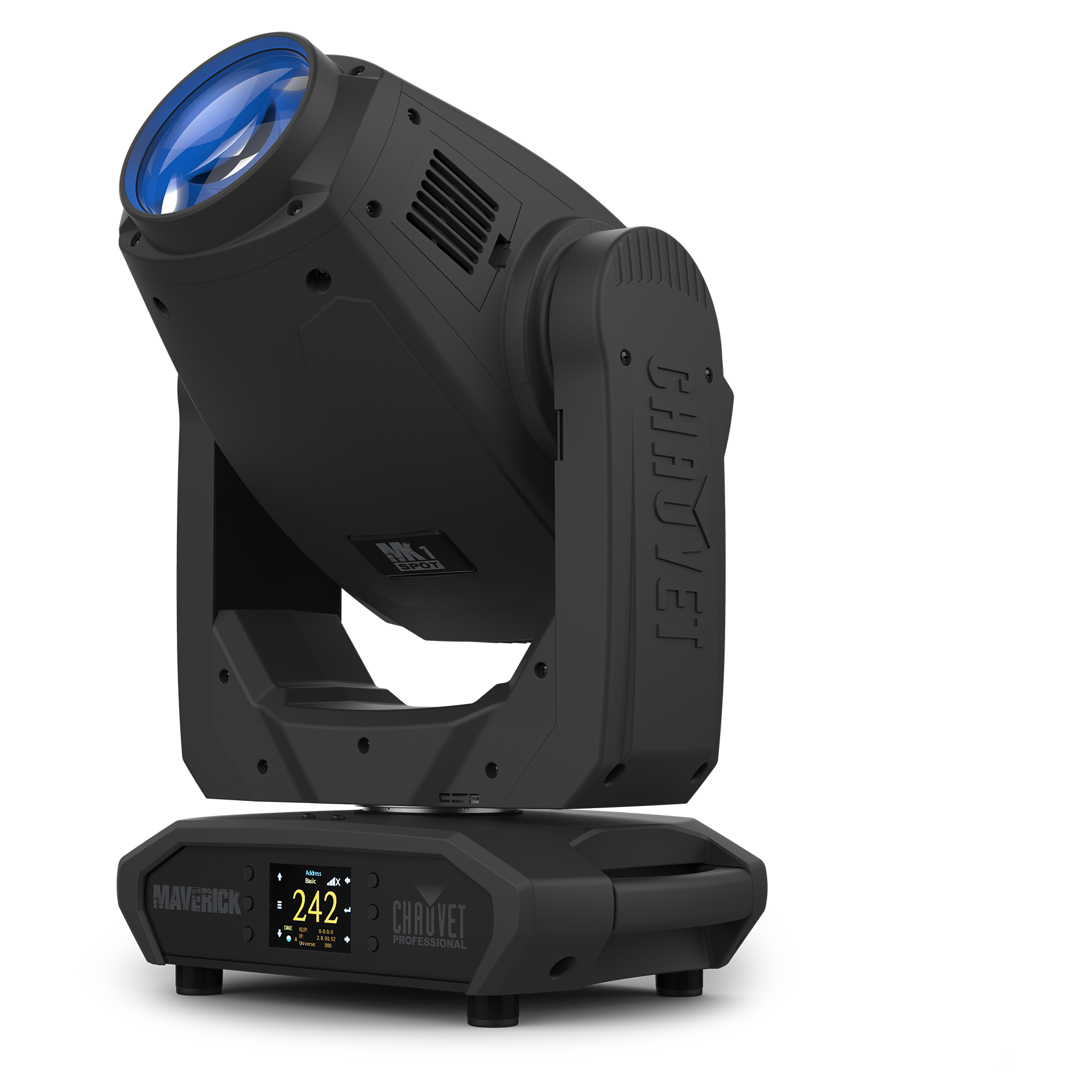

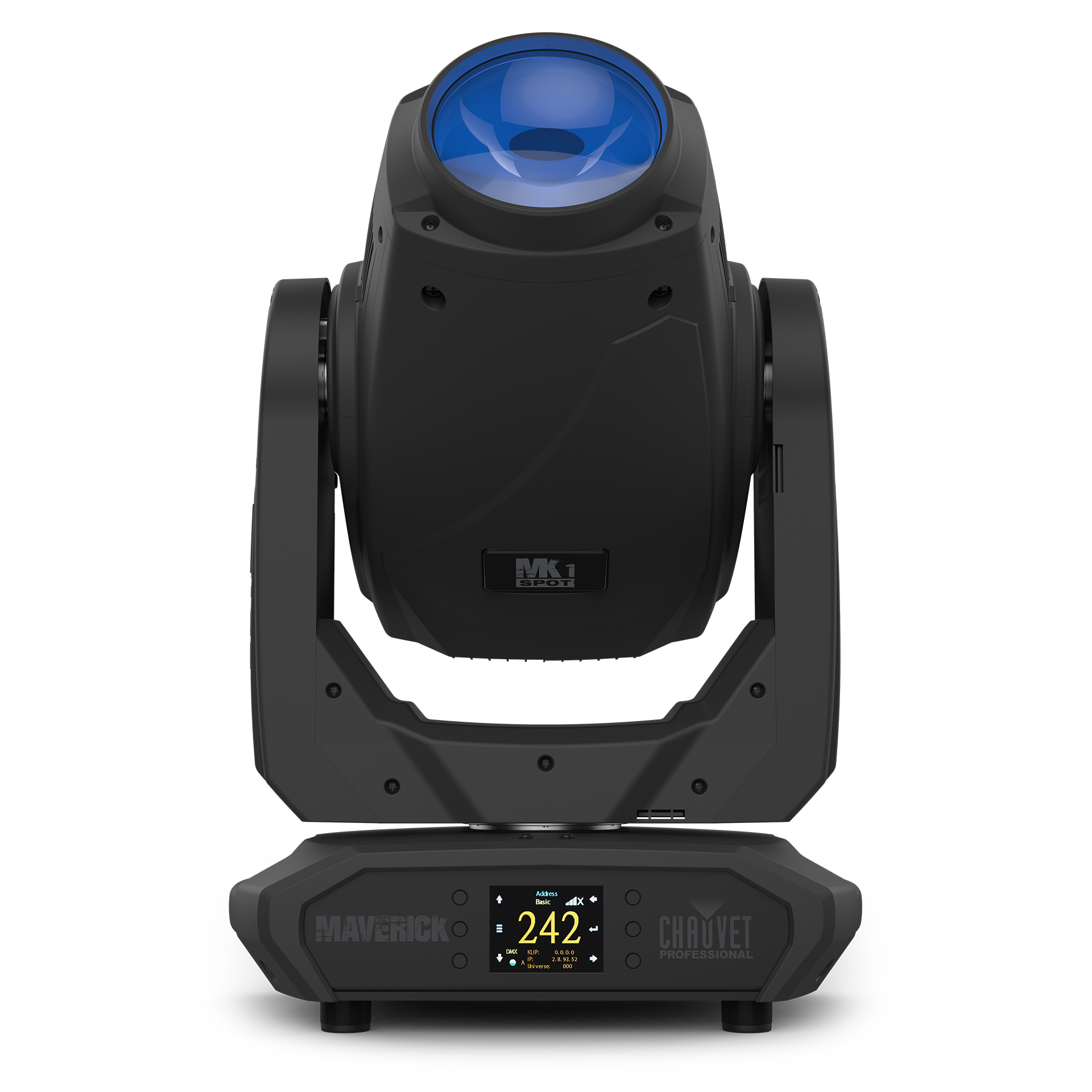

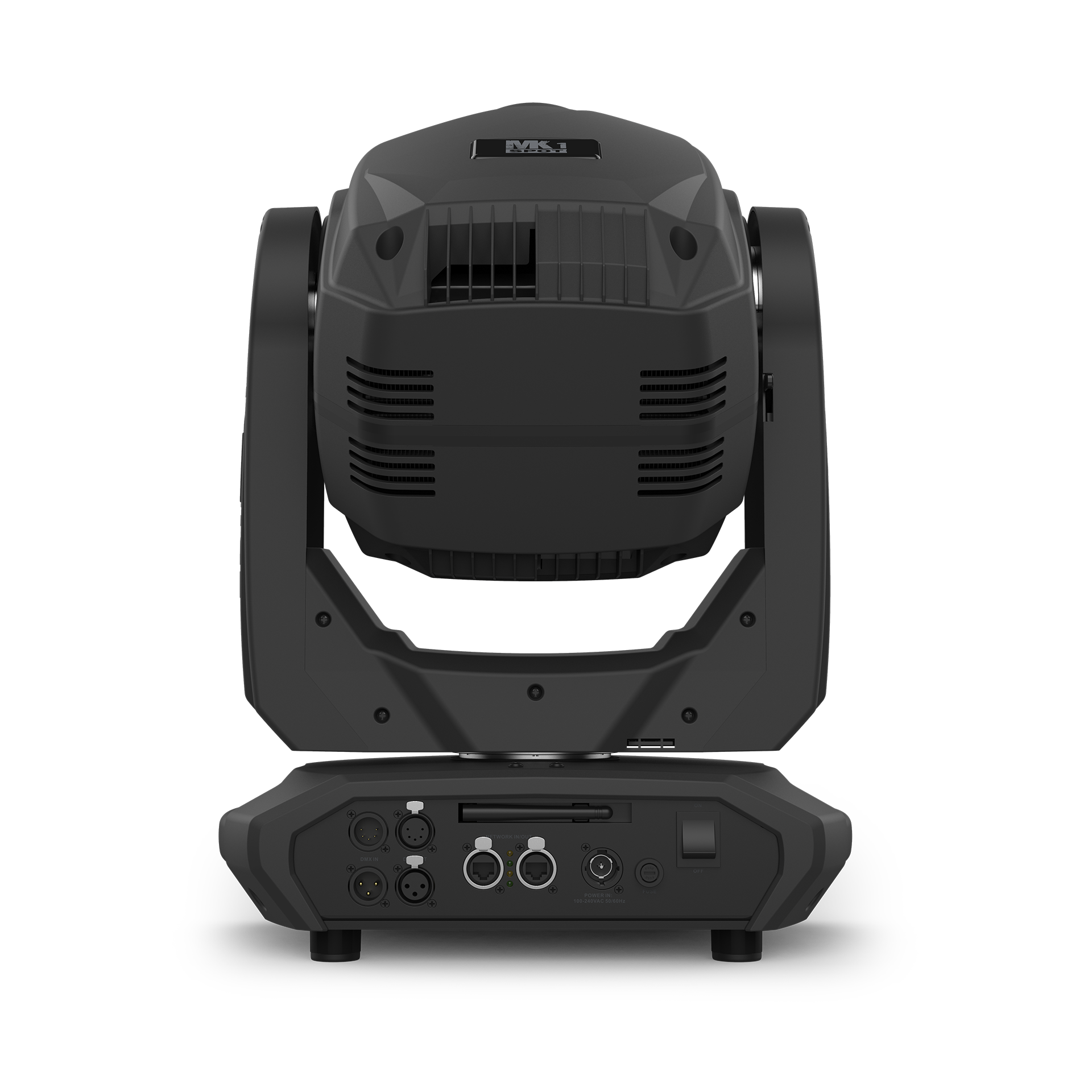

    Maverick MK1 Spot

    SKU: MAVERICKMK1SPOT

    Maverick MK1 Spot is ready for action with an extremely flat field, CMY color mixing, a 5:1 zoom and multiple control options. Powered by a 350 W LED engine, it features one static and one rotating gobo wheel, a 7 position + white color wheel, variable frost and 3-facet prism. It can be controlled with DMX, sACN, Art-Net, or W-DMX.

    Features

    350W LED Yoke Spot Fixture

    A fully featured fixture with CMY color mixing, a color wheel, zoom optics, and two gobo wheels.

    Smooth 16-Bit Dimming

    Achieve exceptionally smooth control of fades using the 16-bit master dimmer.

    Variable CMY Color Mixing

    Create an extensive pallet of rich colors with a dynamic and variable CMY color mixing system.

    Flexible Control Protocols

    Enjoy full flexibility of control options with integrated DMX, WDMX, sACN, and Art-Net support.

    RDM Enabled

    Simplify setup and maintenance with remote addressing and troubleshooting capabilities.

    Wide Zoom Range

    Cover a variety of applications with a versatile zoom angle that adjusts from 8.7° to 36.9°.

    Advanced Beam Shaping

    Refine your look with onboard beam control tools including an iris, a 3-facet prism, and a frost filter.

    Professional Power Connection

    Ensures a secure and reliable power connection with a True 1 compatible input.

    Auto-Rotating Touchscreen Display

    Access the menu anytime using the battery-backed touchscreen display that automatically orients itself.

    Easy Multi-Fixture Setup

    Quickly configure multiple units with three setup menu presets and a preset sync function.

    Complete Your Rig

    Ensure flawless results with gear designed to complement and complete your professional setup.

      Specifications

      Download Product Specs

      Optical

      • Light Source

        1 LED (CW) 350 W, (9.6 A), 6,808 K, 50,000 hours life expectancy

      • Color Temperature (at full)

        7000 K

      • Front Lens diameter

        135 mm

      • Beam Angle

        6.5° to 31.6°

      • Field Angle

        8.7° to 36.9°

      • Zoom Angle

        8.7° to 36.9°

      • Lumens – Source

        21,000

      • Lumens – Output

        9,436

        • Illuminance
          • Illuminance (7°)

            25,120 lux @ 5 m

          • Illuminance (33°)

            1,727 lux @ 5 m

      • Selectable PWM

        600 Hz, 1200 Hz, 2000 Hz, 4000 Hz, 6000 Hz, 25,000 Hz

      Dynamic Effects

      • Pan and Tilt

        540°/270°

      • Pan and Tilt Ranges

        540°, 360°, 180° pan/270°, 180°, 90° tilt

      • Colors

        7 + white, split colors, continuous scroll at variable speeds

      • Colors

        CMY flags

      • Gobos (1)

        7 + open (7 glass), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds

      • Gobos (2)

        7 + open (7 metal), continuous scroll at variable speeds

      • Gobo Size (1)

        Gobo Wheel 1 (rotating): 26 mm (outside), 22 mm (image), 1.2 mm (max. thickness)

      • Dimmer

        Electronic

      • Shutter/Strobe

        Electronic

      • Zoom

        Motorized

      • Focus

        Motorized

      • Frost

        Motorized

      • Iris

        Motorized

      • Prism

        3 Facets, motorized, rotating

      • Strobe Rate

        0 to 20 Hz

      • Move-in-Black

        Yes

      • Dim Curves

        4

      Construction/Physical

      • Dimensions

        15.5 x 9.8 x 25.0 in (394 x 250 x 636 mm)

      • Weight

        60 lb (27.2 kg)

      • Exterior Color

        Black

      • Housing Material

        High-impact flame-retardant polymer

      Connections

      • Power Connection

        Edison plug to Seetronic Powerkon IP65

      • Power Input

        Seetronic Powerkon IP65

      • Data Connectors

        3- and 5-pin XLR, Amphenol XLR Net RJ45 connectors in/out

      • Cable Length (power)

        5 ft (1.5 m)

      Control

      • Control Protocol

        Art-Net, sACN, DMX, W-DMX

      • DMX Channels

        22 or 29

      • Art-Net Channels

        22 or 29

      • Modes/Personalities

        2 personalities (22, 29)

      Electrical

      • Input Voltage

        100 to 240 VAC, 50/60 Hz (auto-ranging)

      • Power and Current

        592 W, 5.07 A @ 120 V, 60 Hz

      • Power and Current

        555 W, 2.74 A @ 208 V, 60 Hz

      • Power and Current

        536 W, 2.47 A @ 230 V, 50 Hz

      Certifications/Qualifications

      • Certifications

        CE, MET

      • IP Rating

        IP20, dry location

      Compatible Accessories

      • Professional Clamps: CTC-50HC, CTC-50HCN
      • Safety Cable: SC-07
      • DMX Cables
      • Flight Case: CP2CASEMK
      • UPLOAD 08 software uploader

      What's Included

      • Seetronic Powerkon IP65 power cord
      • Omega bracket with mounting hardware

      Questions or Concerns?

      Let us know, we’re here to help! Contact Us

      Downloads

      Download All
      Manuals
      Maverick MK1 Spot User Manual
      		Download
      Manuals
      Maverick MK1 Spot Quick Reference Guide
      		Download
      Drawings
      Maverick MK1 Spot CAD File
      		Download
      Photometrics
      Maverick MK1 Spot Photometric Report
      		Download
      Photometrics
      Maverick MK1 Spot IES Files
      		Download
      DMX
      Maverick MK1 Spot DMX Chart
      		Download
      Case Studies
      Case Study: Washington’s Ravens Night Masquerade Ball Moves in Step
      		Download
      Case Studies
      Case Study: Tom Willis Calls Accents Emotions Of Les Misérables
      		Download
      Case Studies
      Case Study: Blue Audio Ensures Bright Future for Resonate Music Conference
      		Download
      Other
      Maverick MK1 Spot – Firmware
      		Download

      Learn How To Use Your Maverick MK1 Spot

      Explore these detailed videos showcasing setup, features, and creative applications for this product.

      • Maverick MK1 Spot by CHAUVET Professional

        Command the stage with the Maverick MK1 Spot, a feature-rich 350W LED moving head built for action. It empowers your designs with versatile CMY color mixing, dual gobo wheels, and a 5:1 zoom, all delivered with flexible control options for any professional production.

      • Maverick MK1 & MK3 Preview by CHAUVET Professional

        Preview the Maverick MK1 Spot and Maverick MK3 Wash, two powerful moving heads from CHAUVET Professional. Engineered for creative impact, these fixtures deliver the precision for crisp gobo projection and the power for broad, saturated color washes, empowering any lighting design.

      Video Library

      Maverick MK1 Spot FAQ’s

      Quickly find answers to common questions about setup, operation, and features of the Maverick MK1 Spot
      What kind of lighting effects can the Maverick MK1 Spot produce?

      This versatile fixture is packed with creative tools to shape light. It can project sharp patterns using two different wheels of shapes (gobos), one with rotating designs and one with static ones. You can also use its zoom to change the beam size, a frost effect to soften the light for a wash look, and a prism to split the beam into three separate projections for wider coverage.

      What color options does the Maverick MK1 Spot have?

      The Maverick MK1 Spot offers two ways to create stunning colors. It features a full CMY color mixing system, which lets you blend colors to create a nearly endless palette of custom shades. For quick changes, it also includes a separate wheel with 7 bold, pre-set colors plus white.

      How is the Maverick MK1 Spot controlled and set up?

      It is designed for flexible and easy setup. You can control it using standard wired connections or wirelessly with its built-in receiver, which reduces the need for long data cables. It also features a battery-powered, auto-rotating touchscreen, allowing you to configure its settings easily, even before the fixture is plugged into a power source.
