    F6 Strip IP

    An outdoor-ready and uniquely shaped 6.9 mm pixel pitch video panel that creates linear designs and seamlessly integrates with other F-series video walls.
    Ideal for lining set-pieces, stages, and creative installations to add linear video elements that complement larger video walls in both indoor and outdoor environments.

    Read More Read Less
    Read More Read Less
    Request Demo

    Request A Product Demo

    Request a personalized demo or speak directly with our sales team today.

    Authorized Vendors
    Download Product Information
    SKU: F6STRIPIP

    F6 Strip IP

    Specifications
    		 Download
    Quick Reference Guide
    		 Download
    Cutsheet
    		 Download
    CAD/DWG
    		 Download
    Firmware
    		 Download
    Product Images
    		 Download
    Download All Resources

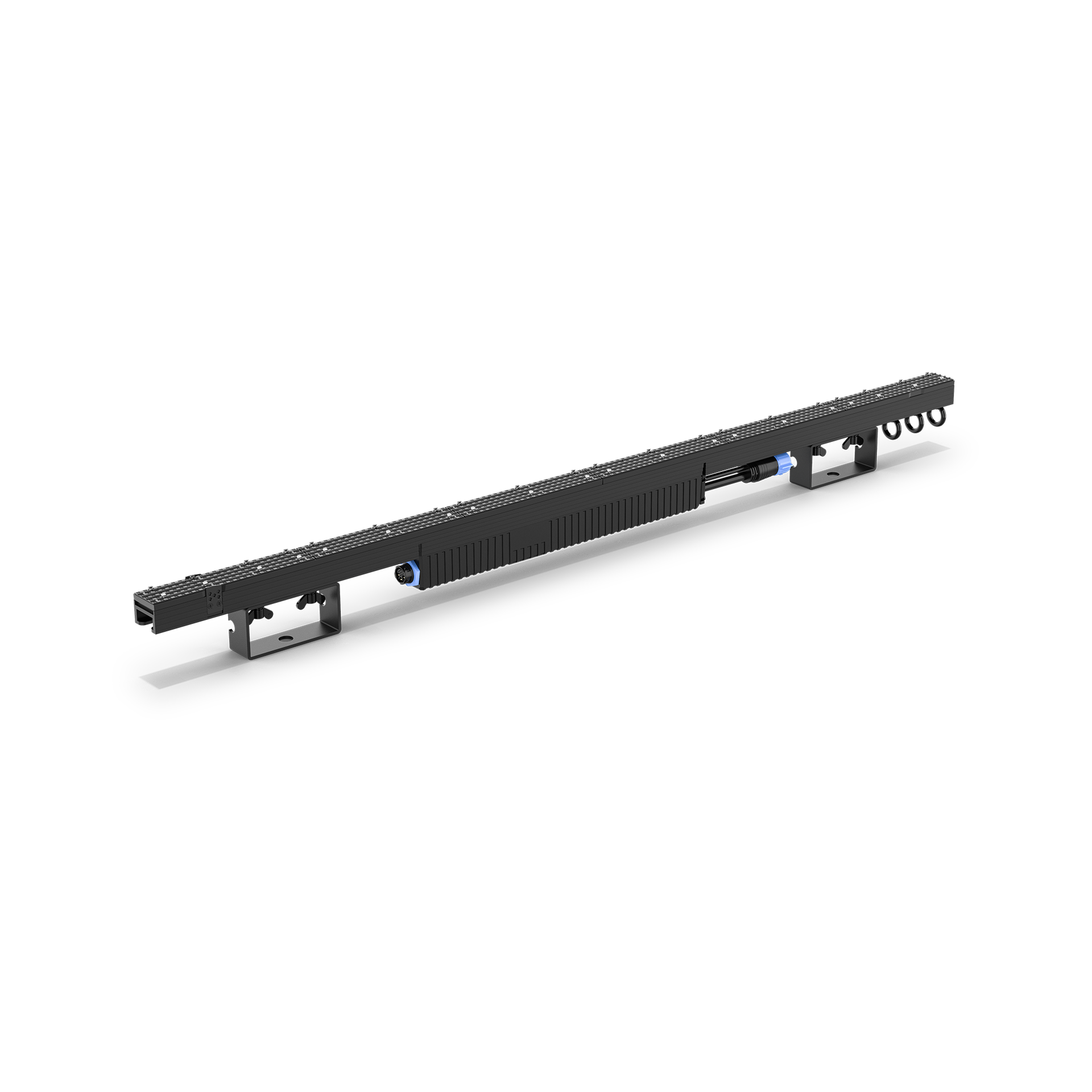

    F6 Strip IP

    SKU: F6STRIPIP

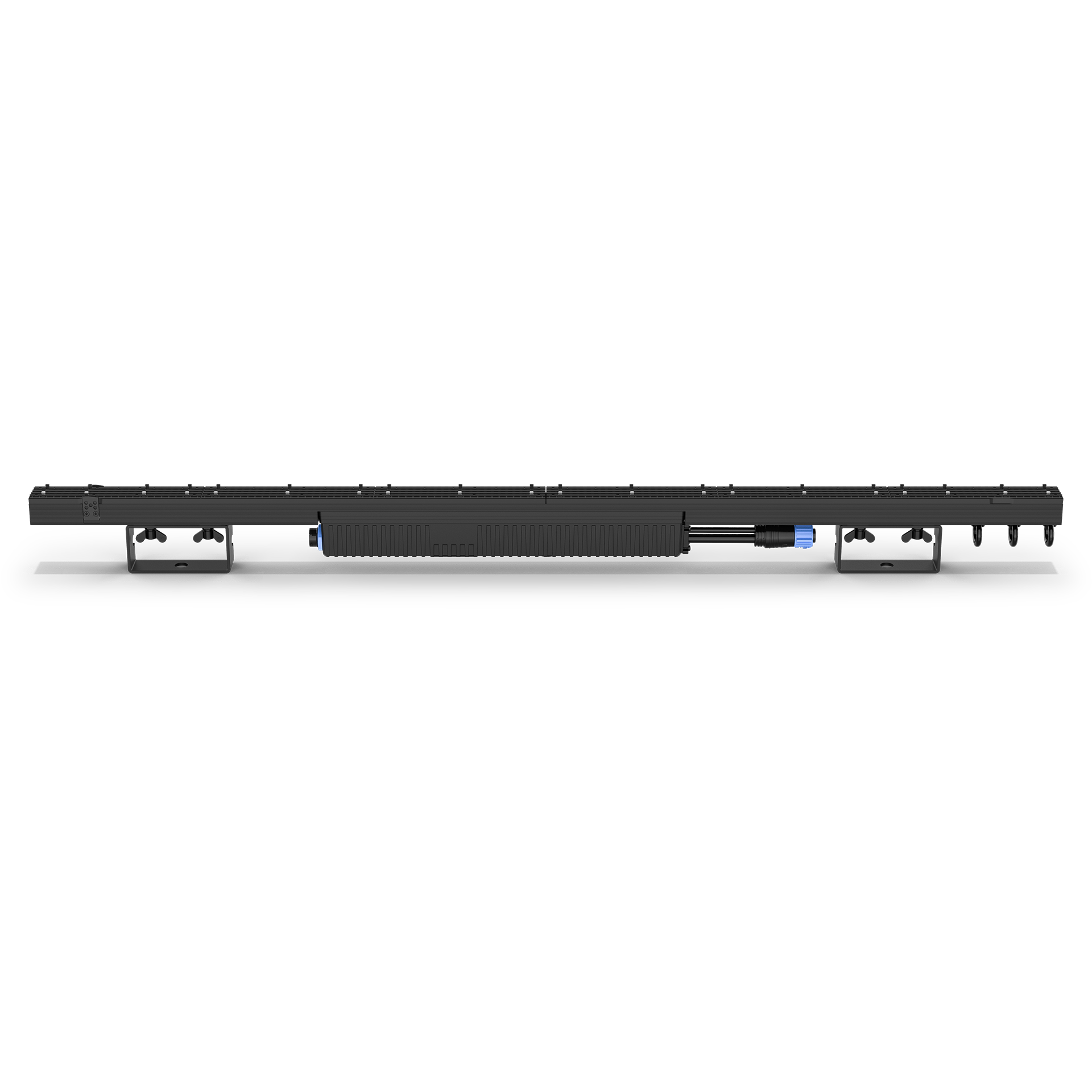

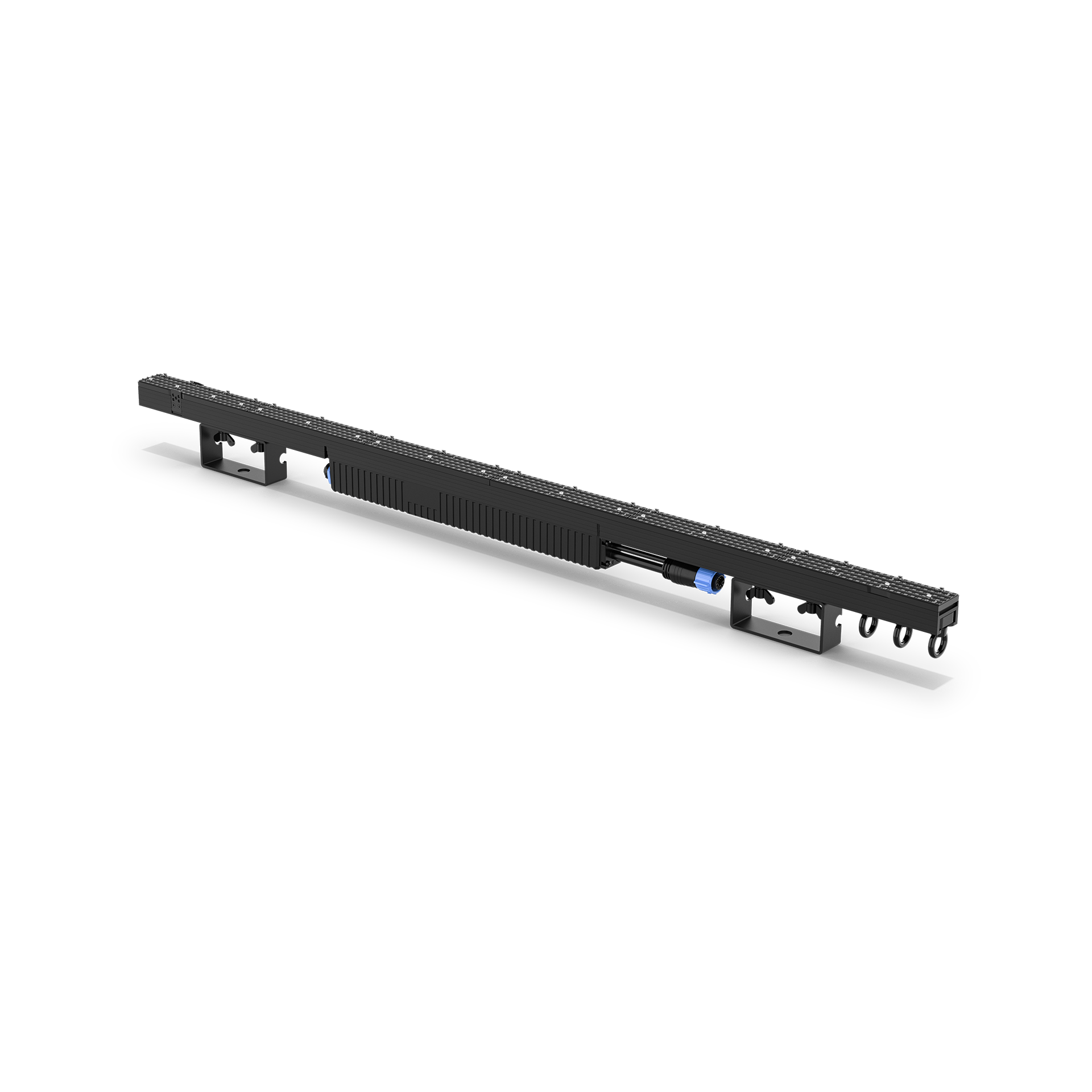

    F6 Strip IP is an outdoor-ready, uniquely shaped 6.9 mm pixel pitch video panel that can be used to line set-pieces and configure designs that compliment other video wall panels in the F-series (F2, F3, F4IP, F5IP). Since it takes HDMI/DVI/SDI directly into the VIP Drive 83R video processor and features the same mapping software (Smart-LCT) as other F-series video panels, there is no need to setup a separate, dedicated video server when using F6 Strip IP with other video panels in the range. Its elongated, die-cast housing makes this product among the lightest and slimmest in its class without compromising its strength. F6 Strip IP runs on the Novastar control platform, and includes 2 diffusion filters (square soft white, square black stealth) for further versatility.

    Features

    High Resolution Outdoor Video Strip

    A 6.9 mm pitch video strip provides high-resolution outdoor displays and operates on the Novastar control protocol.

    High Quality Black Body LEDs

    Black body LEDs deliver accurate video reproduction with 15-bit grayscale, managed by a custom Novastar receiver card.

    High Contrast Ratio

    A 5000:1 contrast ratio ensures deep blacks and vibrant colors for superior video performance.

    High Refresh Rate

    High-performance digital LED drivers provide a flicker-free 5940Hz refresh rate for a clear and vibrant image.

    Intelligent Modular Design

    Modular LED units with dedicated memory store factory calibration data to ensure image consistency and simplify maintenance.

    Lightweight and Slim Profile

    The slim aluminum and die-cast housing makes this one of the lightest and most compact video strips available without compromising strength.

    Versatile Rigging and Angling

    A specialized design supports seamless end-to-end linking, hanging, and 180-degree angling for creative setups.

    Consistent Pixel Pitch

    The design maintains a consistent pixel pitch across linked units, even with diffusion filters installed, for a seamless display.

    Enhanced LED Protection

    Multiple design features, including front standoffs and a resilient mask, protect the LEDs from impact damage during handling.

    Flexible Mounting Options

    The strip includes adjustable 13mm side brackets and a central M12 threaded insert for multiple mounting possibilities.

    Optimized Heat Dissipation

    Optimized convection cooling dissipates heat effectively to ensure consistent color uniformity across the entire strip.

    Dedicated Compact Power Supply

    A compact power supply designed specifically for this product provides increased system stability.

    Versatile IP-Rated Cabling

    IP-rated 2-in-1 power and data cables with powerKON and etherKON connectors simplify setup with linking, break-in, and break-out options.

    Included Diffusion Filters

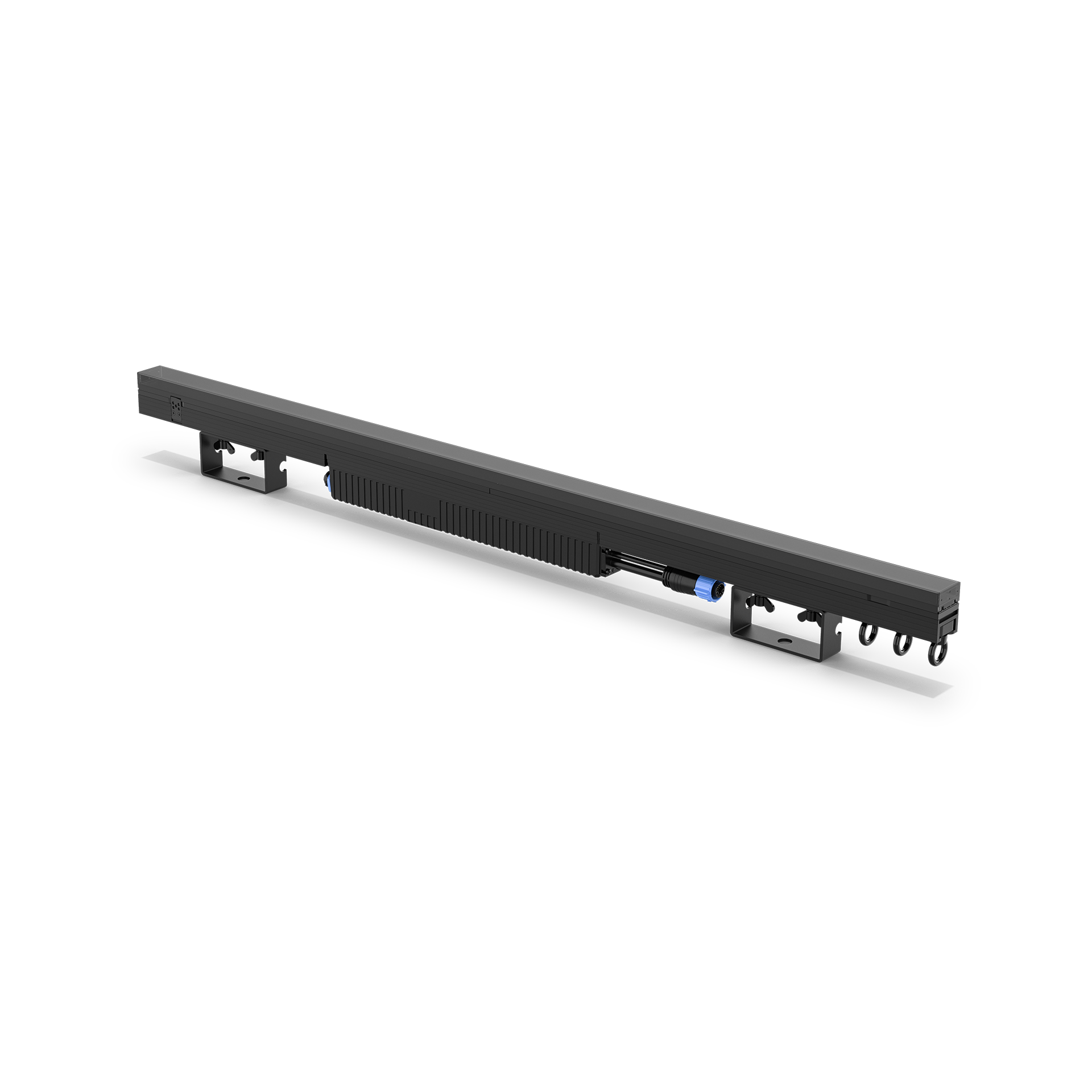

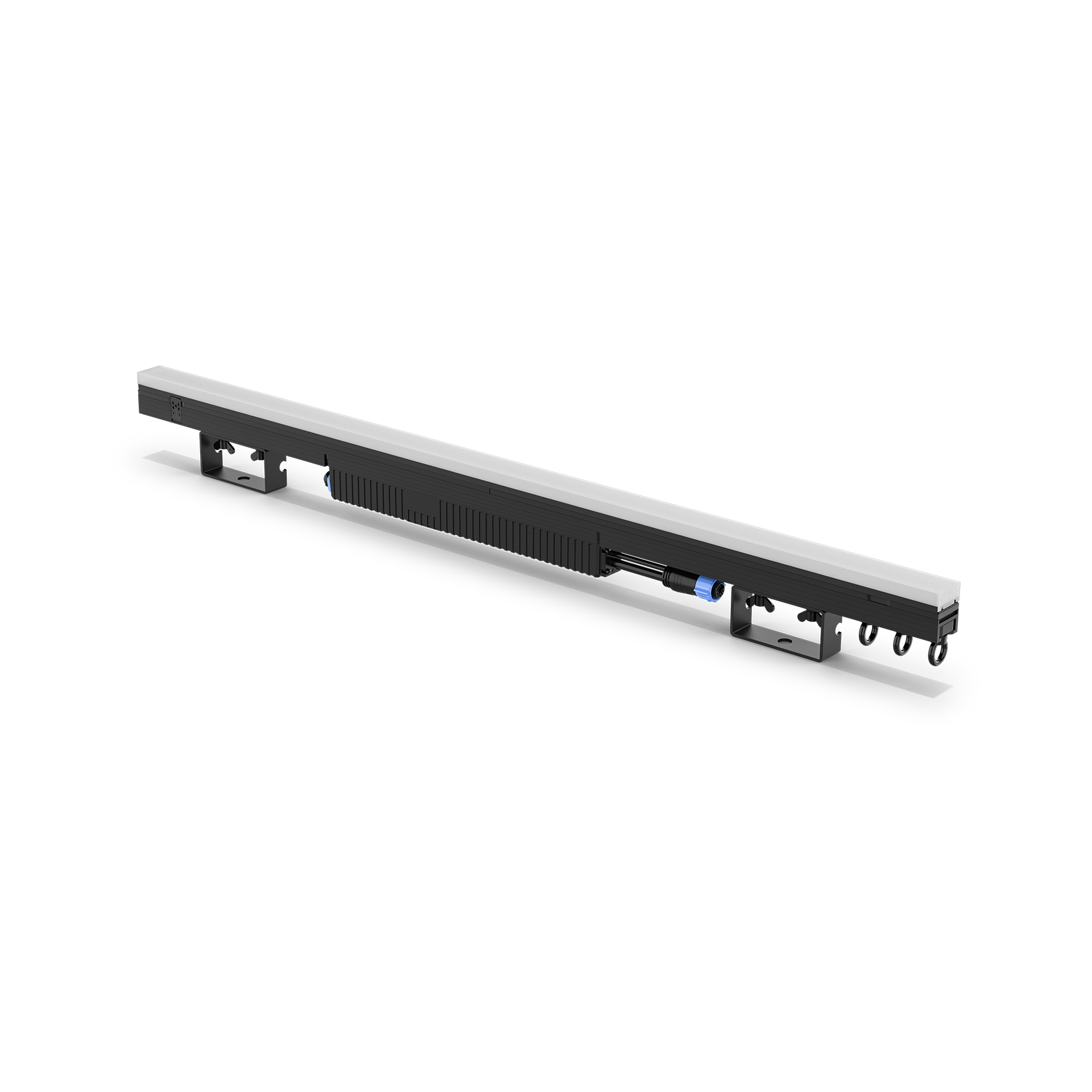

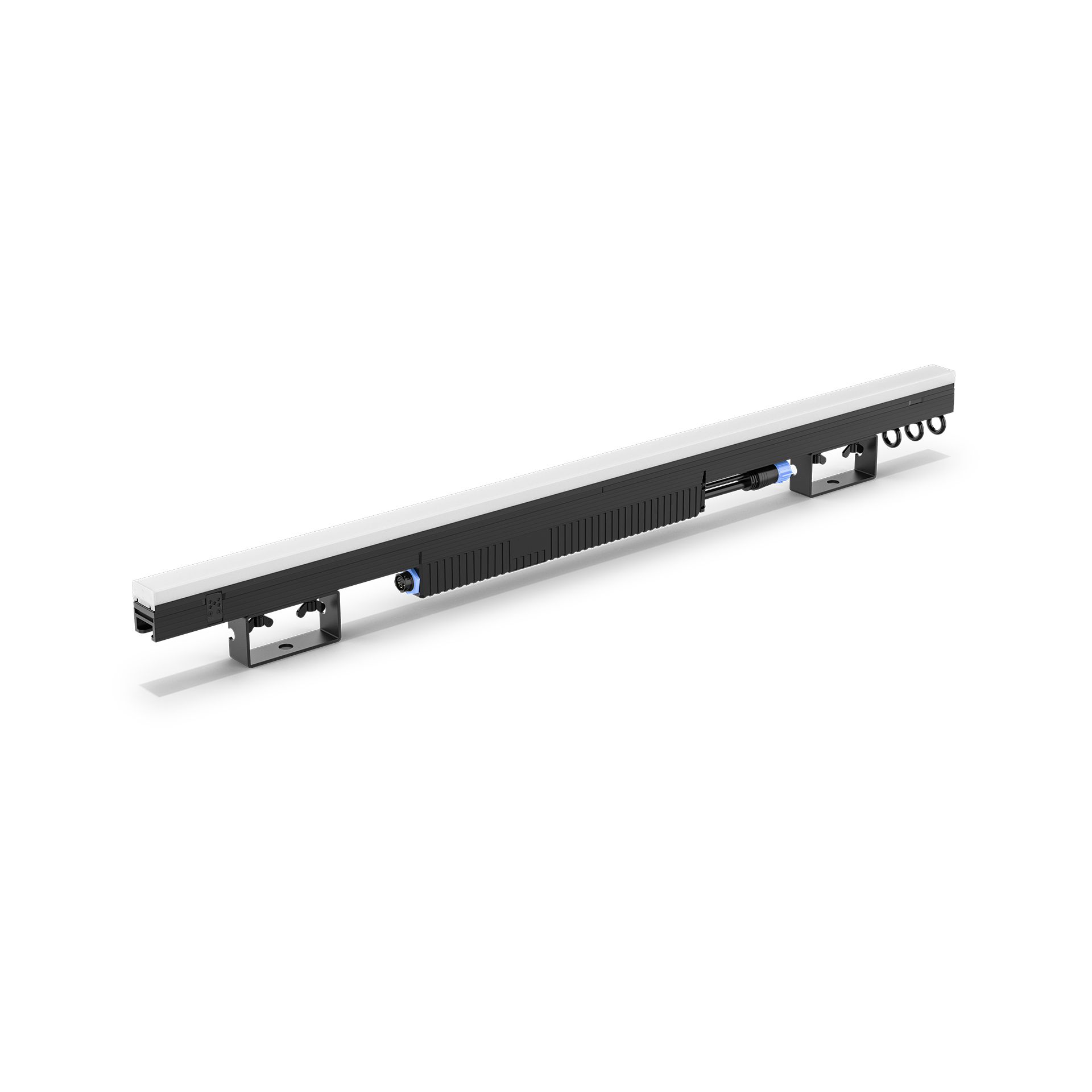

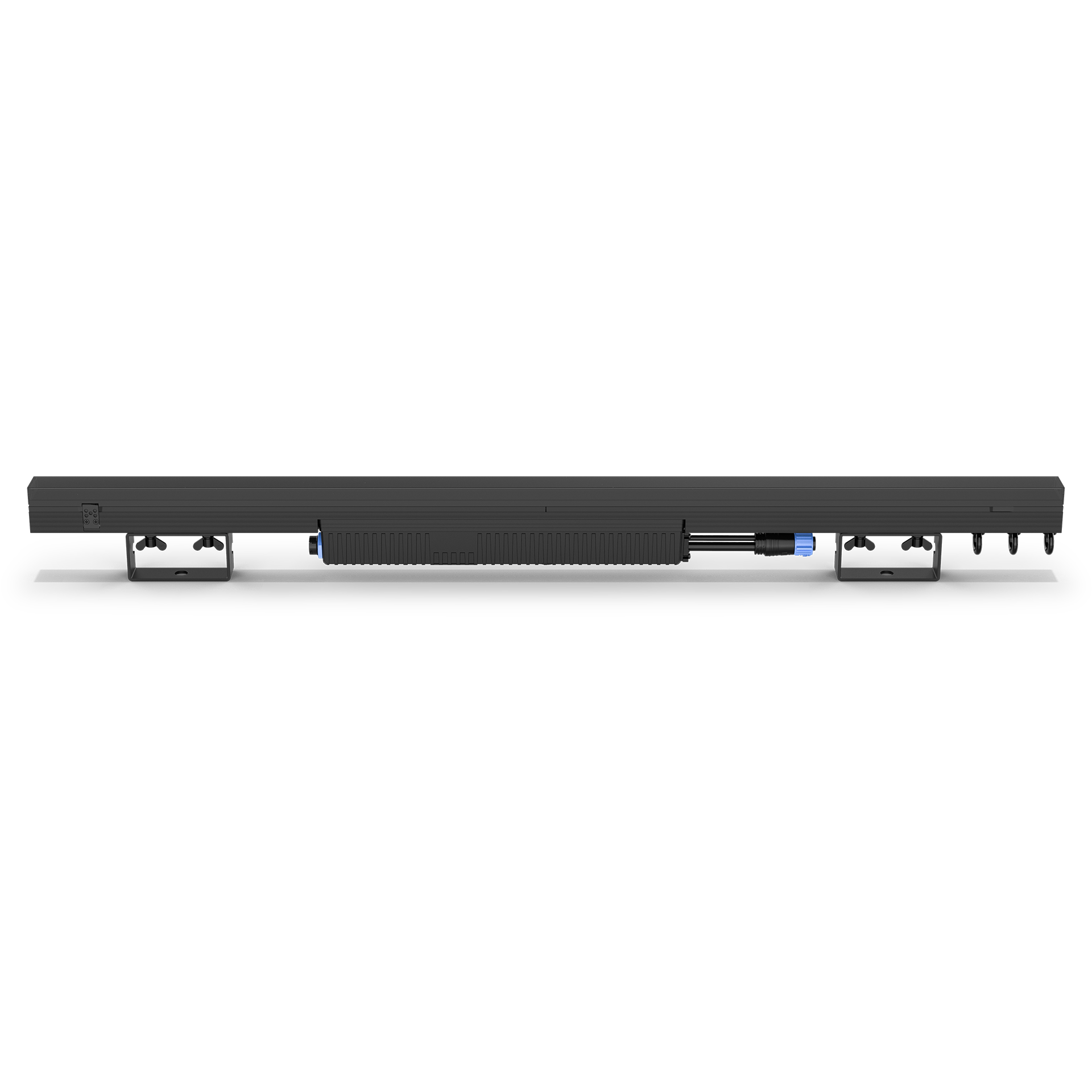

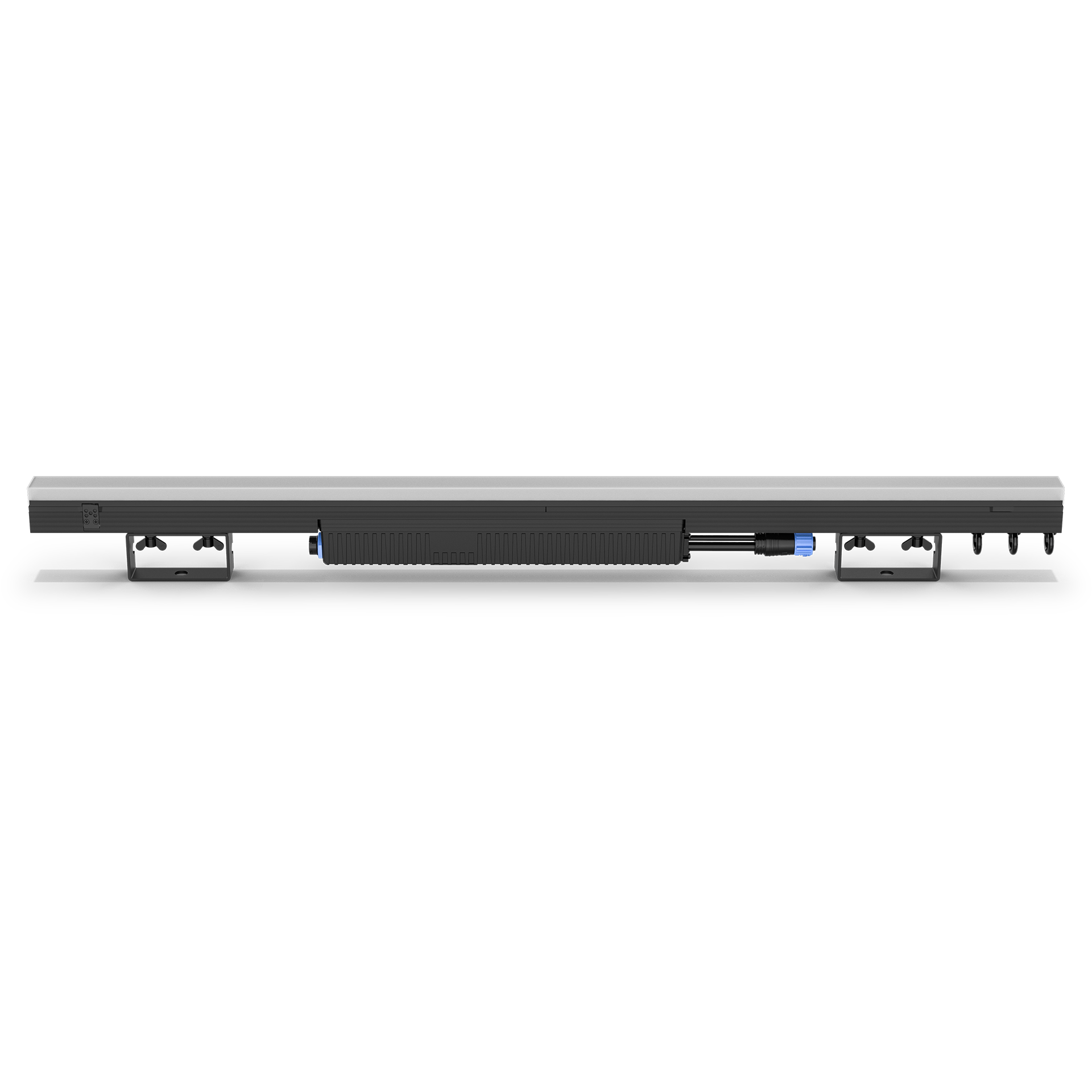

    Two diffusion filters, a soft white and a black stealth, are included to modify the strip’s visual output.

    Required Controller

    Operation of the video strip requires the VIP Drive 83R Nova.

    Latest News

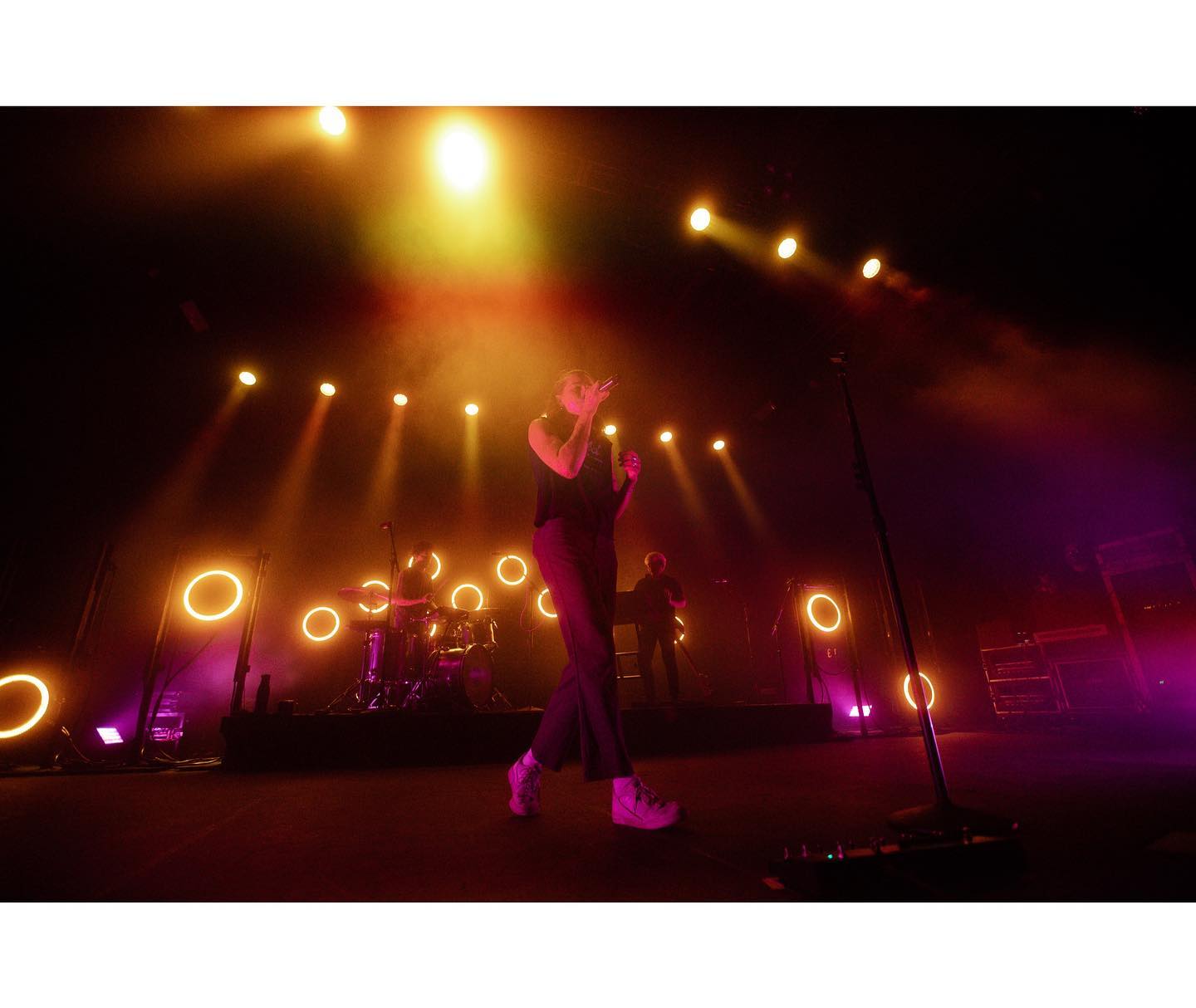

    Lenny Sasso and CHAUVET Professional F6 Strip IP Reflect Many Sides of PVRIS
    Lighting designer Lenny Sasso mirrors the passion of PVRIS with a richly textured, multidimensional show.
    Read more
    New CHAUVET Professional F6 Strip IP Linear Video Panel Unleashes Imagination
    The F6 Strip IP linear video panel offers new freedom for creating imaginative video displays.
    Read more
    Lenny Sasso and CHAUVET Professional F6 Strip IP Reflect Many Sides of PVRIS
    Lighting designer Lenny Sasso mirrors the passion of PVRIS with a richly textured, multidimensional show.
    Read more
    New CHAUVET Professional F6 Strip IP Linear Video Panel Unleashes Imagination
    The F6 Strip IP linear video panel offers new freedom for creating imaginative video displays.
    Read more
    More Related News

    Complete Your Rig

    Ensure flawless results with gear designed to complement and complete your professional setup.

    Specifications

    Download Product Specs

    Optical

    • Light Source

      720 LEDs (tri-color RGB) SMD 1921, 50,000 hours life expectancy

    • Color Wavelength

      red (615 to 630 nm), green (515 to 535 nm), blue (460 to 475 nm)

    • Viewing Angle (H/V)

      160°/155°

    • Calibrated Illuminance

      5500 NITS

    • Maximum Illuminance

      5500 NITS

    • Contrast Ratio

      5,000: 1

    • Pixels

      144 x 5

    • Pixel Pitch

      6.9 mm

    • Minimum Viewing Distance

      10 ft (3 m)

    • Grayscale

      15 bit

    • Pixel Density

      20,736/m2

    • Display Refresh Rate

      5,940 Hz

    Construction/Physical

    • Dimensions

      39.37 x 1.36 x 2.69 x in (1,000 x 34.5 x 68.2 mm)

    • Weight

      4.85 lb (2.2 kg)

    • Threaded Bolt

      M12

    • Exterior Color

      Black

    • Housing Material

      Aluminum extrusion and Aluminum die-cast

    • Maximum vertical hang

      4 strips

    • Transparency

      0%

    Connections

    • Power Connection

      Edison (Local) plug to Seetronic TRUE1

    • Power Input

      Seetronic TRUE1

    • Power Output

      Seetronic TRUE1

    • Data Connectors

      Seetronic etherCON SE8FC-L

    • Cable Length (power)

      5 ft (1.5 m)

    Control

    • Control Protocol

      Novastar

    • Maximum Strips/VIP Drive 83R (0° or 90° orientation)

      70/port, 560/Drive (8 ports)

    • Maximum Strips Wide/VIP Drive 83R (horizontal orientation)

      26

    • Maximum Strips Tall/VIP Drive 83R (vertical orientation)

      7

    Electrical

    • Input Voltage

      100 to 240 VAC, 50/60 Hz (auto-ranging)

    • Power Linking

      50 units @ 120 V; 55 units @ 208 V; 60 units @ 230 V

    • Power and Current

      32 W, .265 A @ 120 V, 60 Hz

    • Power and Current

      52 W, .248 A @ 208 V, 60 Hz

    • Power and Current

      53 W, .229 A @ 230 V, 50 Hz

    • Power and Current (resting)

      3 W, .049 A @ 120 V, 60 Hz

    • Power and Current (resting)

      2 W, .038 A @ 208 V, 60 Hz

    • Power and Current (resting)

      2 W, .034 A @ 230 V, 50 Hz

    Certifications/Qualifications

    • Power and Current (resting)

      2 W, .034 A @ 230 V, 50 Hz

    • IP Rating

      IP65, temporary outdoors

    • Operating Temperature

      -4 °F to 122 °F (-20 °C to 50 °C)

    Required Accessories

    • Required Software: Nova Smart LCT
    • Controller (required): VIP Drive 83R Nova
    • Compatible Mounting Options: M12 clamp, ½” clamp, ¼-turn clamp
    • QUICKLOCKIPINCABLE- QUICK LOCK IP INPUT CABLE for etherKON and powerKON

    Compatible Accessories

    • ArKaos Media Master Express™ + KN software
    • Clamps
    • Seetronic TRUE1 cables
    • Neutrik etherCON cables
    • Fast clamp
    • QUICKLOCKIPEXT16IN: 2 IN 1 VIDEO EXTENSION CABLE-16INCH
    • QUICKLOCKIPEXT 5FT: 2 IN 1 VIDEO EXTENSION CABLE-5FT
    • QUICKLOCKIPEXT 15FT: 2 IN 1 VIDEO EXTENSION CABLE-15FT
    • QUICKLOCKIPEXT 25FT: 2 IN 1 VIDEO EXTENSION CABLE-25FT
    • QUICKLOCKIPEXT 50FT: 2 IN 1 VIDEO EXTENSION CABLE-50FT
    • QUICKLOCKIPEXT OUTCABLE: 2 IN 1 VIDEO OUTPUT CABLE
    • QUICKLOCKIPEXT INCABLE: 2 in 1 video input cable

    What's Included

    • Warranty Card
    • QRG
    • 1pc square milky filter (for diffused output)
    • 1pc black stealth filter (for high contrast applications)

    Questions or Concerns?

    Let us know, we’re here to help! Contact Us

    Downloads

    Download All
    Manuals
    F6 Strip IP – Quick Reference Guide
    		Download
    Manuals
    F6 Strip IP – Cutsheet
    		Download
    Manuals
    F6 Strip IP – CAD/DWG
    		Download
    Manuals
    F6 Strip IP – Firmware
    		Download
    Manuals
    F6 Strip IP – Product Images
    		Download

    Learn How To Use Your F6 Strip IP

    Explore these detailed videos showcasing setup, features, and creative applications for this product.

    • F6 Strip IP Video Panel

      Add unique linear video elements to any set with the F6 Strip IP, an outdoor-ready panel for creative visual compositions. It integrates seamlessly with other CHAUVET Professional F-series video walls, empowering you to build cohesive, high-impact displays for touring, broadcast, and installations without requiring a dedicated video server.

    • LDI 2019—Tour NEW F-Series Video Panels with CHAUVET Professional

      Get an exclusive tour of the innovative F-Series video panels from CHAUVET Professional, live from LDI 2019. Discover how the F2, F5 IP, and F6 Strip IP empower bold, creative visual designs with crisp, high-impact performance for any environment.

    Video Library

    F6 Strip IP FAQ’s

    Quickly find answers to common questions about setup, operation, and features of the F6 Strip IP
    What is the F6 Strip IP used for?

    The F6 Strip IP is a slim video panel used to add creative linear video elements to stage sets, architectural designs, and event spaces. Its long, thin shape is perfect for outlining structures, framing larger video walls, or building unique geometric patterns both indoors and outdoors.

    Can the F6 Strip IP be used in the rain?

    Yes, the ‘IP’ in its name means it is weatherproof and specifically designed for outdoor use. It can safely operate in various weather conditions, including rain, making it perfect for festivals, concerts, and other open-air events. Its connecting cables are also weather-rated for a secure setup.

    How can I change the look of the F6 Strip IP?

    The F6 Strip IP includes two easy-to-install diffusion filters to change its appearance. A soft white filter creates a smooth, blended look, while a black stealth filter provides higher contrast. This versatility allows you to quickly adapt the visuals to suit any environment or creative need.
