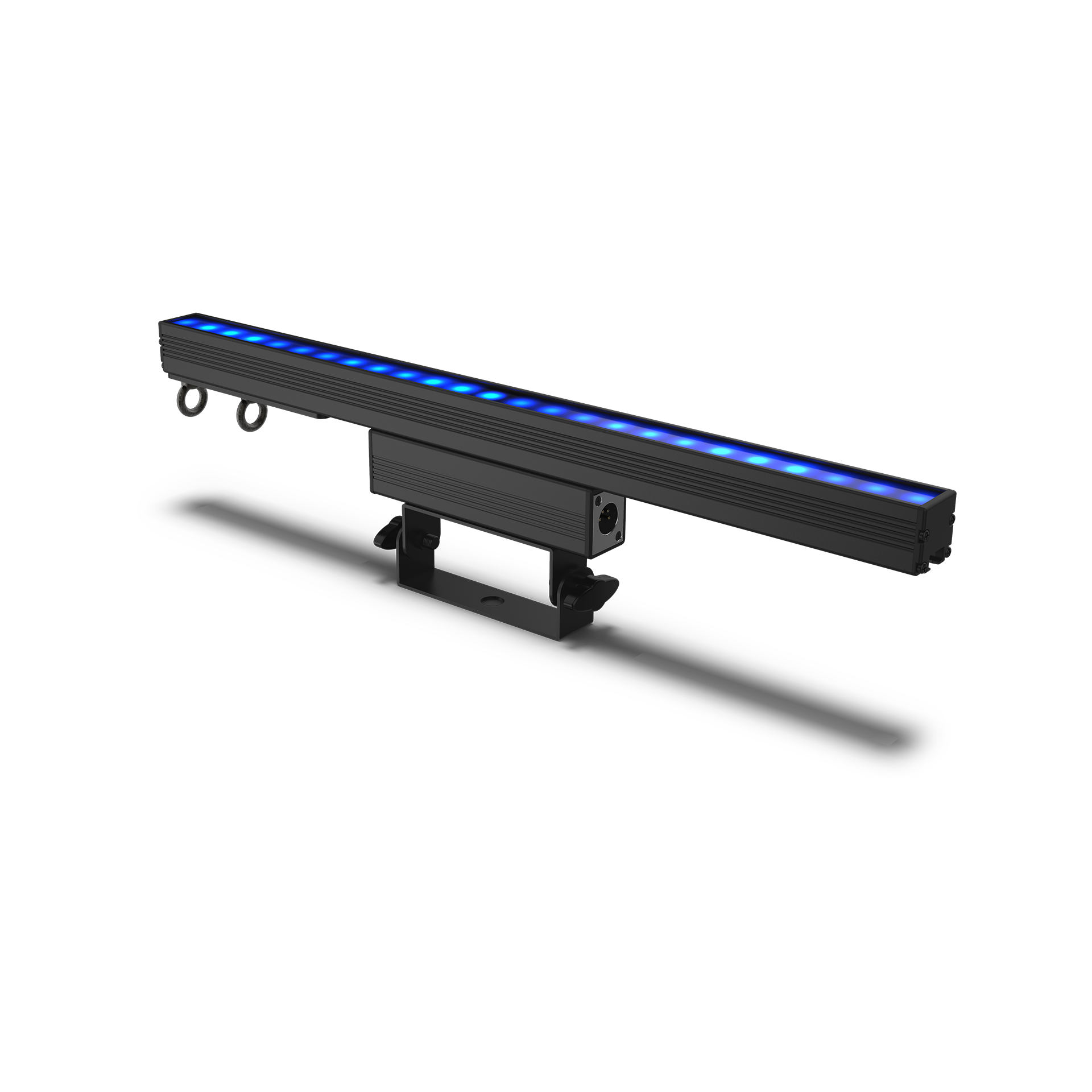

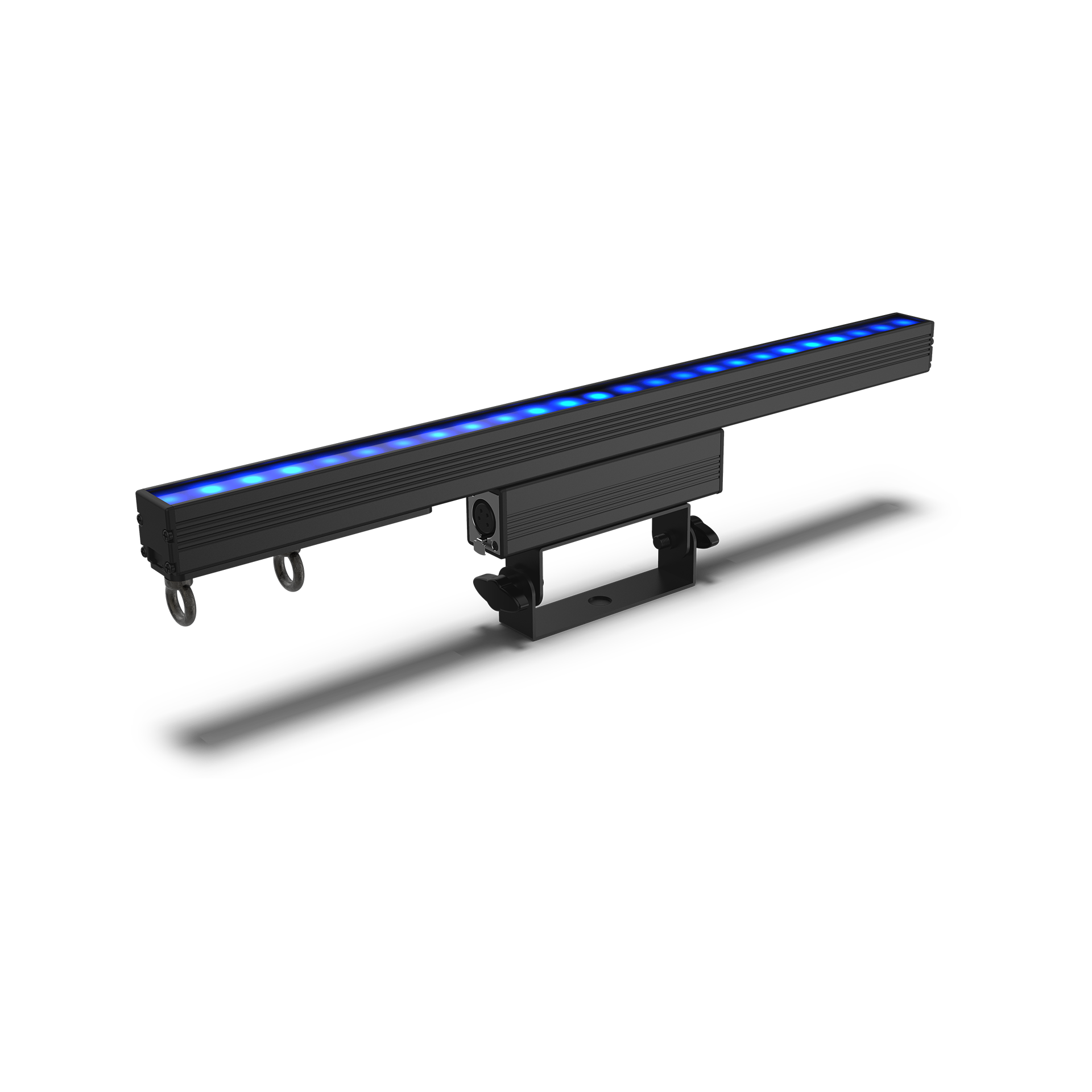

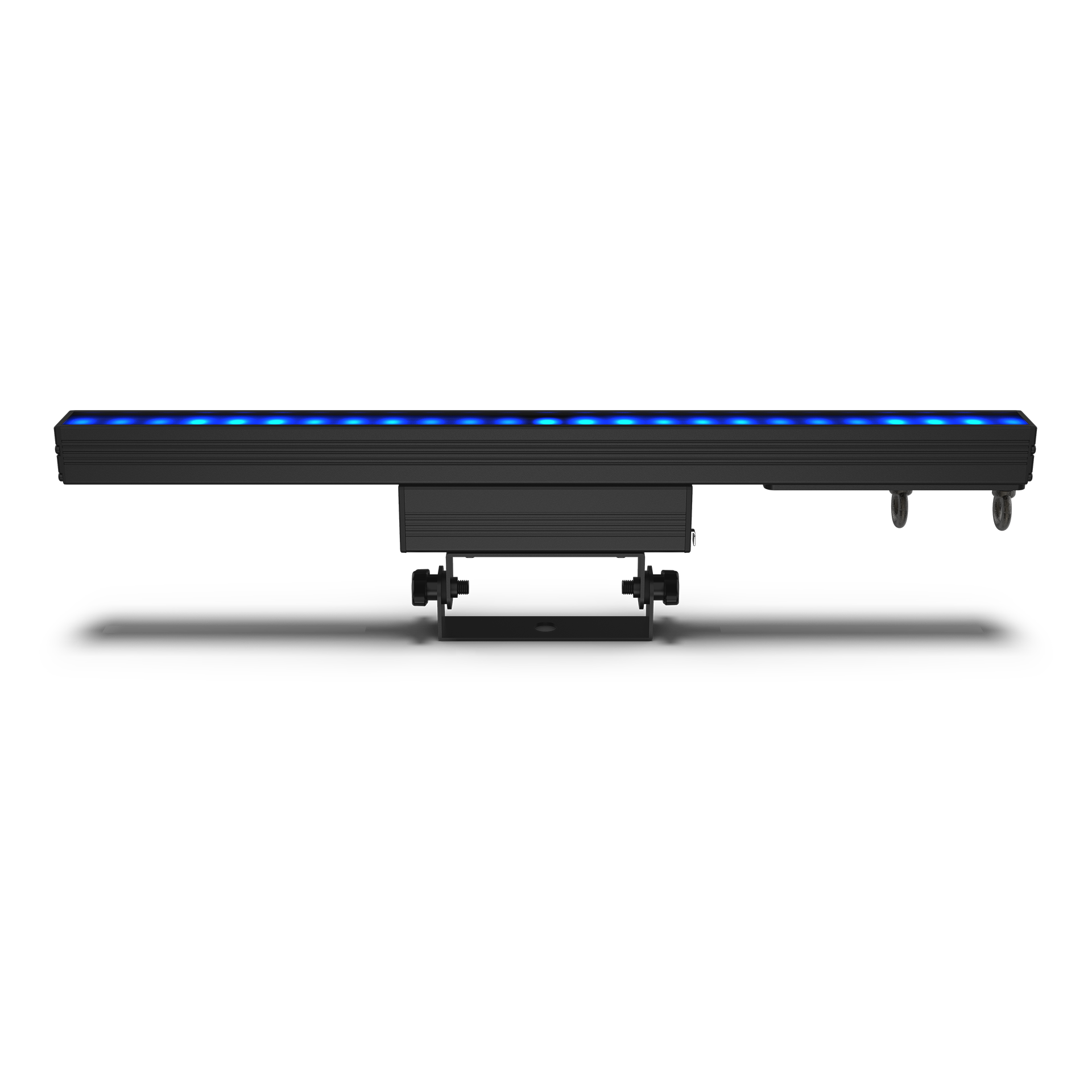

ÉPIX Strip Tour 50

Optical

• Light Source

  50 LEDs (tri-color RGB) SMD 5050, 50,000 hours life expectancy

• Viewing Angle

  125°

• Viewing Angle (with optional dome accessory)

  180°

• • Illuminance
    • Illuminance (white frost filter installed)

      1,100 NITS

    • Illuminance (with optional dome accessory)

      700 NITS

    • Illuminance (black stealth filter installed)

      270 NITS

• Pixels

  25 x 1

• Pixel Pitch

  20 mm

• Refresh Rate

  4,700 Hz

Construction/Physical

• Dimensions

  19.68 x 1.2 x 4.7 in (500 x 30.5 x 119.5 mm)

• Housing Material

  Aluminum

Connections

• Data Connectors

  4-pin XLR

• Physical Linking

  36 inline Épix Strip Tour

• Minimum required device linking cable size

  4 conductor (2 x 18 AWG, 2 x 20 AWG)

• Total max. cable length (shielded cables) between Épix Drive 900 and last Épix Tour fixture

  210 ft (64 m)

• Max. cable length (shielded cables) between Épix Drive 900 and first Épix Tour fixture

  65 ft (20 m)

• Max. cable length (shielded cables) between Épix Tour fixtures

  60 ft (18 m)

• Total max. cable length (unshielded cables) between Épix Drive 900 and last Épix Tour fixture

  300 ft (91 m)

• Max. cable length (unshielded cables) between Épix Drive 900 and first Épix Tour fixture

  150 ft (45 m)

• Max. cable length (unshielded cables) between Épix Tour fixtures

  100 ft (30 m)

Control

• Control Protocol

  Art-Net, Kling-Net, sACN

• Control Channels Art-net, sACN

  75

Electrical

• Power and Current

  7 W, 0.051 A @ 120 V, 60 Hz

• Power and Current

  9 W, 0.046 A @ 208 V, 60 Hz

• Power and Current

  8 W, 0.031 A @ 230 V, 50 Hz

Certifications/Qualifications

• Certifications

  CE, MET

• IP Rating

  IP20, dry location

• Temperature (Ambient)

  -4 °F to 113 °F (-20 °C to 45 °C)
