    ÉPIX Bar Tour is a pixel-mapping, one-meter LED bar that features 150 LEDs in three rows and a wide 125-degree viewing angle for creating dynamic visual effects.
    Perfect for touring productions, broadcast applications, or nightclub installations requiring linear, high-impact video and graphic displays controlled via Art-Net, Kling-Net, or sACN.

    Read More Read Less
    Read More Read Less
    Request Demo

    Request A Product Demo

    Request a personalized demo or speak directly with our sales team today.

    Authorized Vendors
    Download Product Information
    SKU: EPIXBARTOUR

    ÉPIX Bar Tour

    Specifications
    		 Download
    ÉPIX Bar Tour Quick Reference Guide
    		 Download
    ÉPIX Bar Tour CAD File
    		 Download
    Download All Resources

    ÉPIX Bar Tour

    SKU: EPIXBARTOUR

    ÉPIX Bar Tour is a pixel-mapping 1-meter LED bar, featuring 150 LEDs in three rows and a 125° viewing angle. Use the ÉPIX Drive 900 to power and control it on Art-Net, Kling-Net, or sACN (streaming ACN).

    Features

    Pixel Mapping LED Bar

    A one-meter, 50 x 3 LED fixture designed for displaying video and motion graphics.

    Interchangeable Filters

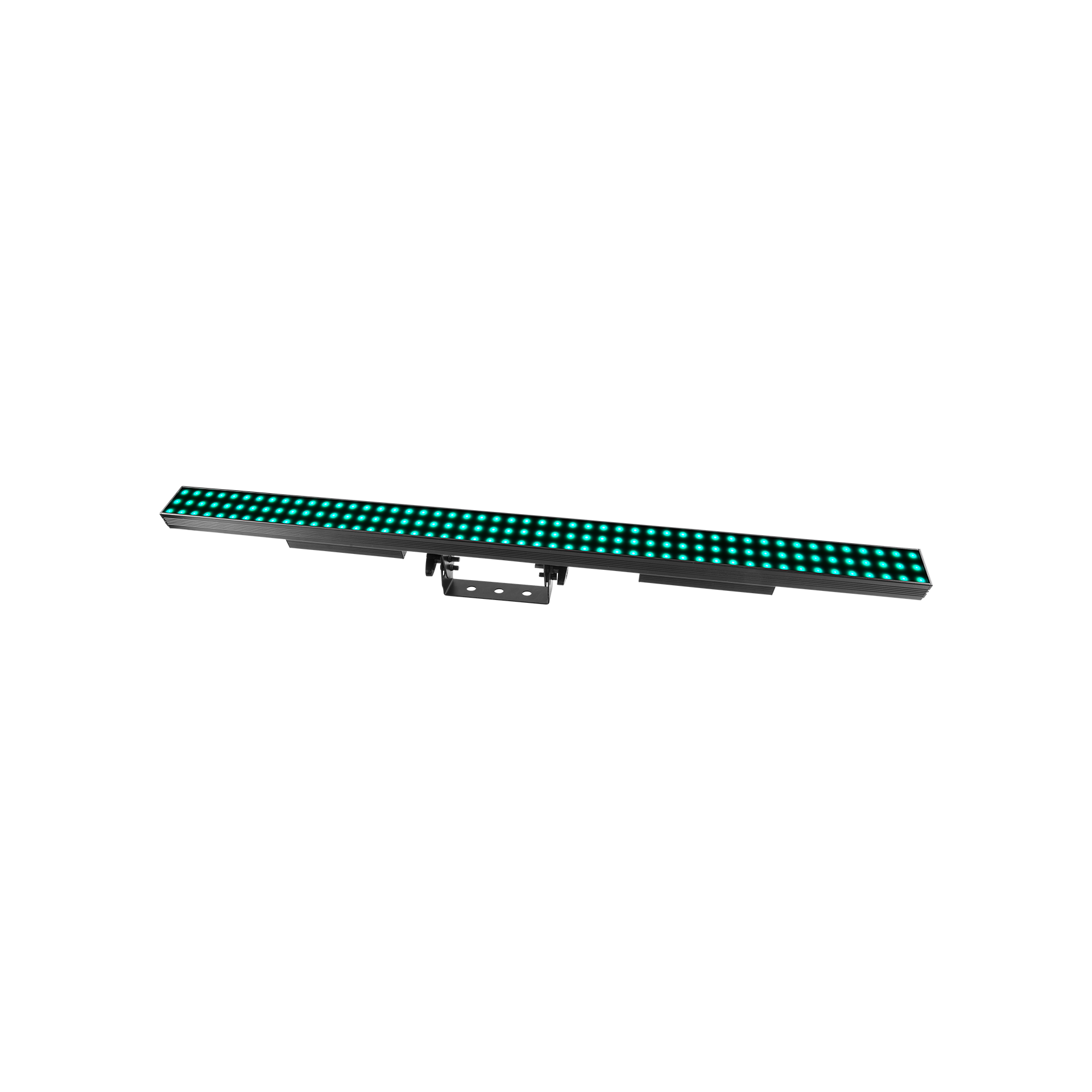

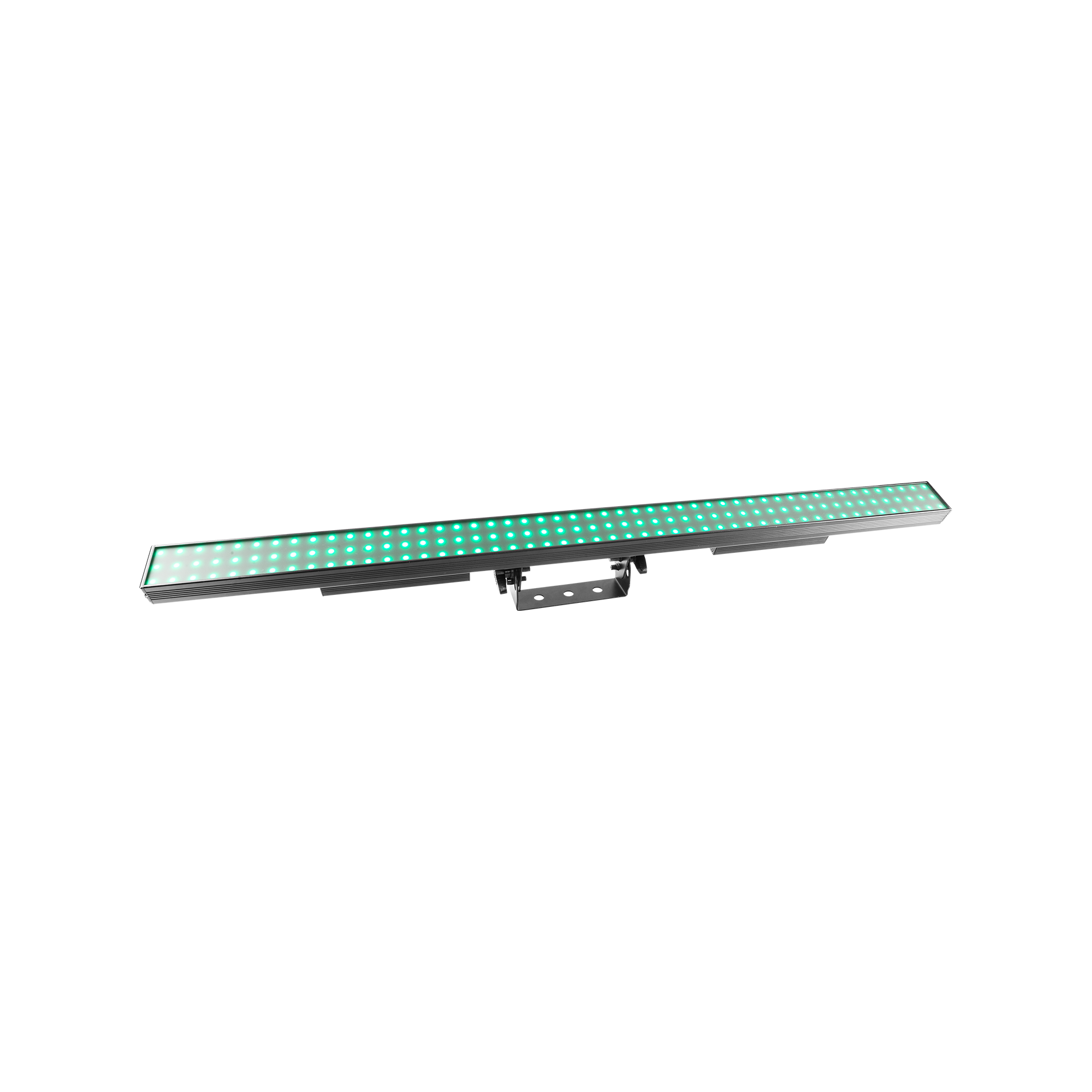

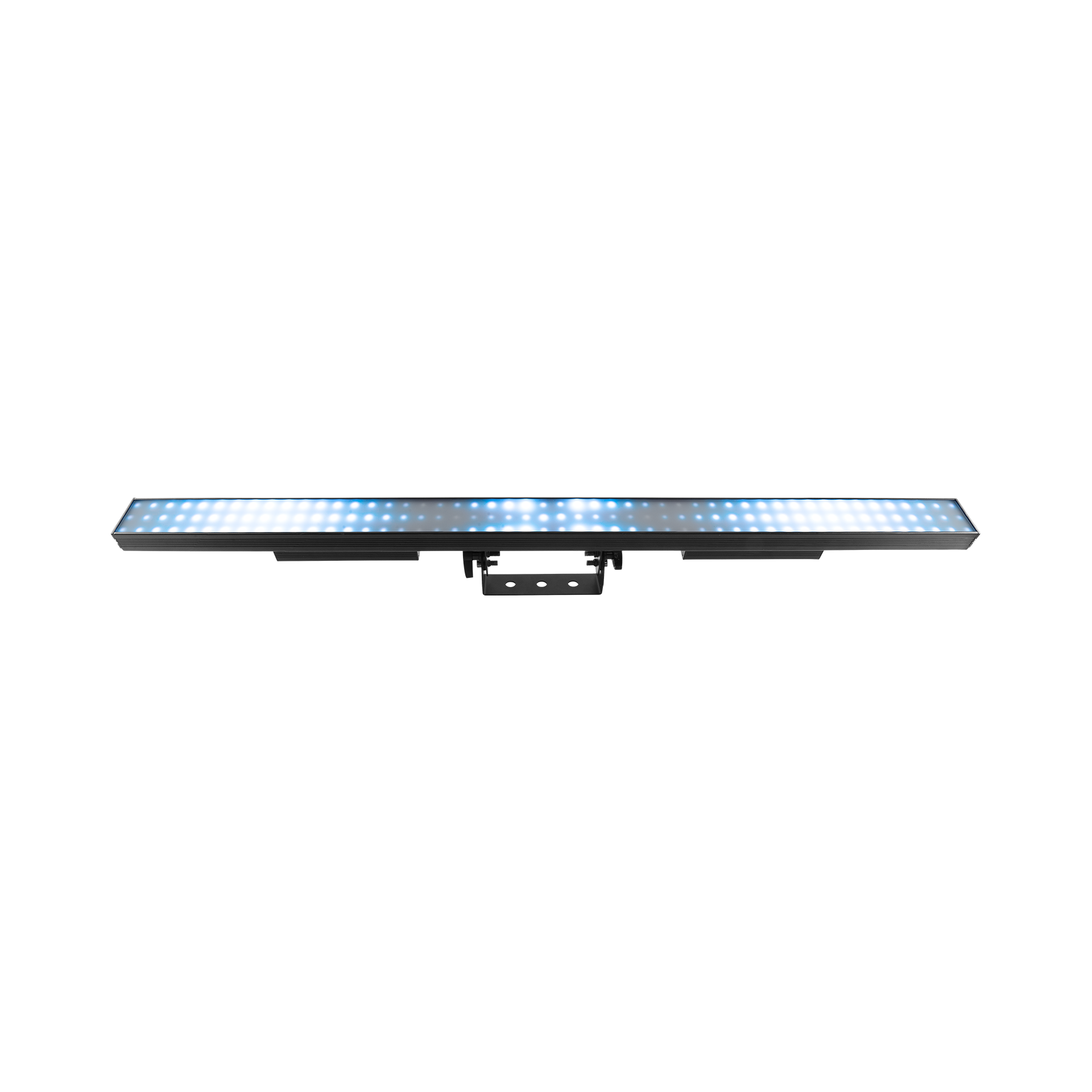

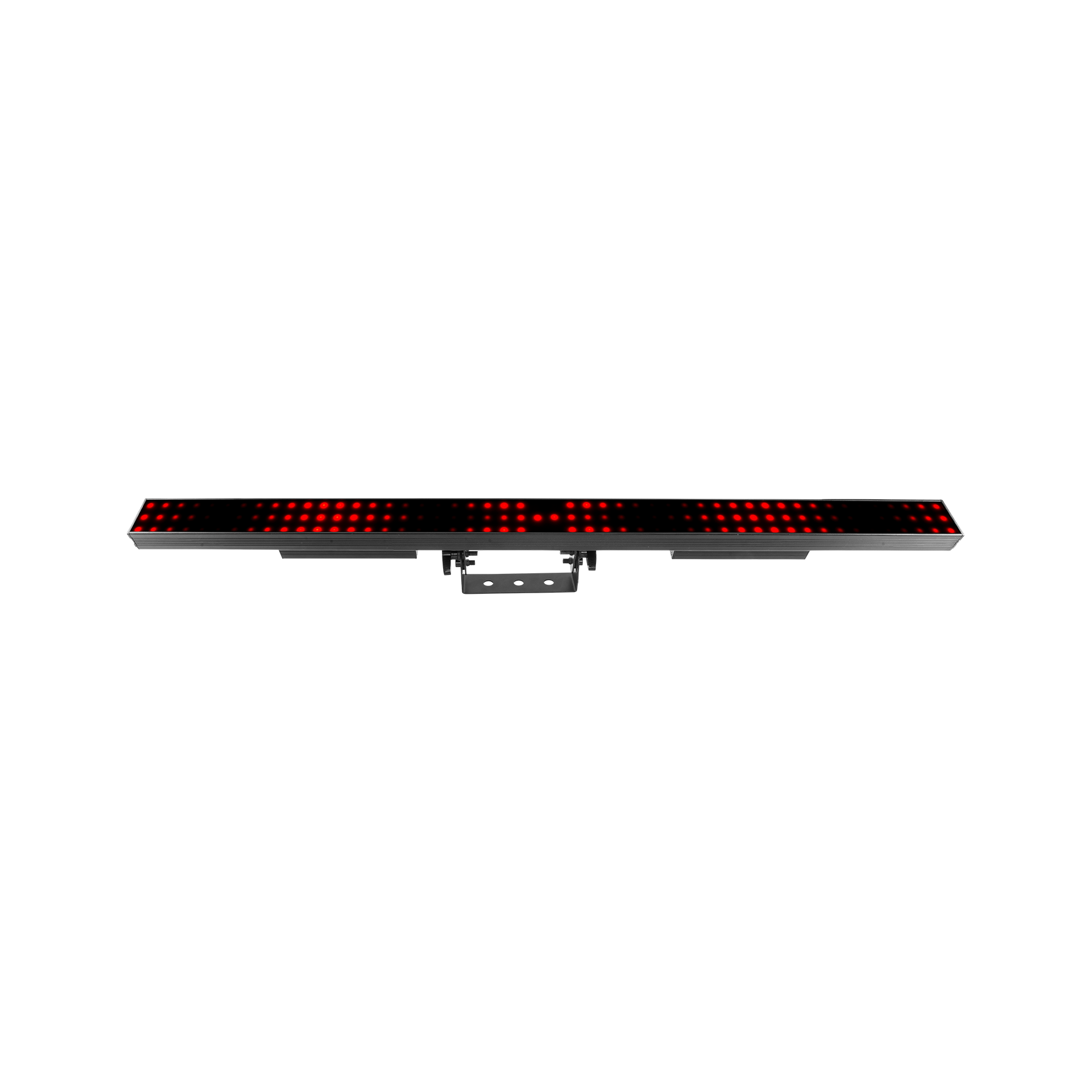

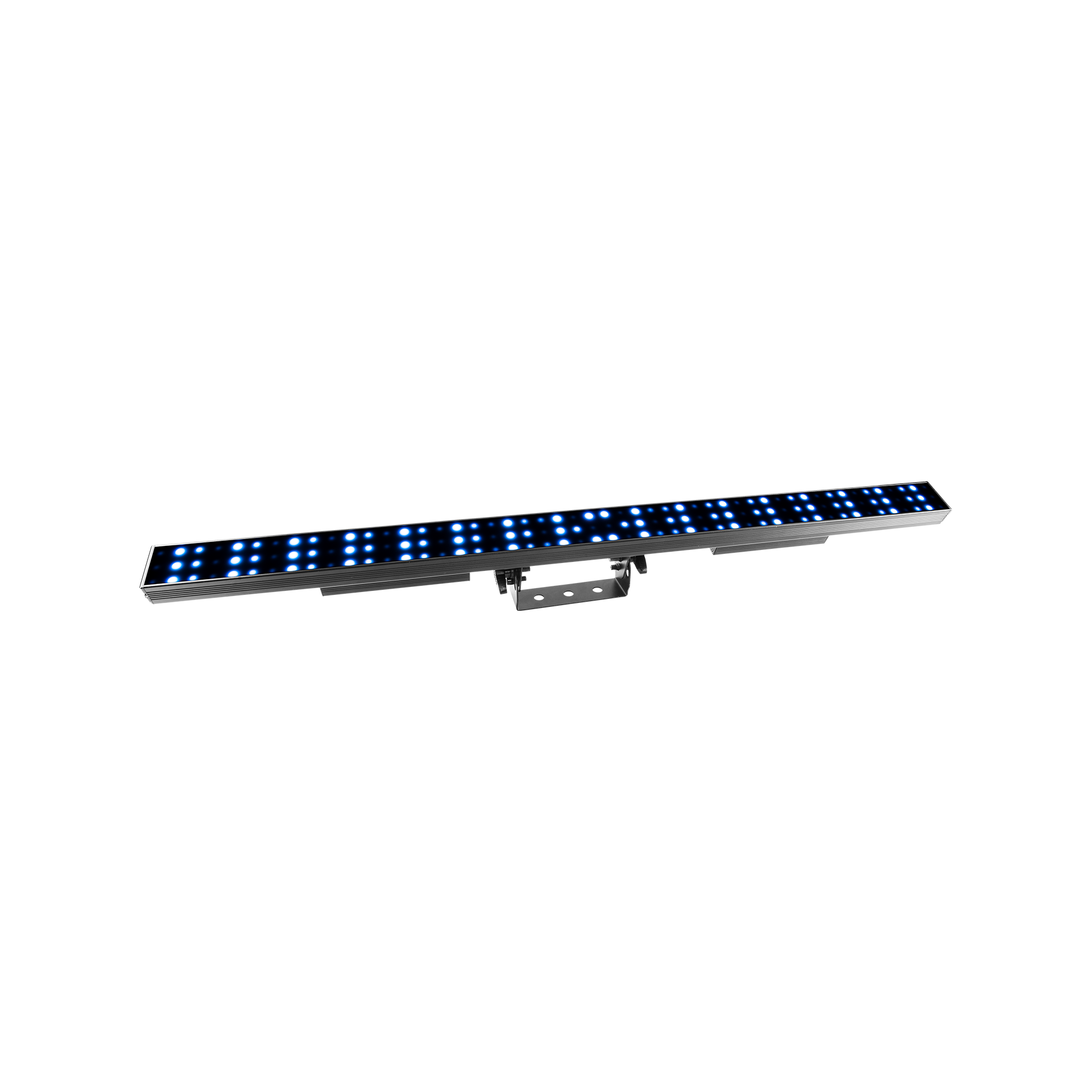

    Includes a pre-installed black stealth filter for high contrast and a swappable white frosted filter for high output.

    Flicker-Free On-Camera Performance

    Utilizes specialized S-PWM dimming control to deliver smooth, flicker-free operation perfect for video applications.

    Versatile Control Options

    Supports Art-Net, Kling-Net, and sACN protocols for seamless integration into touring, rental, and installation markets.

    Required Power and Data Driver

    The ÉPIX Drive 900 is required for proper operation and control.

    Complete Your Rig

    Ensure flawless results with gear designed to complement and complete your professional setup.

      Specifications

      Download Product Specs

      Optical

      • Light Source

        150 LEDs (tri-color RGB) SMD 5050, 50,000 hours life expectancy

      • Viewing Angle

        125°

        • Illuminance
          • Illuminance (white frost filter installed)

            2,040 NITS

          • Illuminance (black stealth filter installed)

            601 NITS

      • Pixels

        50 x 3

      • Pixel Pitch

        20 mm

      • Refresh Rate

        4,700 Hz (S-PWM)

      Construction/Physical

      • Dimensions

        39.37 x 4.72 x 2.36 in (1000 x 120 x 60 mm)

      • Weight

        4.54 lb (2.06 kg)

      • Exterior Color

        Black

      • Housing Material

        Aluminum die-cast

      Connections

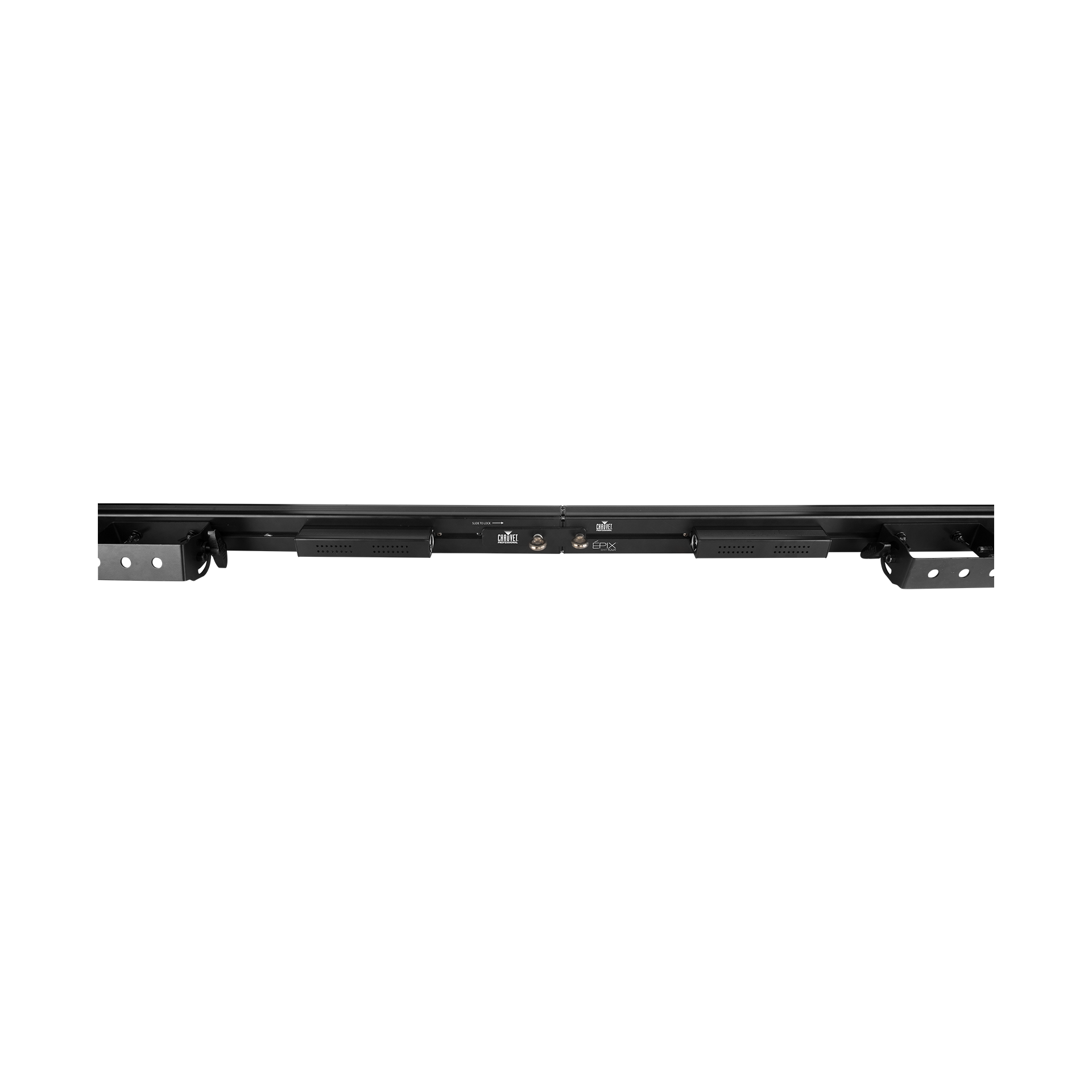

      • Data Connectors

        4-pin XLR

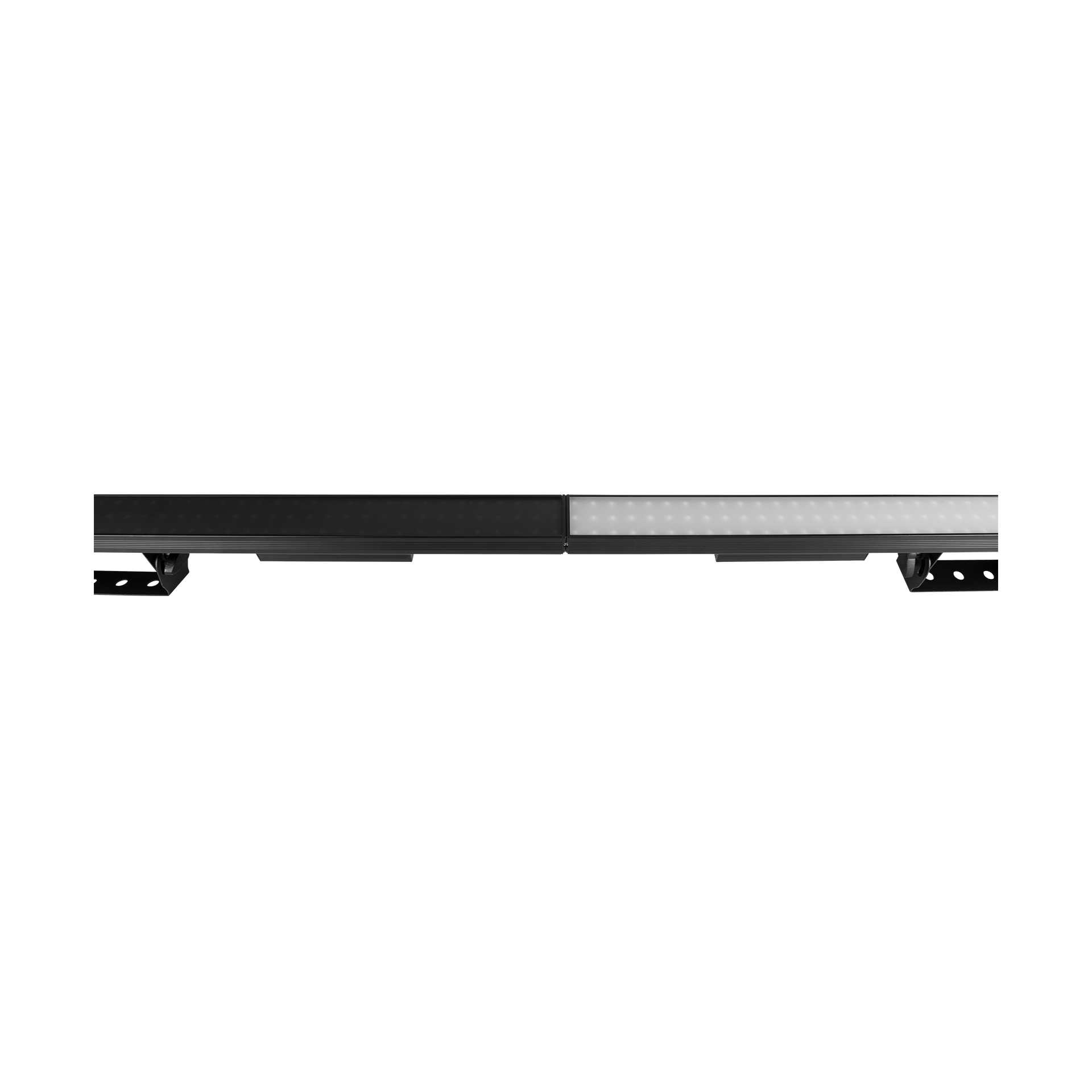

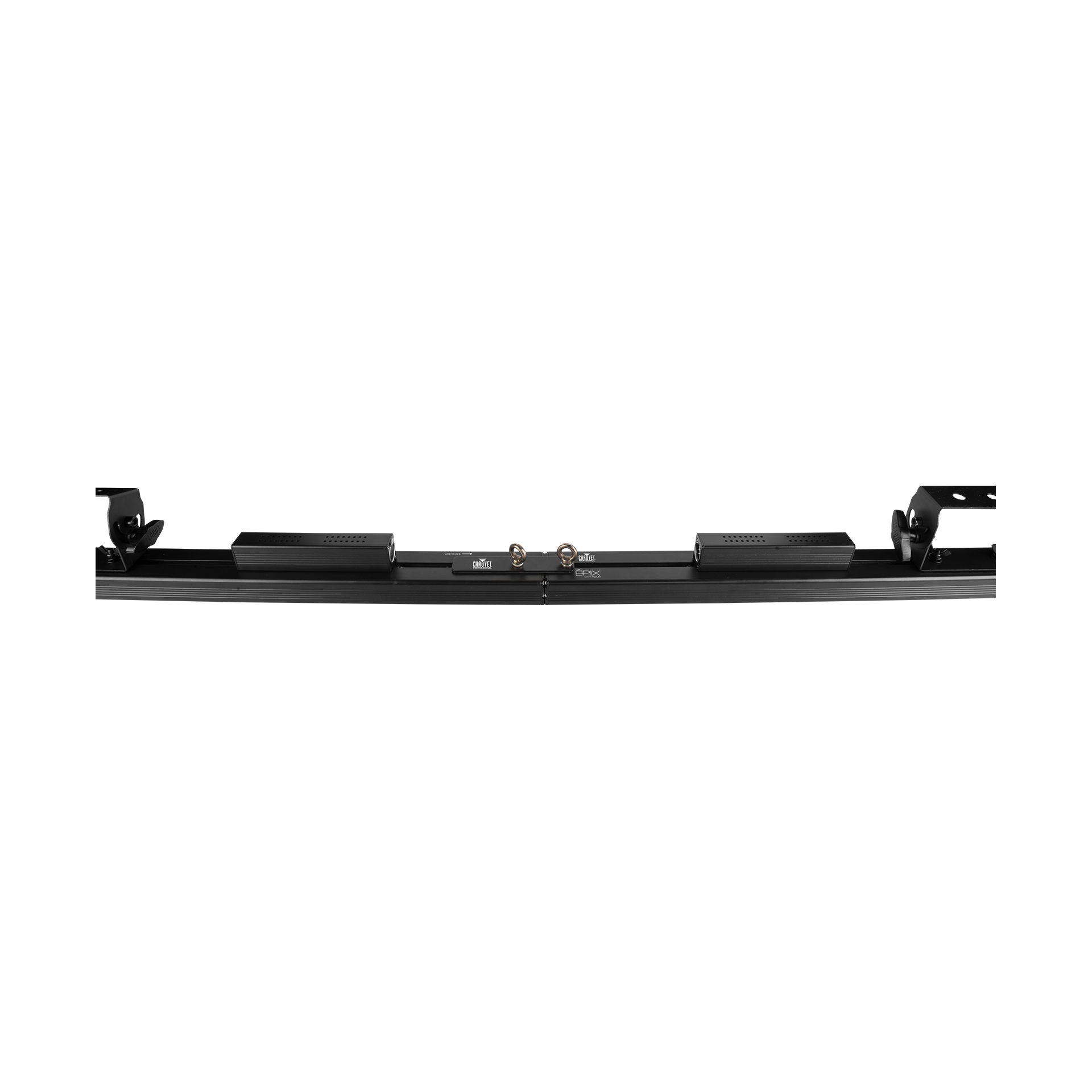

      • Physical Linking

        6 inline ÉPIX Bar Tour

      • Minimum required device linking cable size

        4 conductor (2 x 18 AWG, 2 x 20 AWG)

      • Total max. cable length (shielded cables) between <a href="/products/epix-drive-900/">ÉPIX Drive 900</a> and last ÉPIX Tour fixture

        210 ft (64 m)

      • Max. cable length (shielded cables) between <a href="/products/epix-drive-900/">ÉPIX Drive 900</a> and first ÉPIX Tour fixture

        65 ft (20 m)

      • Max. cable length (shielded cables) between ÉPIX Tour fixtures

        60 ft (18 m)

      • Total max. cable length (unshielded cables) between <a href="/products/epix-drive-900/">ÉPIX Drive 900</a> and last ÉPIX Tour fixture

        300 ft (91 m)

      • Max. cable length (unshielded cables) between <a href="/products/epix-drive-900/">ÉPIX Drive 900</a> and first ÉPIX Tour fixture

        150 ft (45 m)

      • Max. cable length (unshielded cables) between ÉPIX Tour fixtures

        100 ft (30 m)

      Control

      • Control Protocol

        Art-Net, Kling-Net, sACN

      • Control Channels

        450

      Electrical

      • Power and Current

        50 W, 0.42 A @ 120 V, 60 Hz

      • Power and Current

        50 W, 0.24 A @ 208 V, 60 Hz

      • Power and Current

        50 W, 0.21 A @ 230 V, 50 Hz

      Cable

      • Part Number

        4PXLREXT16IN

      • Part Number

        4PXLREXT5FT

      • Part Number

        4PXLREXT50FT

      Certifications/Qualifications

      • Certifications

        CE, MET

      • IP Rating

        IP20, dry location

      • Temperature (Ambient)

        -4 °F to 113 °F (-20 °C to 45 °C)

      Required Accessories

      • ÉPIX Drive 900

      Compatible Accessories

      • ArKaos Media Master Express + KN software
      • Clamps
      • 4-pin XLR cables

      What's Included

      • ÉPIX Bar Tour
      • White Frost Filter

      Questions or Concerns?

      Let us know, we’re here to help! Contact Us

      Downloads

      Download All
      Manuals
      ÉPIX Bar Tour Quick Reference Guide
      		Download
      Manuals
      ÉPIX Bar Tour CAD File
      		Download

      Learn How To Use Your ÉPIX Bar Tour

      Explore these detailed videos showcasing setup, features, and creative applications for this product.

      • Épix LED Strip & Épix LED Bar Tour

        Create stunning visual effects with the CHAUVET Professional Épix Tour family of pixel-mappable fixtures. These LED strips and bars empower designers to build dynamic video displays for touring and installations, all driven by the versatile Épix Drive 900 for seamless power and data control.

      • EPIX TOUR – Sneak Peak

        Get a first look at the road-ready ÉPIX Tour family from CHAUVET Professional. This system, featuring the ÉPIX Strip Tour, ÉPIX Bar Tour, and ÉPIX Drive 900, empowers intricate, high-output pixel-mapped designs for touring and broadcast.

      Video Library

      Latest Articles

      Browse Articles

      ÉPIX Bar Tour FAQ’s

      Quickly find answers to common questions about setup, operation, and features of the ÉPIX Bar Tour
      What is the ÉPIX Bar Tour used for?

      The ÉPIX Bar Tour is a one-meter-long LED light bar designed to display video and motion graphics. You can link multiple bars together to create larger, dynamic visual backdrops for stages, events, and installations, turning any surface into a vibrant screen.

      What are the different visual looks I can get with the ÉPIX Bar Tour?

      It includes two interchangeable filters to customize its appearance. It comes with a black stealth filter for high-contrast, sharp-looking video. For a brighter, more diffused look, you can easily swap it for the included white frosted filter.

      How do I power and control the ÉPIX Bar Tour?

      The ÉPIX Bar Tour requires the ÉPIX Drive 900 controller (sold separately) to function. This single unit provides both power and control signals, simplifying your setup. You can connect multiple bars in a line to one Drive 900 to easily manage your video display.

      If you have any inquiries about our lights, feel free to ask us or visit our help desk for more information.
