    DRB-F100CMIP

    The DRB-F100CMIP and DRB-F50CMIP are IP65-rated rig bars that perform the dual function of hanging a video wall overhead or adapting it for ground stacking.
    Ideal for professional productions needing a flexible, all-weather solution for deploying video walls in either flown or ground-supported setups.

    Read More Read Less
    Read More Read Less
    Request Demo

    Request A Product Demo

    Request a personalized demo or speak directly with our sales team today.

    Authorized Vendors
    Download Product Information
    SKU: DRBF100CMIP

    DRB-F100CMIP

    Specifications
    		 Download
    Download All Resources

    DRB-F100CMIP

    SKU: DRBF100CMIP

    DRB-F100CMIP and DRB-F50CMIP are newly designed IP65-rated rig bars that perform dual functions. They may be used to hang the video wall overhead, and also for ground stacking purposes, by adding in the GROUNDSUPPORT2KIT.

    Features

    Dual Function Rig Bar

    Hang F-series video panels either vertically or horizontally to fit your specific design needs.

    Overhead and Ground Support

    Provides ultimate flexibility by working for both overhead hanging and ground stacking applications.

    F-Series Panel Compatibility

    Seamlessly integrates with CHAUVET F2, F3X, F5IP, and F4XIP video panels.

    Standard Rigging Hardware Support

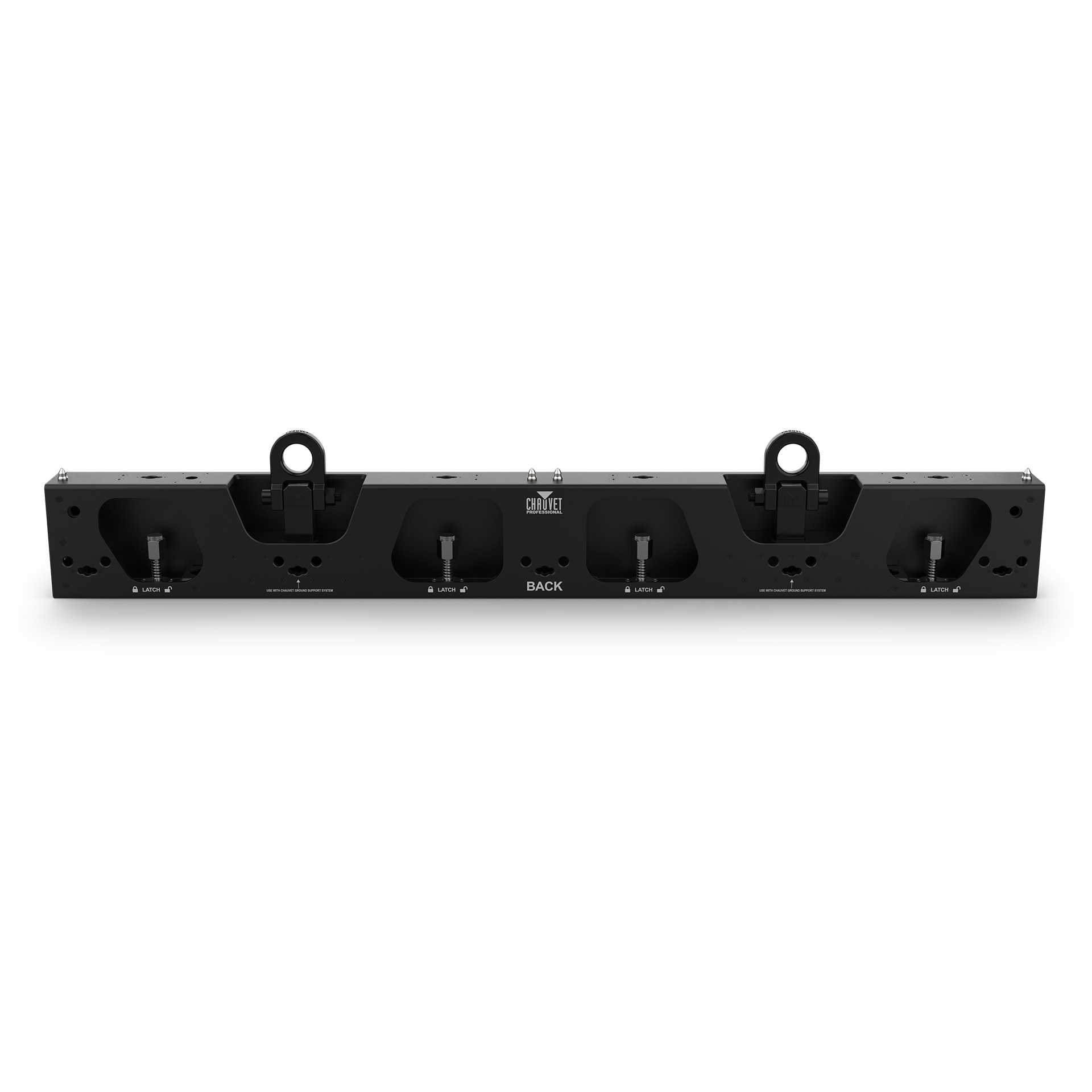

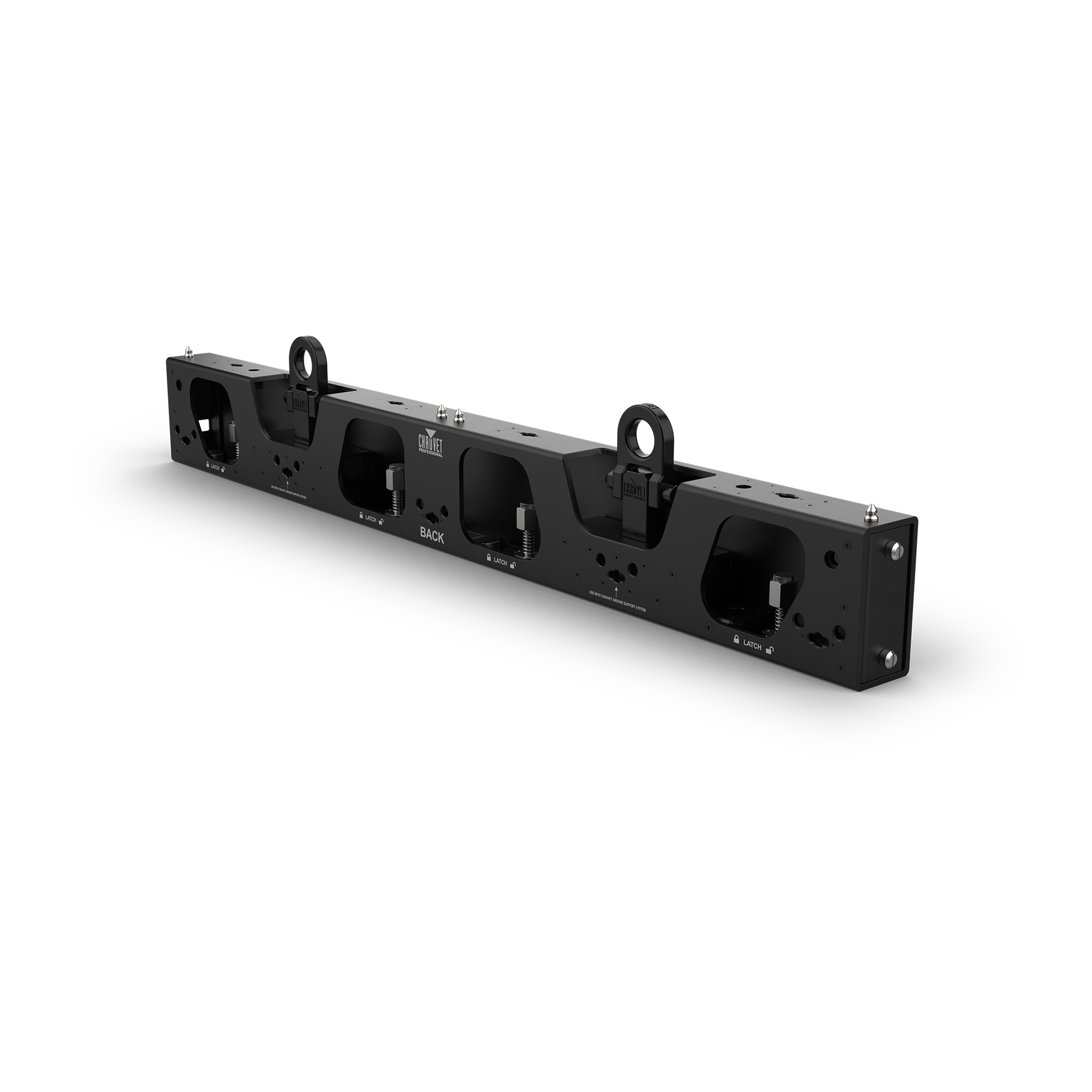

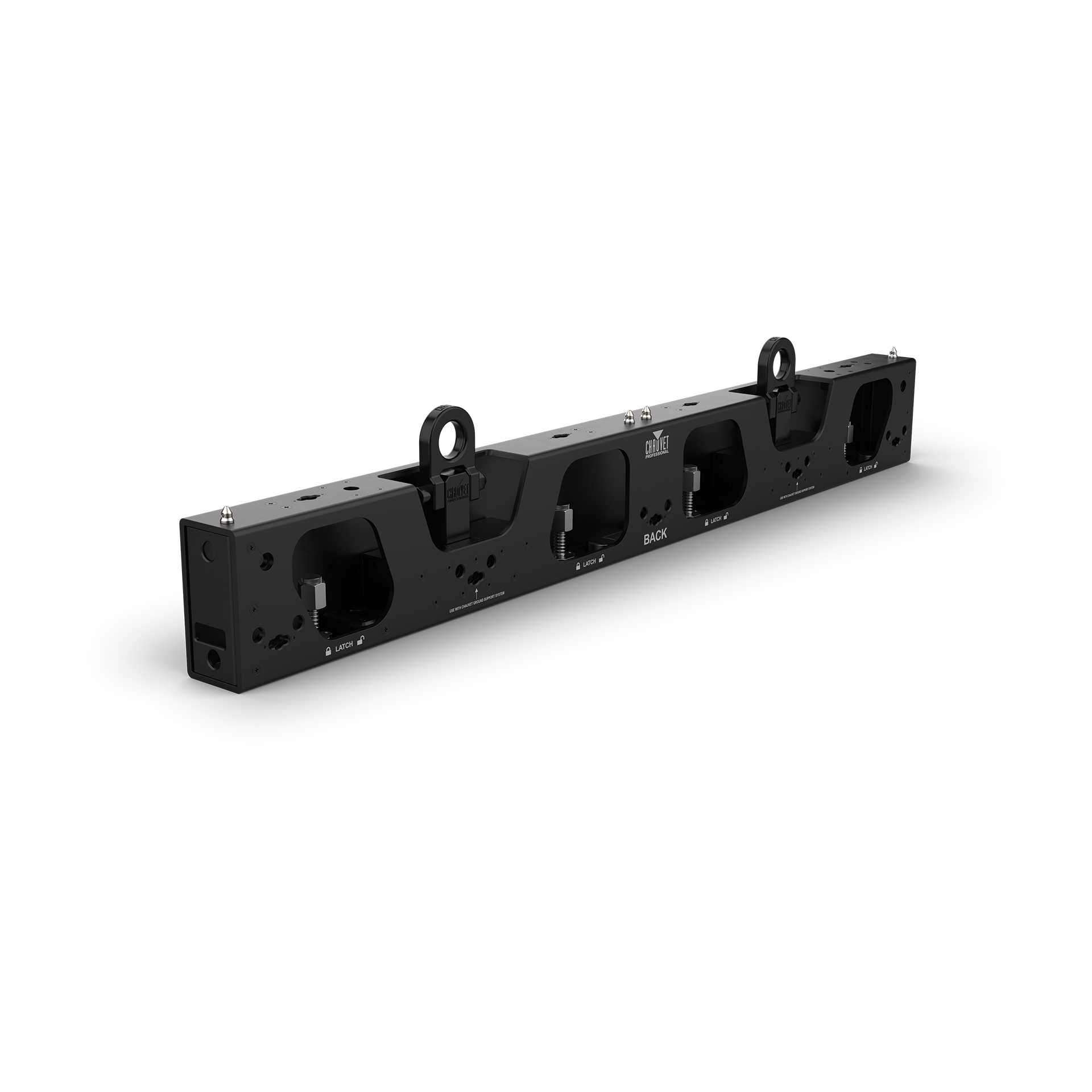

    An equipped hoist ring accommodates standard 1/2-inch and 5/8-inch shackles for secure overhead hanging.

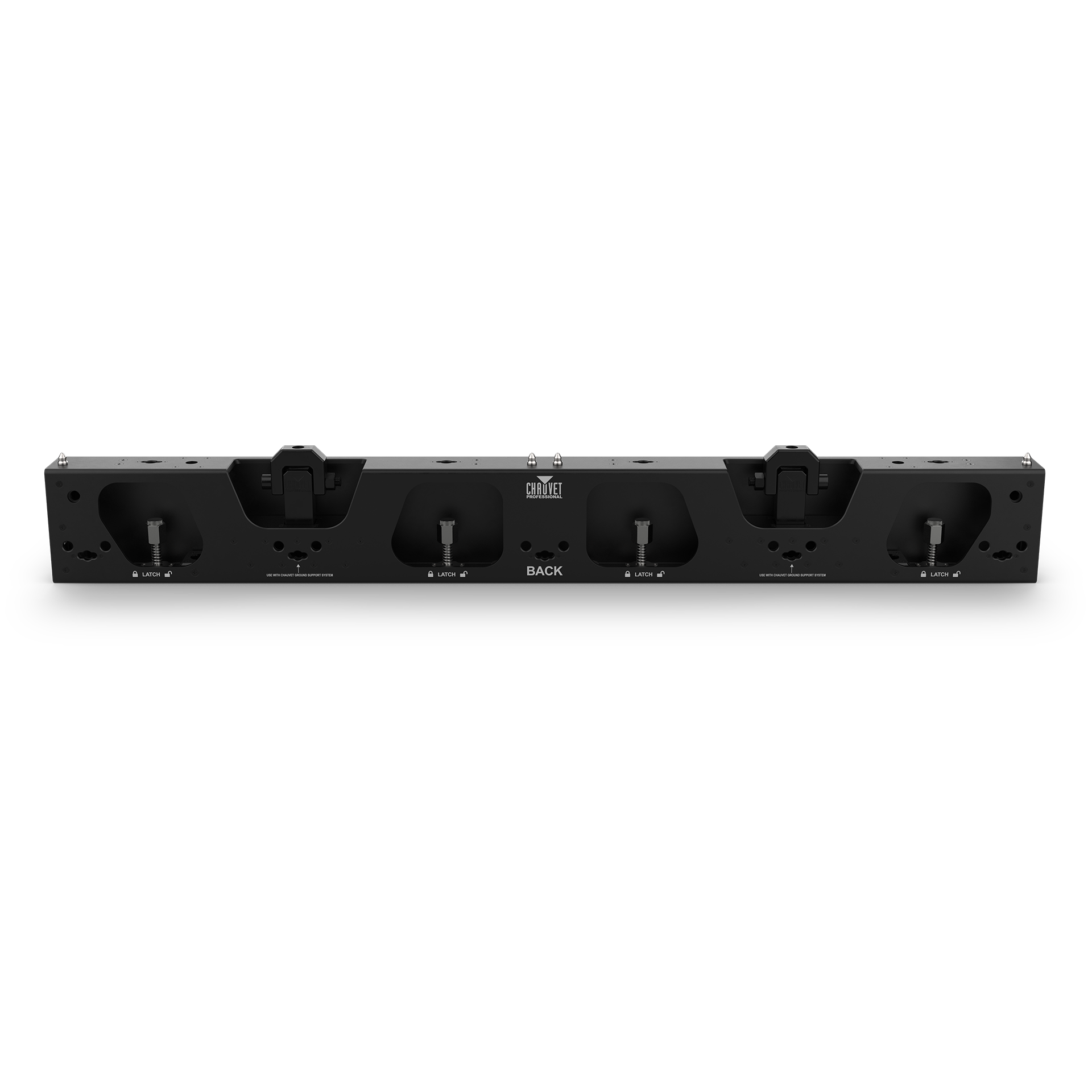

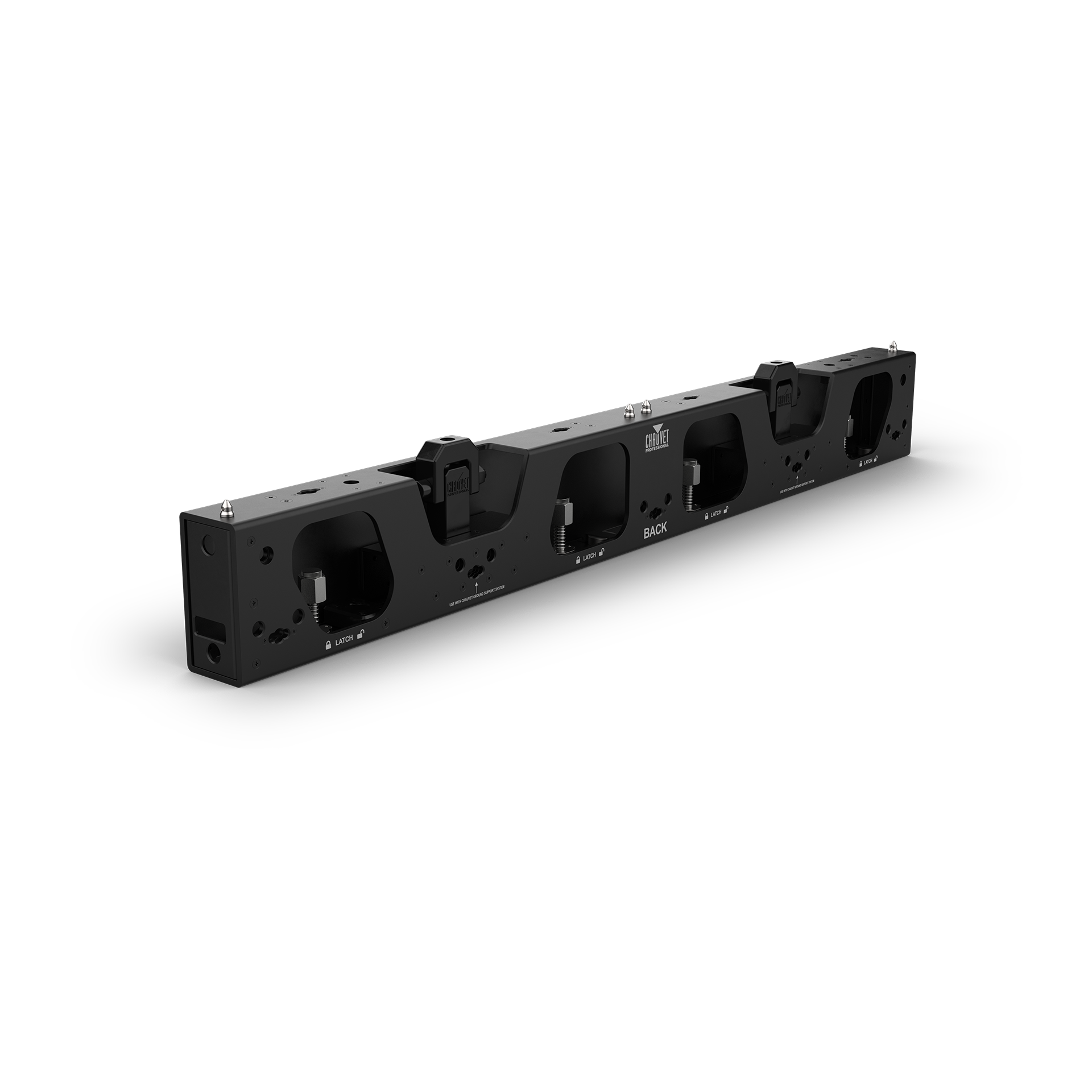

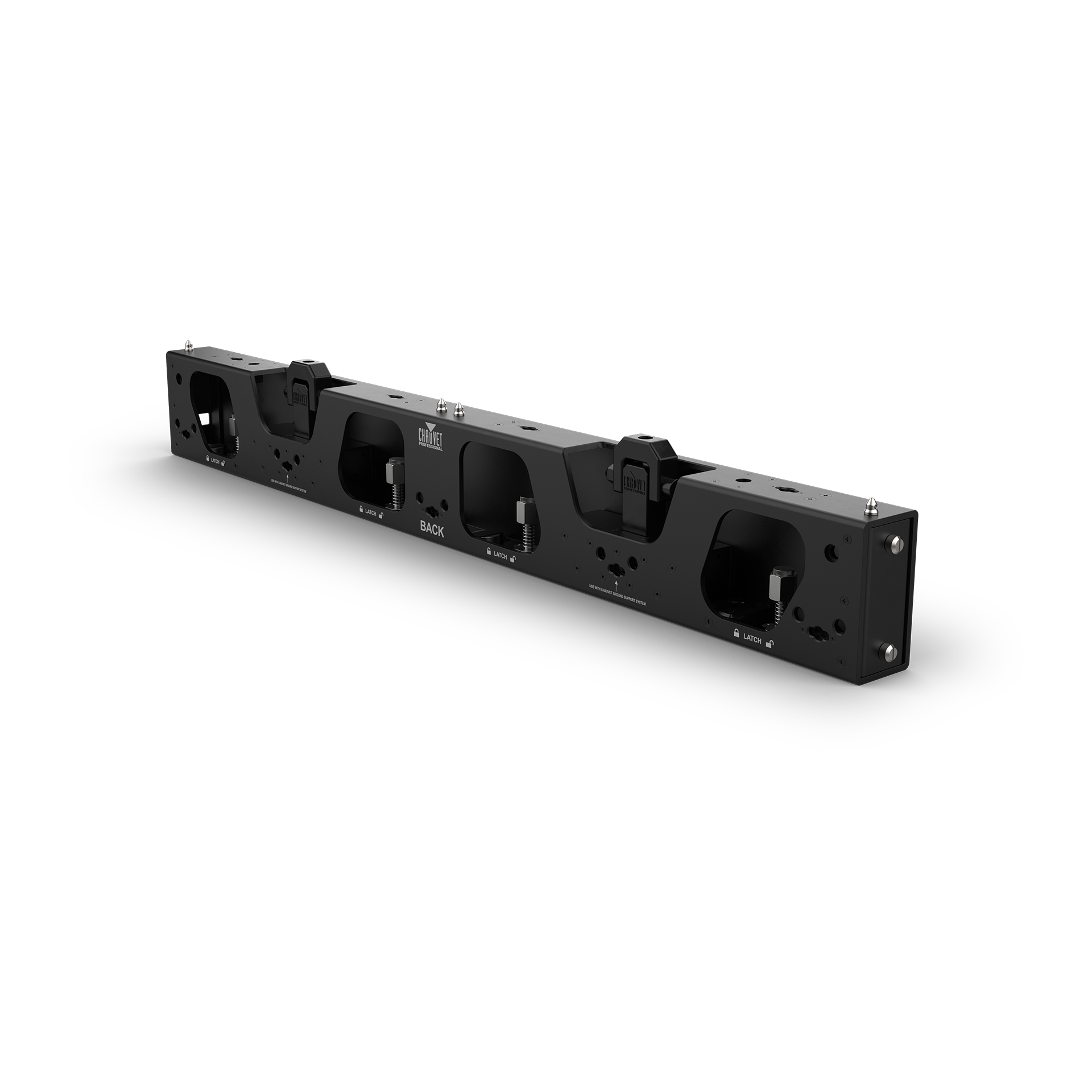

    Included Clamp Attachment Bracket

    Allows for a direct connection to truss clamps like the TRUSST CTC-50HC using M12 bolts.

    Complete Your Rig

    Ensure flawless results with gear designed to complement and complete your professional setup.

    Specifications

    Download Product Specs

    Construction/Physical

    • Dimensions

      39.35 x 2.36 x 4.72 in (999.6 x 60 x 120 mm)

    • Weight

      15.4 lb (7.0 kg)

    • Exterior Color

      Black

    • Housing Material

      Aluminum extrusion, stainless steel

    Clamp

    • Load Capacity

      (hanging): 1,665 lb (755 kg)

    • Load Capacity

      (stacking): 2,735 lb (1,240kg)

    • Recommended Shackle Sizes

      1/2″, 5/8″

    Certifications/Qualifications

    • Certifications

      ROHS

    • IP Rating

      IP65, temporary outdoor/wet use

    Required Accessories

    • Compatible Mounting Options: Shackle (Sizes: 1/2″, 5/8″), Pipe Clamp (M12 threaded bolt)

    Compatible Accessories

    • DRB-CURVEKITX2

    What's Included

    • 1pcs F-series Dual Function Rig Bar-100 cm (DRB-F100CMIP)
    • 1pcs 0° Linking Plate
    • 2pcs clamp attachment brackets (DRB-CTC)
    • 2pcs clamp bolts for TRUSST CTC-50HC

    Questions or Concerns?

    Let us know, we’re here to help! Contact Us

    DRB-F100CMIP FAQ’s

    Quickly find answers to common questions about setup, operation, and features of the DRB-F100CMIP
    What is the DRB-F100CMIP used for?

    The DRB-F100CMIP is a versatile mounting bar for Chauvet F-series video panels. It allows you to either hang your video wall from an overhead structure for large events or safely stack it from the ground up for different types of stage or display setups.

    Can the DRB-F100CMIP be used for outdoor events?

    Yes, this rig bar is weather-resistant and designed for temporary outdoor use. It can handle wet conditions, making it a reliable choice for setting up video walls at festivals, outdoor concerts, and other open-air events.

    How does the DRB-F100CMIP connect to rigging and video panels?

    It is designed for a simple and secure setup. The bar connects directly to compatible video panels and features built-in rings for attaching standard rigging hooks for overhead hanging. It also includes special brackets for securely fastening the bar to truss structures with clamps.
