    A compact, lightweight, and stackable rack designed to hold up to 1,000 lbs of lighting fixtures, featuring an adjustable height and a foldable design for versatile mounting and efficient transport.
    Perfect for touring productions and corporate events, especially for installations in venues with challenging access points such as small elevators, narrow hallways, and ballrooms.

    Read More Read Less
    Read More Read Less
    Request Demo

    Request A Product Demo

    Request a personalized demo or speak directly with our sales team today.

    Authorized Vendors
    Download Product Information
    SKU: CPRACKUS

    CP Rack

    Specifications
    		 Download
    Quick Reference Guide
    		 Download
    CAD File
    		 Download
    Drawing
    		 Download
    Download All Resources

    CP Rack

    SKU: CPRACKUS

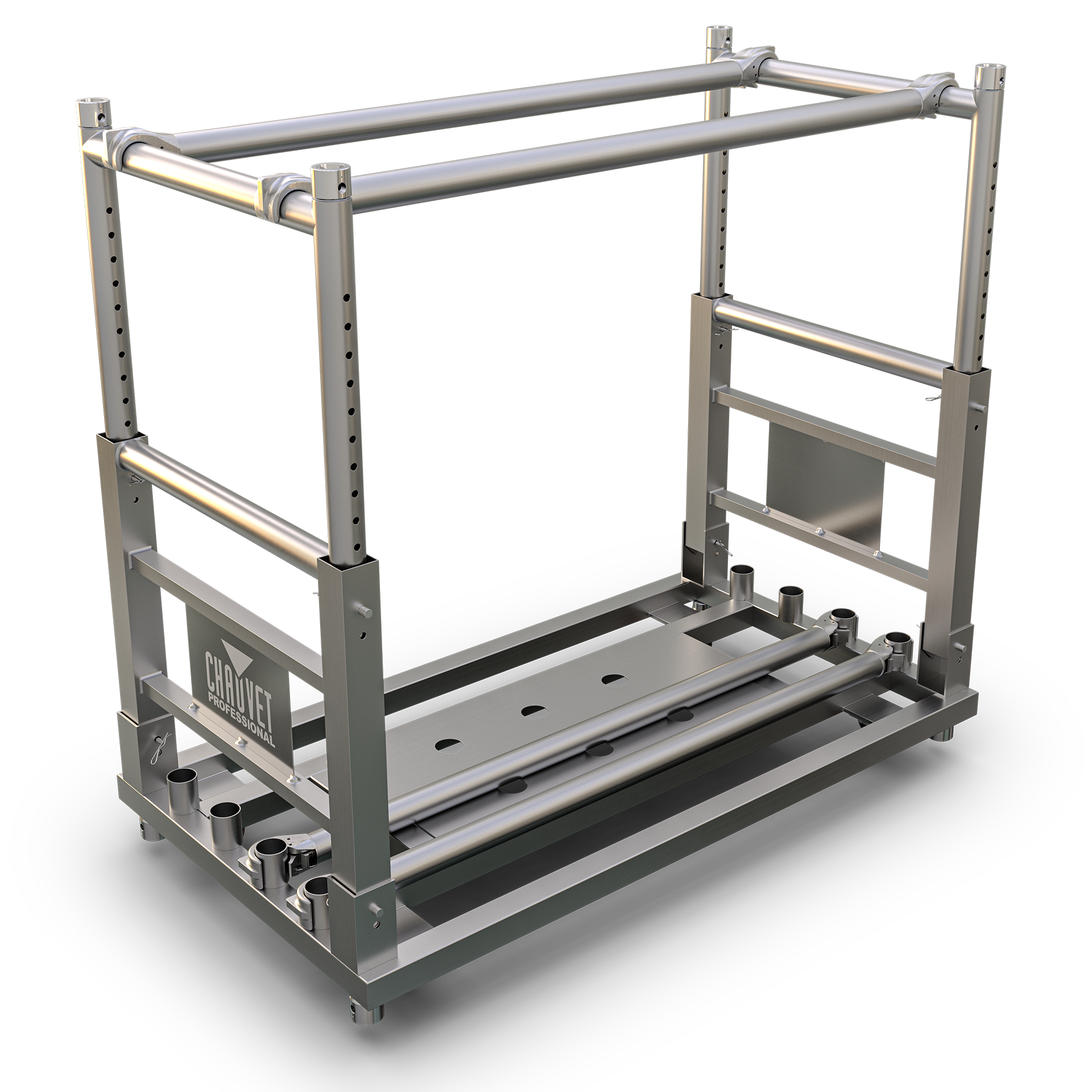

    A compact and lightweight rack designed to hold up to 1,000 lbs (453kg) of lighting fixtures with the ability to raise and lower its overall height and fold down when not in use for easy storage. CP Rack can be stacked two-high, allowing for better space utilization when transporting. Designed for global use, the CP Rack is both US and EU Truck pack ready (3 wide) and and at a height of just over 4 feet (1.38m) it fits easily in small elevators, through ADA doors, and can navigate hallways to ballrooms and other potentially hard-to-get-to installations.

    Once CP Rack is fully assembled, it can be configured and reconfigured to best suit the type of fixtures being mounted. Examples of possible configurations include:

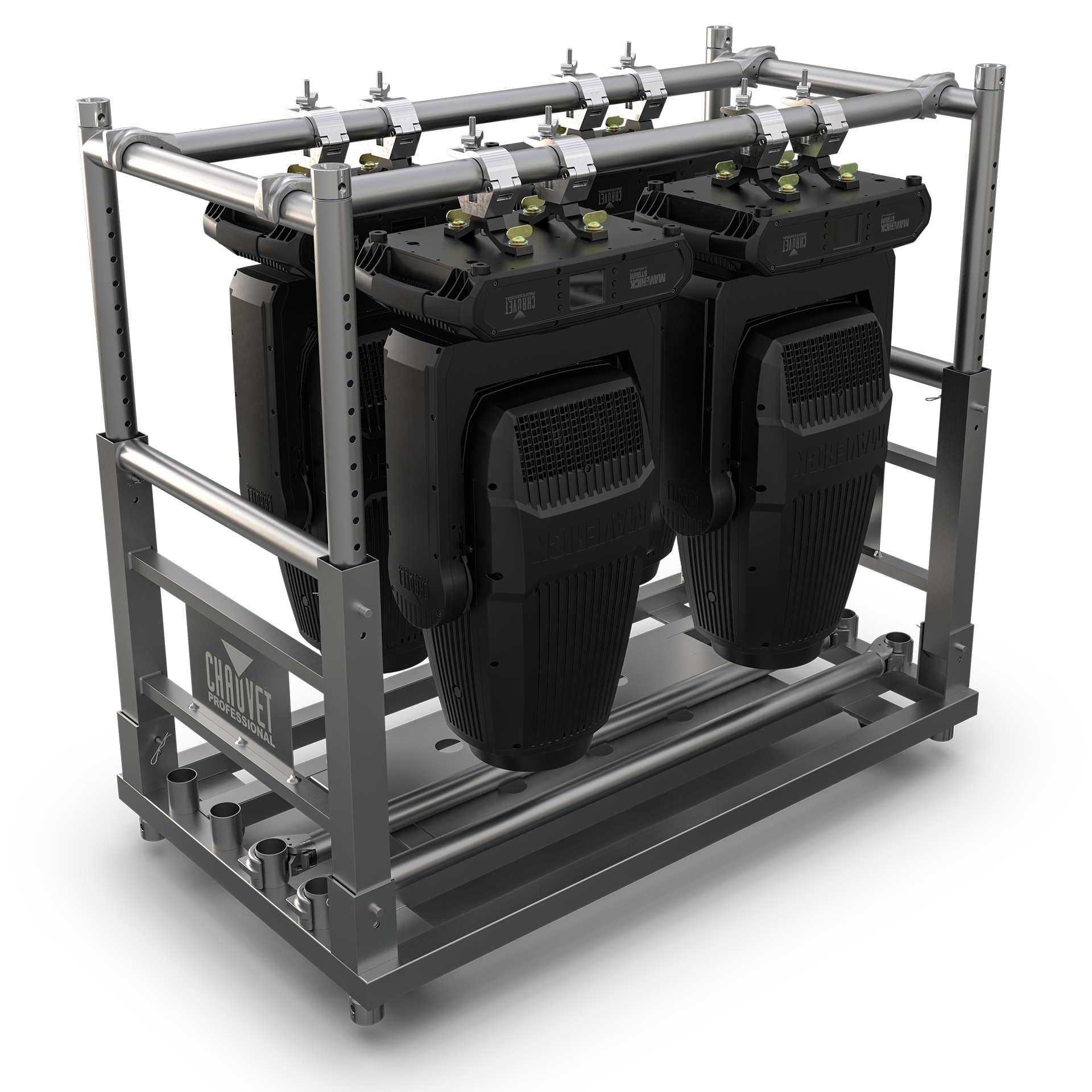

    • Four (4) large moving heads (e.g., Maverick Storm 4 Profile / Force 3 Profile)
    • Six (6) mid-size moving heads (e.g., Maverick Storm 2 Profile / Force S/1/2 Profiles/Spots)
    • Twelve to sixteen (12-16) small moving wash fixtures (e.g., Rogue Outcast 1 BeamWash / Rogue R2X Wash)
    • Eight to ten (8-10) Ovation ellipsoidals with lenses

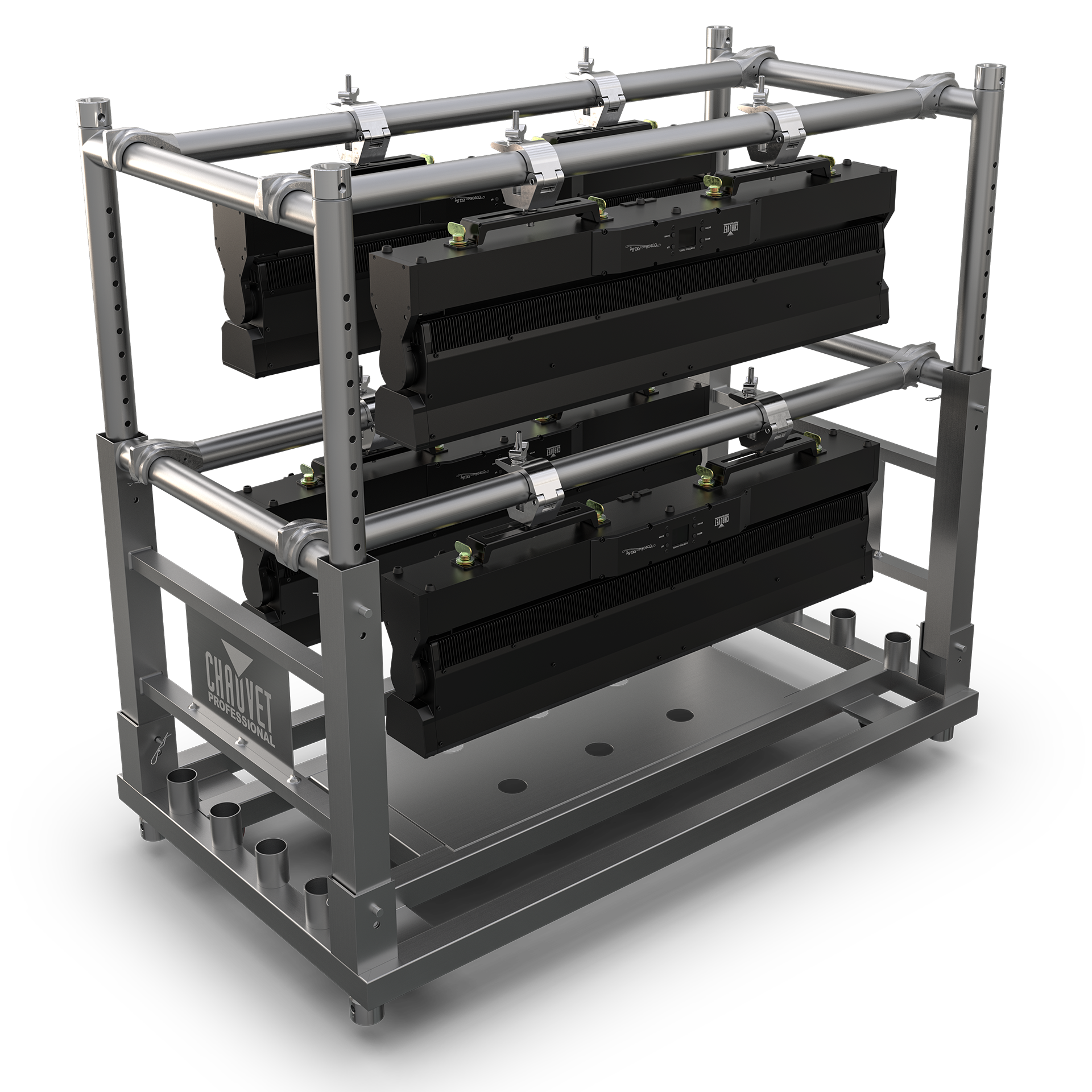

    • Four (4) COLORado PXL Bar 16 (with clamps) or Eight (8) COLORado PXL Bar 8 (with clamps)
    • Six (6) STRIKE Array 4 or Twelve (12) STRIKE Array 2

    Features

    High Load Capacity

    This compact and lightweight rack is engineered to safely support up to 1,000 lbs (453kg) of lighting equipment.

    Adjustable Height

    The overall height can be raised or lowered to accommodate various fixture sizes without needing extra accessories.

    Folds for Storage

    The entire rack folds flat in seconds, making storage simple and convenient when not in use.

    Removable H Frames

    The uprights can be detached from the rack and used independently as H frames for hanging fixtures from a truss.

    Truck Pack Optimized

    Racks can be stacked two high to fit in a standard tractor-trailer and are sized for efficient US and EU truck packing.

    Compact Footprint

    Its compact dimensions allow the rack to easily pass through ADA compliant doorways and fit into smaller elevators.

    High Capacity Casters

    Equipped with 5-inch high-capacity casters, the rack moves smoothly even when fully loaded with gear.

    Large Fixture Capacity

    The rack is designed to transport up to four of our largest and heaviest lighting fixtures at once.

    Included Protective Cover

    A protective cover is included with every rack to shield your fixtures during transport and storage.

    Complete Your Rig

    Ensure flawless results with gear designed to complement and complete your professional setup.

    Specifications

    Download Product Specs

    Construction/Physical

    • Frame Material

      aluminum

    • Tube Material

      aluminum

    • Exterior Color

      silver

    • Dimensions at maximum height

      54.3 x 31.5 x 43.83 in (1.38 x 0.80 x 1.11 m)

    • Dimensions folded

      54.3 x 31.5x 12.6 in (1.38 x 0.80 x 0.33 m)

    • Weight

      75.5 lb (34.25 kg)

    • Load capacity

      1,000 lb (453kg)

    • Castor capacity

      1,102 lb (500 kg)

    • Maximum Stacking

      2 high

    Certifications/Qualifications

    • Certifications

      CE, TVU tested

    What's Included

    • CP rack
    • Cover

    Questions or Concerns?

    Let us know, we’re here to help! Contact Us

    Downloads

    Download All
    Manuals
    CP Rack – Quick Reference Guide
    		Download
    Other
    CP Rack – CAD File
    		Download
    Drawings
    CP Rack – Drawing
    		Download

    CP Rack FAQ’s

    Quickly find answers to common questions about setup, operation, and features of the CP Rack
    What makes the CP Rack so portable and easy to use?

    The CP Rack is designed for maximum convenience. It folds down flat in seconds for compact storage and transport. Its size allows it to fit easily through standard doors and small elevators, and its high-capacity wheels let you move a fully loaded rack with ease. For transport, it’s designed to fit perfectly in trucks and can even be stacked two-high to save valuable space.

    How versatile is the CP Rack for different types of lighting fixtures?

    It’s extremely versatile. The rack has an adjustable height and a reconfigurable design to securely hold various lighting fixtures. You can set it up to carry a few large, heavy moving-head lights, or reconfigure it to transport more than a dozen smaller wash lights or light bars, making it a flexible solution for any event.

    What are the removable H-frames on the CP Rack used for?

    The vertical support bars of the rack can be easily detached from the rolling base. These bars then serve as “H-frames,” allowing you to take your pre-rigged lights directly from the rack and hang them on an overhead truss, which significantly speeds up event setup.
