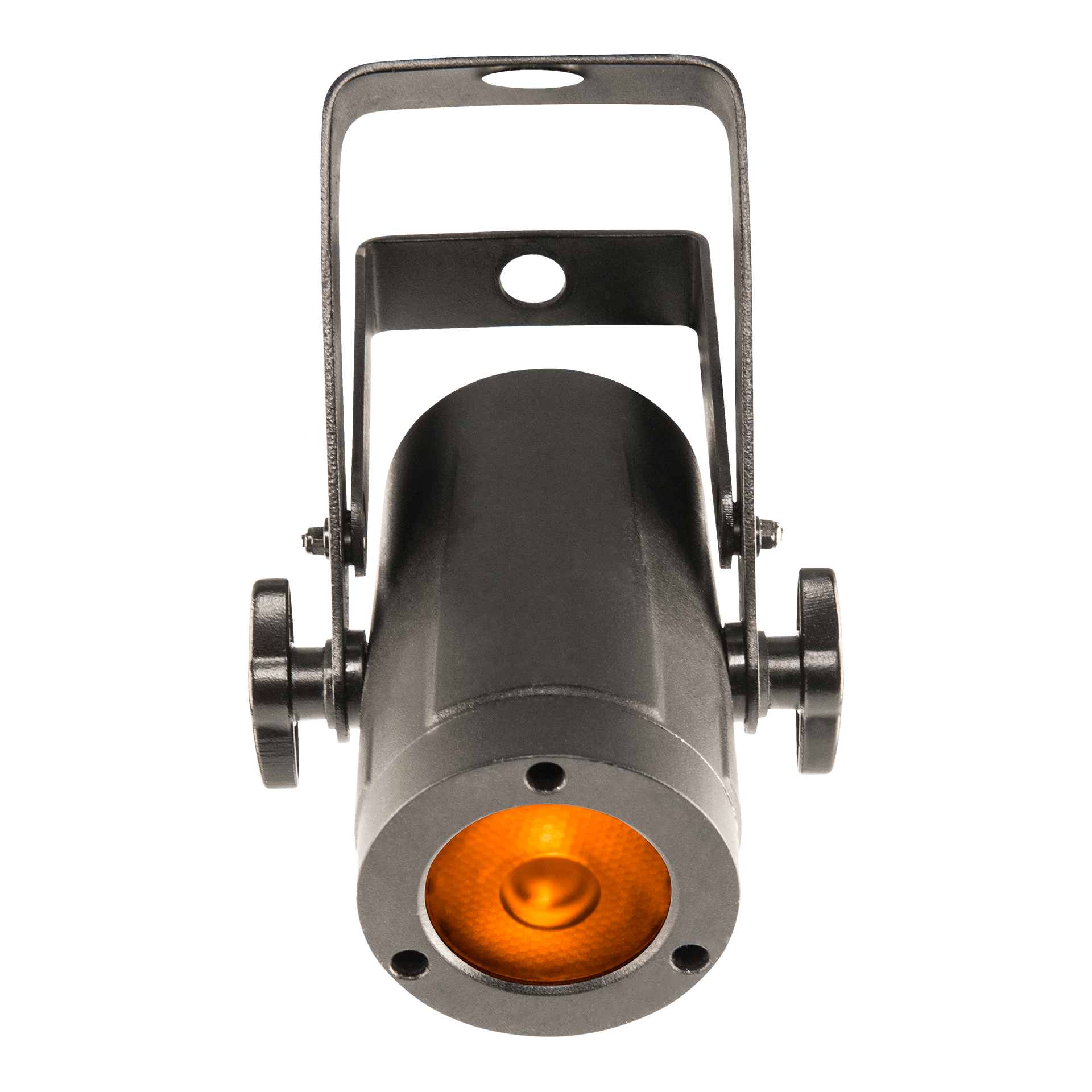

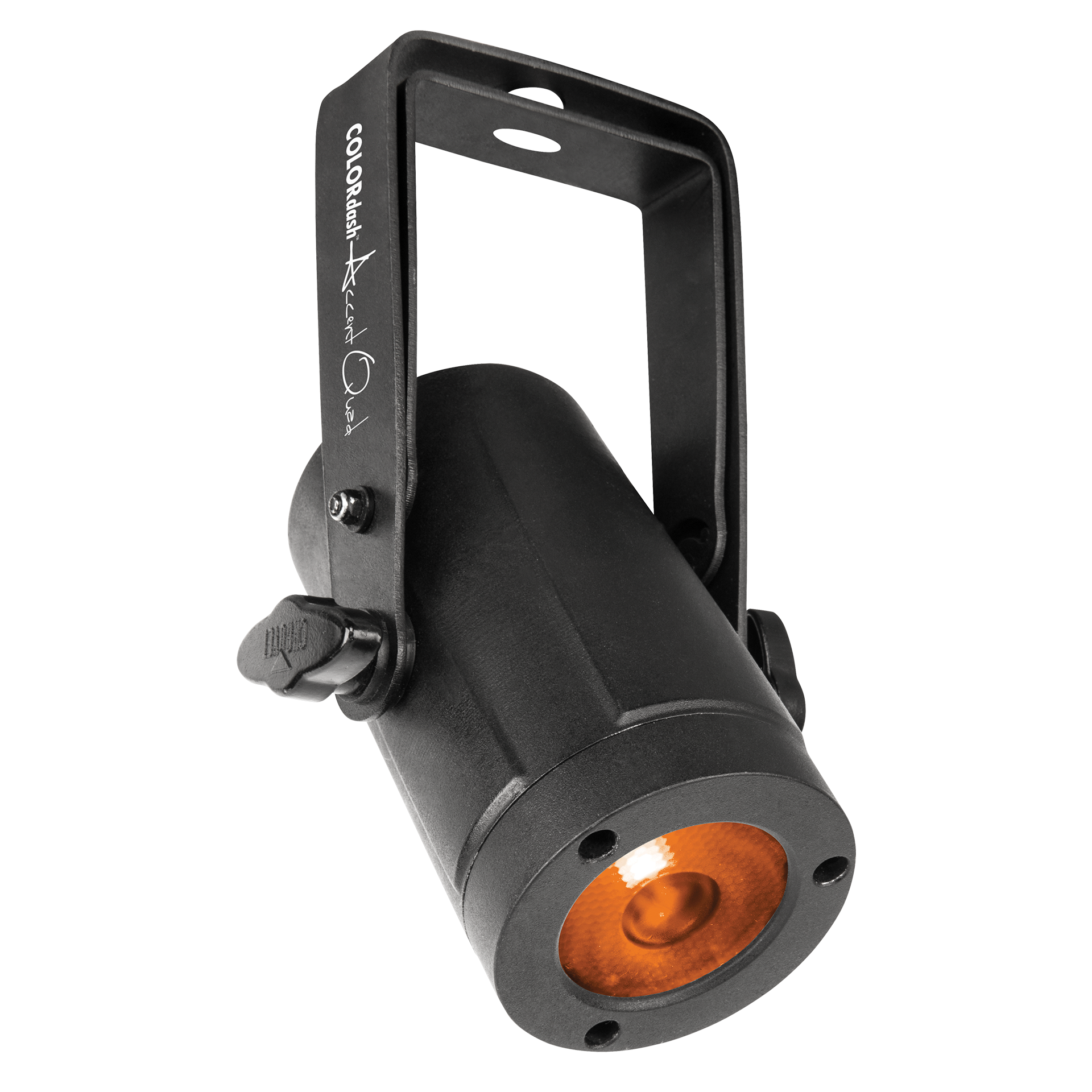

COLORdash Accent Quad

A compact, palm-sized accent fixture powered by a 10W quad-color RGBA LED that delivers a powerful and evenly mixed wash of saturated colors and brilliant pastels.
Perfect for delivering vibrant accent lighting in tight locations, including architectural features, set pieces, and truss installations.

COLORdash Accent Quad

Specifications	Download
COLORdash Accent Quad Quick Reference Guide	Download
COLORdash Accent Quad User Manual	Download
COLORdash Accent Quad DMX Chart	Download
COLORdash Accent Quad CAD File	Download
COLORdash Accent Quad ShowXpress Profile	Download
Colordash Accent Quad IES Files	Download
COLORdash Accent Quad Photometrics Report	Download
Firmware	Download

Download All Resources

COLORdash Accent Quad

SKU: COLORDASHACCENTQUAD

Demo

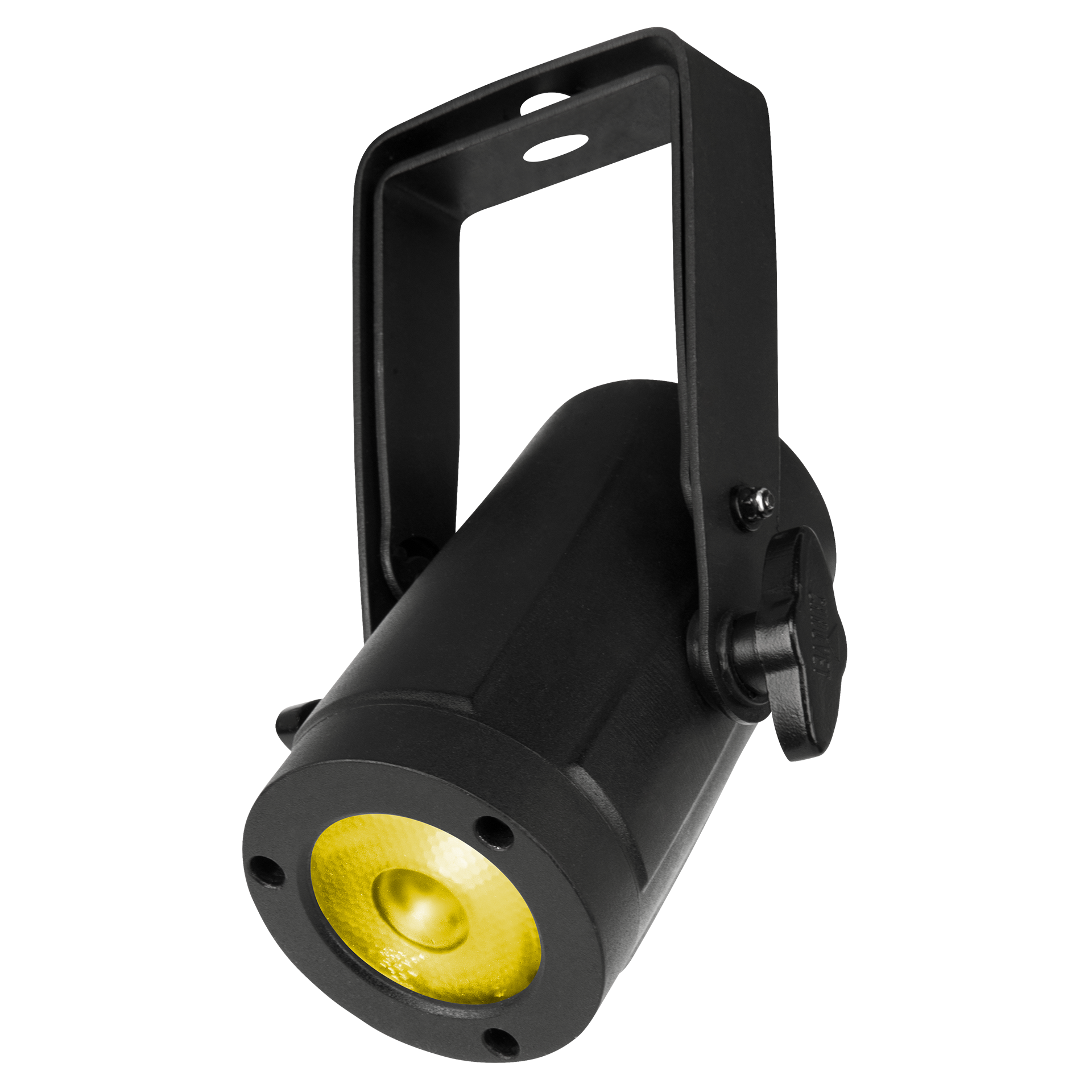

Colordash Accent Quad delivers a tremendous punch of evenly mixed light into tight locations. Powered by a 10 W quad-color (RGBA) LED, this palm-sized fixture excels at delivering saturated colors and brilliant pastels with a soft, even glow. An onboard OLED display effortlessly controls and addresses the fixture via DMX or in a stand-alone mode.

Features

Quad-Color RGBA LEDs

Features red, green, blue, and amber LEDs for a rich and expanded color palette.

Flexible Color Mixing

Achieve smooth RGBA color mixing either manually on the unit or through DMX control.

Compact and Powerful

Delivers excellent light output from an extremely compact and lightweight housing.

Variable Electronic Dimmer

Allows for smooth, stepless dimming from 0 to 100 percent for precise intensity control.

Versatile DMX Profiles

Offers both simple and complex DMX channel profiles to suit a variety of programming needs.

Dual-Purpose Yoke

The double-bracketed yoke provides flexible mounting options and can also be used as a floor stand.

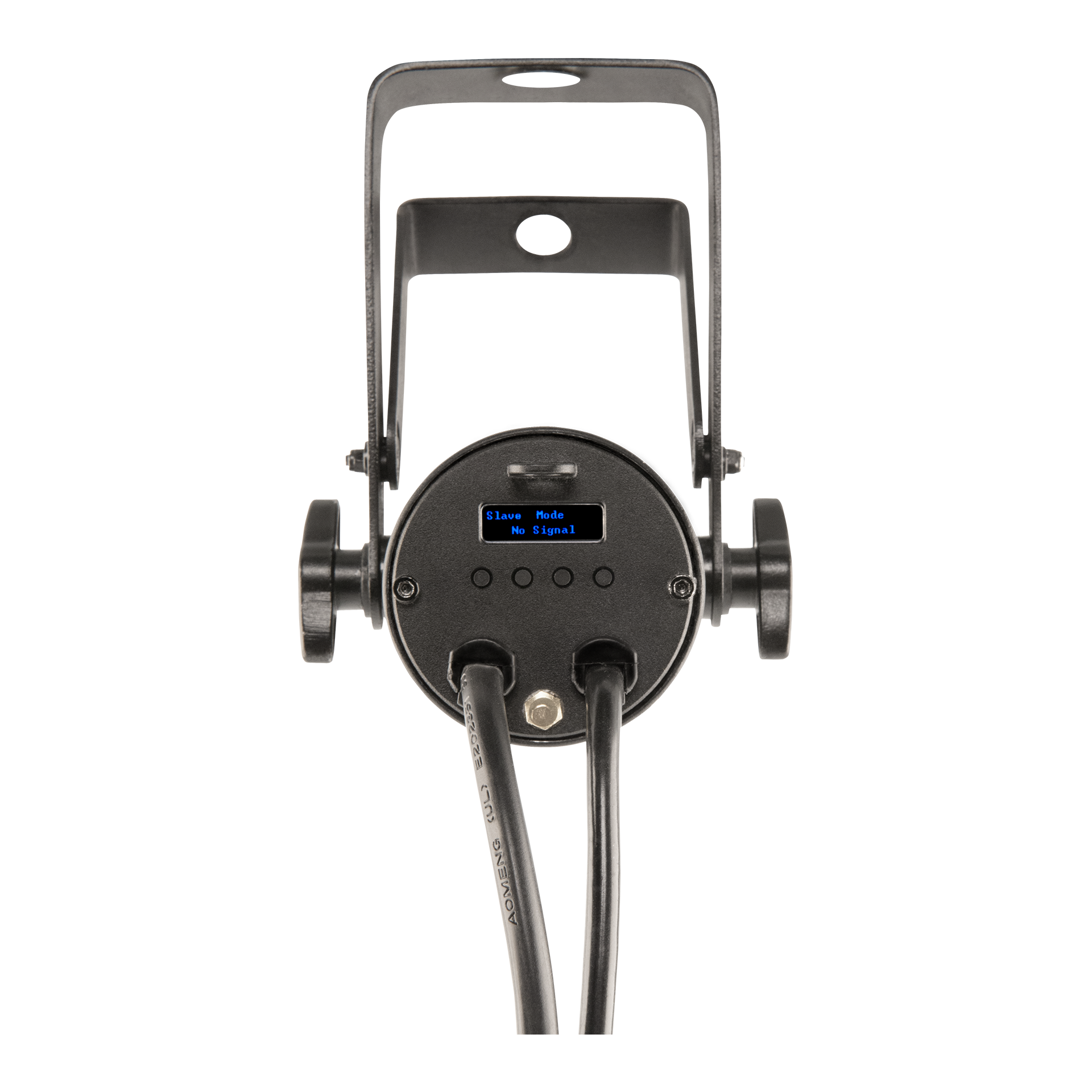

OLED Digital Display

An easy-to-read OLED display simplifies navigation and manual adjustment of settings.

Built-in Automated Programs

Access exciting, built-in automated programs using DMX or in a Master/Slave configuration.

Latest News

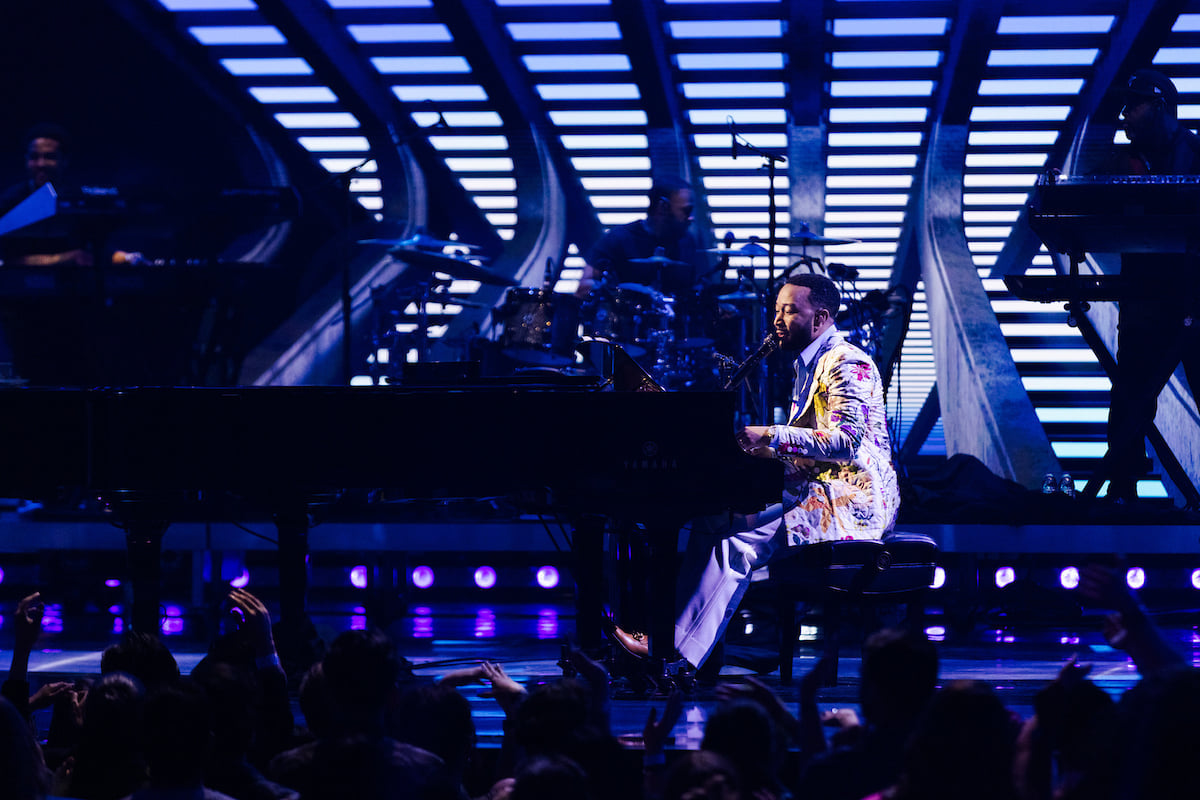

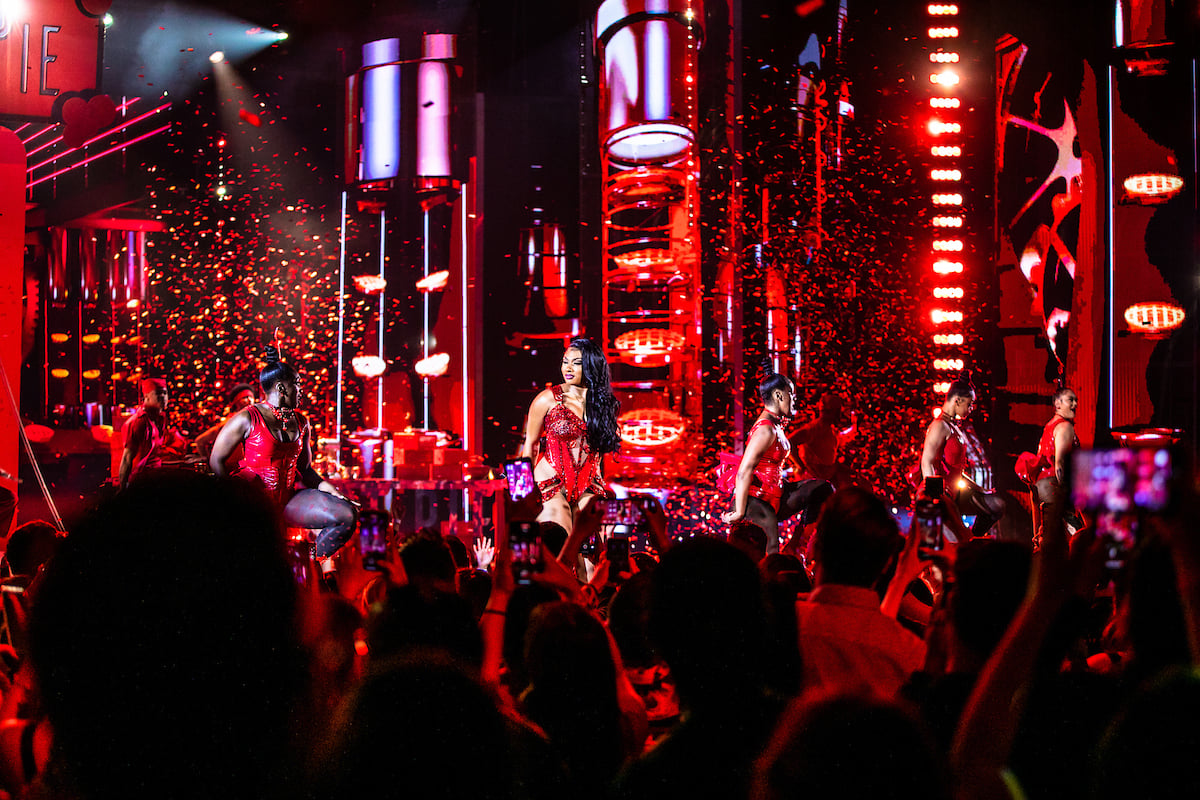

CHAUVET Professional in Allen Branton’s iHeart Awards Show

Allen Branton’s lighting design fuses a virtual environment with tangible impact for the iHeart Radio Music Awards.

Allen Branton Lights iHeart Awards with CHAUVET Professional Fixtures From 4Wall Entertainment

Lighting designer Allen Branton reveals the collaborative artistry behind the iHeart Awards’ virtual stage.

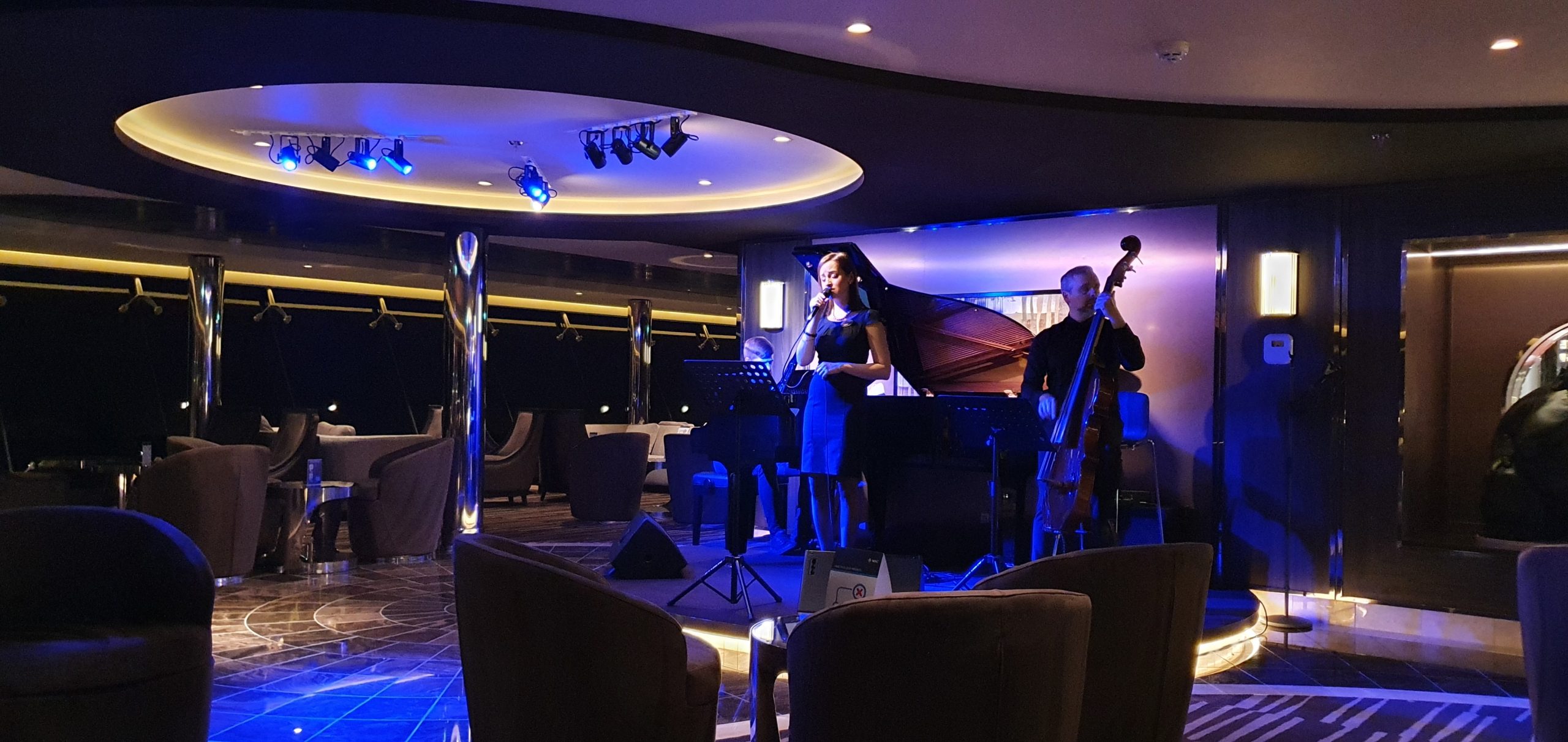

CM Srl and Audiosales Bring New Technology To Luxury Liner With 34 CHAUVET Professional NET-X II Nodes

Onboard the MSC Virtuosa, a flexible lighting network powers immersive entertainment across multiple venues.

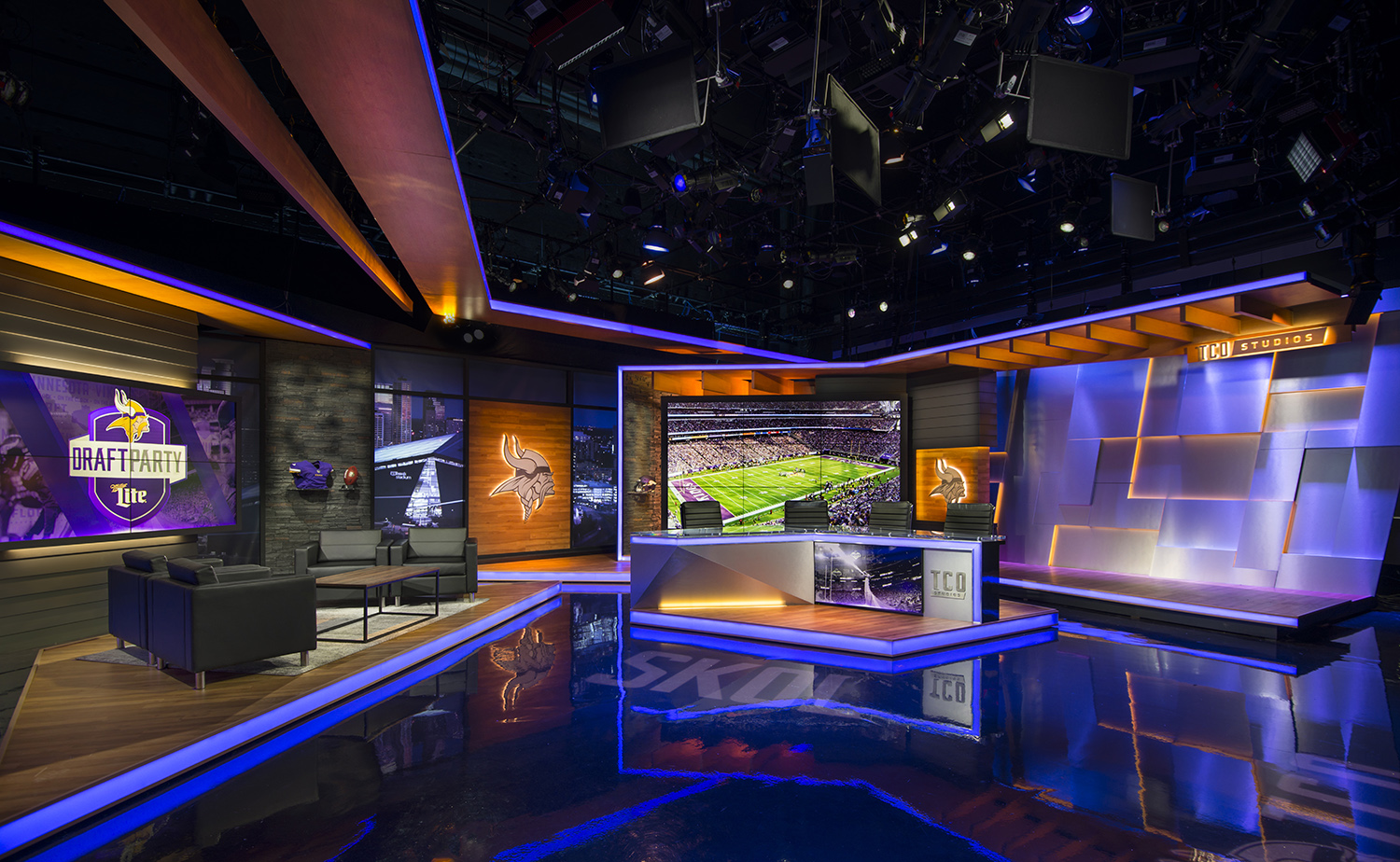

Lighting Design Group Creates Versatile Minnesota Vikings Studio Rig With CHAUVET Professional

Lighting Design Group delivers a versatile, state-of-the-art broadcast rig for the Minnesota Vikings.

Lightswitch Calls On CHAUVET Professional At National Geographic Encounter: Ocean Odyssey

Design firm Lightswitch synchronizes light and video for an immersive underwater journey.

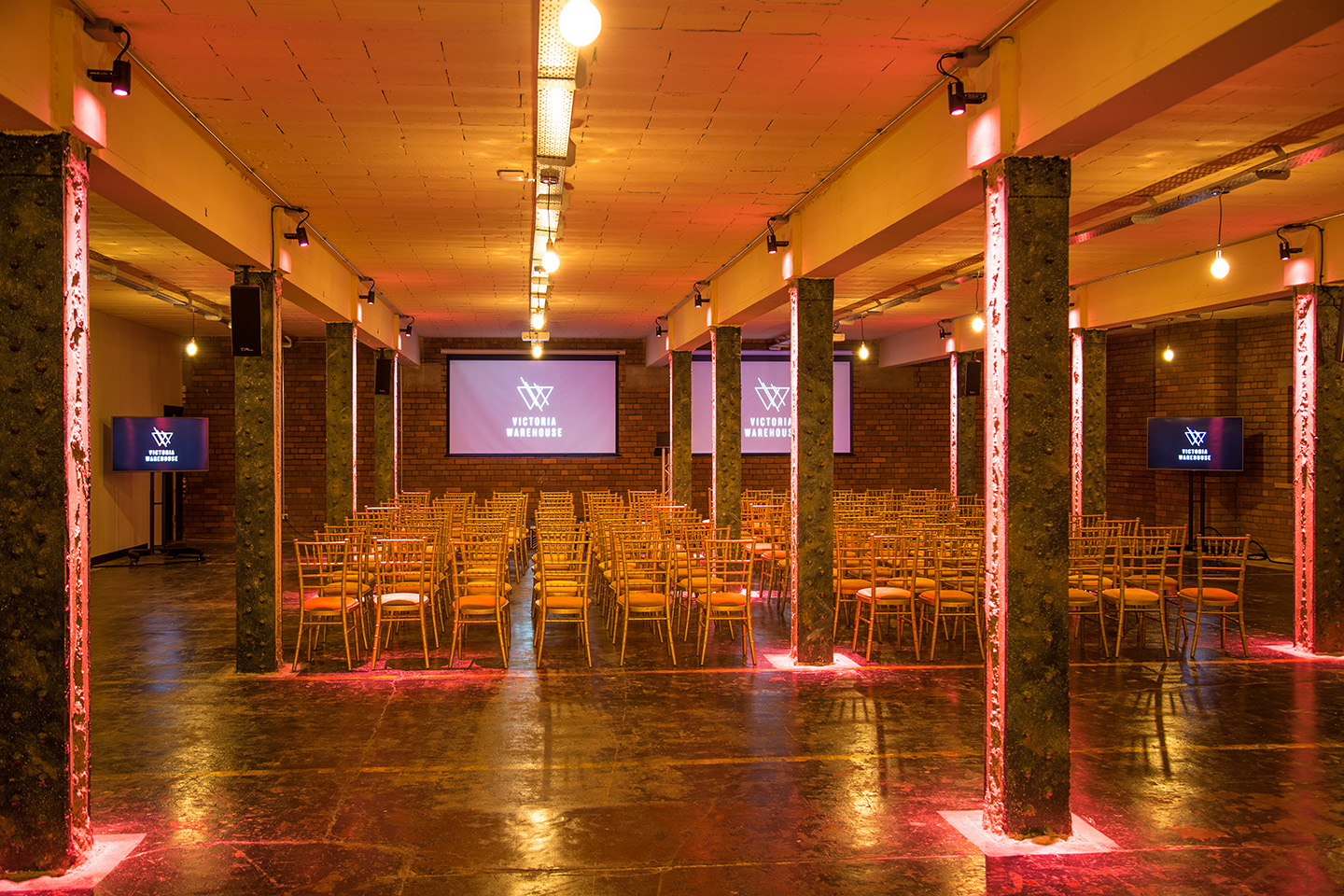

Victoria Warehouse Changes Moods With 165 CHAUVET Professional COLORdash Fixtures

Manchester’s Victoria Warehouse transforms its historic space with dynamic COLORdash lighting.

CHAUVET Professional in Allen Branton’s iHeart Awards Show

Allen Branton’s lighting design fuses a virtual environment with tangible impact for the iHeart Radio Music Awards.

Allen Branton Lights iHeart Awards with CHAUVET Professional Fixtures From 4Wall Entertainment

Lighting designer Allen Branton reveals the collaborative artistry behind the iHeart Awards’ virtual stage.

CM Srl and Audiosales Bring New Technology To Luxury Liner With 34 CHAUVET Professional NET-X II Nodes

Onboard the MSC Virtuosa, a flexible lighting network powers immersive entertainment across multiple venues.

Lighting Design Group Creates Versatile Minnesota Vikings Studio Rig With CHAUVET Professional

Lighting Design Group delivers a versatile, state-of-the-art broadcast rig for the Minnesota Vikings.

Lightswitch Calls On CHAUVET Professional At National Geographic Encounter: Ocean Odyssey

Design firm Lightswitch synchronizes light and video for an immersive underwater journey.

Victoria Warehouse Changes Moods With 165 CHAUVET Professional COLORdash Fixtures

Manchester’s Victoria Warehouse transforms its historic space with dynamic COLORdash lighting.

More Related News

Complete Your Rig

Ensure flawless results with gear designed to complement and complete your professional setup.

Specifications

Download Product Specs

Optical

Light Source

1 LED (quad-color RGBA) 10 W, (700 mA), 50,000 hours life expectancy
Beam Angle

15°
Field Angle

29°
Illuminance (total)

140 lux @ 5 m
PWM Frequency

1,200 Hz

Dynamic Effects

Dimmer

Electronic
Shutter/Strobe

Electronic
Strobe Rate

0 to 33 Hz
Standalone Color Mixing

Yes
Dim Modes

4
Built-in Automated Programs

Yes

Construction/Physical

Dimensions

4.3 x 2.6 x 6.8 in (110 x 67 x 172 mm)
Weight

1.8 lb (0.8 kg)
Exterior Color

Black

Connections

Power Connection

Edison plug to hard-wired
Power Input

Hard-wired
Data Connectors

5-pin XLR DMX input and output cable whips
Cable Length (power)

3.5 ft (1.07 m)

Control

Control Protocol

DMX
DMX Channels

4, 6 or 10
Modes/Personalities

3 personalities (4CH, 6CH, 10CH)

Electrical

Input Voltage

100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current

14 W, 0.20 A @ 120 V, 60 Hz
Power and Current

14 W, 0.13 A @ 208 V, 60 Hz
Power and Current

13 W, 0.12 A @ 230 V, 50 Hz

Certifications/Qualifications

Certifications

CE, MET
IP Rating

IP20, dry location

Compatible Accessories

Professional Clamps: CTC-50HC, CTC-50HCN
5-pin DMX Cables

What's Included

COLORdash Accent Quad

Questions or Concerns?

Let us know, we’re here to help! Contact Us

Downloads

Download All

Manuals	COLORdash Accent Quad Quick Reference Guide	Download
Manuals	COLORdash Accent Quad User Manual	Download
Manuals	COLORdash Accent Quad DMX Chart	Download
Manuals	COLORdash Accent Quad CAD File	Download
Manuals	COLORdash Accent Quad ShowXpress Profile	Download
Photometrics	Colordash Accent Quad IES Files	Download
Photometrics	COLORdash Accent Quad Photometrics Report	Download
Other	Colordash Accent Quad – Firmware	Download

Learn How To Use Your COLORdash Accent Quad

Explore these detailed videos showcasing setup, features, and creative applications for this product.

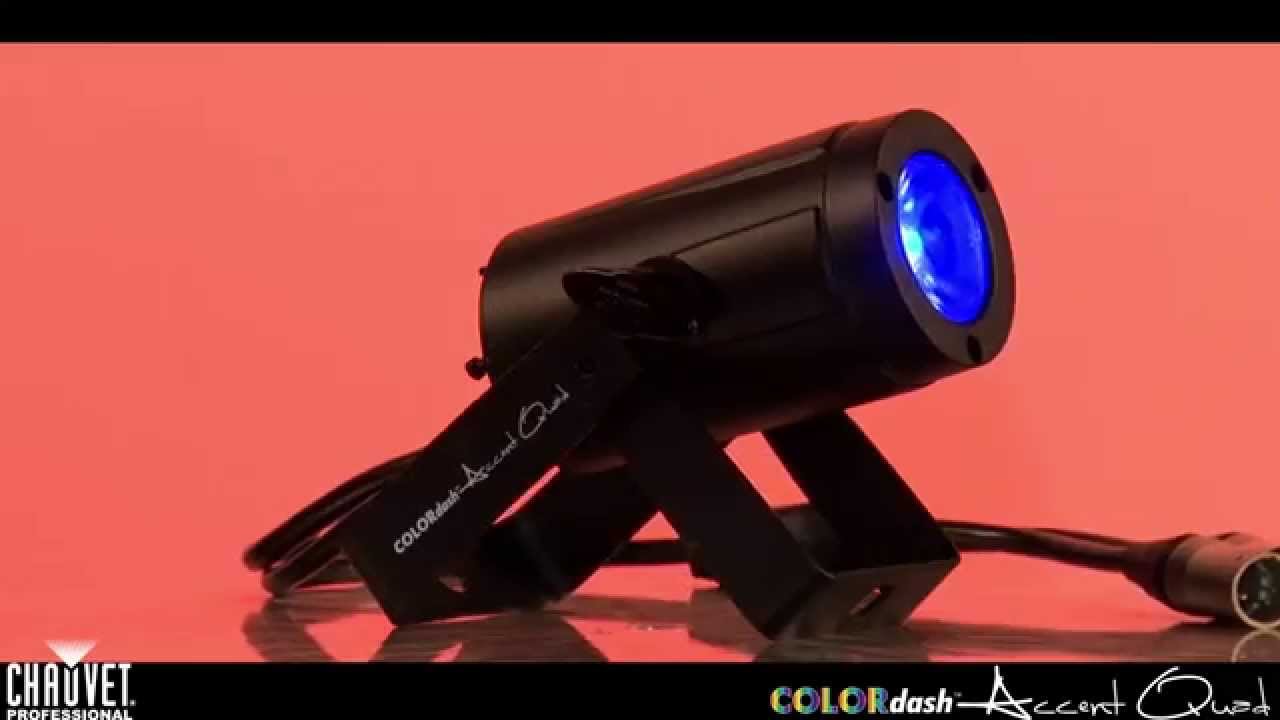

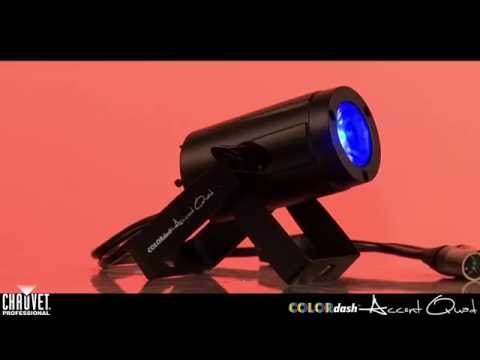

COLORdash Accent Quad by CHAUVET Professional

Unleash a powerful punch of evenly mixed RGBA light into the tightest spaces with the COLORdash Accent Quad from CHAUVET Professional. This palm-sized fixture delivers rich, saturated colors, empowering designers to add vibrant accent lighting to architectural features, set pieces, and truss installations with professional control.

Latest Articles

Browse Articles

COLORdash Accent Quad FAQ’s

Quickly find answers to common questions about setup, operation, and features of the COLORdash Accent Quad

What is the COLORdash Accent Quad used for?

The COLORdash Accent Quad is a compact, palm-sized light perfect for adding a splash of vibrant color in tight spaces. It’s ideal for uplighting walls, highlighting architectural features, illuminating displays, or adding mood lighting to small stages and event spaces.

What kind of colors can the COLORdash Accent Quad produce?

It creates an extensive range of colors by mixing red, green, blue, and amber light. This allows it to produce everything from deep, saturated colors to brilliant pastels and warm, natural-looking tones, all with a soft, even glow.

How do you set up and control the COLORdash Accent Quad?

It’s designed for easy setup. You can use its built-in, pre-set color programs via the simple onboard display for standalone operation. For advanced lighting shows, it connects to a standard DMX controller. Its versatile bracket also works as a floor stand, allowing you to place it almost anywhere.
