    COLORado Solo Bar 6

    SKU: COLORADOSOLOBAR6

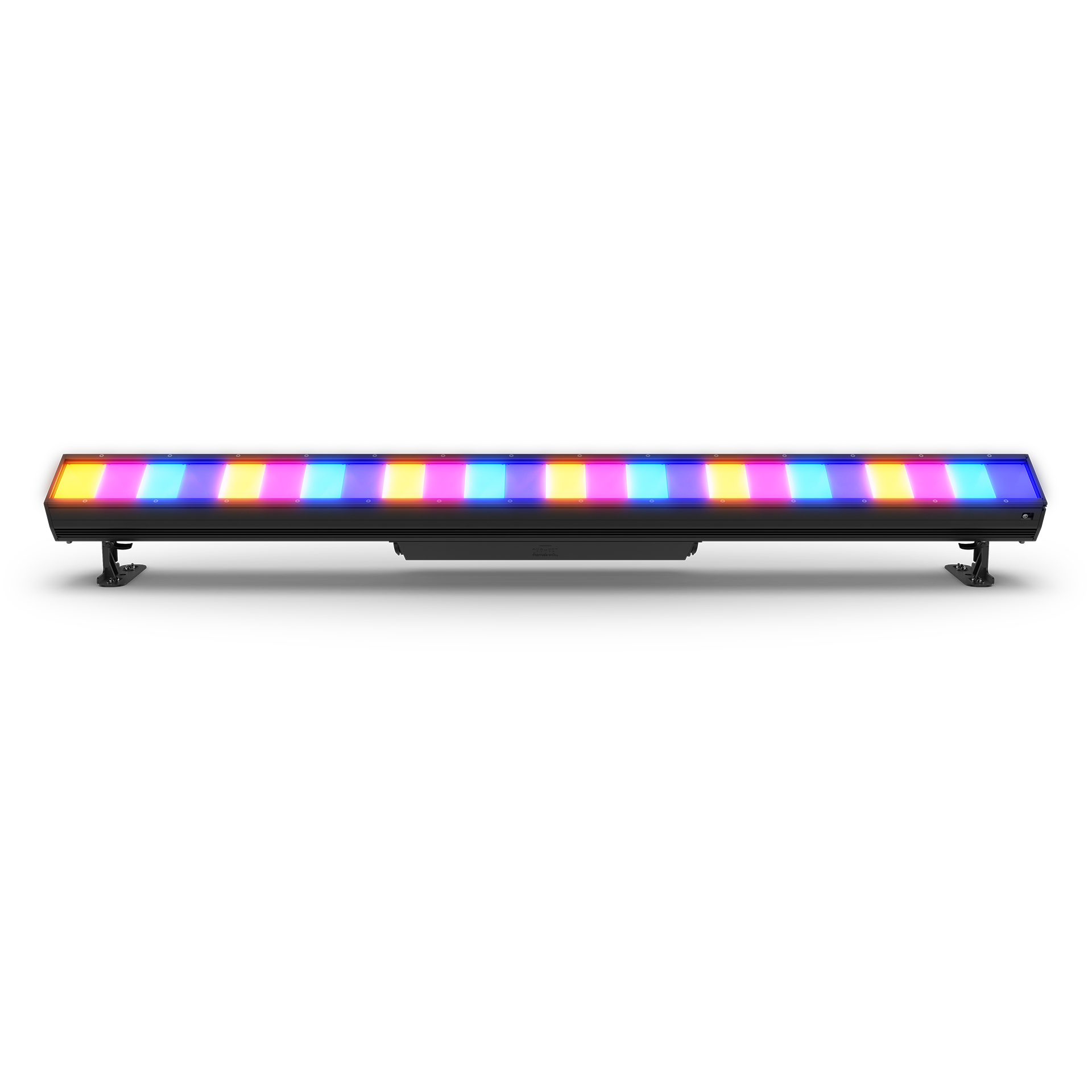

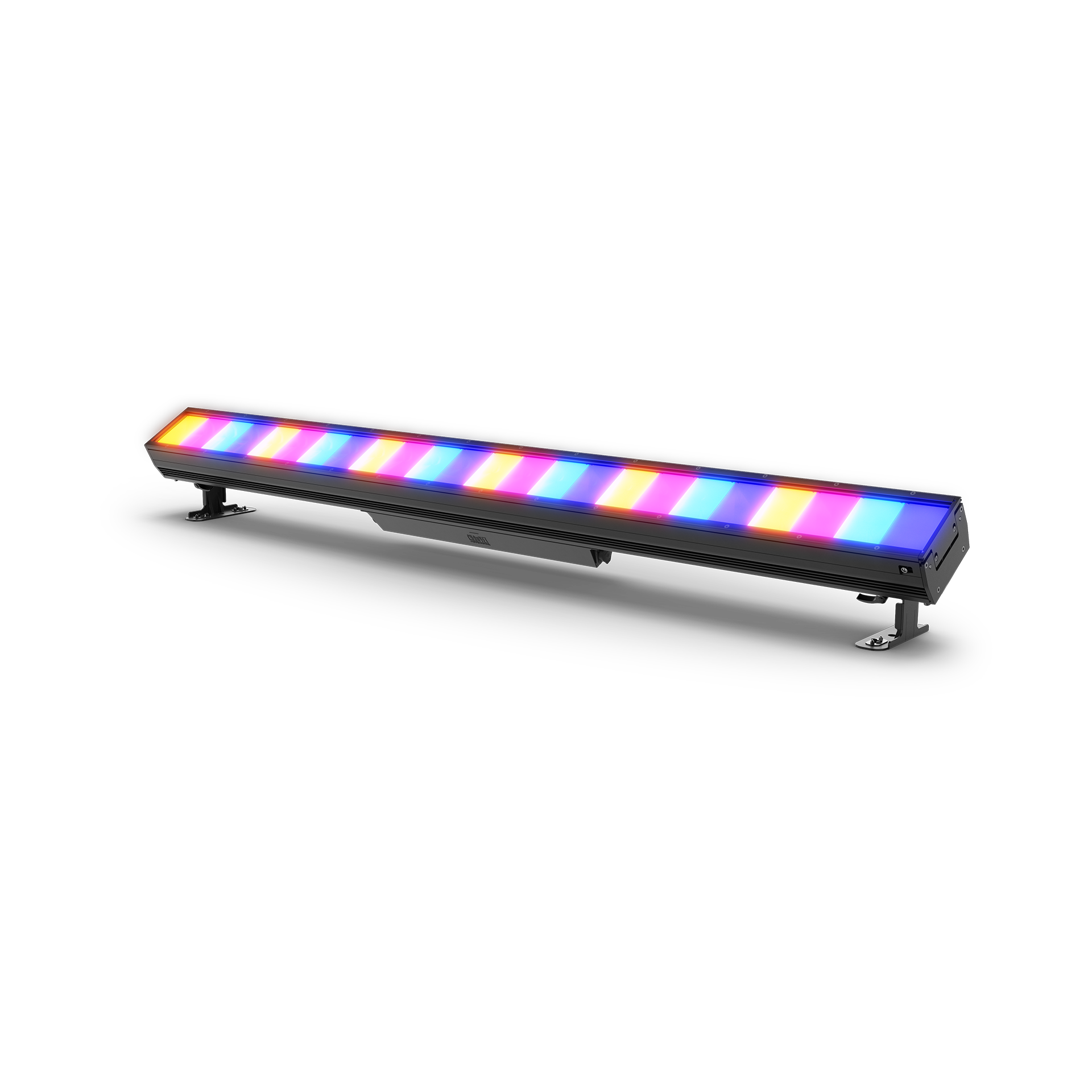

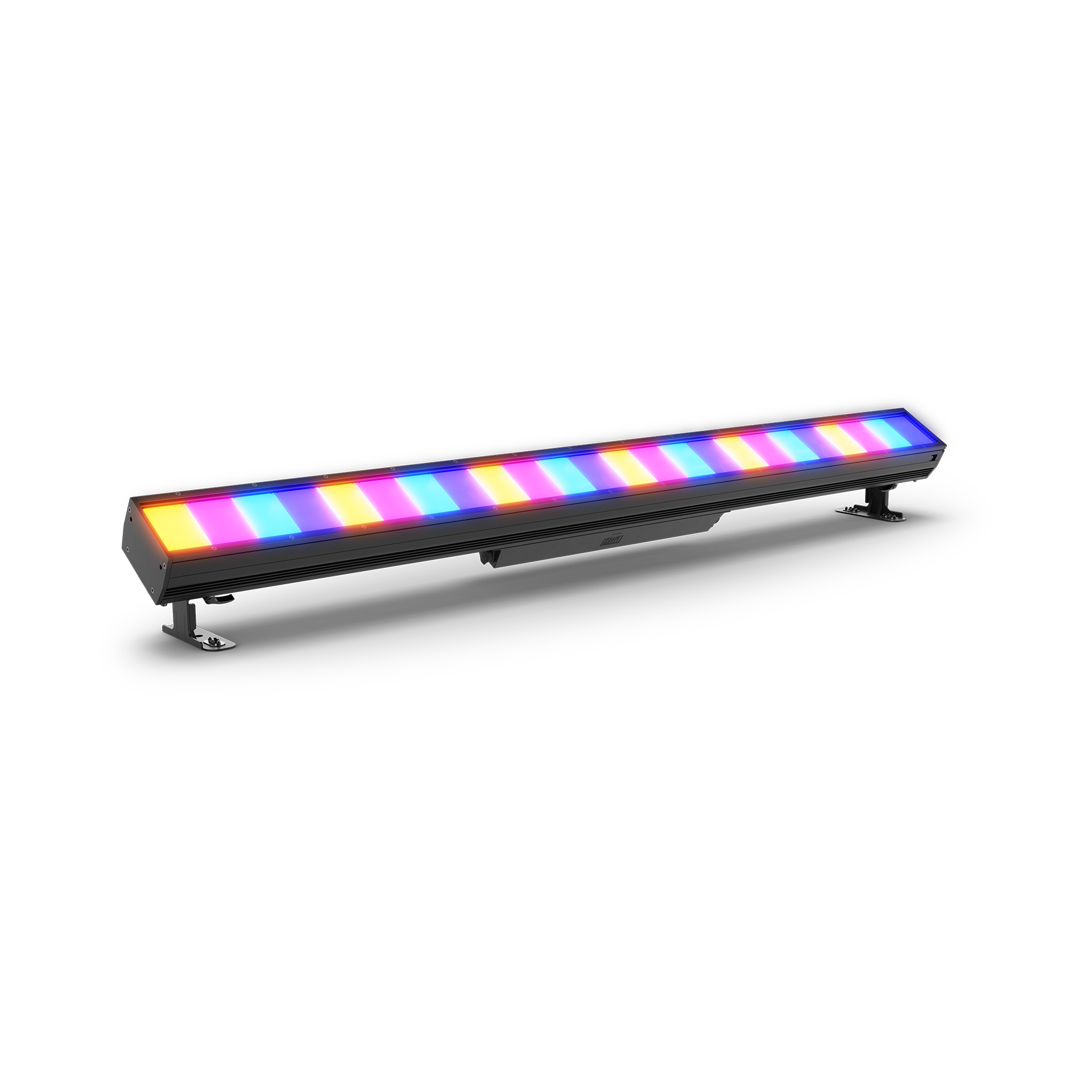

    COLORado Solo Bar 6 is a 24-cell IP65-rated RGBwWL LED batten that produces a full range of color and perfect whites from a fixture offering LDs the flexibility to easily create beautiful whites with RGBwW or take control of all five colors in the full RGBwWL array. COLORado Solo Bar 6 seamlessly combines homogenized squares for phenomenal end-to-end direct-view pixel-mapped looks, with the high output and long throw to perform equally well as a cyc, footlight, or traditional batten down light. Its advanced IP65 design brings lighter weight and all-weather durability together in one fixture at home both on the road and in permanent installations. A selection of beam shaping filters is included to broaden the choice of projection effects. Control is via DMX, ArtNet or sACN. With improved and simplified rigging options, virtually silent operation, and flawless performance live or on camera, COLORado Solo Bar 6 brings new versatility to touring, festivals, televised and theatrical productions.

    Features

    Versatile LED Batten

    This full-spectrum LED batten is perfectly suited for rental, production, broadcast, film, and special events.

    All Weather IP65 Rating

    An IP65 rating provides protection from dust, fog, and haze for reliable use in any indoor or outdoor weather conditions.

    High Quality Color Temperature

    Features linear color temperature presets from 2800 K to 8000 K with high TM-30, CRI, and CQS for superior color rendering.

    Edge to Edge Color Blending

    Delivers perfectly blended and even color across the entire cell, eliminating the common “circle in a square” effect.

    Advanced Color Control

    Offers plus/minus green adjustment and emulated red-shift effects accessible via DMX or on-board controls.

    Flexible Control Options

    Control the fixture using a wide variety of methods including DMX, RDM, CRMX, Art-Net, and sACN.

    Silent Studio Operation

    Its virtually silent operation makes it an ideal choice for noise-sensitive studio and broadcast applications.

    Adjustable Mounting Brackets

    Easily adjustable sliding brackets on a standard T-rail allow for optimal placement around truss supports.

    Simple End-to-End Alignment

    Integrated guide pins ensure quick and easy alignment when connecting multiple units end-to-end.

    Integrated Filter Slot and Glare Shield

    Includes a slide-in slot for filters and an on-board stowable glare shield for enhanced beam control.

    Smooth 18-Bit Dimming

    Achieve ultra-smooth fades with 18-bit dimming curves and speeds that complement any lighting design.

    Latest News

    CHAUVET Professional Helps Jack Cannon Set Mood for Muni Long at Coachella
    Jack Cannon details how he crafted an elegant, cinematic mood for Muni Long’s debut Coachella performance in broad daylight.
    Read more
    Mike Grabowski, Lighting Design Group Turn Iconic Times Square NYE Rig All IP With CHAUVET Professional & 4Wall
    LD Mike Grabowski details the first all-IP lighting rig for the iconic Times Square NYE broadcast.
    Read more
    CHAUVET Professional Helps Jack Cannon Set Mood for Muni Long at Coachella
    Jack Cannon details how he crafted an elegant, cinematic mood for Muni Long’s debut Coachella performance in broad daylight.
    Read more
    Mike Grabowski, Lighting Design Group Turn Iconic Times Square NYE Rig All IP With CHAUVET Professional & 4Wall
    LD Mike Grabowski details the first all-IP lighting rig for the iconic Times Square NYE broadcast.
    Read more
    More Related News

    Complete Your Rig

    Ensure flawless results with gear designed to complement and complete your professional setup.

    Specifications

    Download Product Specs

    Optical

    • Light Source

      24 (RGBWwL) LED Engines

    • Color Temperature (range)

      2800 to 8000 K

    • Color Temperature (at full)

      9167 K

    • CRI

      95

    • Beam Angle

      16.7°

    • Beam Angle (w/CYC Diffusion)

      40.7°

    • Beam Angle (w/Half Diffusion)

      18.9°

    • Beam Angle (w/Stealth Diffusion)

      25°

    • Field Angle

      36.1°

    • Field Angle (w/CYC Diffusion)

      84.4°

    • Field Angle (w/Half Diffusion)

      46.8°

    • Field Angle (w/Stealth Diffusion)

      61.2°

    • Lumens

      25,198

    • Lumens (w/CYC Diffusion)

      32,913

    • Lumens (w/Half Diffusion)

      23,920

    • Lumens (w/Stealth Diffusion)

      8,571

    • Illuminance

      5,834 lux @ 5 m

    • Illuminance (w/CYC Diffusion)

      1,739 lux @ 5 m

    • Iluminance (w/Half Diffusion)

      3,788 lux @ 5 m

    • Iluminance (w/Stealth Diffusion)

      932 lux @ 5 m

    • Selectable PWM

      1,000 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 12,000 Hz, 25,000 Hz

    Dynamic Effects

    • Dimmer

      Electronic

    • Shutter/Strobe

      Electronic

    • Strobe Rate

      0 to 30 Hz

    • Color Temperature Presets

      Yes

    • Dim Modes

      4

    • Dim Curves

      4

    • Built-in Automated Programs

      Yes

    Construction/Physical

    • Dimensions

      69.61 x 7.87 x 8.36 in (1768 x 200 x 212.4 mm)

    • Weight

      49 lb (22.3 kg)

    • Exterior Color

      Black

    • Housing Material

      Aluminum diecast, aluminum profile

    Connections

    • Power Connection

      Edison (Local) plug to Seetronic Powerkon IP65

    • Power Input

      Seetronic Powerkon IP65

    • Power Output

      Seetronic Powerkon IP65

    • Data Connectors

      5-pin IP65 XLR, Seetronic etherCON® compatible

    • Cable Length (power)

      5 ft (1.5 m)

    • Software Connection

      USB

    Control

    • Control Protocol

      Art-Net, sACN, DMX, CRMX, RDM

      • DMX Channels
        • 1 CELL

          CCT 4ch, HSV 4ch, RGB 3ch, RGBW 4ch, RGBWL 5ch, RGBWL-16bit 10ch, RGB Ext. 10ch, RGBW Ext. 11ch, RGBWL Ext. 12ch, RGBWL Full 19ch, XY 4ch, XY Ext. 9ch

        • 2 CELL

          CCT 7ch, HSV 7ch, RGB 6ch, RGBW 8ch, RGBWL 10ch, RGBWL-16bit 20ch, RGB Ext. 17ch, RGBW Ext. 19ch, RGBWL Ext. 21ch, RGBWL Full 35ch

        • 4 CELL

          CCT 13ch, HSV 13ch, RGB 12ch, RGBW 16ch, RGBWL 20ch, RGBWL-16bit 40ch, RGB Ext. 31ch, RGBW Ext. 35ch, RGBWL Ext. 39ch, RGBWL Full 67ch

        • 6 CELL

          CCT 19ch, HSV 19ch, RGB 18ch, RGBW 24ch, RGBWL 30ch, RGBWL-16bit 60ch, RGB Ext. 45ch, RGBW Ext. 51ch, RGBWL Ext. 57ch, RGBWL Full 99ch

        • 8 CELL

          CCT 25ch, HSV 25ch, RGB 24ch, RGBW 32ch, RGBWL 40ch, RGBWL-16bit 80ch, RGB Ext. 59ch, RGBW Ext. 67ch, RGBWL Ext. 75ch, RGBWL Full 131ch

        • 12 CELL

          CCT 37ch, HSV 37ch, RGB 36ch, RGBW 48ch, RGBWL 60ch, RGBWL-16bit 120ch, RGB Ext. 87ch, RGBW Ext. 99ch, RGBWL Ext. 111ch, RGBWL Full 195ch

        • 24 CELL

          CCT 73ch, HSV 73ch, RGB 72ch, RGBW 96ch, RGBWL 120ch, RGBWL-16bit 240ch, RGB Ext. 171ch, RGBW Ext. 195ch, RGBWL Ext. 219ch, RGBWL Full 387ch

      • Art-Net / sACN Channels
        • 1 CELL

          CCT 4ch, HSV 4ch, RGB 3ch, RGBW 4ch, RGBWL 5ch, RGBWL-16bit 10ch, RGB Ext. 10ch, RGBW Ext. 11ch, RGBWL Ext. 12ch, RGBWL Full 19ch, XY 4ch, XY Ext. 9ch

        • 2 CELL

          CCT 7ch, HSV 7ch, RGB 6ch, RGBW 8ch, RGBWL 10ch, RGBWL-16bit 20ch, RGB Ext. 17ch, RGBW Ext. 19ch, RGBWL Ext. 21ch, RGBWL Full 35ch

        • 4 CELL

          CCT 13ch, HSV 13ch, RGB 12ch, RGBW 16ch, RGBWL 20ch, RGBWL-16bit 40ch, RGB Ext. 31ch, RGBW Ext. 35ch, RGBWL Ext. 39ch, RGBWL Full 67ch

        • 6 CELL

          CCT 19ch, HSV 19ch, RGB 18ch, RGBW 24ch, RGBWL 30ch, RGBWL-16bit 60ch, RGB Ext. 45ch, RGBW Ext. 51ch, RGBWL Ext. 57ch, RGBWL Full 99ch

        • 8 CELL

          CCT 25ch, HSV 25ch, RGB 24ch, RGBW 32ch, RGBWL 40ch, RGBWL-16bit 80ch, RGB Ext. 59ch, RGBW Ext. 67ch, RGBWL Ext. 75ch, RGBWL Full 131ch

        • 12 CELL

          CCT 37ch, HSV 37ch, RGB 36ch, RGBW 48ch, RGBWL 60ch, RGBWL-16bit 120ch, RGB Ext. 87ch, RGBW Ext. 99ch, RGBWL Ext. 111ch, RGBWL Full 195ch

        • 24 CELL

          CCT 73ch, HSV 73ch, RGB 72ch, RGBW 96ch, RGBWL 120ch, RGBWL-16bit 240ch, RGB Ext. 171ch, RGBW Ext. 195ch, RGBWL Ext. 219ch, RGBWL Full 387ch

    • Modes/Personalities

      72 personalities

    Electrical

    • Input Voltage

      100 to 240 VAC, 50/60 Hz (auto-ranging)

    • Power Linking

      0 units @ 100 V; 2 units @ 120 V; 4 units @ 208 V; 4 units @ 230 V, 4 units @ 240 V

    • Power and Current

      610 W, 6.10 A @ 100 V, 60 Hz [10 A inrush]

    • Power and Current

      600 W, 4.98 A @ 120 V, 60 Hz [12 A inrush]

    • Power and Current

      590 W, 2.78 A @ 208 V, 60 Hz [17 A inrush]

    • Power and Current

      575 W, 2.55 A @ 230 V, 50 Hz [34 A inrush]

    • Power and Current

      573 W, 2.50 A @ 240 V, 60 Hz [27 A inrush]

    Certifications/Qualifications

    • Certifications

      CE, MET, FCC, UKCA

    • IP Rating

      IP65, temporary outdoor use, with pressure equalizing M12 GORE valve

      • Noise Levels
        • Noise Level (Idle)

          25.0 dB(A) level @ 1 m

        • Noise Level (Auto)

          25.2 dB(A) level @ 1 m

    • Temperature (Ambient)

      -4 °F to 113 °F (-20 °C to 45 °C)

    Compatible Accessories

    • Professional Clamps: CTC-50HC, CTC-50HCN
    • Safety Cable: SC-07
    • IP Rated Seetronic® Powerkon Extensions
    • IP Rated DMX cables
    • UPLOAD 03 software uploader

    What's Included

    • COLORado Solo Bar 6
    • Seetronic Powerkon IP65
    • Omega brackets with mounting hardware
    • 50/50 Filter, Cyc Filter, Stealth Filter, Clear Protective Filter (Installed)
    • Short Mount Accessory Feet
    • Glare Shield
