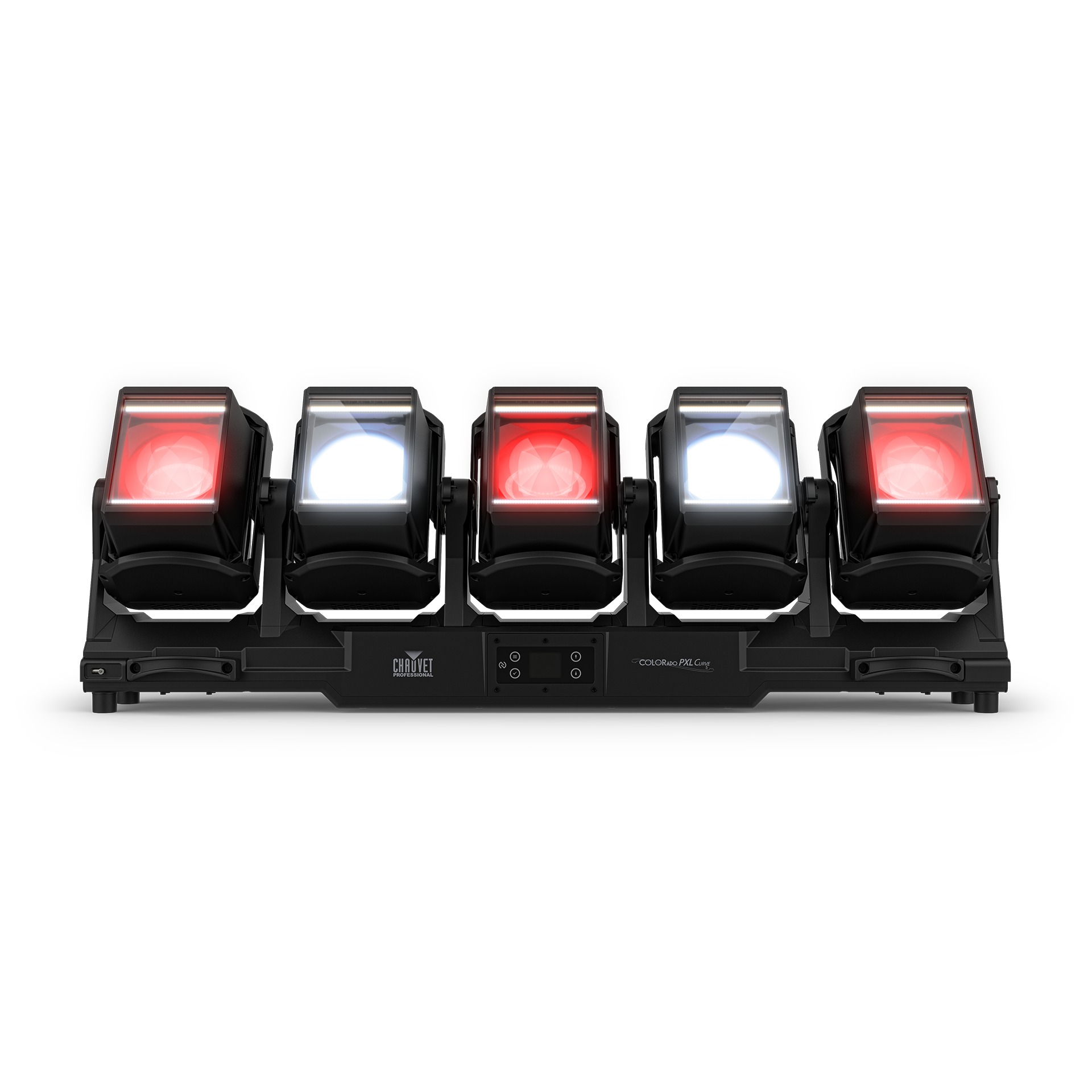

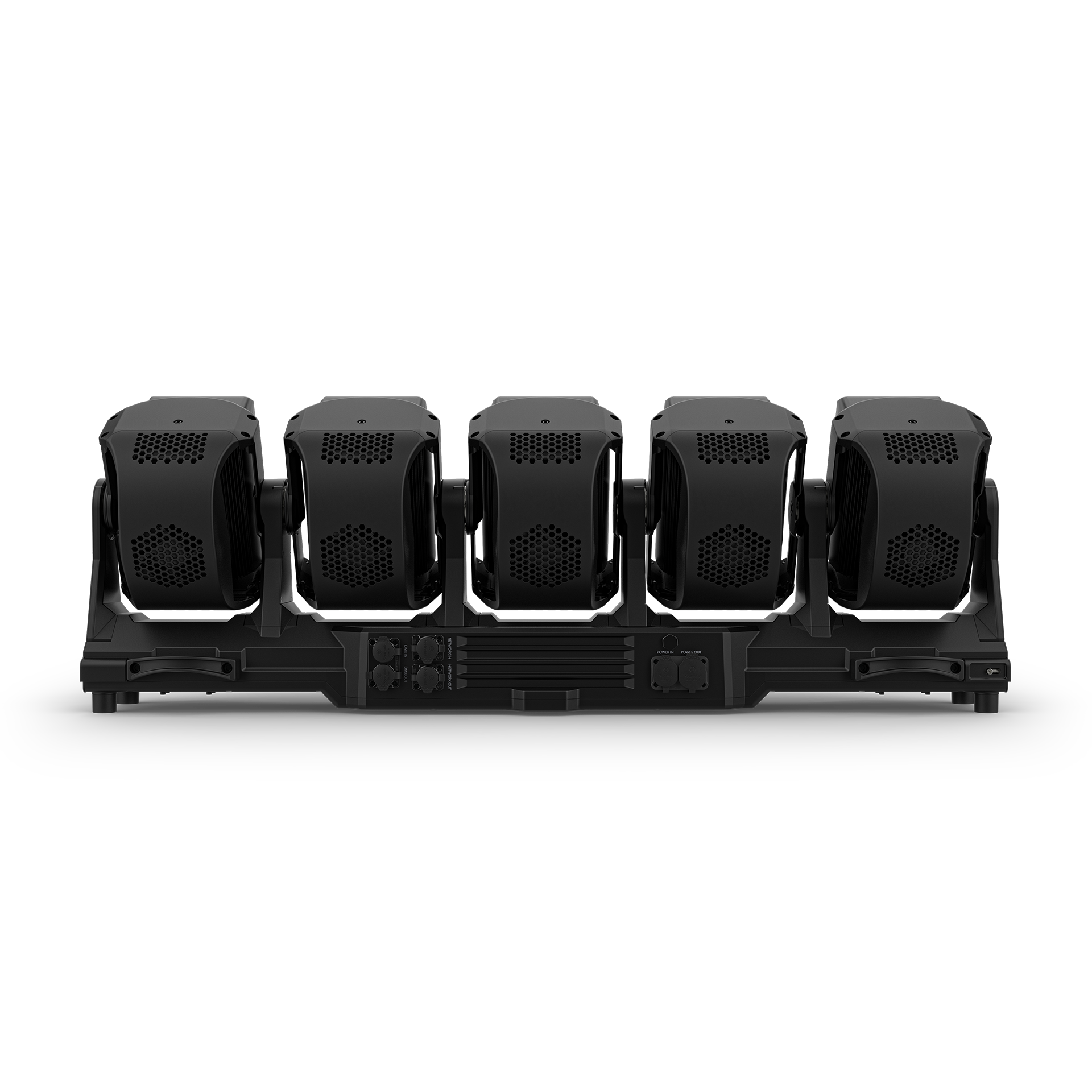

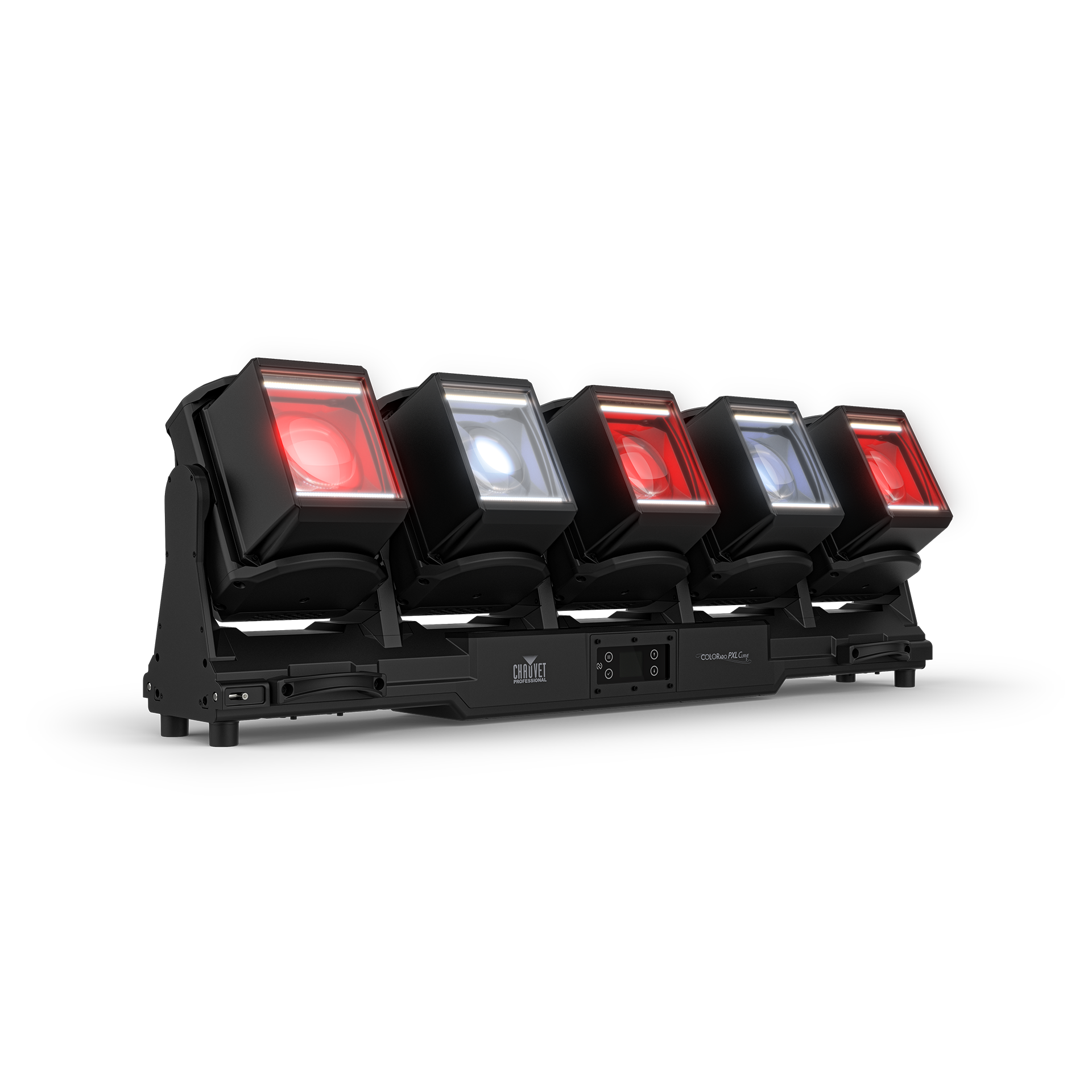

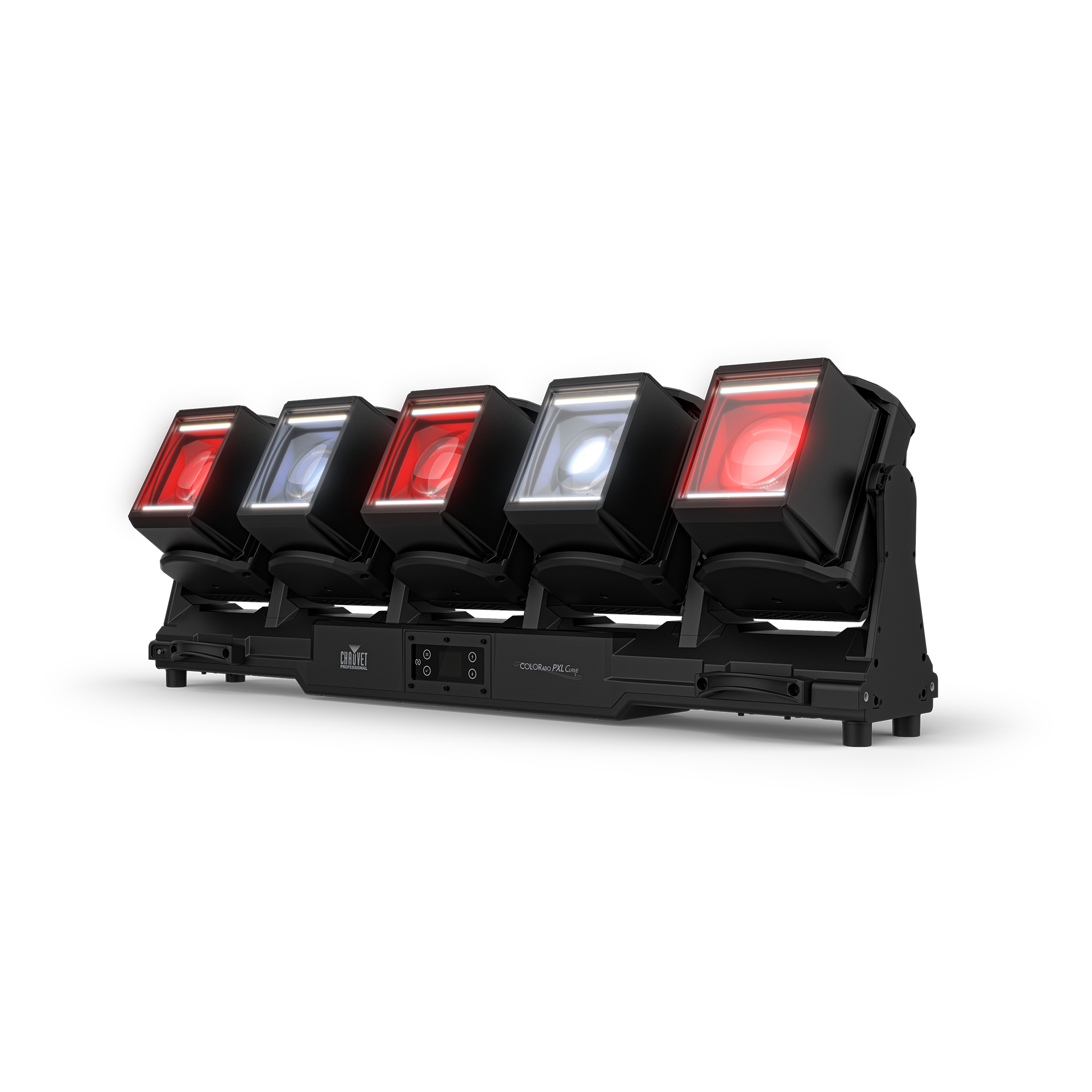

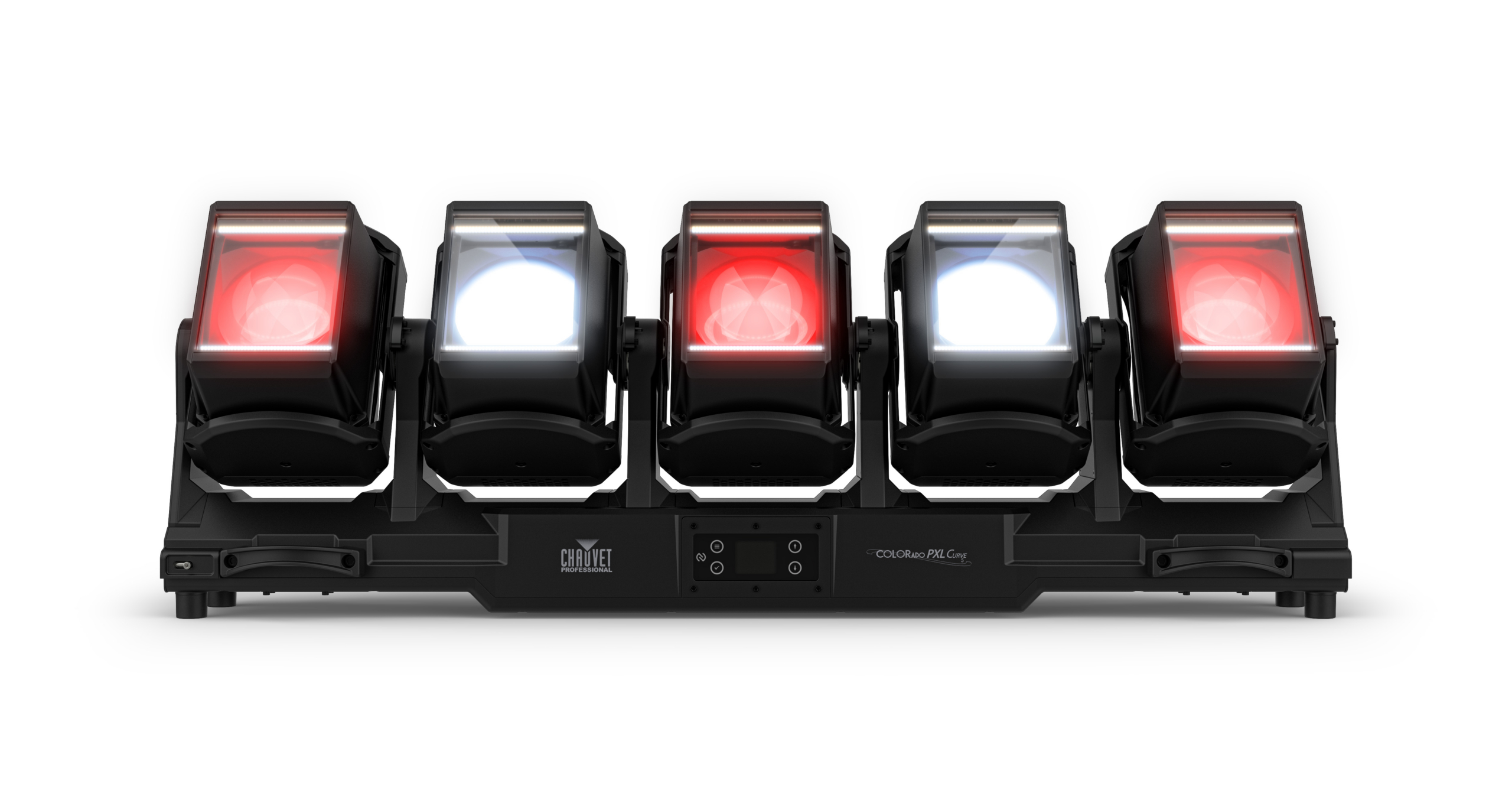

COLORado PXL Curve 5
This is a versatile, IP65-rated moving wash luminaire featuring five individually controlled pixels in a unique, arced housing for dynamic visual effects.
Its rugged, all-weather design empowers lighting designers to create immersive, sweeping color washes for concerts, corporate events, and theatrical productions.
-
Fully featured IP65 rated Bar style fixture with (5) heads, each consisting of single (120W) RGBW LEDs, and two linear four cell CW and WW Strobe LEDs
-
Wash and beam fixtures with pan and tilt functionality and the ability to maintain pixel pitch when using multiple fixtures together
-
Quick and quiet operation of 200° of tilt and 60° of pan per head
-
8 section control of Warm White and Cool White strobe cells per head
-
DMX, SACN, and Art-Net control for full flexibility
-
RDM and NFC Enabled for remote addressing and trouble shooting
-
IP65-rated 5-pin DMX and TCP/IP input and output ports
-
NFC functionality (COMING SOON)
-
Software update over Bluetooth (COMING SOON)
-
Slotted Omega bracket for easy hanging on truss
Request A Product Demo
Request a personalized demo or speak directly with our sales team today.
COLORado PXL Curve 5
COLORado PXL Curve 5 features motorized pan, tilt and zoom in an IP65-rated LED batten form factor with five RGBW beam/wash heads that bring the added punch of dual linear cool and warm white LED strobe cells. Designed for seamless pixel mapping with COLORado PXL Curve 1, its color blending and rectangular heads perfectly match other COLORado PXL models in the rig. Flexible DMX, sACN, and Art-Net control along with RDM and NFC support round out this versatile addition to the COLORado PXL family.
Features
Unique Curved Form Factor
The innovative arced housing allows fixtures to be linked seamlessly, creating cohesive, flowing arrays of light for dynamic, large-scale visual designs.
Individual Pixel Control
Five independently controlled RGBW pixels empower you to create intricate pixel-mapped effects, animated graphics, and vibrant, multi-layered color washes.
All Weather Reliability
A rugged, IP65-rated housing protects against water and dust, ensuring consistent, reliable performance for outdoor concerts, festivals, and permanent installations.
Powerful Moving Wash
Delivers smooth, fast pan and tilt movement combined with a powerful wash output, perfect for covering large areas with rich, saturated color.
Specifications
Optical
-
Light Source
5 LEDs (RGBW) 120 W, (4.5A) 50,000 hours life expectancy
-
Color Temperature (range)
3200 to 7500 K
-
-
Beam Angle
-
Spot
8.3°
-
Flood
30.4°
-
50% Zoom
14.7°
-
-
Beam Angle
-
-
Field Angle
-
Spot
10.3°
-
Flood
115.8°
-
50% Zoom
24.1°
-
-
Field Angle
-
-
Cutoff Angle
-
Spot
10.7°
-
Flood
155.1°
-
50% Zoom
132.2°
-
-
Cutoff Angle
-
Zoom Range
8.3° to 155.1°
-
Lumens
42,172 lm
-
-
Illuminance
-
Spot
18,062 lux @ 5 m
-
Flood
2,166 lux @ 5 m
-
-
Illuminance
-
Selectable PWM
600, 1200 Hz, 2000 Hz, 4000 Hz, 6000 Hz, 15000 Hz
Dynamic Effects
-
Pant and Tilt
60°/200°
-
Dimmer
Electronic
-
Shutter/Strobe
Electronic
-
Strobe Rate
0 to 25Hz
-
Standalone Color Mixing
No
-
Color Temperature Presets
Yes
-
Dim Modes
2
-
Built-in Automated Programs
Yes
Construction/Physical
-
Dimensions
39.33 x 8.86 x 13.50 in (999 x 225 x 343 mm)
-
Weight
71.4 lb (32.4 kg)
-
Exterior Color
Black
-
Housing Material
Aluminum diecast, High-Impact flame-retardant polymer, Steel
Connections
-
Power Connection
Edison (Local) plug to Seetronic Powercon IP65
-
Power Input
Seetronic Powercon IP65
-
Power Output
Seetronic Powercon IP65
-
Data Connectors
5-pin IP65 XLR, Seetronic etherCON IP65
-
Cable Length (power)
5 ft (1.5 m)
Control
-
Control Protocol
Art-Net, sACN, DMX, RDM
-
DMX Channels
120 ch, 155 ch, 195 ch,355 ch
-
Art-Net Channels
120 ch, 155 ch, 195 ch,355 ch
-
sACN Channels
120 ch, 155 ch, 195 ch,355 ch
-
Modes/Personalities
4 personalities: 120 ch, 155 ch, 195 ch,355 ch
Electrical
-
Input Voltage
100 to 240 VAC, 50/60 Hz (auto-ranging)
-
Power Linking
; 1 units @ 120 V; 2 units @ 208 V; 2 units @ 230 V,
-
Power and Current
1136 W, 9.49 A @ 120 V, 60 Hz
-
Power and Current
1105 W, 5.44 A @ 208 V, 60 Hz
-
Power and Current
1113 W, 4.87 A @ 230 V, 50 Hz
Certifications/Qualifications
-
CE, MET, UKCA, FCC
-
IP Rating
IP65, temporary outdoor/wet use
-
Temperature (Ambient)
14 °F to 113 °F (-10 °C to 45 °C)
Compatible Accessories
- CTC-50HC – Clamp
- CTC-50HCN – Narrow Clamp
- CTC-SLC – Lightweight Clamp
- CTC-50G – Trigger Clamp
- SC08 – Safety Cable
- RIGLINKTR1 – Powerkon IP65
- RIGLINK powerKON cables
- RIGLINK etherKON cables
- RIGLINKDMX – DMX 5 Pin
- RIGLINKCOMBO – IP65 Power and DMX
- POWERSTREAM4IP – Power distribution
- CPRACK
What's Included
- COLORADO PXL Curve 5
- Seetronic Powercon IP65 power cord
- (2) Omega Brackets
Questions or Concerns?
Let us know, we’re here to help! Contact Us
Downloads
COLORado PXL Curve 5 FAQ’s
The arced housing is designed so multiple units can be arranged together to create visually seamless, flowing lines of light. This is ideal for outlining stages, creating dynamic backdrops, or building unique geometric shapes that would be impossible with standard linear fixtures.
Yes, its IP65 rating ensures it is fully protected against dust ingress and low-pressure water jets from any direction. This makes it a reliable choice for permanent outdoor applications like architectural facades, theme park attractions, and amphitheaters.
With individual control over each of the five RGBW pixels, you can program detailed pixel-mapped video effects, scrolling text, and complex color gradients. This allows for a wide range of creative looks, from subtle animations to high-energy strobing and eye-candy effects.
