    COLORado M Solo

    A compact, robust, and silent IP65-rated static wash light featuring RGBW LEDs and a smooth zoom that projects an even, fully homogenized beam.
    Ideally suited for indoor or outdoor touring and production applications, particularly in tight or noise-sensitive environments.

    Read More Read Less
    Read More Read Less
    Request Demo

    Request A Product Demo

    Request a personalized demo or speak directly with our sales team today.

    Authorized Vendors
    Download Product Information
    SKU: COLORADOMSOLO

    COLORado M Solo

    Specifications
    		 Download
    COLORado M Solo Quick Reference Guide
    		 Download
    COLORado M Solo User Manual
    		 Download
    COLORado M Solo CAD Files
    		 Download
    COLORado M Solo IES Profile
    		 Download
    COLORado M Solo Photometrics Reports
    		 Download
    COLORado M Solo DMX Chart
    		 Download
    COLORado M Solo ShowXpress Profile
    		 Download
    Firmware
    		 Download
    Download All Resources

    COLORado M Solo

    SKU: COLORADOMSOLO

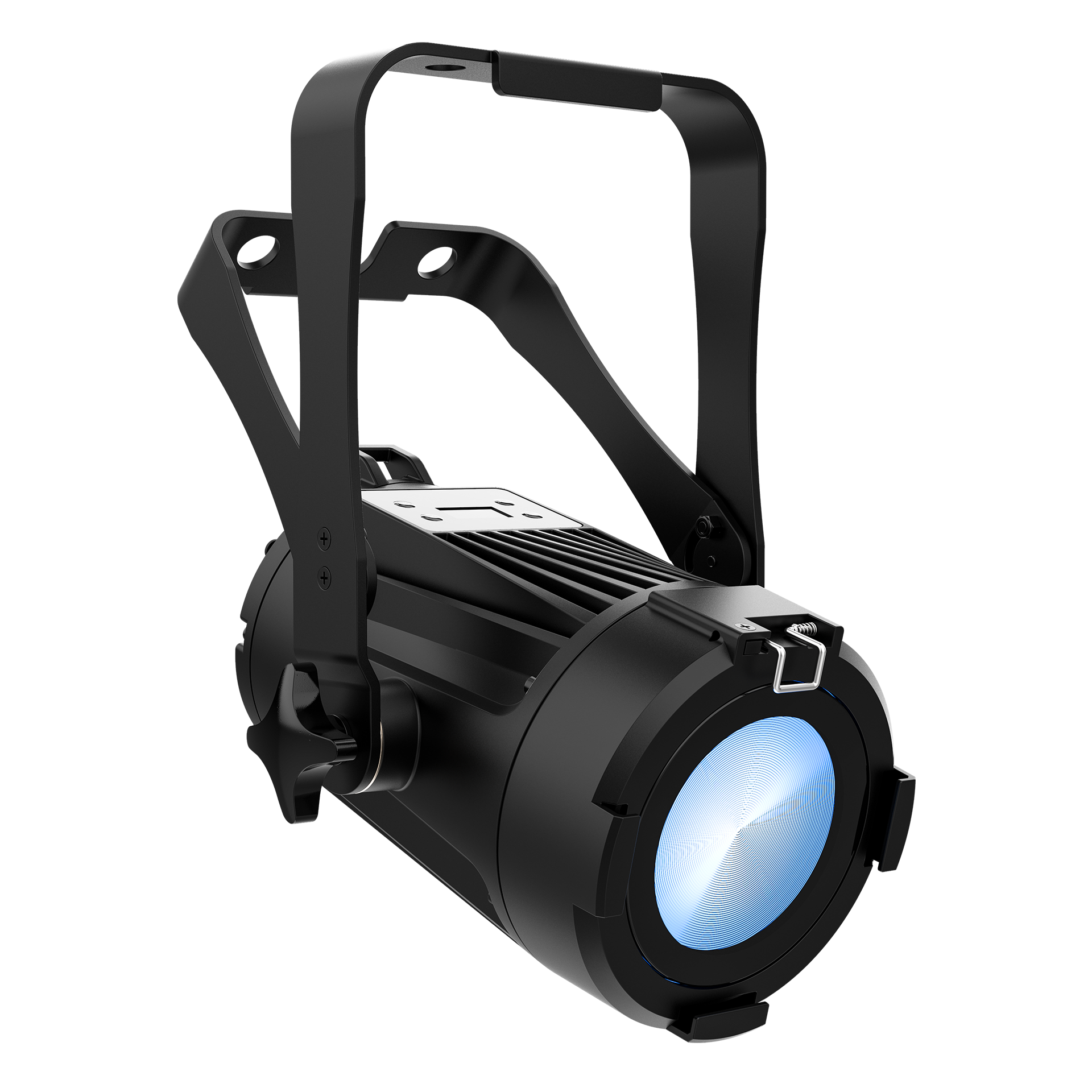

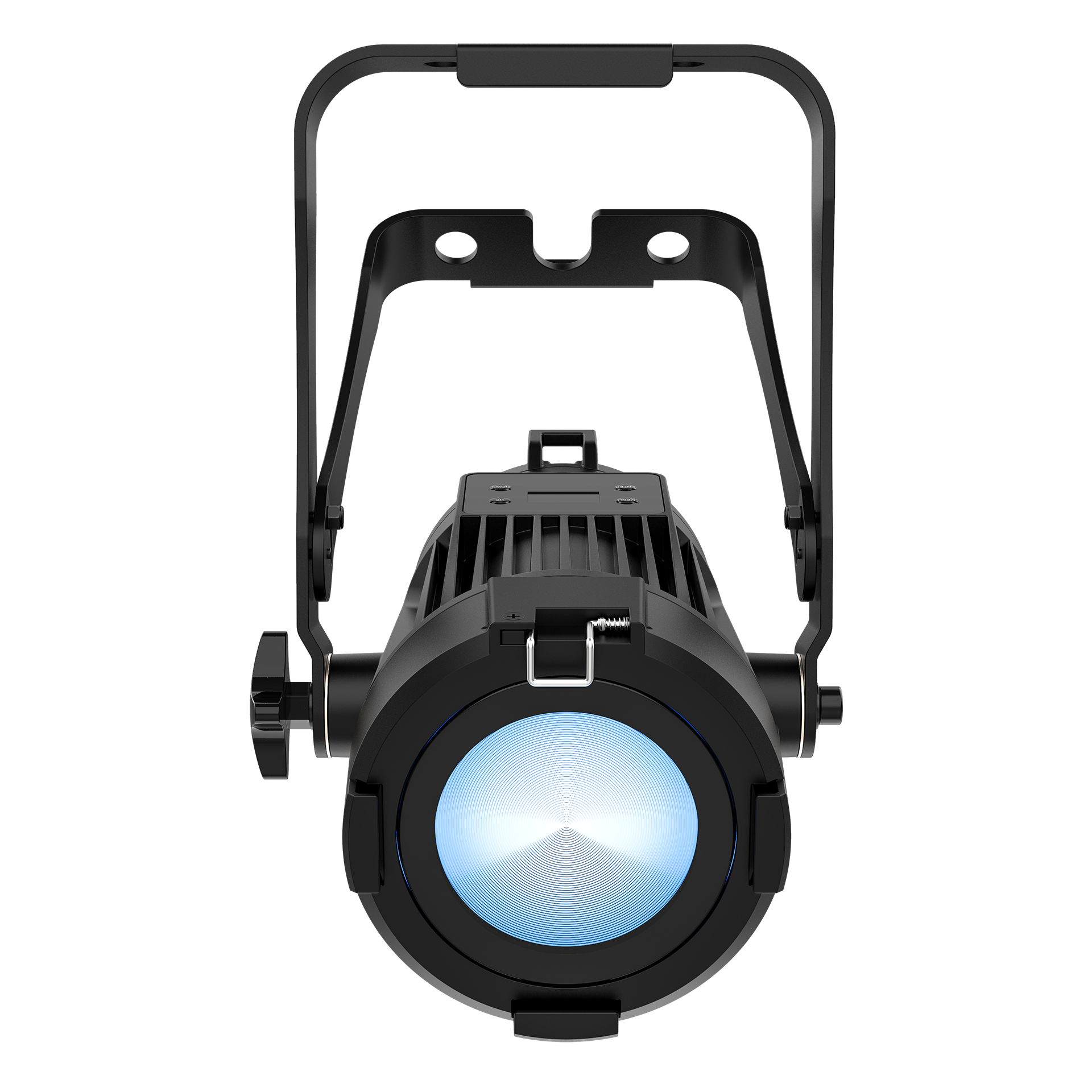

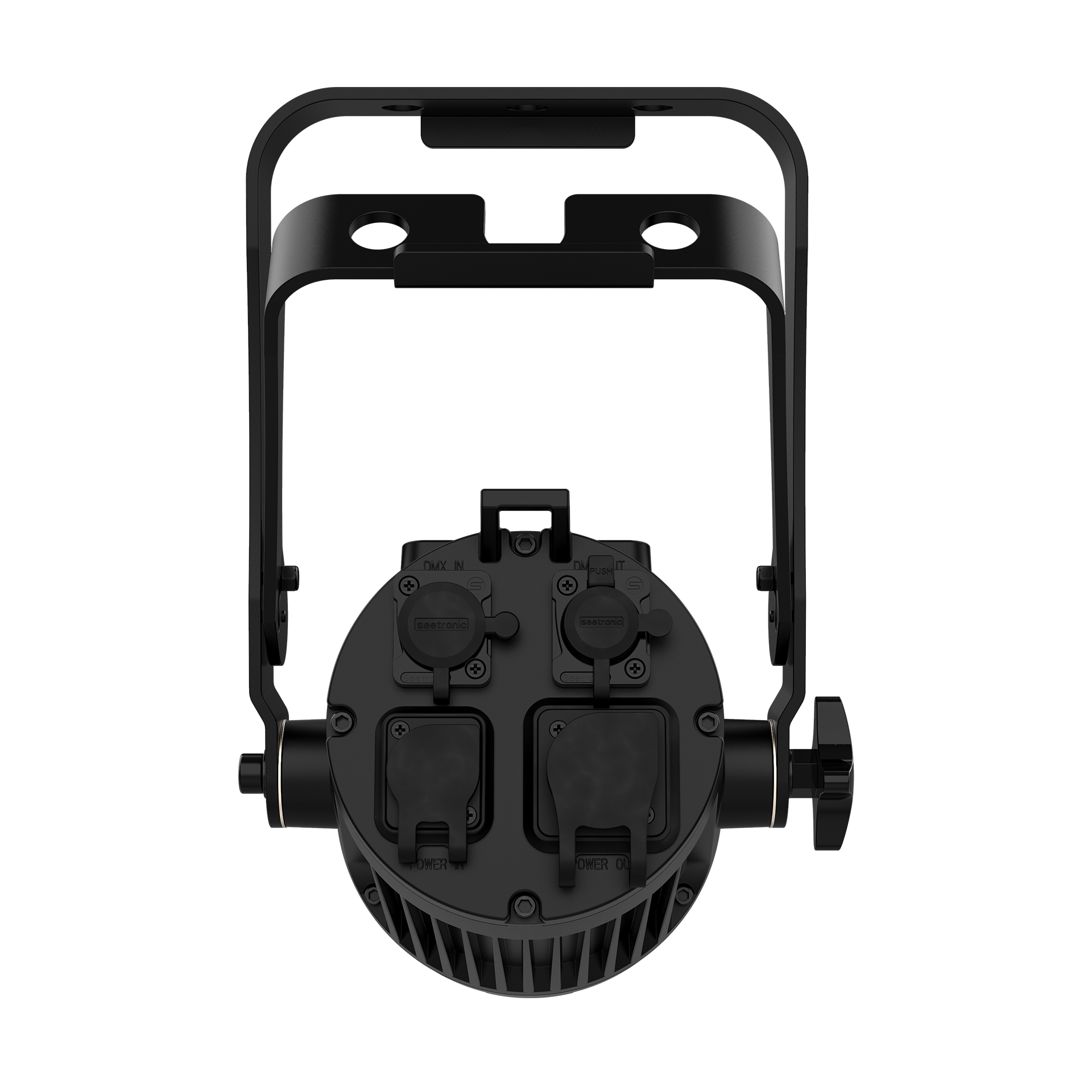

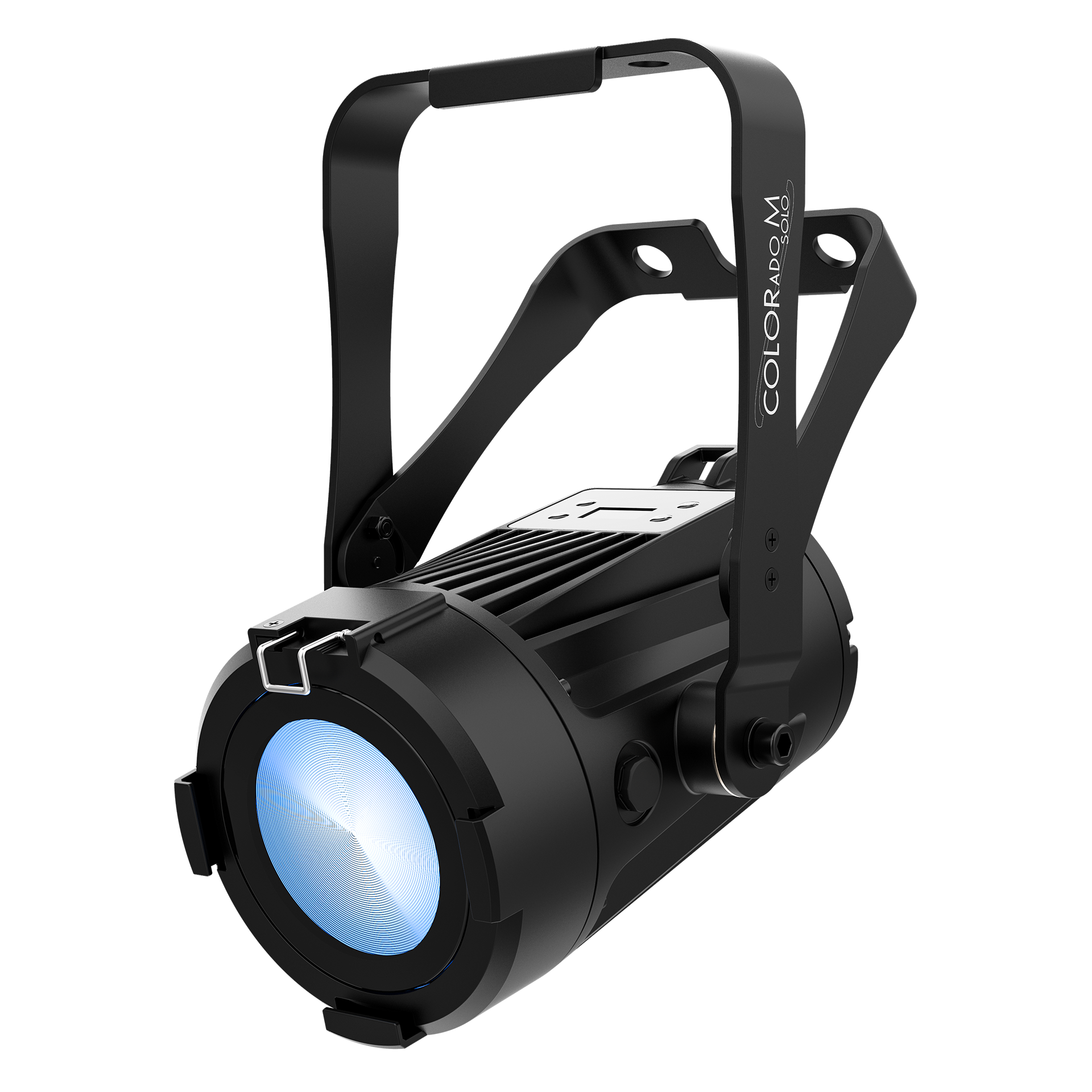

    COLORado M Solo takes the optics of the COLORado 1 Solo and shrinks them into a more compact, but equally robust static wash light package. Superbly suited for touring and production work indoors or out, this IP65 outdoor-rated RGBW LED wash light projects an even, fully homogenized beam through fast and smooth zoom and precision optics. It utilizes IP rated power and data connectors as well as full convection cooling for silent and reliable operation, even in the tightest of spaces.

    Features

    Versatile RGBW LED Wash

    A zooming RGBW LED wash fixture designed for touring, rental, and production applications indoors or out.

    Superior Light Quality

    Features a completely homogenized wash with excellent color mixing for a smooth, even field of light.

    Wide Zoom Range

    Offers a smooth and fast zoom from a narrow 4° beam to a wide 24° wash.

    All-Weather Operation

    Equipped with IP-rated power and DMX connections to ensure reliable performance in any environment.

    Variable Color Temperature

    Includes a wide range of selectable color temperature presets from 3,200 K to 10,000 K.

    Flexible Dimming Control

    Provides selectable, smooth dimming curves to enhance programming versatility.

    Advanced OLED Display

    An easy-to-read OLED display with password protection allows for secure menu navigation.

    Latest News

    Ana Casillas Celebrates Passion for Mexico With CHAUVET Professional
    Singer Ana Casillas uses a versatile rig to illuminate performances celebrating her passion for Mexican music.
    Read more
    Star Design Event Services Lights Multi Site 4th of July Show With CHAUVET Professional
    Star Design Event Services lights a hybrid concert connecting live and broadcast audiences.
    Read more
    Chris Werner Creates Immersive “NightGarden” With Help From Over 360 CHAUVET Professional Fixtures
    Lighting designer Chris Werner transforms a botanical garden into an immersive, enchanted world.
    Read more
    Ana Casillas Celebrates Passion for Mexico With CHAUVET Professional
    Singer Ana Casillas uses a versatile rig to illuminate performances celebrating her passion for Mexican music.
    Read more
    Star Design Event Services Lights Multi Site 4th of July Show With CHAUVET Professional
    Star Design Event Services lights a hybrid concert connecting live and broadcast audiences.
    Read more
    Chris Werner Creates Immersive “NightGarden” With Help From Over 360 CHAUVET Professional Fixtures
    Lighting designer Chris Werner transforms a botanical garden into an immersive, enchanted world.
    Read more
    More Related News

    Complete Your Rig

    Ensure flawless results with gear designed to complement and complete your professional setup.

      Specifications

      Download Product Specs

      Optical

      • Light Source

        1 LED (quad-color RGBW) 40W, (2.55 A), 50,000 hours life expectancy

      • Beam Angle

        4° to 18°

      • Field Angle

        5° to 24°

      • Zoom Range

        4° to 24°

        • Illuminance
          • Illuminance (4°)

            4280 lux @ 5 m

          • Illuminance (18°)

            238 lux @ 5 m

      • Selectable PWM

        600 Hz, 1200 Hz, 2000 Hz, 2400 Hz, 6000 Hz, 25,000 Hz

      Dynamic Effects

      • Dimmer

        Electronic

      • Shutter/Strobe

        Electronic

      • Zoom

        Motorized

      • Strobe Rate

        0 to 25 Hz

      • Standalone Color Mixing

        Yes

      • Color Temperature Presets

        Yes

      • Dim Modes

        5

      • Built-in Automated Programs

        Yes

      • Customizable Programs

        Yes

      • Recall Custom Programs

        Yes

      Construction/Physical

      • Dimensions

        13.03 x 7.32 x 5.31 in (331x186x135 mm)

      • Weight

        7.8 lb (3.6 kg)

      • Exterior Color

        Black

      • Housing Material

        Magnesium

      • Accessory Holder/Gel Frame Size

        4.75 in (121 mm)

      Connections

      • Power Connection

        Edison (Local) plug to Seetronic Powerkon IP65

      • Power Input

        Seetronic Powerkon IP65

      • Power Output

        Seetronic Powerkon IP65

      • Data Connectors

        5-pin IP65 XLR

      • Cable Length (power)

        5 ft (1.5 m)

      Control

      • Control Protocol

        DMX

      • DMX Channels

        9, 12 or 17

      • Modes/Personalities

        4 personalities (HSIC, SSP, TOUR, TR16)

      Electrical

      • Input Voltage

        100 to 240 VAC, 50/60 Hz (auto-ranging)

      • Power Linking

        39 units @ 120 V; 58 units @ 208 V; 62 units @ 230 V

      • Power and Current

        44 W, 0.342 A @ 120 V, 60 Hz

      • Power and Current

        48W, 0.234 A @ 208 V, 60 Hz

      • Power and Current

        49 W, 0.218 A @ 230 V, 50 Hz

      Certifications/Qualifications

      • Certifications

        CE, MET, FCC

      • IP Rating

        IP65, outdoor/wet, with pressure equalizing M12 GORE® valve

      Compatible Accessories

      • Professional Clamps: CTC-50HC, CTC-50HCN
      • Neutrik TRUE1 power linking cables
      • 5-pin IP Rated DMX Cables
      • Color Blending Filters: DF60X1D, DF20D

      What's Included

      • Seetronic Powerkon IP65 power cord

      Questions or Concerns?

      Let us know, we’re here to help! Contact Us

      Downloads

      Download All
      Manuals
      COLORado M Solo Quick Reference Guide
      		Download
      Manuals
      COLORado M Solo User Manual
      		Download
      Drawings
      COLORado M Solo CAD Files
      		Download
      Photometrics
      COLORado M Solo IES Profile
      		Download
      Photometrics
      COLORado M Solo Photometrics Reports
      		Download
      DMX
      COLORado M Solo DMX Chart
      		Download
      Other
      COLORado M Solo ShowXpress Profile
      		Download
      Other
      COLORado M Solo – Firmware
      		Download

      Learn How To Use Your COLORado M Solo

      Explore these detailed videos showcasing setup, features, and creative applications for this product.

      • COLORado Solo Wash Lights by CHAUVET Professional

        Command any environment with the CHAUVET Professional COLORado Solo series. These IP-rated wash lights deliver a perfectly homogenized beam and even color mixing with a fast, smooth zoom. Silent, convection-cooled operation ensures reliable performance for any application, from quiet theatrical stages to large outdoor festivals.

      Video Library

      COLORado M Solo FAQ’s

      Quickly find answers to common questions about setup, operation, and features of the COLORado M Solo
      Can the COLORado M Solo be used outdoors in the rain?

      Yes, the COLORado M Solo is designed for all-weather operation. It is a fully sealed, outdoor-rated fixture that can be safely used for events and productions in wet conditions, making it a reliable choice for outdoor use, rain or shine.

      What does the zoom feature on the COLORado M Solo do?

      The motorized zoom allows you to smoothly change the beam of light from a very narrow, tight spot to a very wide, broad wash. This makes the light incredibly versatile, allowing you to highlight a specific object or bathe an entire stage or wall in smooth, even color.

      Is the COLORado M Solo quiet enough for theater use?

      Absolutely. The fixture is completely fan-less and uses silent cooling. This makes it ideal for environments where noise is a major concern, such as in theaters, broadcast studios, or quiet events, as it operates without making any sound.
