    COLORado Batten 72X

    A powerful, IP65-rated batten-style wash light powered by 72 calibrated RGBWA LEDs, offering superb color rendering and smooth dimming capabilities.
    Its compact, tour-ready design is perfectly suited for providing versatile vertical or horizontal color washes in demanding theatrical, event, and touring applications.

    Read More Read Less
    Read More Read Less
    Request Demo

    Request A Product Demo

    Request a personalized demo or speak directly with our sales team today.

    Authorized Vendors
    Download Product Information
    SKU: COLORADOBATTEN72X

    COLORado Batten 72X

    Specifications
    		 Download
    COLORado Batten 72X Quick Reference Guide
    		 Download
    COLORado Batten 72X User Manual
    		 Download
    COLORado Batten 72X DMX Chart
    		 Download
    COLORado Batten 72X CAD 2D Drawings
    		 Download
    COLORado Batten 72X CAD 3D Drawings
    		 Download
    COLORado Batten 72X IES Files
    		 Download
    Photometrics Report
    		 Download
    Firmware
    		 Download
    Download All Resources

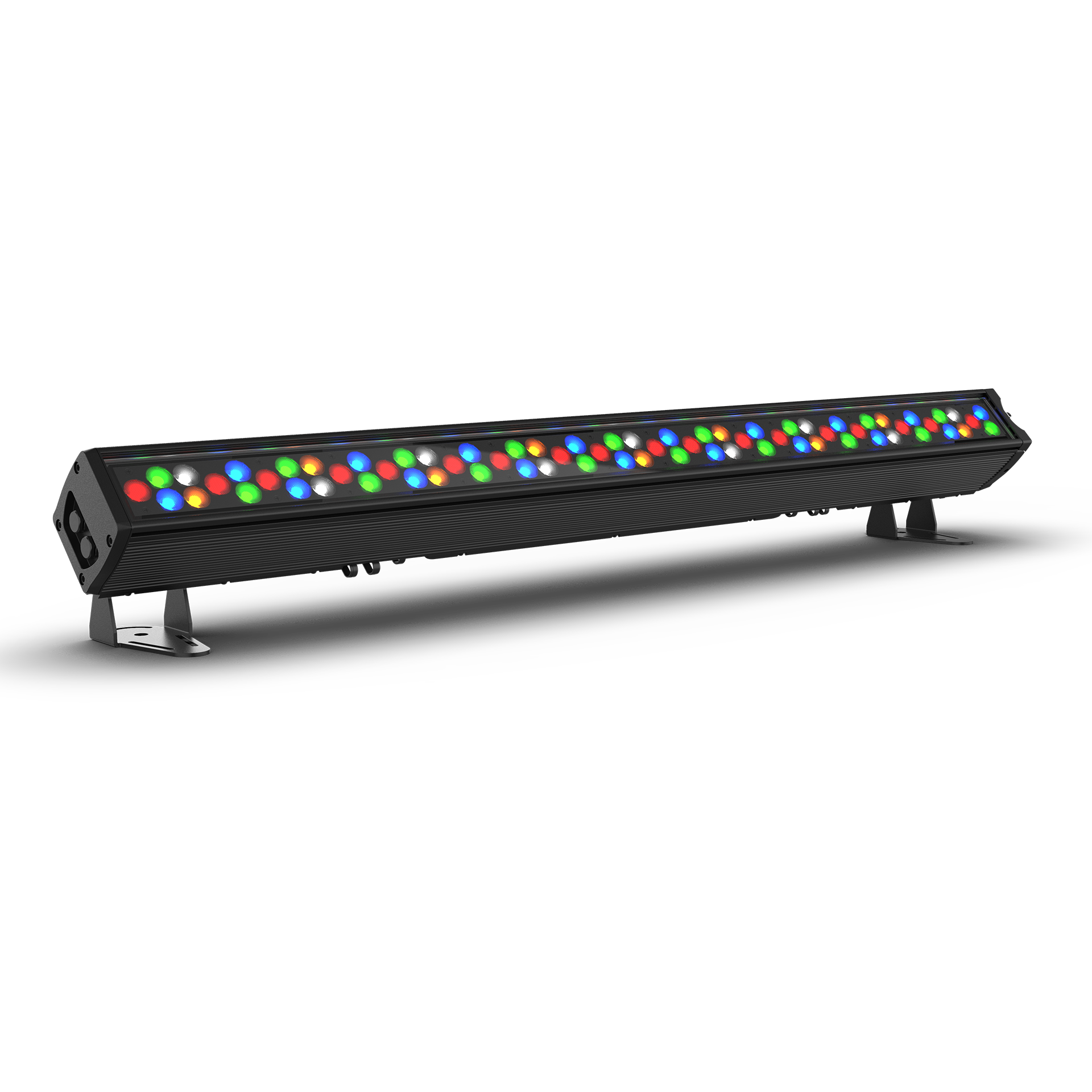

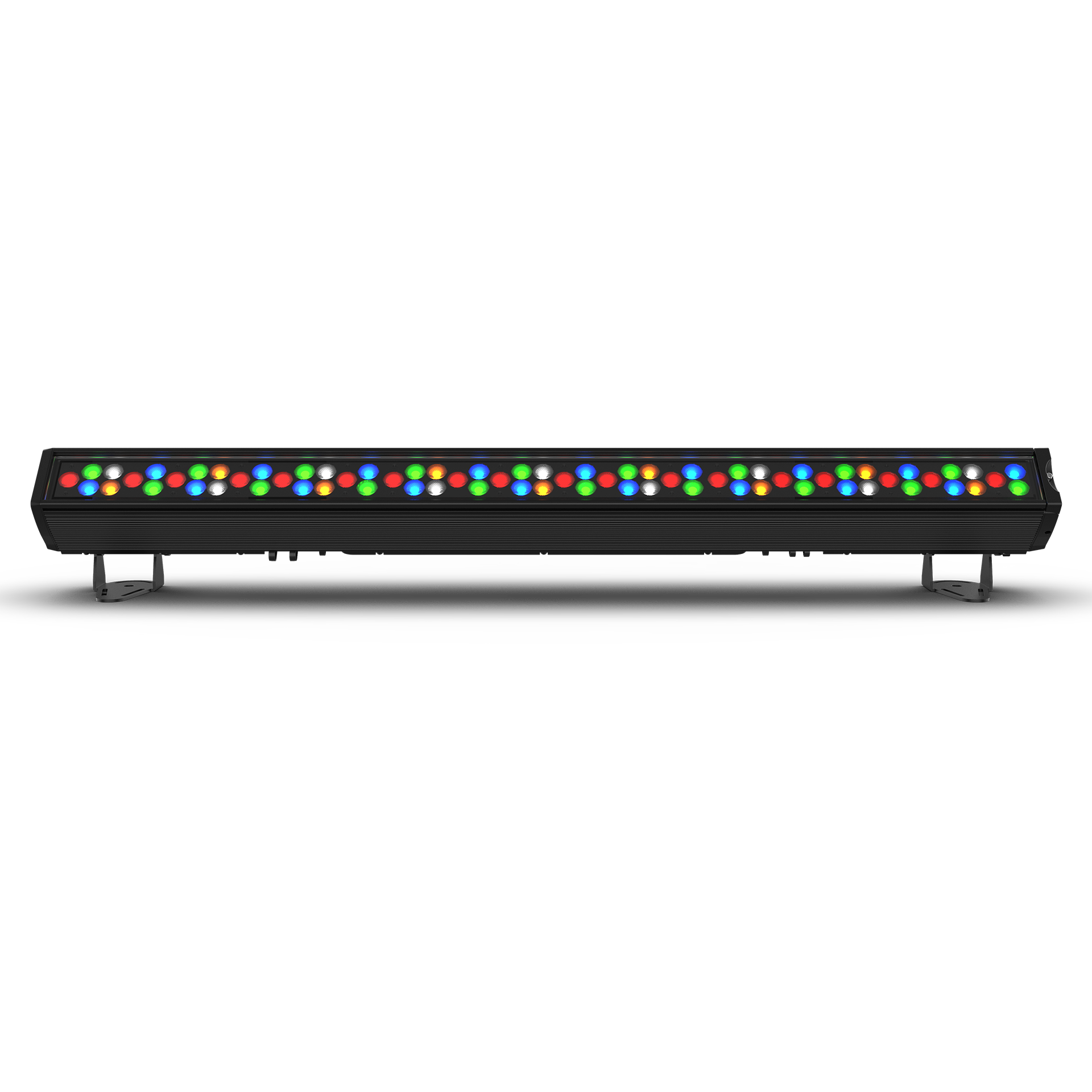

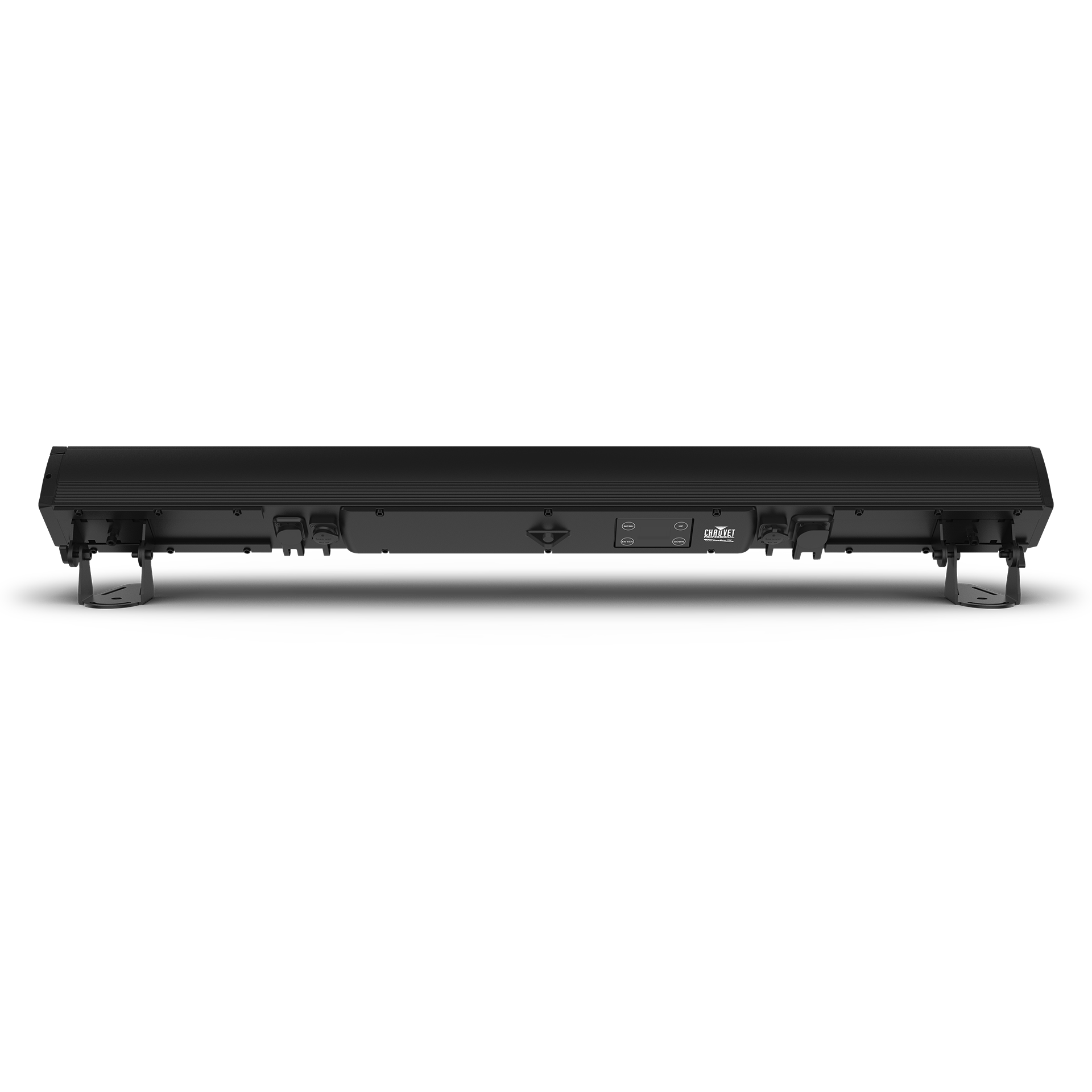

    COLORado Batten 72X

    SKU: COLORADOBATTEN72X
    COLORado Batten 72X is a class leading, powerful IP65 batten-style wash light powered by 72 calibrated RGBWA LEDs. The compact, tour-ready unit produces superb color rendering and a vast palette from soft pastels to saturated hues. Its 16-bit dimming capability, as well as five selectable dimming curves provides smooth fades and facilitate its incorporation into aging traditional rigs. Integrated trunnions accommodate clamps for vertical or horizontal hanging.

    Features

    Versatile RGBAW LED Batten

    A linear fixture designed for touring, rental, and production applications, both indoors and out.

    All Environment Operation

    Features IP rated power and DMX connections to ensure reliable performance in any setting.

    Color Temperature Presets

    Select from a wide range of color temperatures, from a warm 3200 K to a cool 10000 K.

    Selectable Dimming Curves

    Offers smooth, selectable dimming curves that provide enhanced programming versatility.

    Professional Application Design

    Built specifically to meet the demands of touring, live events, television, and theatrical productions.

    Easy Navigation Display

    Includes a large, password-protected display for simple and secure menu navigation.

    Latest News

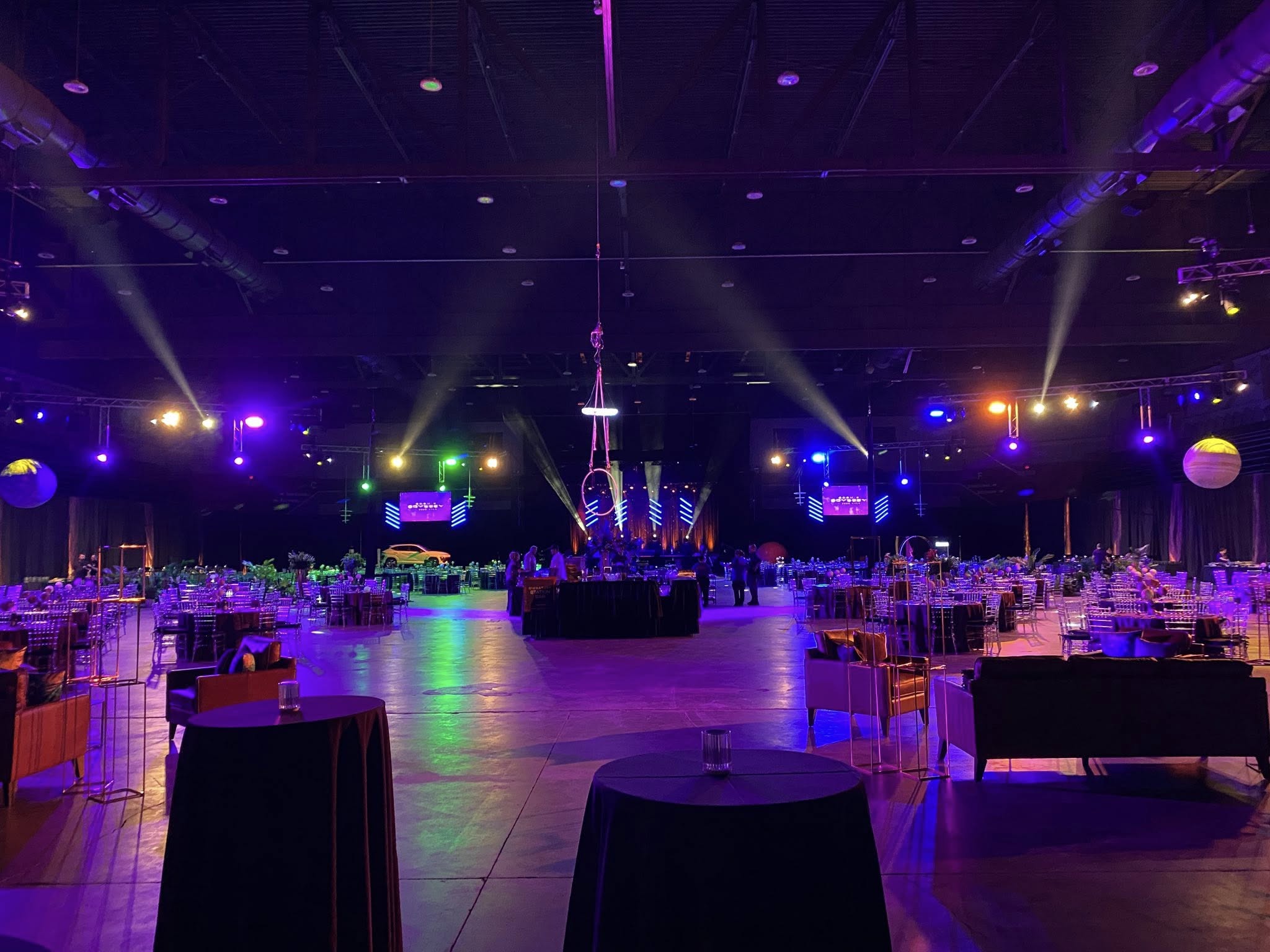

    Jennifer Lucas and Star Design Evoke Celestial Vibe at Gala with CHAUVET Professional
    Lighting designer Jennifer Lucas transforms a 7,500-seat arena into an immersive cosmic gala.
    Read more
    Australian Women’s World Cup Fest Lit by dplr with CHAUVET Professional from Showtools International
    A versatile rig of IP-rated fixtures brings vibrant color to the FIFA Fan Festival in Sydney.
    Read more
    Backstage Production Group Calls on CHAUVET Professional for ITU Conference and NATO Meeting
    Backstage Production Group lights high-stakes diplomatic events at Bucharest’s monumental Palace of the Parliament.
    Read more
    Jennifer Lucas and Star Design Evoke Celestial Vibe at Gala with CHAUVET Professional
    Lighting designer Jennifer Lucas transforms a 7,500-seat arena into an immersive cosmic gala.
    Read more
    Australian Women’s World Cup Fest Lit by dplr with CHAUVET Professional from Showtools International
    A versatile rig of IP-rated fixtures brings vibrant color to the FIFA Fan Festival in Sydney.
    Read more
    Backstage Production Group Calls on CHAUVET Professional for ITU Conference and NATO Meeting
    Backstage Production Group lights high-stakes diplomatic events at Bucharest’s monumental Palace of the Parliament.
    Read more
    More Related News

    Complete Your Rig

    Ensure flawless results with gear designed to complement and complete your professional setup.

      Specifications

      Download Product Specs

      Optical

      • Light Source

        72 LEDs (18 red, 18 green, 18 blue, 9 white, 9 amber) 3 W, (690 mA), 50,000 hours life expectancy

      • Color Temperature (range)

        3200 to 10000 K

      • CRI (3200 K)

        80

      • Installed Optics

        24°

      • Beam Angle (Horizontal)

        22°

      • Beam Angle (Vertical)

        18°

      • Field Angle (Horizontal)

        39 °

      • Field Angle (Vertical)

        34°

      • Lumens

        3,631

      • Illuminance (total)

        1730 lux @ 5 m

      • Selectable PWM

        600, 1200 Hz, 2000, 2400 Hz, 4000 Hz, 6000 Hz, 25000 Hz

      Dynamic Effects

      • Dimmer

        Electronic

      • Shutter/Strobe

        Electronic

      • Strobe Rate

        0 to 25 Hz

      • Standalone Color Mixing

        Yes

      • Color Temperature Presets

        Yes

      • Dim Modes

        5

      • Built-in Automated Programs

        Yes

      • Customizable Programs

        Yes

      • Recall Custom Programs

        Yes

      Construction/Physical

      • Dimensions

        39.37 x 6.14 x 2.95 in (1000 x 156 x 75 mm)

      • Weight

        18.6 lb (8.4 kg)

      • Exterior Color

        Black

      • Housing Material

        Aluminum alloy, Aluminum die-cast

      Connections

      • Power Connection

        Edison (Local) plug to Seetronic Powerkon IP65

      • Power Input

        Seetronic Powerkon IP65

      • Power Output

        Seetronic Powerkon IP65

      • Data Connectors

        5-pin IP65 XLR

      • Cable Length (power)

        5 ft (1.5 m)

      Control

      • Control Protocol

        DMX, RDM

      • DMX Channels

        1 Cell: 3, 4, 5, 8, 8, 9, 10, 10, 16
        3 Cell: 9, 12, 15, 21, 22, 24, 27, 30, 43

      • Modes/Personalities

        18 personalities

      Electrical

      • Input Voltage

        100 to 240 VAC, 50/60 Hz (auto-ranging)

      • Power Linking

        10 units @ 120 V; 17 units @ 208 V; 19 units @ 230 V

      • Power and Current

        161 W, 1.33 A @ 120 V, 60 Hz

      • Power and Current

        164 W, 0.79 A @ 208 V, 60 Hz

      • Power and Current

        163 W, 0.71 A @ 230 V, 50 Hz

      Certifications/Qualifications

      • Certifications

        CE, MET

      • IP Rating

        IP65, temporary outdoor/wet use

      • Temperature (Ambient)

        -4 °F to 113 °F (-20 °C to 45 °C)

      Compatible Accessories

      • Professional Clamps: CTC-50HC, CTC-50HCN
      • Neutrik TRUE1 power linking cables
      • 5-pin IP DMX Cables

      What's Included

      • COLORado Batten 72X
      • Seetronic powerKON® IP65 power cord
      • (2) Omega bracket

      Questions or Concerns?

      Let us know, we’re here to help! Contact Us

      Downloads

      Download All
      Manuals
      COLORado Batten 72X Quick Reference Guide
      		Download
      Manuals
      COLORado Batten 72X User Manual
      		Download
      DMX
      COLORado Batten 72X DMX Chart
      		Download
      Drawings
      COLORado Batten 72X CAD 2D Drawings
      		Download
      Drawings
      COLORado Batten 72X CAD 3D Drawings
      		Download
      Photometrics
      COLORado Batten 72X IES Files
      		Download
      Photometrics
      COLORado Batten 72X – Photometrics Report
      		Download
      Other
      COLORado Batten 72X – Firmware
      		Download

      Learn How To Use Your COLORado Batten 72X

      Explore these detailed videos showcasing setup, features, and creative applications for this product.

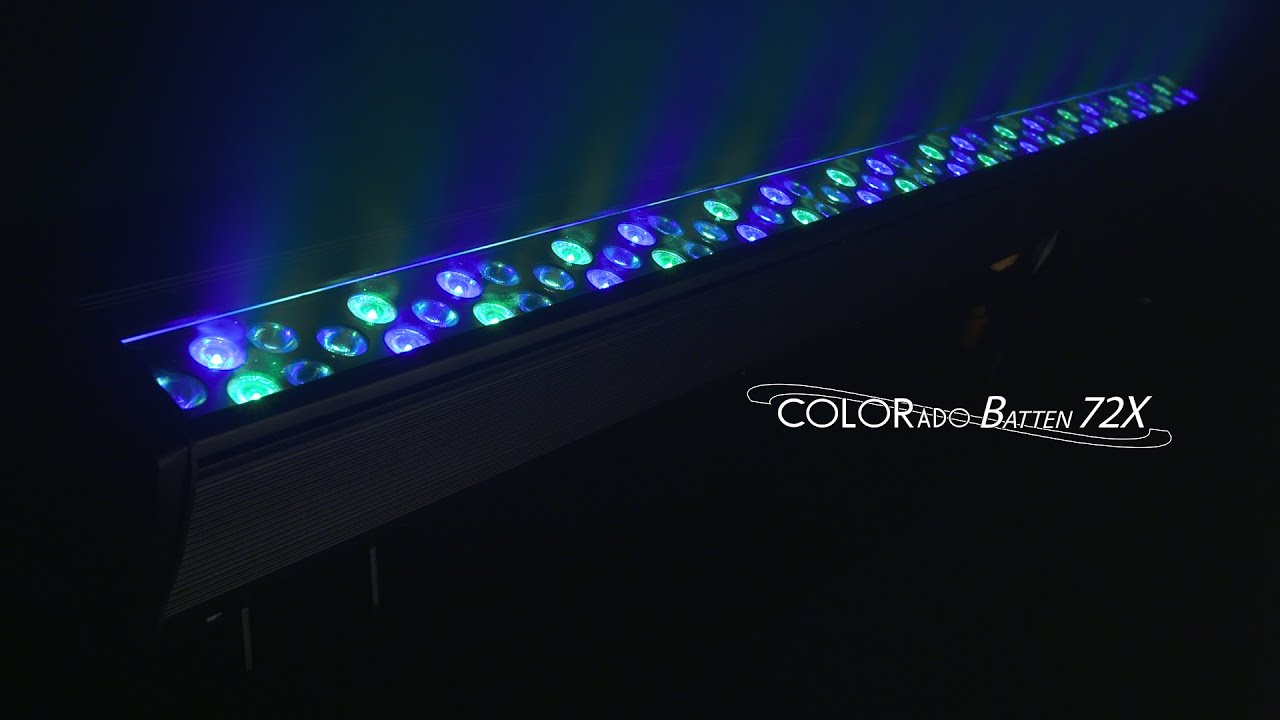

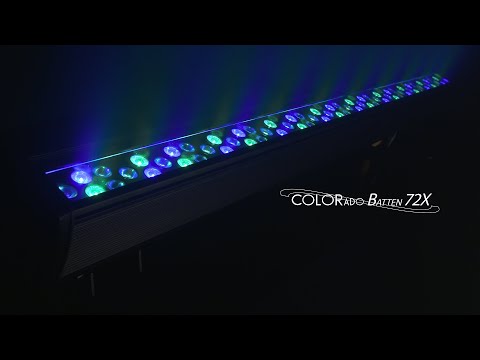

      • COLORado Batten 72X IP65 Wash Light

        Command any environment with the powerful, IP65-rated COLORado Batten 72X. This tour-ready batten wash light from CHAUVET Professional delivers superb color rendering and smooth fades, empowering bold, seamless designs for theatrical productions and live events, indoors or out.

      Video Library

      COLORado Batten 72X FAQ’s

      Quickly find answers to common questions about setup, operation, and features of the COLORado Batten 72X
      Can the COLORado Batten 72X be used in the rain?

      Yes, the COLORado Batten 72X is designed to be weather-resistant for temporary outdoor use. Its durable housing and sealed connections allow it to operate reliably in wet conditions, making it perfect for concerts, festivals, and events, rain or shine.

      What kind of colors can the COLORado Batten 72X create?

      It can create an incredibly wide range of colors by mixing red, green, blue, amber, and white light. This allows for everything from rich, saturated colors to soft pastels and various shades of white, making it easy to set the perfect mood for any production or event.

      How is the COLORado Batten 72X typically set up or used?

      It’s a versatile fixture often placed on the floor to wash walls or scenery with color, or mounted on overhead rigging to light up a stage or create dramatic effects. Its built-in brackets allow for easy horizontal or vertical hanging, making setup flexible for theatrical, television, or live event productions.
