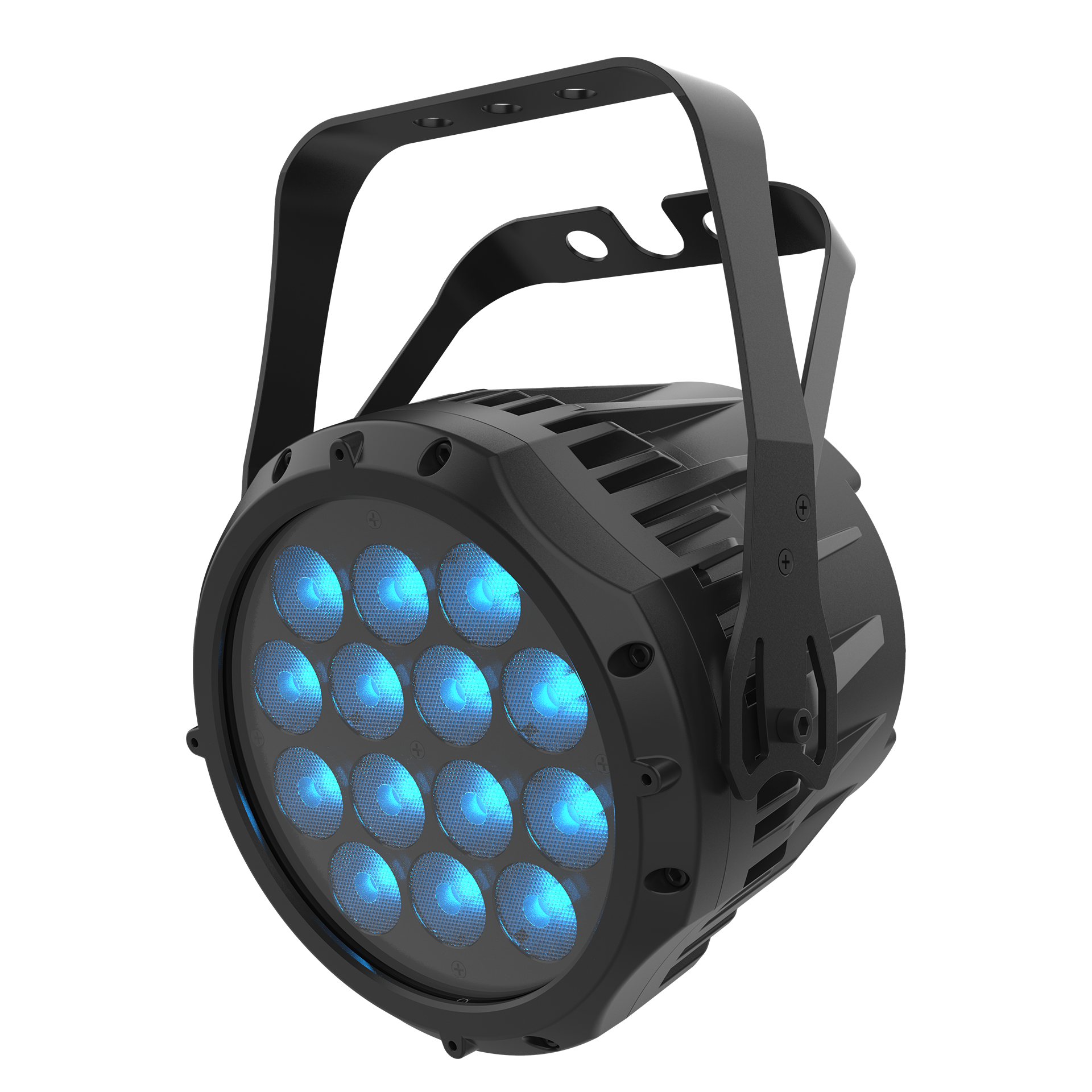

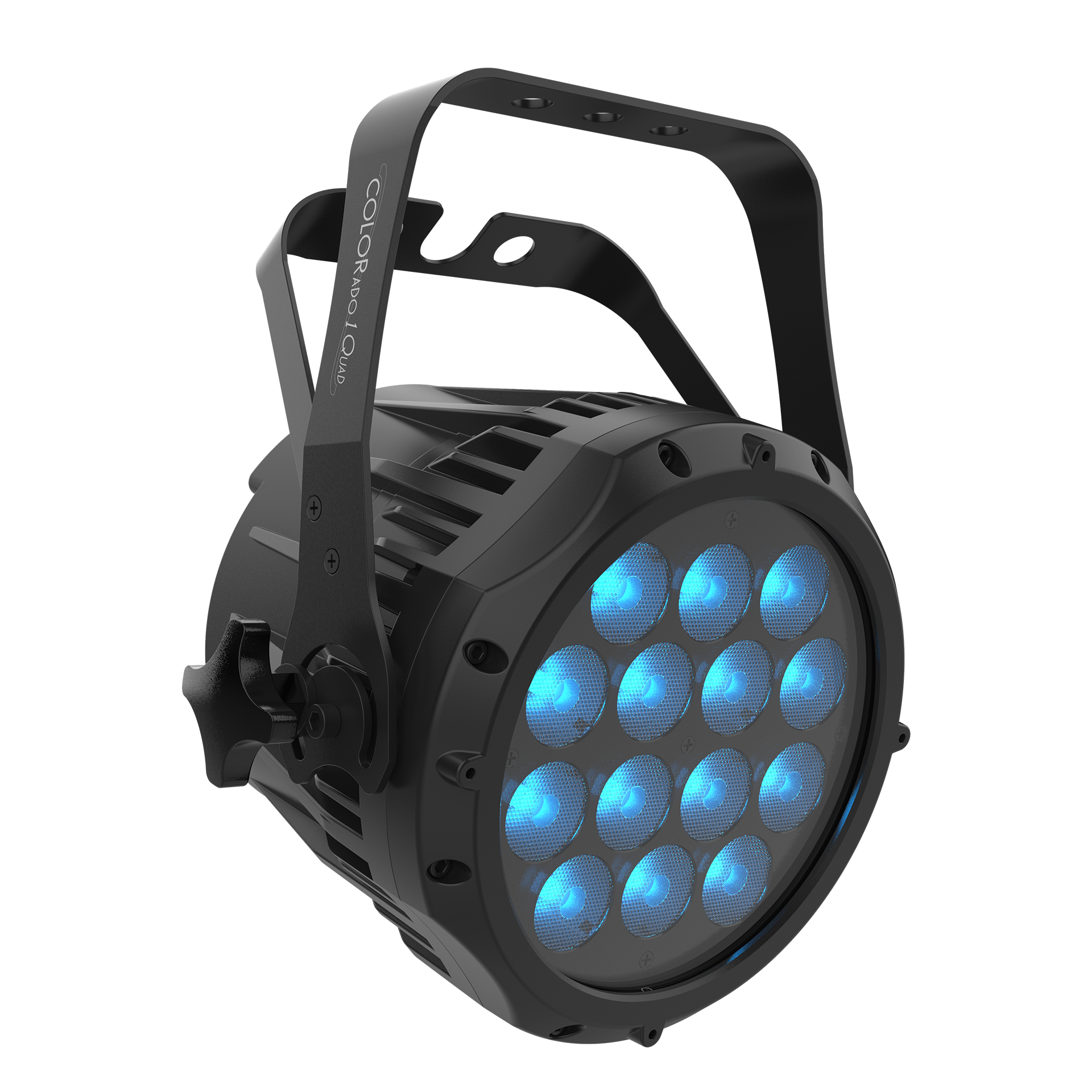

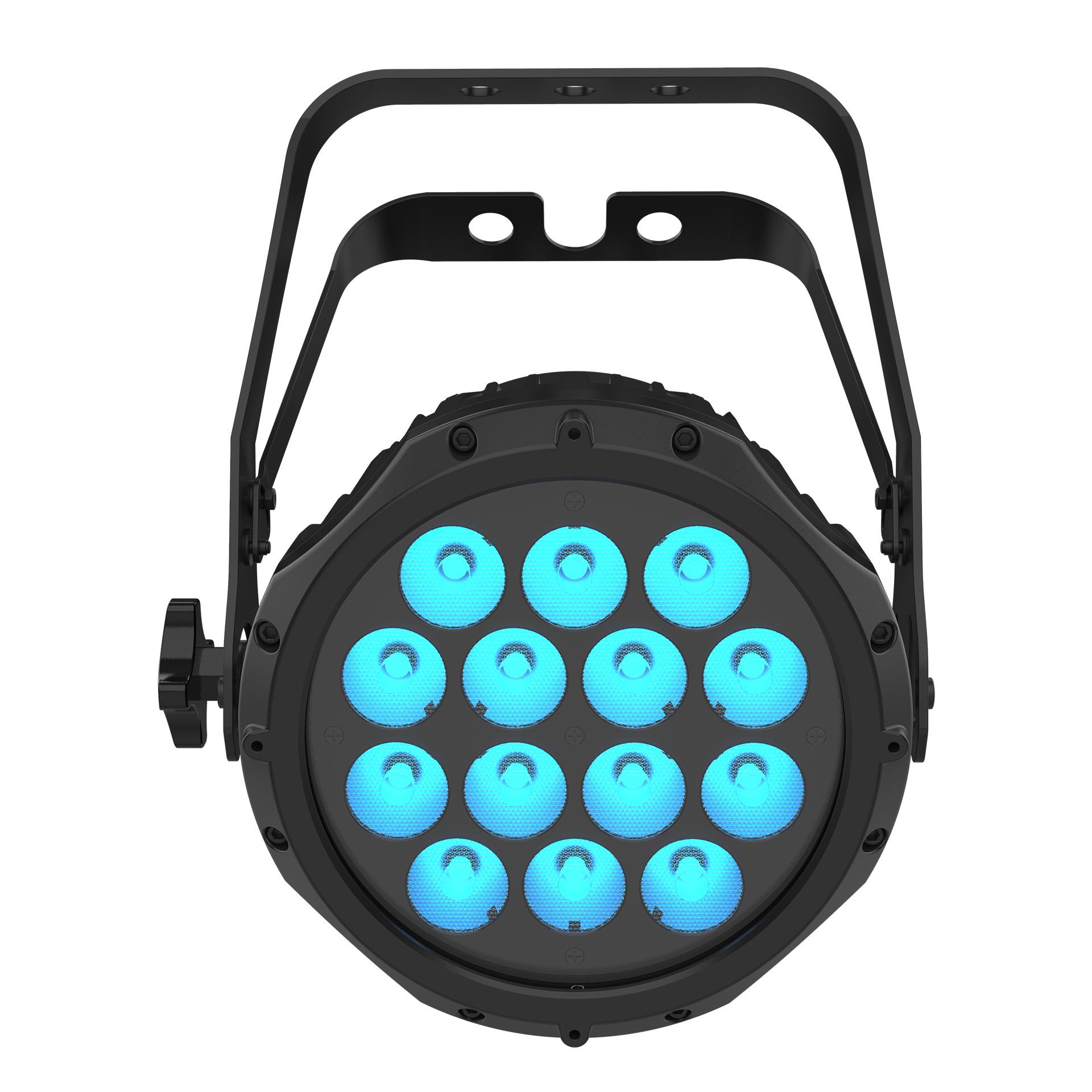

    COLORado 1 Quad

    A compact and robust IP65-rated wash light featuring fourteen 5W RGBW LEDs that produce a powerful and controlled beam of vibrant color.
    Perfect for a wide range of indoor and outdoor applications, including stage, architectural, and event lighting where a durable, all-weather wash fixture is required.

    Read More Read Less
    Read More Read Less
    Request Demo

    Request A Product Demo

    Request a personalized demo or speak directly with our sales team today.

    Authorized Vendors
    Download Product Information
    SKU: COLORADO1QUAD

    COLORado 1 Quad

    Specifications
    		 Download
    COLORado 1 Quad Quick Reference Guide
    		 Download
    COLORado 1 Quad User Manual
    		 Download
    COLORado 1 Quad DMX Chart
    		 Download
    COLORado 1 Quad IES File
    		 Download
    COLORado 1 Quad CAD Files
    		 Download
    COLORado 1 Quad Photometric Report
    		 Download
    Firmware
    		 Download
    Download All Resources

    COLORado 1 Quad

    SKU: COLORADO1QUAD

    COLORado 1 Quad is an excellent indoor/outdoor robust wash light with 14 5 W RGBW LEDs that deliver big power from a compact, yet solid IP65 housing. A 13° beam angle gives you ample control over the beam and selectable dimming curves facilitate the integration of the fixtures into existing rigs.  And outdoor rated power and data connectors allow for easy connections without propriety cabling.

    Features

    Versatile RGBW LED Wash

    Provides vibrant color mixing for touring, rental, and production applications, both indoors and out.

    All-Weather Operation

    Features IP-rated power and DMX connections to ensure reliable performance in any environment.

    Adjustable Color Temperature

    Includes a wide range of color temperature presets from 3200 K to 10000 K for precise white light control.

    Smooth Dimming Curves

    Offers selectable, smooth dimming curves to achieve seamless fades and enhance programming versatility.

    Secure LED Display

    An onboard LED display with password protection prevents unauthorized changes to settings.

    Internal Pressure Equalization

    An integrated M12 GORE® valve allows the fixture to equalize internal pressure without compromising its seal.

    Flexible DMX Control

    Provides both simple and complex DMX channel profiles to suit various programming needs.

    Dual-Purpose Yoke

    The included double-bracket yoke allows for traditional hanging or can be used as a stable floor stand.

    Latest News

    Harford Sound Lights Up Augusta After Dark With CHAUVET Professional
    Harford Sound overcomes unique staging challenges to light an exclusive gala over a swimming pool.
    Read more

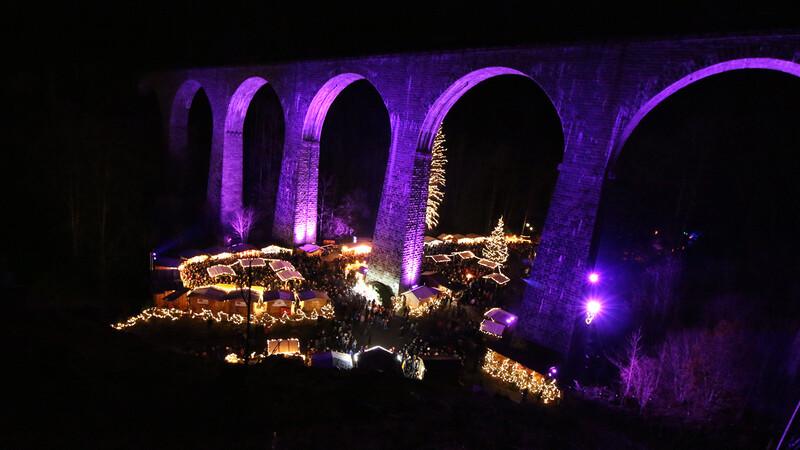

    Time and Place – Michael Thoma and the Black Forest
    A historic German viaduct becomes a holiday centerpiece with a rugged, colorful lighting design.
    Read more
    Kyle Curtis And CHAUVET Professional Accent The Unique At Shawnee Cave Amphitheatre
    Lighting designer Kyle Curtis transforms a massive sandstone cave into an immersive concert canvas.
    Read more
    Harford Sound Lights Up Augusta After Dark With CHAUVET Professional
    Harford Sound overcomes unique staging challenges to light an exclusive gala over a swimming pool.
    Read more
    Time and Place – Michael Thoma and the Black Forest
    A historic German viaduct becomes a holiday centerpiece with a rugged, colorful lighting design.
    Read more
    Kyle Curtis And CHAUVET Professional Accent The Unique At Shawnee Cave Amphitheatre
    Lighting designer Kyle Curtis transforms a massive sandstone cave into an immersive concert canvas.
    Read more
    More Related News

    Complete Your Rig

    Ensure flawless results with gear designed to complement and complete your professional setup.

    Specifications

    Download Product Specs

    Optical

    • Light Source

      14 LEDs (quad-color RGBW) 5 W, (350 mA), 50,000 hours life expectancy.

    • Color Temperature (range)

      2800 to 10,000 K

    • Beam Angle

      14.1°

    • Field Angle

      27.2°

    • Lumens

      2839

    • Illuminance (total)

      1385 lux @ 5 m

    Dynamic Effects

    • Dimmer

      Electronic

    • Shutter/Strobe

      Electronic

    • Strobe Rate

      0 to 14 Hz

    • Standalone Color Mixing

      Yes

    • Color Temperature Presets

      Yes

    • Dim Modes

      5

    • Dim Curves

      4

    • Built-in Automated Programs

      Yes

    • Customizable Programs

      Yes

    • Recall Custom Programs

      Yes

    Construction/Physical

    • Dimensions

      11.96 x 9.96 x 7.95 in (304 x 246 x 202mm)

    • Weight

      9.8 lb (4.5 kg)

    • Exterior Color

      Black

    • Housing Material

      Aluminum die-cast

    • Accessory Holder/Gel Frame Size

      7.5 in (191 mm)

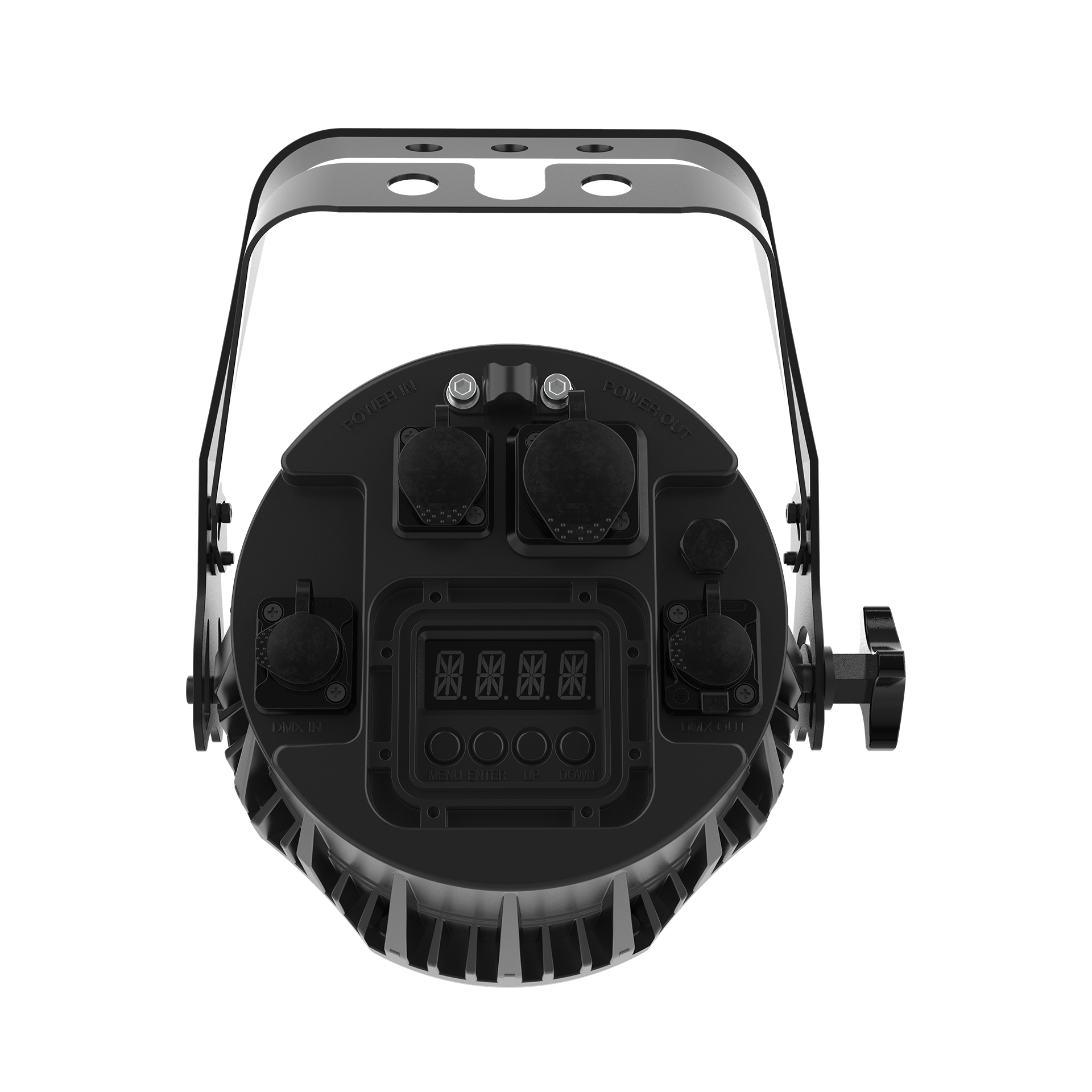

    Connections

    • Power Connection

      Edison (Local) plug to Seetronic Powerkon IP65

    • Power Input

      Seetronic Powerkon IP65

    • Power Output

      Seetronic Powerkon IP65

    • Data Connectors

      5-pin IP65 XLR

    • Cable Length (power)

      5 ft (1.5 m)

    Control

    • Control Protocol

      DMX, RDM

    • DMX Channels

      4, 5, 6, 7, 9, 10, 13 or 15

    • Modes/Personalities (RGB)

      3 personalities (TOUR, TR16, AR1.D)

    • Modes/personalities (RGBW)

      6 personalities (ARC.2, AR2.D, AR2.S, SSP, 16Bit, 8Bit)

    Electrical

    • Input Voltage

      100 to 240 VAC, 50/60 Hz (auto-ranging)

    • Power Linking

      10 units @ 100 V; 13 units @ 120 V; 22 units @ 208 V; 25 units @ 230 V; 25 units @ 240 V

    • Power and Current

      109 W, 0.892 A @ 120 V, 60 Hz

    • Power and Current

      110 W, 0.529 A @ 208 V, 60 Hz

    • Power and Current

      112 W, 0.492 A @ 230 V, 50 Hz

    Certifications/Qualifications

    • Certifications

      CE, MET

    • IP Rating

      IP65, outdoor/wet, with pressure equalizing M12 GORE valve

    • Temperature (Ambient)

      -4 °F to 113 °F (-20 °C to 45 °C)

    Compatible Accessories

    • Professional Clamps: CTC-50HC, CTC-50HCN
    • Neutrik TRUE1 power linking cables
    • 5-pin IP Rated DMX Cables
    • Color Blending Filters: DF60X1D

    What's Included

    • COLORado 1 Quad
    • Seetronic Powerkon IP65 power cord
    • Gel frame holder (7.5 in/191 mm accessories)

    Questions or Concerns?

    Let us know, we’re here to help! Contact Us

    Downloads

    Download All
    Manuals
    COLORado 1 Quad Quick Reference Guide
    		Download
    Manuals
    COLORado 1 Quad User Manual
    		Download
    DMX
    COLORado 1 Quad DMX Chart
    		Download
    Photometrics
    COLORado 1 Quad IES File
    		Download
    Drawings
    COLORado 1 Quad CAD Files
    		Download
    Photometrics
    COLORado 1 Quad Photometric Report
    		Download
    Other
    COLORado 1 Quad – Firmware
    		Download

    Learn How To Use Your COLORado 1 Quad

    Explore these detailed videos showcasing setup, features, and creative applications for this product.

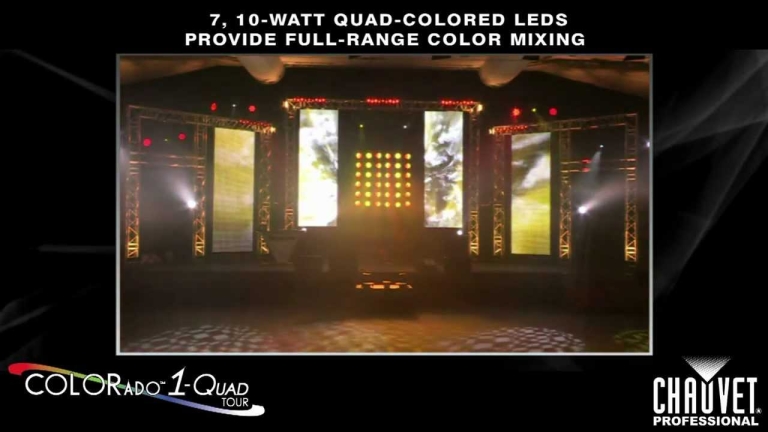

    • COLORado 1-Quad Tour by CHAUVET Professional

      Discover the COLORado 1-Quad series, a family of compact and powerful quad-color LED wash lights from CHAUVET Professional. Engineered for touring and all-weather applications, these fixtures deliver a vast color palette and a truer white spectrum for any environment, indoors or out.

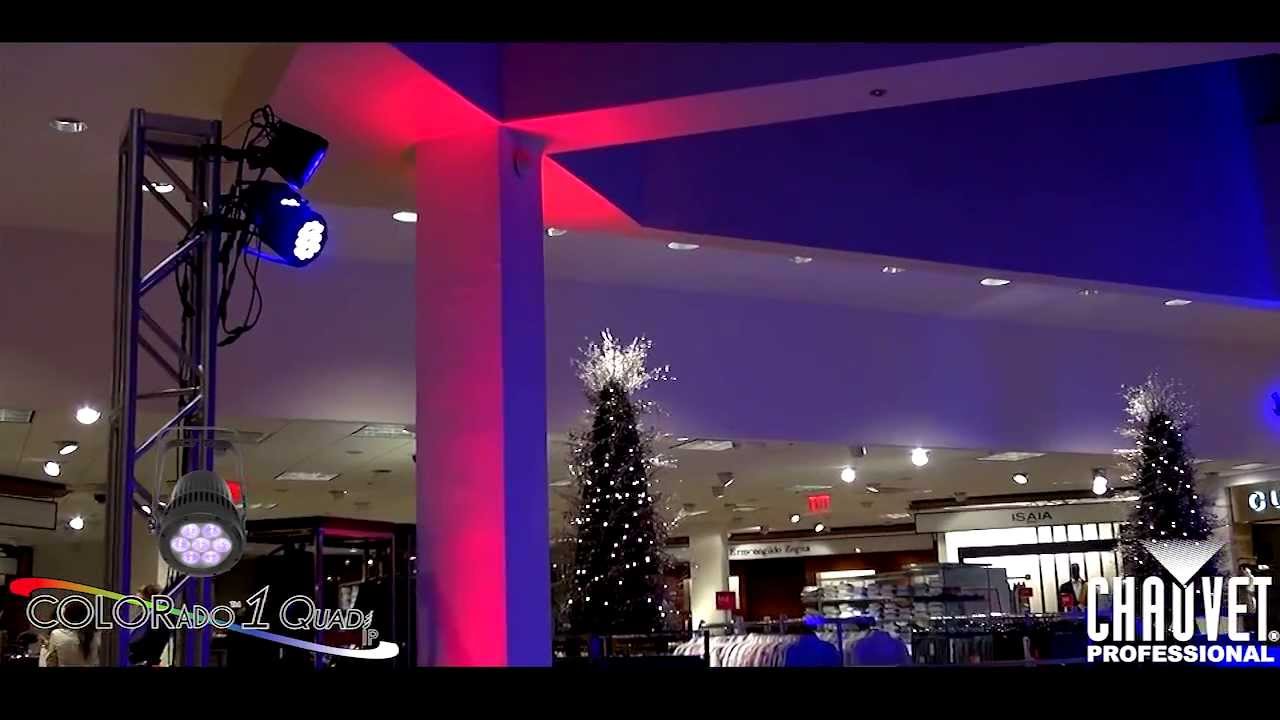

    • CHAUVET Professional Brightens Neiman Marcus Reopening

      CHAUVET Professional fixtures deliver the versatility and precision needed for high-end retail events. See how wireless uplights, powerful washes, and crisp ellipsoidals created a sophisticated atmosphere for the Neiman Marcus grand reopening in Miami.

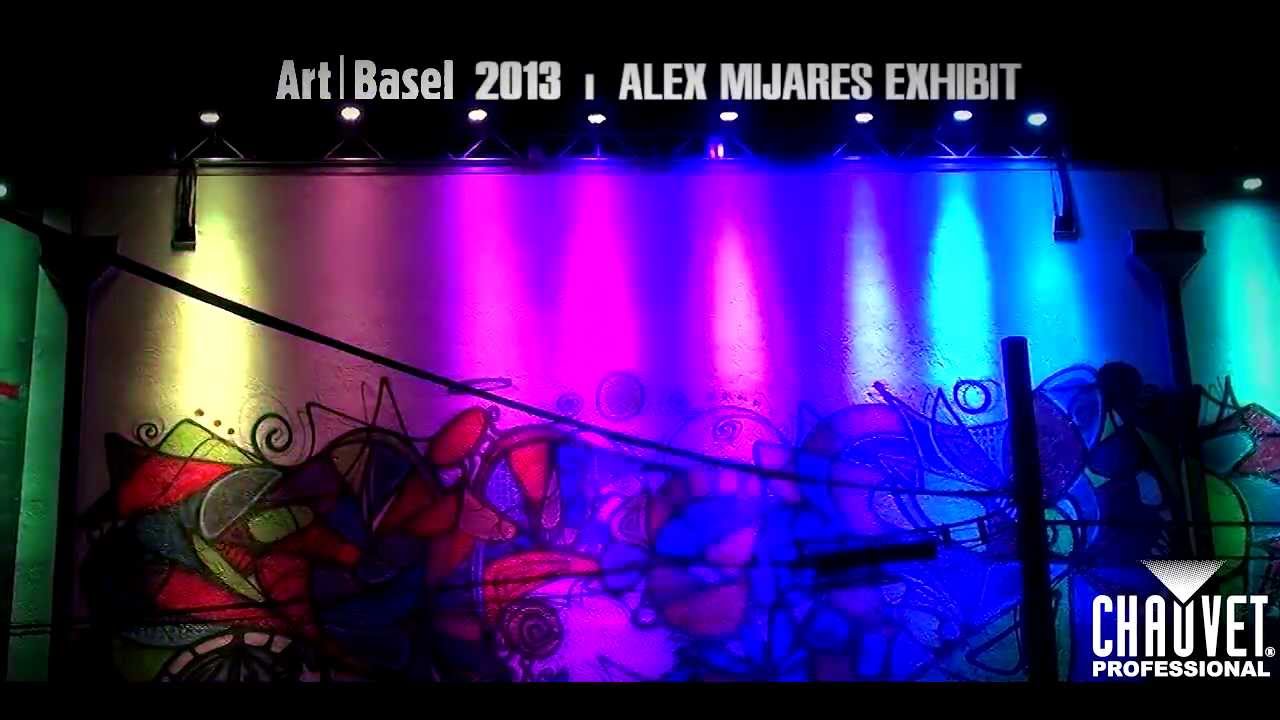

    • CHAUVET Professional Shines at Art Basel 2013

      CHAUVET Professional empowered creative expression at Art Basel 2013. Ovation ellipsoidals provided crisp, precise highlighting for gallery artwork, while rugged COLORado wash lights illuminated the building’s exterior with bold, immersive color.

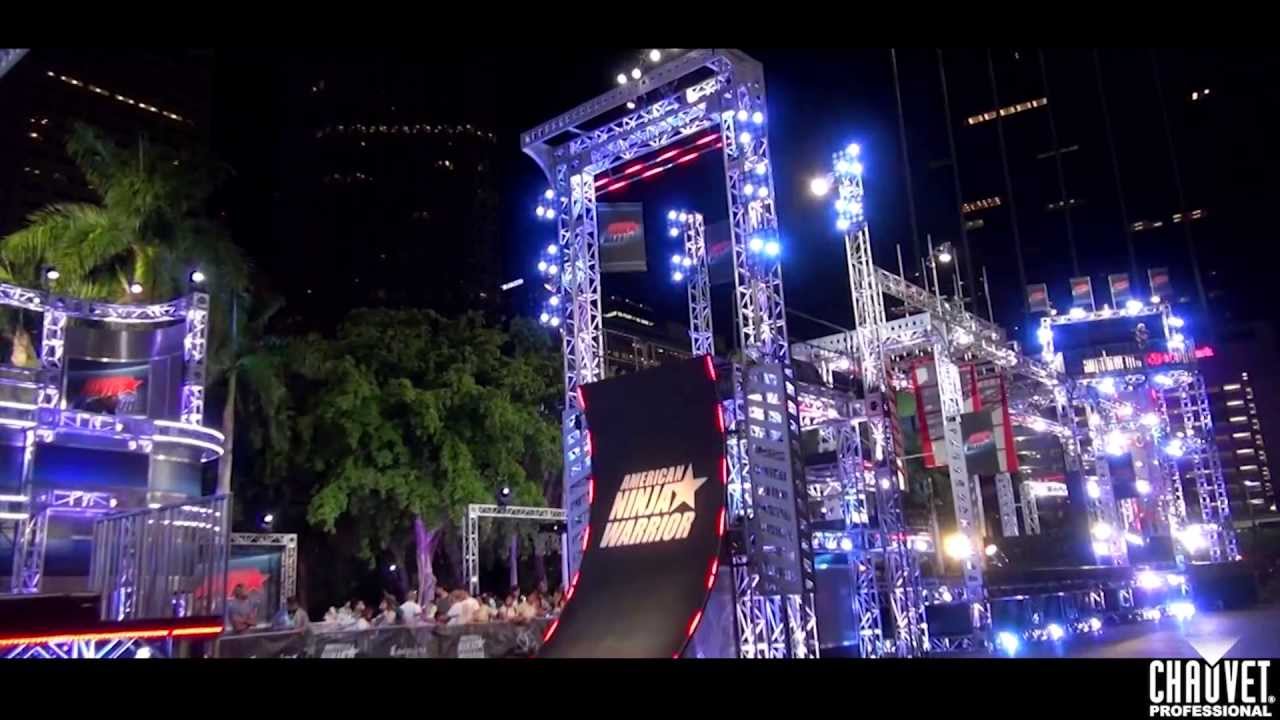

    • CHAUVET Professional Fearless on American Ninja Warrior

      CHAUVET Professional fixtures command the spotlight on the set of “American Ninja Warrior.” Hundreds of wash lights and pixel-mappable panels illuminate the demanding obstacle course, delivering the rugged performance and visual impact required for high-energy broadcast entertainment.

    • Bright, Compact, Robust — COLORado 1-Quad Tour

      The COLORado 1 Quad from CHAUVET Professional delivers a powerful, vibrant wash from a compact and robust housing. Its quad-color LEDs produce a truer white spectrum and subtle pastels, making it a versatile workhorse for stage, architectural, and event lighting.

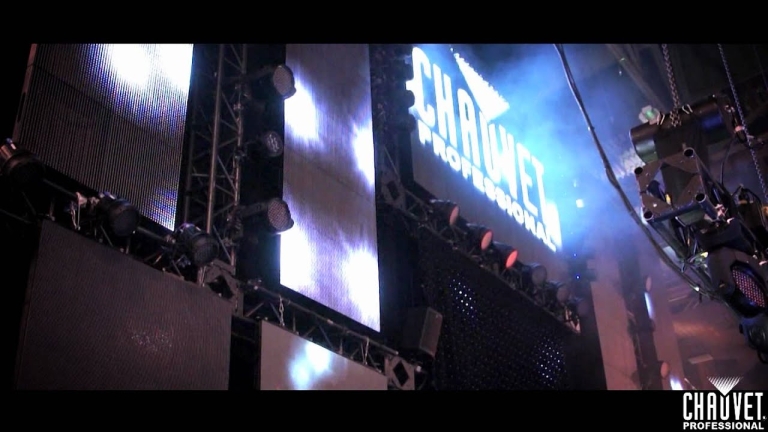

    • InfoComm 2012 Product Tour by CHAUVET Professional

      Relive the CHAUVET Professional experience from InfoComm 2012, where a stunning 300-fixture display unveiled bold new lighting and video technologies. This tour showcases innovative video panels, wash lights, and moving yokes working together to create a powerful, immersive environment that captivated industry professionals.

    • CHAUVET Professional Booth Stands Tall at InfoComm 2012

      Experience the commanding presence of CHAUVET Professional at InfoComm 2012, where a 30-foot booth showcased a dramatic light show and a massive video wall. This retrospective highlights the bold innovation and powerful new fixtures, including video panels and wash lights, that captivated industry professionals.

    Video Library

    COLORado 1 Quad FAQ’s

    Quickly find answers to common questions about setup, operation, and features of the COLORado 1 Quad
    Can the COLORado 1 Quad be used outdoors in the rain?

    Yes, the COLORado 1 Quad is built with a durable, weather-resistant housing and special connectors, making it ideal for outdoor use in all kinds of weather, including wet conditions.

    What kind of colors can the COLORado 1 Quad produce?

    It uses advanced RGBW (Red, Green, Blue, White) LEDs to create a vast spectrum of rich, saturated colors. It also includes dedicated presets for producing various shades of white light, from a warm, soft glow to a cool, crisp white.

    How can I mount or position the COLORado 1 Quad?

    The fixture is very versatile. It comes with a double-bracket yoke that allows you to easily hang it from a lighting rig or use the same bracket as a stable floor stand for uplighting.
