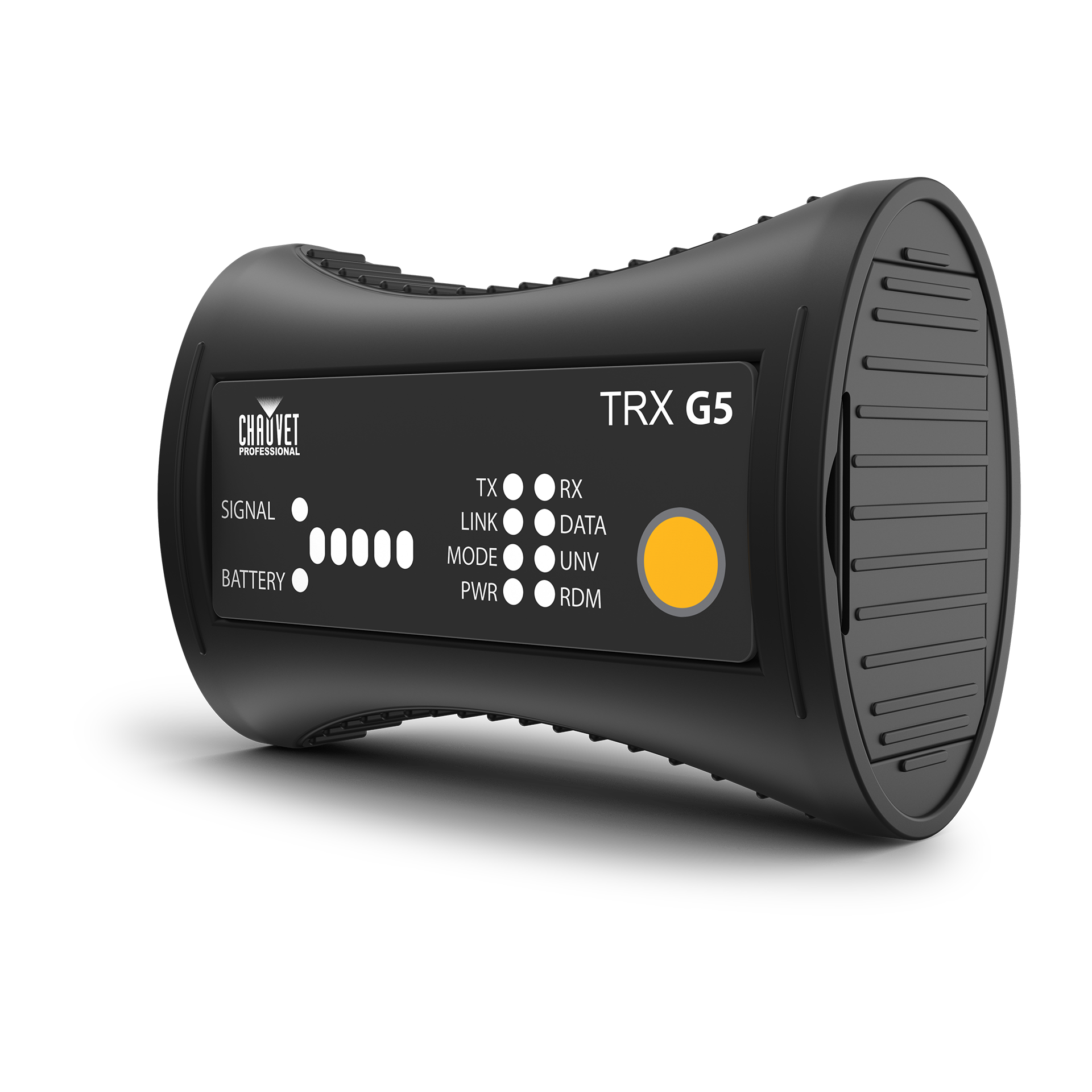

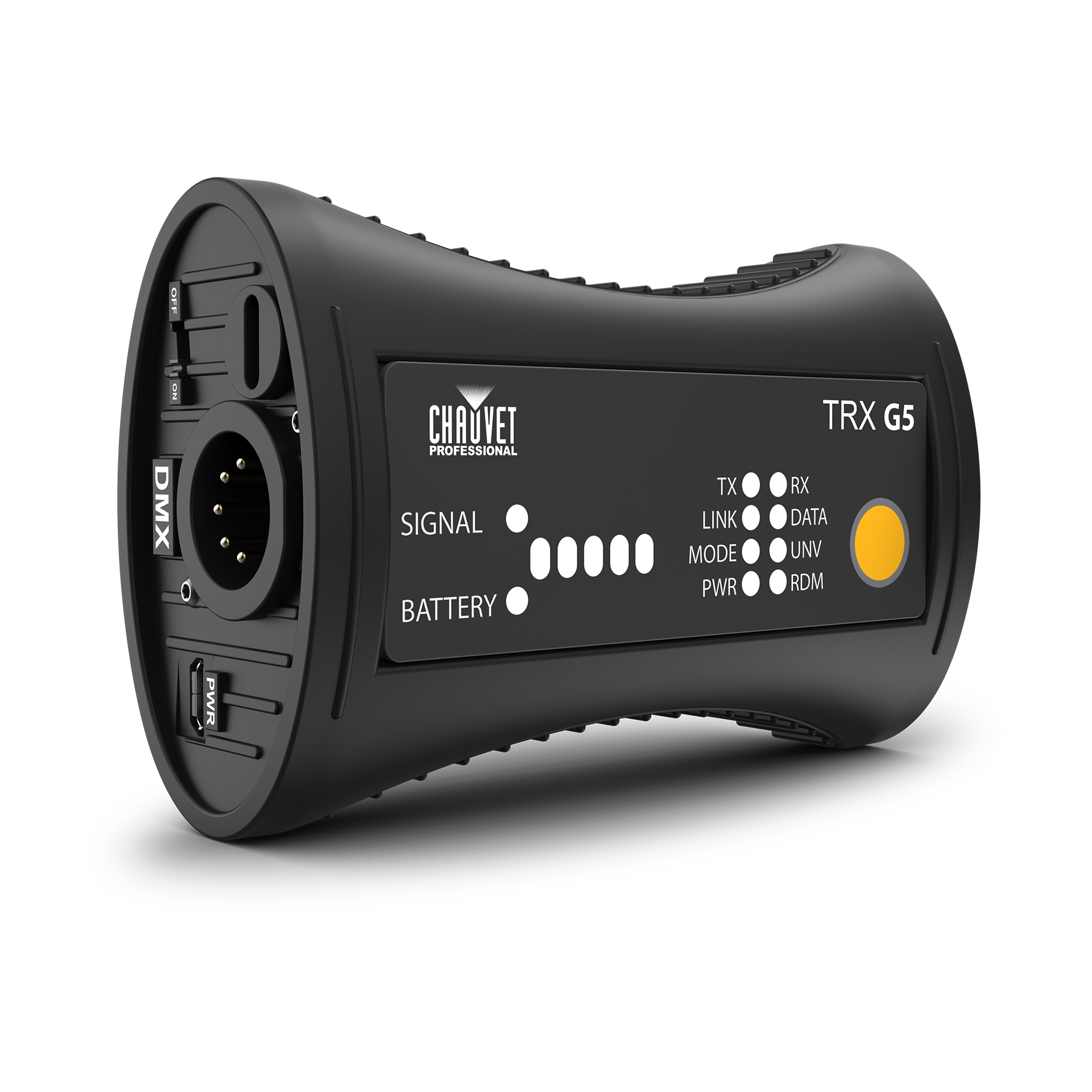

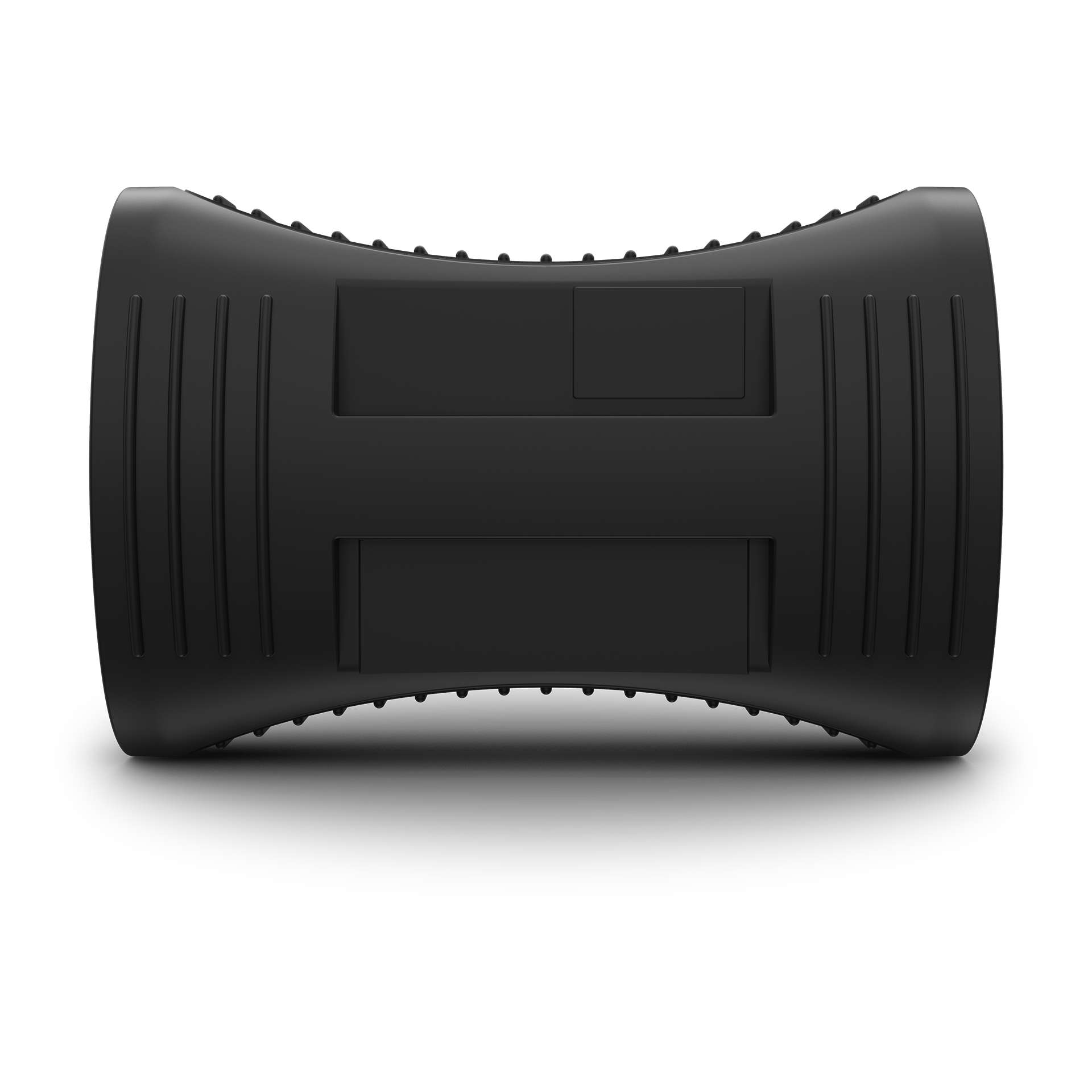

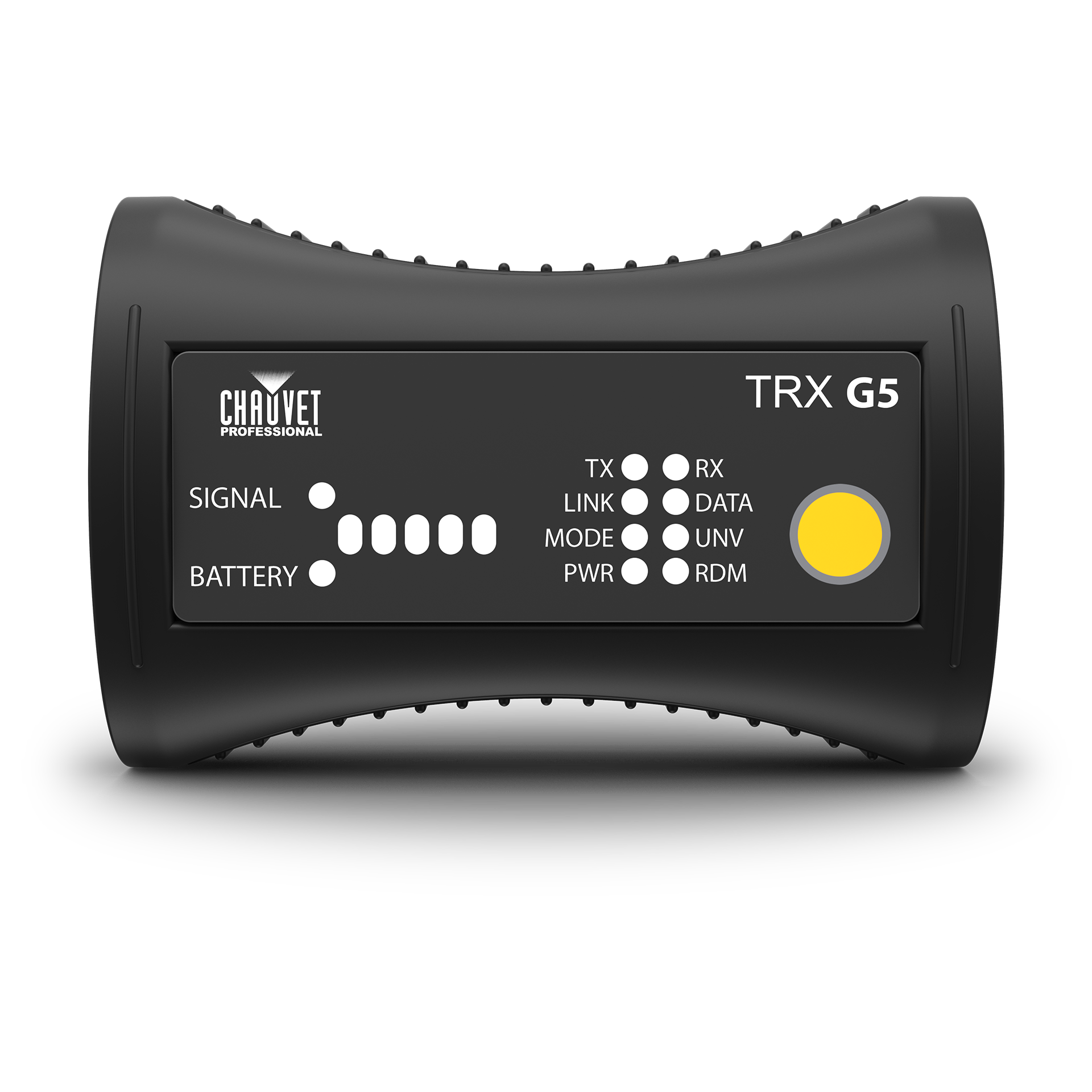

    W-DMX Micro T-1 TRX G5

    A compact, battery-powered W-DMX transceiver designed to transmit or receive wireless DMX and RDM signals for controlling lighting fixtures.
    This device is ideal for converting any fixture or lighting rig to wireless control, especially in mobile applications, temporary events, or installations where running data cables is impractical.

    Read More Read Less
    Read More Read Less
    Request Demo

    Request A Product Demo

    Request a personalized demo or speak directly with our sales team today.

    Authorized Vendors
    Download Product Information
    SKU: MICROF1G5WDMX

    W-DMX Micro T-1 TRX G5

    Specifications
    		 Download
    W-DMX Micro T-1 TRX G5 User Manual
    		 Download
    Download All Resources

    W-DMX Micro T-1 TRX G5

    SKU: MICROF1G5WDMX

    Wireless Solutions Micro T-1 Transceiver works with W-DMX wireless wash lights, including all WELL and Maverick fixtures, to generate a wireless control signal for both DMX and RDM protocols. These compact devices can also be set up to transmit or receive W-DMX signals to make any fixture or rig wireless. It also features a 5 V USB power supply or can be used with (4) AAA batteries for up to 4 hours in transceiver mode and 8 hours in receiver mode. Indicator LEDs easily show signal strength, battery life, and transceiver or receiver mode.

    Download the App

    ConnectFX delivers dynamic and reliable control solutions when paired with WELL CONNECT. Available for iOS® and Android in both phone and tablet versions.

    Download on the App Store
    Get it on Google Play

    Features

    Wireless DMX and RDM Control

    Transmit and receive one universe of W-DMX and RDM protocols for comprehensive wireless lighting management.

    Flexible Power Options

    Operate the unit with the included 5V USB power supply or four AAA batteries for use in any environment.

    Extended Battery Life

    Achieve up to 8 hours of operation in receiver mode or 4 hours in transceiver mode on battery power.

    Integrated Status Indicators

    Convenient built-in lights display signal strength, battery level, and current operating mode at a glance.

    Native Fixture Compatibility

    Use this device directly with any Maverick or WELL series fixtures for seamless integration.

    Universal Wireless Conversion

    Easily convert any DMX-based lighting system to a wireless data setup.

    Complete Your Rig

    Ensure flawless results with gear designed to complement and complete your professional setup.

      Specifications

      Download Product Specs

      Construction/Physical

      • Dimensions

        3.94 x 1.57 x 2.65 in (100 x 40 x 65 mm)

      • Weight

        1.67 lb (800 g)

      • Exterior Color

        dark gray

      • Housing Material

        High-impact flame-retardant polymer

      Connections

      • Power Connection

        5V micro USB connector (micro B) to wall wart adapter

      • Data Connectors

        5-pin XLR

      Control

      • Control Protocol

        W-DMX, RDM

      • Frequency (operating)

        # 2.4 GHz

      • Universes per device

        1

      • Number of DMX channels

        512

      • Max universe in coexistence

        16

      • Error correction

        yes

      • DMX Fidelity

        yes

      • Adaptive Frequency Hopping

        Yes

      • W-DMX G3 &G4S compatibility

        Yes

      • Standard range

        up to 650 ft (200 m)

      • Internal antenna

        Yes

      • Sensitivity (0.1% PER)

        -97 dBm

      • Modulation method

        GFSK

      Electrical

      • Input Voltage

        9 VDC 1000 mA, (external power supply: 100-230 V 50/60 Hz)

      What's Included

      • W-DMX Micro T-1 TRX G5
      • Micro USB to wall wart adapter
      • Velcro attachment strap

      Questions or Concerns?

      Let us know, we’re here to help! Contact Us

      Downloads

      Download All
      Manuals
      W-DMX Micro T-1 TRX G5 User Manual
      		Download

      W-DMX Micro T-1 TRX G5 FAQ’s

      Quickly find answers to common questions about setup, operation, and features of the W-DMX Micro T-1 TRX G5
      What is the W-DMX Micro T-1 TRX G5 used for?

      The W-DMX Micro T-1 TRX G5 is a small, versatile device that eliminates the need for long data cables to control your lights. You can set it to ‘transmit’ mode to send a wireless signal from your lighting console, or switch it to ‘receive’ mode and connect it to any standard light fixture to make that fixture wireless.

      How is the W-DMX Micro T-1 TRX G5 powered?

      It offers two flexible power options. For continuous operation, you can plug it into a standard wall outlet using the included USB power supply. For maximum portability or in locations without power, it can run on four AAA batteries, lasting up to 8 hours in receiver mode.

      Can I use the W-DMX Micro T-1 TRX G5 with my existing lights?

      Yes, it is designed to work with almost any lighting system. By connecting it to a fixture using a standard 5-pin data cable, you can instantly add wireless capability to your existing lights, making it an easy upgrade for any setup. Helpful indicator lights show signal strength and battery life for simple operation.
