    VIP Drive 83R Nova

    An all-in-one video wall processor for the Novastar protocol that combines mapping, source switching, and long-distance fiber transmission into a single, streamlined unit.
    Ideal for managing complex, multi-source video wall systems in live production and large-scale installations where synchronized control and long-distance transmission are essential.

    Read More Read Less
    Read More Read Less
    Request Demo

    Request A Product Demo

    Request a personalized demo or speak directly with our sales team today.

    Authorized Vendors
    Download Product Information
    SKU: VIPDRIVE83RNOVA

    VIP Drive 83R Nova

    Specifications
    		 Download
    Quick Reference Guide
    		 Download
    Cutsheet
    		 Download
    CAD Files
    		 Download
    Firmware
    		 Download
    Download All Resources

    VIP Drive 83R Nova

    SKU: VIPDRIVE83RNOVA

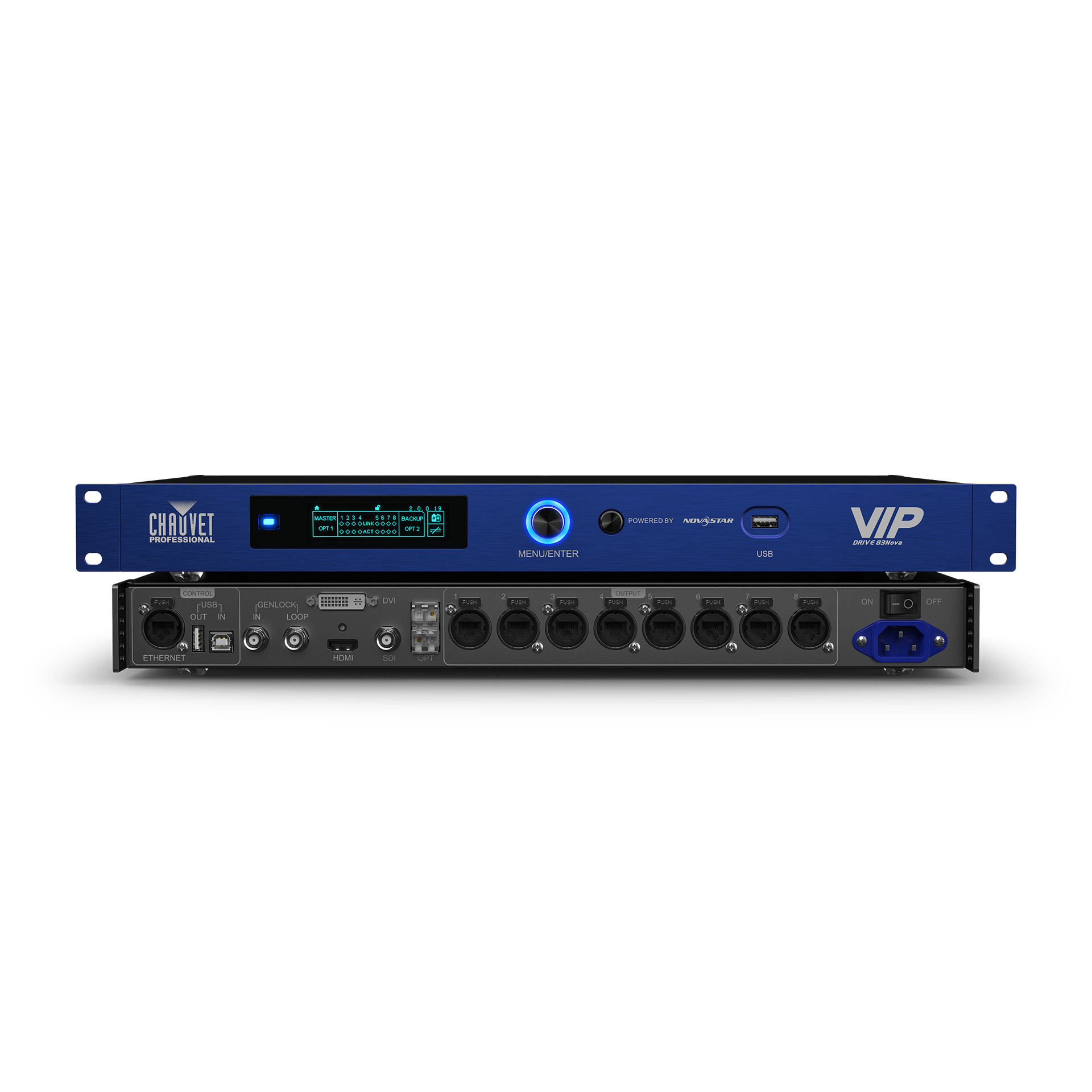

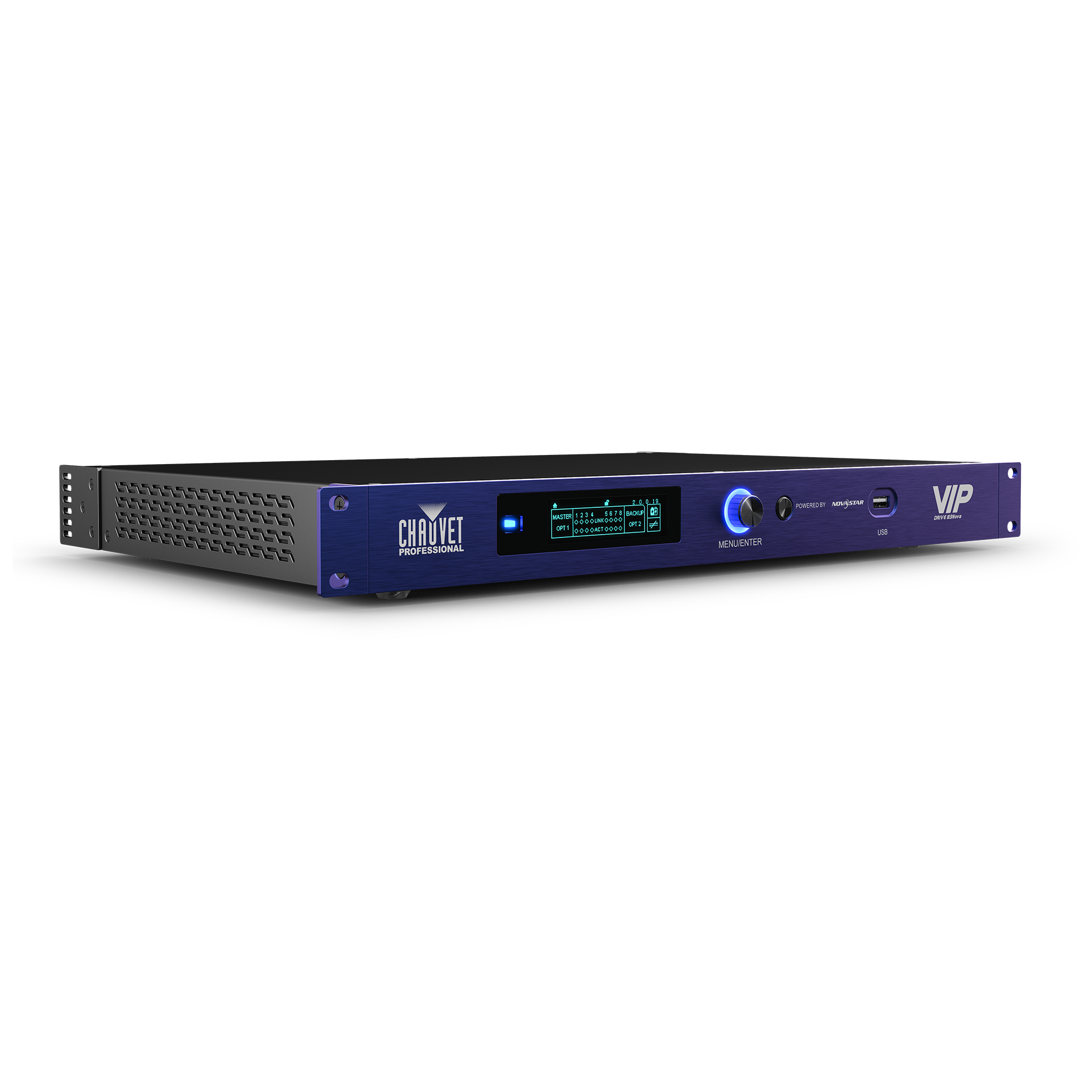

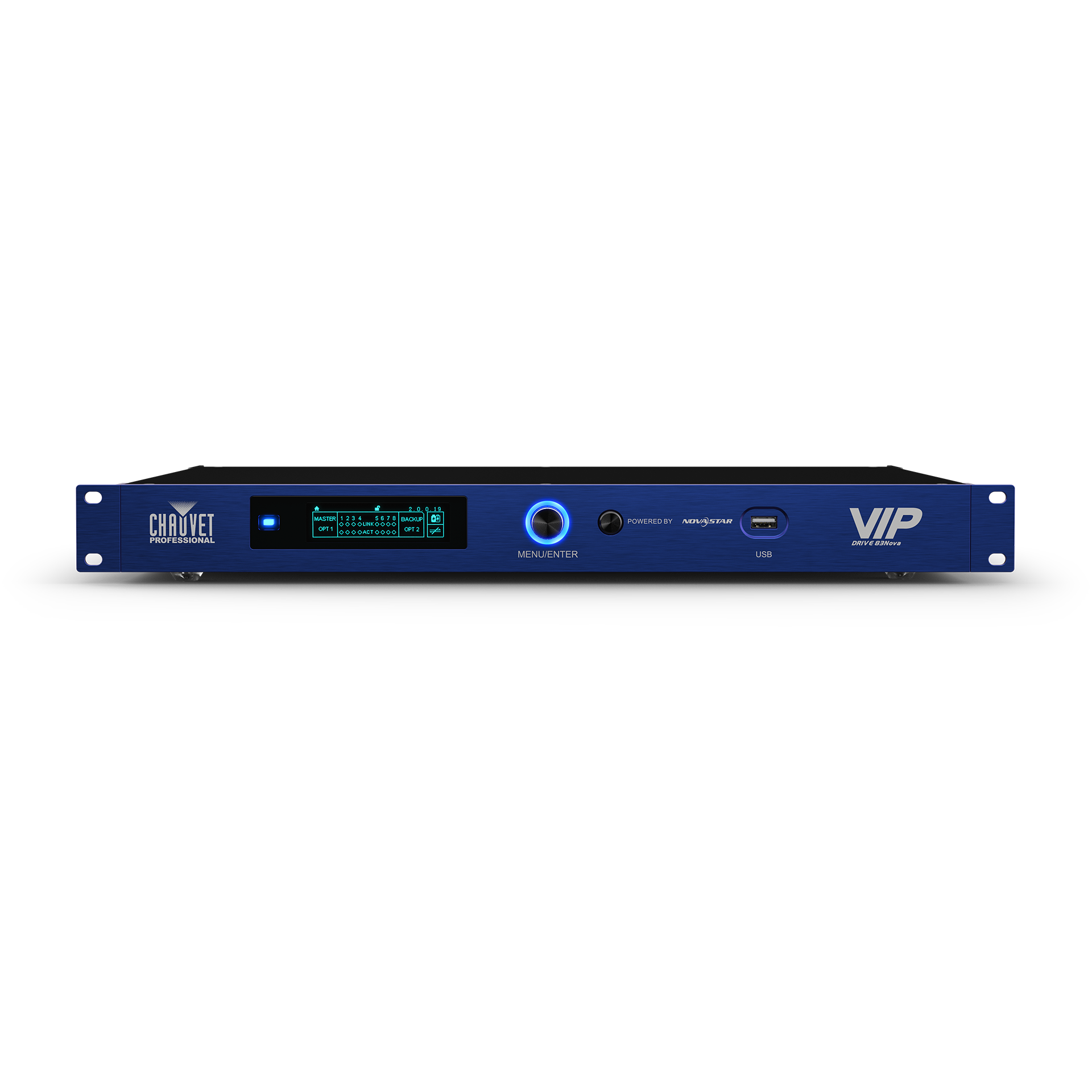

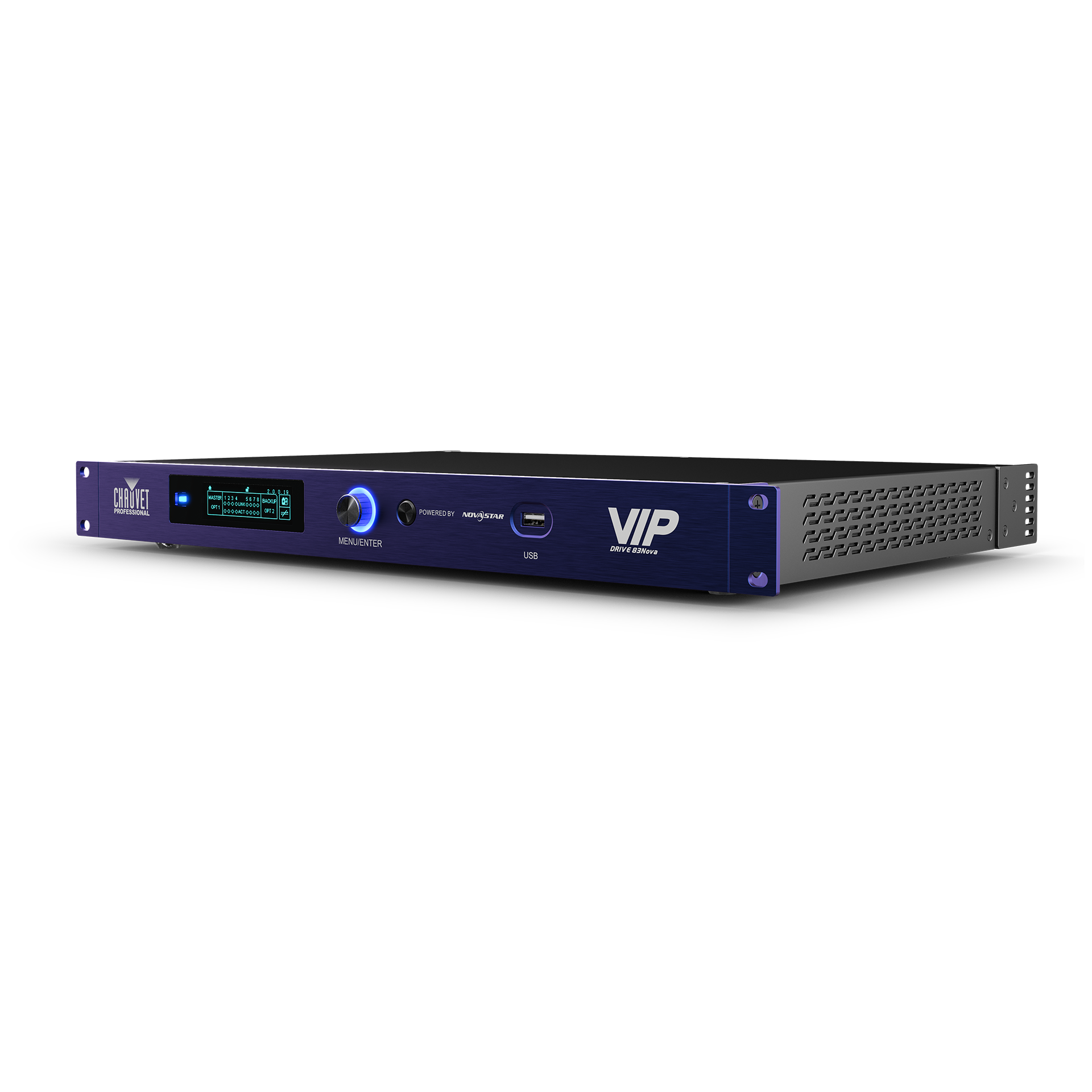

    VIP Drive 83R Nova is a streamlined all-in-one video wall mapper/ switcher for use with the Novastar video control protocol. With three inputs, eight outputs, it will map your video wall, switch your video source, and handle sending/receiving via fiber for long transmissions, eliminating the need for individual mappers and video switchers. With onboard genlock via BNC connector, VIP Drive 83R Nova can synchronize with the whole video system, including cameras, switchers, and additional VIP Drive 83R Nova products for larger systems.

    Features

    Universal Novastar Compatibility

    Seamlessly outputs video signals to any Novastar video panel for wide-ranging system integration.

    Individual Panel Rotation

    A specialized receiver card function enables individual rotation of video panels within the Smart-LCT mapping software.

    Automatic Panel Detection

    Automatically detects connected video panels and strips in the Smart-LCT software, eliminating manual resolution input.

    Standalone Mapping

    Configure most video wall setups directly from the processor’s powerful onboard functions without needing a computer.

    Live Mapping Overlay

    A specialized on-screen overlay simplifies mapping by identifying the port and order of each panel live, without interrupting video playback.

    On-Screen Port Rotation

    Individually rotate each output port using the convenient onboard screen controls for quick adjustments.

    Flexible Video Inputs

    Supports Dual-link DVI, HDMI 1.4, and 6G-SDI inputs to accommodate a wide variety of video sources.

    High-Resolution 4K Output

    Eight robust etherCON video outputs deliver stunning 4K resolution across 5.24 million LEDs.

    Advanced Software Control

    Integrates with NovaLCT-Mars and Smart-LCT software for handling complex configurations and precise panel calibration.

    Compact 1U Design

    The compact 1U rack-mountable design makes transportation and integration into any setup simple and efficient.

    Integrated Fiber Output

    Provides both primary and backup fiber outputs for all eight ports, enabling long-distance signal transmission.

    Versatile Operating Modes

    Functions as a standard sender, a fiber sender, or a fiber converter for ultimate system flexibility.

    Genlock Synchronization

    An integrated Genlock input and loop allows for perfect synchronization between multiple processors on a single large screen.

    Redundant Power Supplies

    Dual power supplies provide fail-safe redundancy, ensuring maximum operational stability and uptime.

    Latest News

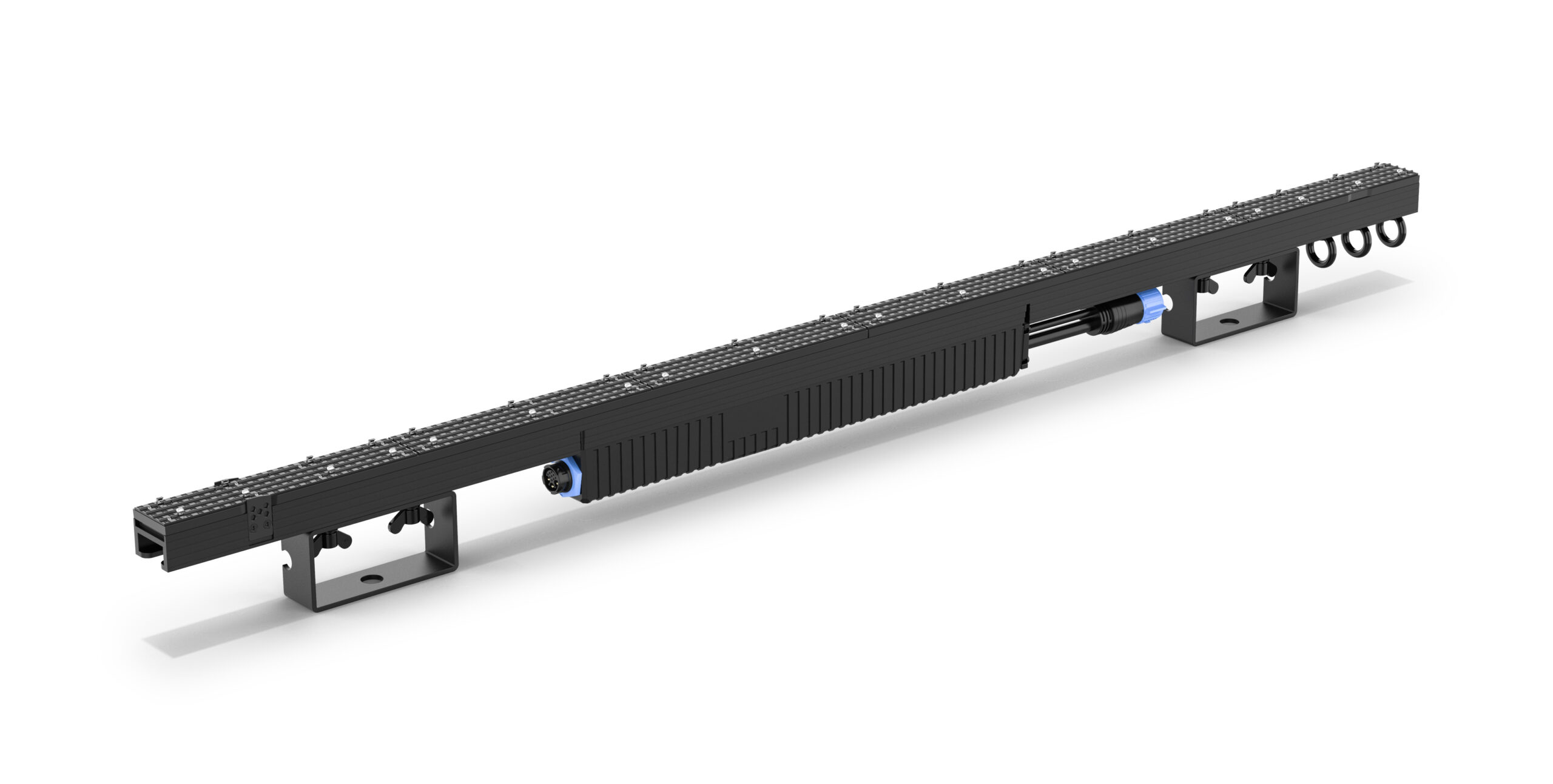

    New CHAUVET Professional F6 Strip IP Linear Video Panel Unleashes Imagination
    The F6 Strip IP linear video panel offers new freedom for creating imaginative video displays.
    Read more
    New CHAUVET Professional F6 Strip IP Linear Video Panel Unleashes Imagination
    The F6 Strip IP linear video panel offers new freedom for creating imaginative video displays.
    Read more
    More Related News

    Complete Your Rig

    Ensure flawless results with gear designed to complement and complete your professional setup.

    Specifications

    Download Product Specs

    Construction/Physical

    • Dimensions

      19 x 12 x 1.7 in (483 x 335 x 52 mm)

    • Weight

      9.5 lb (4.3 kg)

    • Housing Material

      Aluminum alloy

    • Rackmount

      1U

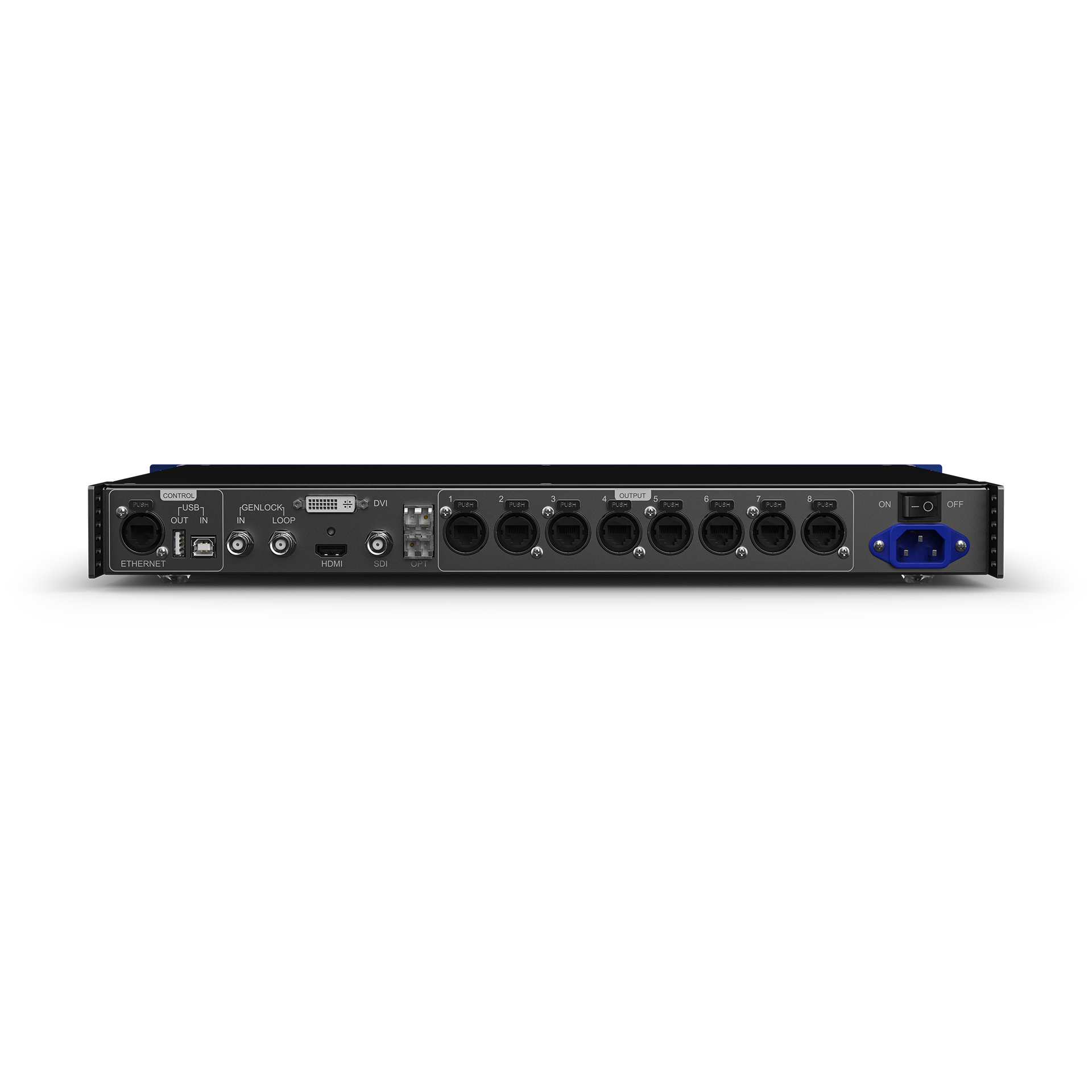

    Connections

    • Power Connection

      Edison (Local) plug to IEC

    • Power Input

      IEC

    • Cable Length (power)

      5 ft (1.5 m)

    • Video Input

      Dual-link DVI-I (VESA standard, 1080i, HDCP support)

    • Video Input

      HDMI (EIA/CEA-861 standard, meeting HDMI-1.4 standard, HDCP support)

    • Video Input

      6G-SDI (480i, 576i, 720p, 1080i/p)

    • Video Output

      Neutrik® etherCON® (8)

    • Video Output

      SFP-LC Fiber optical (2) (SFP fiber module not included)

    • Genlock Input

      Blackburst via locking BNC

    • Genlock Loop Output

      Blackburst via locking BNC

    • Linking Connection

      USB

    • Software Connection

      Front/Rear USB

    • Backup/update Connection

      Front/Rear USB

    Control

    • Control Protocol

      NOVASTAR

    • Maximum Supported Input Resolution

      3840 x 1080

    • Maximum Supported LEDs

      5,242,880

    • Remote Control

      NovaLCTMars PC software via front/rear USB (1)

      • Supported Video Standards
        • (Dual-link DVI)

          DVB-ASI

        • (HDMI)

          HDMI 1.4, and DVB-ASI

        • (6G-SDI)

          SMPTE 424M, SMPTE 292M, SMPTE ST-2081 (proposed), SMPTE 259M compliant

      • Color Space Supported
        • (DVI)

          RGB 4:4:4

        • (HDMI)

          RGB 4:4:4, YCrCb 4:4:4, YCrCb 4:2:2

        • (6G-SDI)

          RGB 4:4:4, YCrCb 4:4:4, YCrCb 4:2:2

    Electrical

    • Input Voltage

      100 to 240 VAC, 50/60 Hz (auto-ranging)

    • Power and Current

      40 W, 0.33 A @ 120 V, 60 Hz

    • Power and Current

      40 W, 0.19 A @ 208 V, 60 Hz

    • Power and Current

      40 W, 0.17 A @ 230 V, 50 Hz

    Certifications/Qualifications

    • Certifications

      UL, CE, FCC, ROHS

    • IP Rating

      IP20, dry location

    Compatible Accessories

    • ArKaos Media Master Express™ + KN software
    • Neutrik® etherCON® cables

    What's Included

    • VIP Drive 83R Nova
    • Rubber feet (4)
    • IEC power cord
    • USB cable
    • HDMI signal cable
    • Cat5e Ethernet cable
    • Warranty Card

    Questions or Concerns?

    Let us know, we’re here to help! Contact Us

    Downloads

    Download All
    Manuals
    VIP DRIVE 83R NOVA – Quick Reference Guide
    		Download
    Manuals
    VIP DRIVE 83R NOVA – Cutsheet
    		Download
    Manuals
    VIP DRIVE 83R NOVA – CAD Files
    		Download
    Other
    VIP DRIVE 83R NOVA – Firmware
    		Download

    VIP Drive 83R Nova FAQ’s

    Quickly find answers to common questions about setup, operation, and features of the VIP Drive 83R Nova
    What does the VIP Drive 83R Nova do?

    The VIP Drive 83R Nova is an all-in-one video processor that simplifies your LED video wall setup. It combines a video switcher, wall mapper, and long-distance fiber transmitter into one compact device, reducing the need for extra equipment. It takes your video source and correctly displays it across your Novastar video panels.

    How does the VIP Drive 83R Nova make video wall setup easier?

    It makes setup fast and intuitive with an on-screen display that visually guides you. The system can automatically detect connected panels and provides a live on-screen overlay to help you map your wall’s layout correctly, even while video is playing. You can configure most walls directly from the unit without a computer.

    What is the VIP Drive 83R Nova used for?

    It is used to control and manage professional LED video walls for events, installations, and broadcasts. It accepts common video inputs like HDMI and SDI, and its synchronization feature (Genlock) allows multiple units to work together for very large or complex video systems. It also includes fiber optic outputs for sending video reliably over long distances.
