    RDMX Splitter 8

    A rugged and versatile RDM and 5-pin DMX opto-splitter that isolates, amplifies, and splits signals with two inputs and eight outputs configurable for single or dual-universe operation.
    Ideal for complex lighting installations, it can be rack or truss-mounted to reliably manage signal distribution in touring, theatrical, and event production environments.

    Read More Read Less
    Read More Read Less
    Request Demo

    Request A Product Demo

    Request a personalized demo or speak directly with our sales team today.

    Authorized Vendors
    Download Product Information
    SKU: RDMXSPLITTER8

    RDMX Splitter 8

    Specifications
    		 Download
    RDMX Splitter 8 Quick Reference Guide
    		 Download
    Download All Resources

    RDMX Splitter 8

    SKU: RDMXSPLITTER8

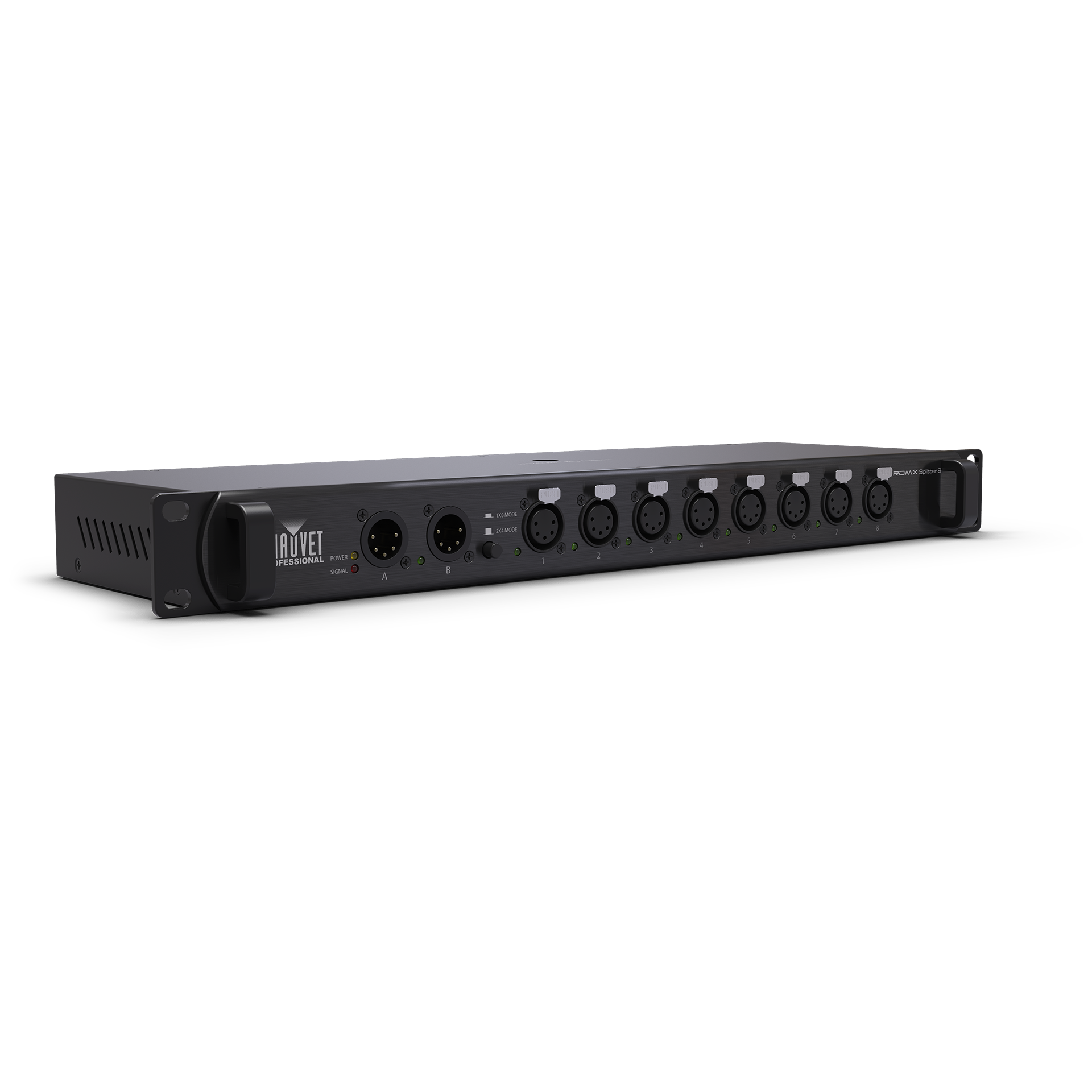

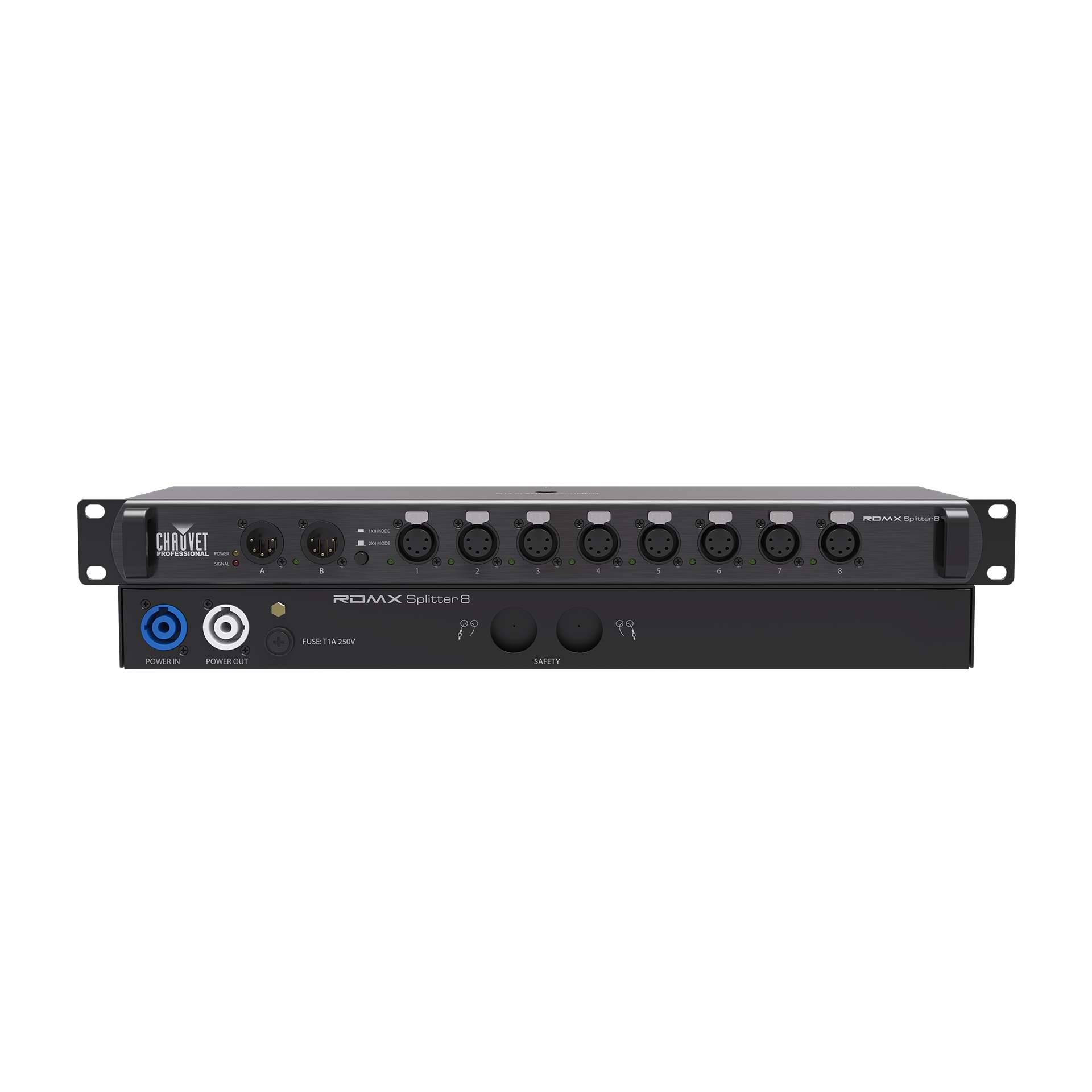

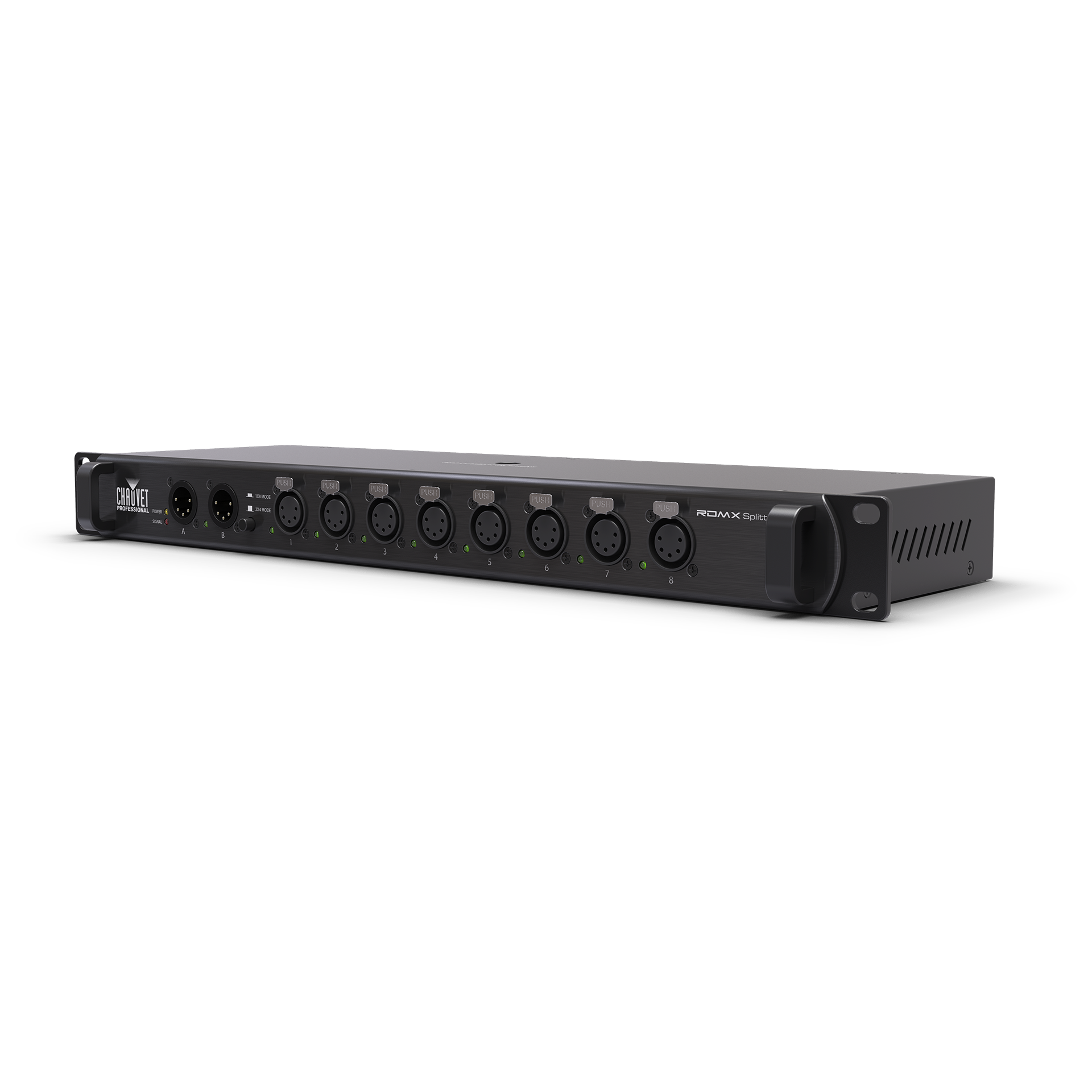

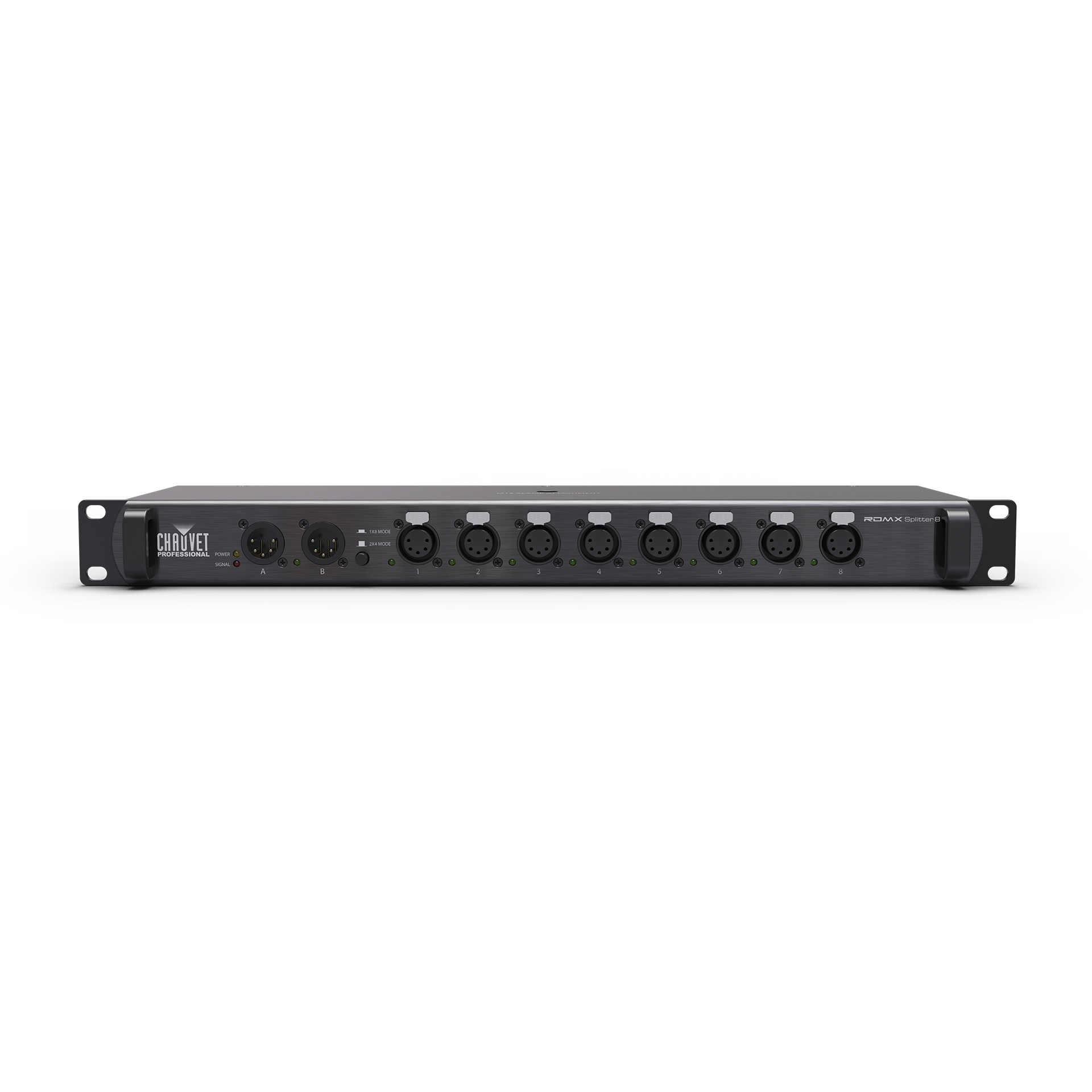

    RDMX Splitter 8 is a versatile RDM and 5-pin DMX opto-splitter with a rugged, durable housing. It features 8 outputs and 2 inputs, so it can instantly go from a 1×8 splitter to a 2×4 splitter for two different universes. To simplify installation next to existing fixtures, PowerCON power linking is also supported to make it easier than ever to isolate, amplify and split a signal. For added versatility, the unit can be either rack or trust-mounted and supports electrical isolation between inputs and outputs up to 1000 V between ports.

    Features

    Flexible Splitting Modes

    This RDM compliant splitter easily switches between a 1×8 single universe mode, a 2×4 dual universe mode, or a 2×4 A/B splitter with the simple press of a button.

    Convenient Power Linking

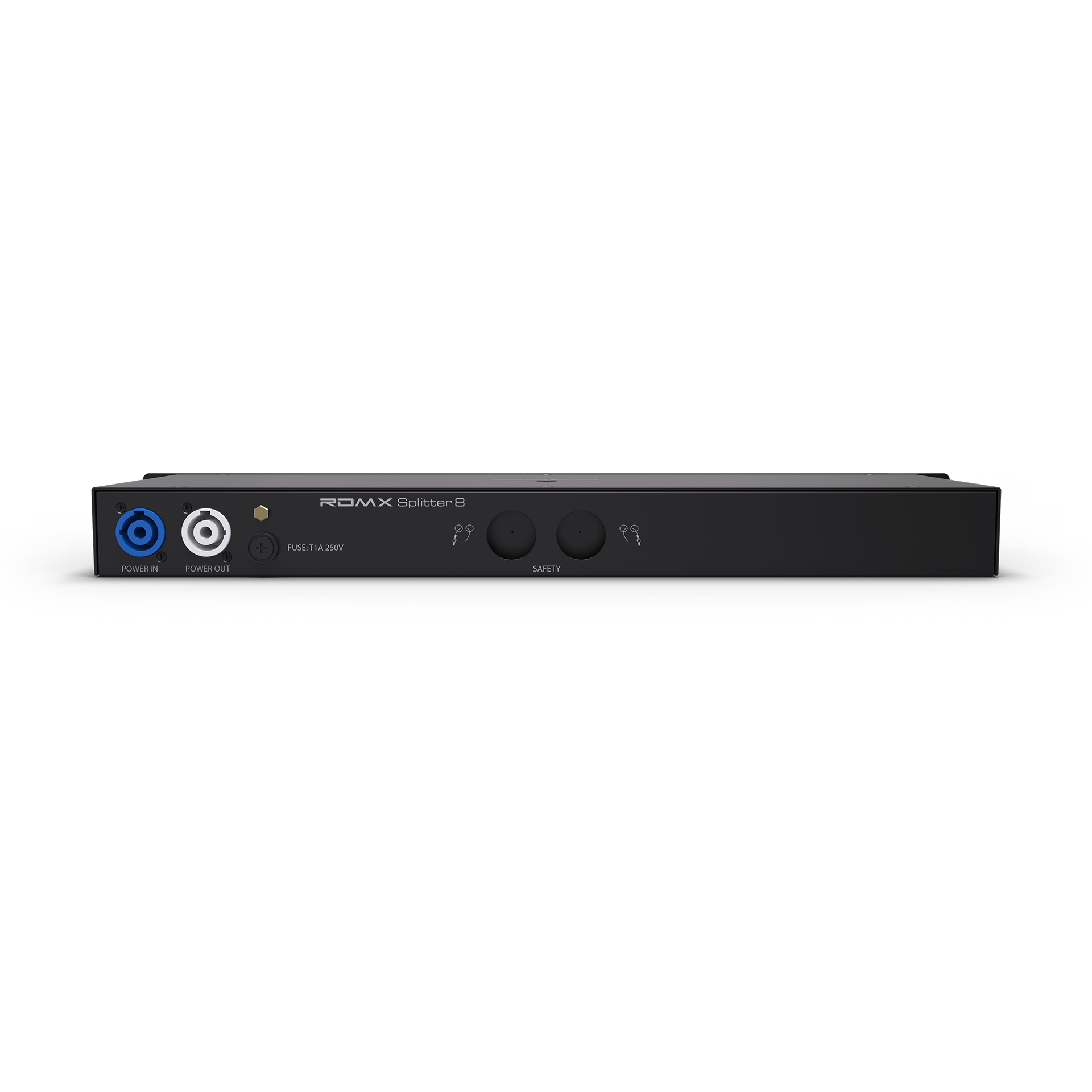

    Features PowerCON power linking to simplify installation by allowing you to place the splitter right next to fixtures where power is already available.

    Versatile Mounting Options

    The rugged, reinforced housing is ready for 1U rack mounting or direct attachment to pipe and truss without needing any extra accessories.

    Electrical Isolation

    Provides up to 1,000 V of electrical isolation between the input and all output ports to protect your connected equipment.

    Complete Your Rig

    Ensure flawless results with gear designed to complement and complete your professional setup.

    Specifications

    Download Product Specs

    Optical

    • Dimensions

      19 x 5.75 x 1.77 in (483 x 146 x 45 mm)

    • Weight

      4.2 lb (1.9 kg)

    • Exterior Color

      Black

    • Housing Material

      Steel and aluminum

    • Rackmount

      1U

    Connections

    • Power Connection

      Edison (Local) plug to Neutrik powerCON

    • Power Input

      Neutrik powerCON

    • Power Output

      Neutrik powerCON

    • Device Data Inputs

      5-pin XLR (2 total)

    • Device Data Outputs

      5-pin XLR (8 total)

    • Cable Length (power)

      5 ft (1.5 m)

    Control

    • Control Protocol

      DMX, RDM Pass-thru

    • Modes

      2 (1×8, 2×4)

    Electrical

    • Input Voltage

      100 to 240 VAC, 50/60 Hz (auto-ranging)

    • Power Linking

      15A

    • Power and Current

      11 W, 0.09 A @ 120 V, 60 Hz

    • Power and Current

      14 W, 0.06 A @ 208 V, 60 Hz

    • Power and Current

      14 W, 0.06 A @ 230 V, 50 Hz

    Certifications/Qualifications

    • Certifications

      CE

    • IP Rating

      IP20, dry location

    • Temperature (Ambient)

      -4 °F to 113 °F (-20 °C to 45 °C)

    Questions or Concerns?

    Let us know, we’re here to help! Contact Us

    Downloads

    Download All
    RDMX Splitter 8 Quick Reference Guide
    		Download

    RDMX Splitter 8 FAQ’s

    Quickly find answers to common questions about setup, operation, and features of the RDMX Splitter 8
    What makes the RDMX Splitter 8 so versatile?

    The RDMX Splitter 8 is highly flexible because it can operate in two different modes with the simple press of a button. You can use it to send one lighting control signal to eight different outputs, or instantly switch it to manage two separate incoming signals, sending each to four outputs.

    How does the RDMX Splitter 8 protect my lighting equipment?

    It protects your entire lighting setup by electrically isolating every output. This means that if one connected light experiences a signal or electrical problem, it won’t affect any of the other lights in your system, ensuring your show continues to run smoothly.

    How does the RDMX Splitter 8 simplify installation and cabling?

    It simplifies setup with a power linking feature, allowing you to connect its power cord directly to an adjacent fixture or another splitter. This reduces the need for multiple long extension cords and extra power outlets, making for a much cleaner and faster installation.
