WELL Fit

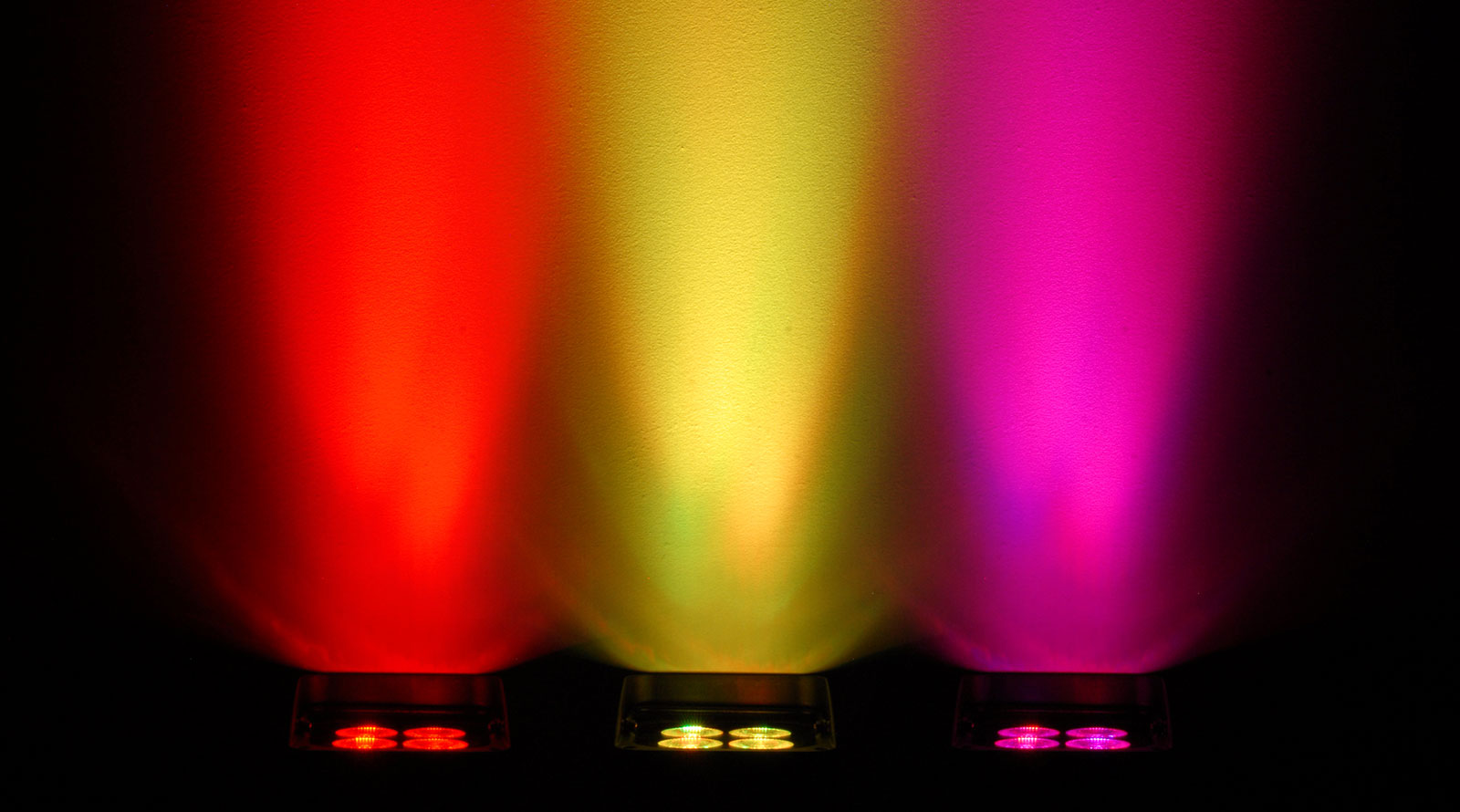

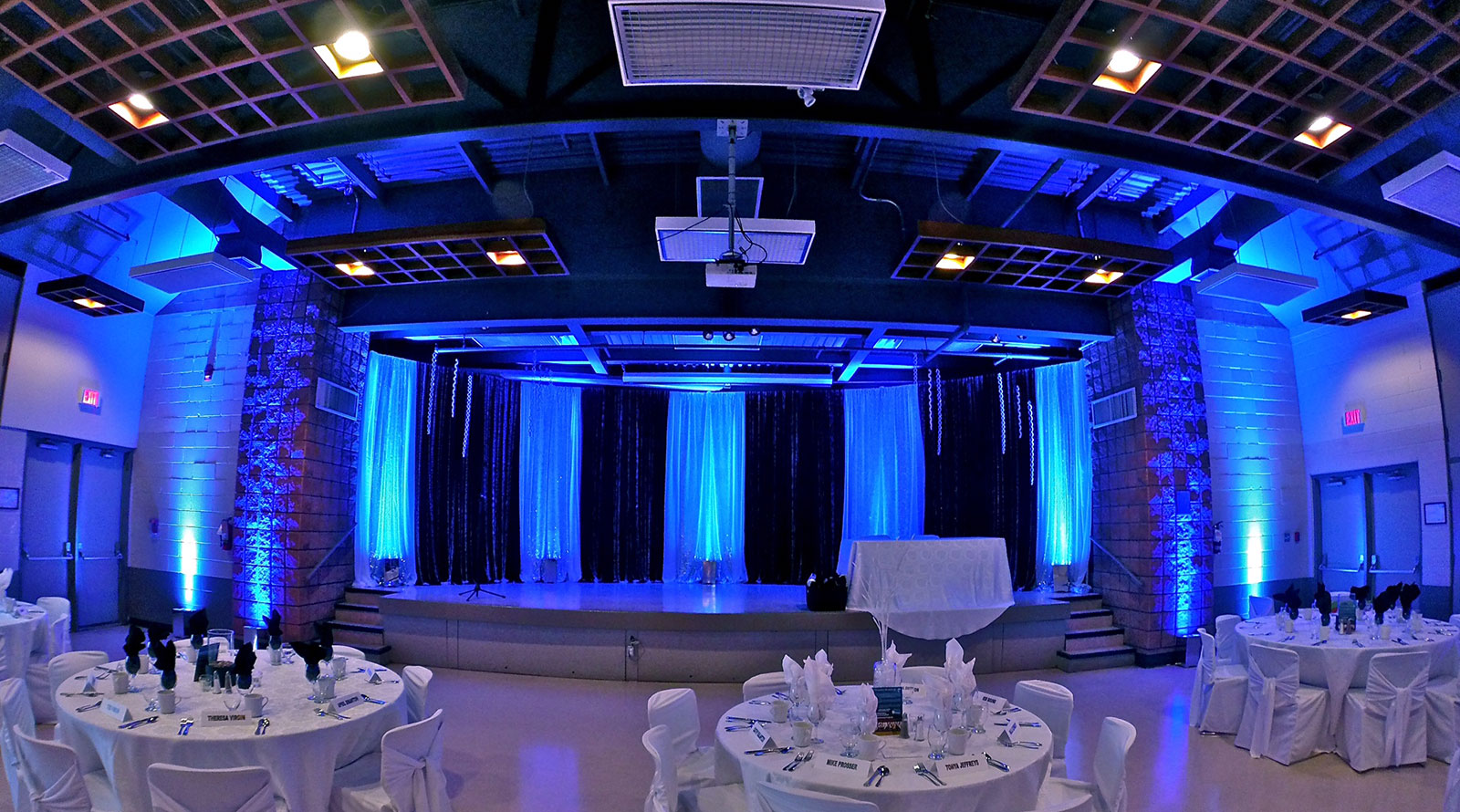

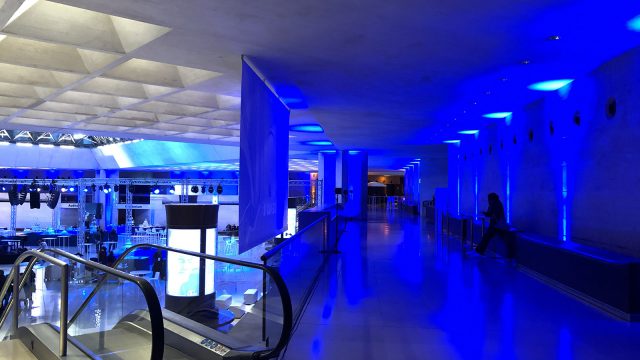

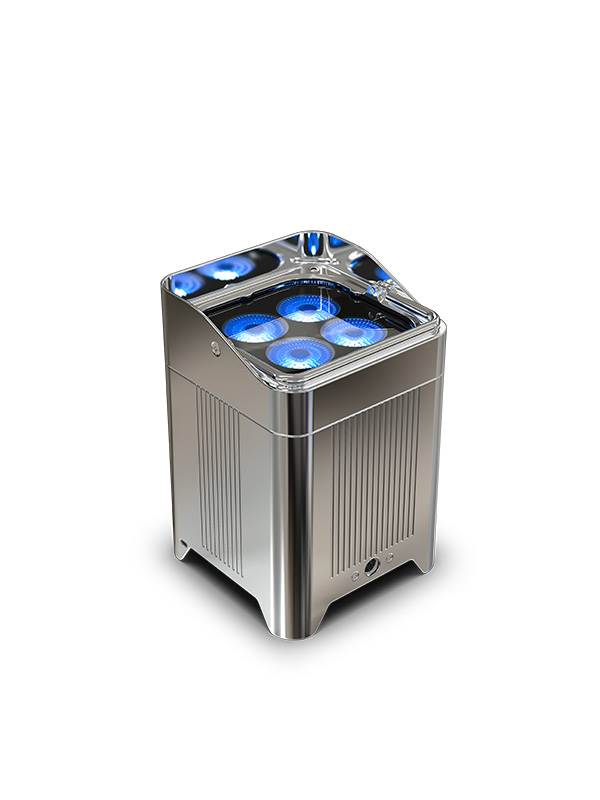

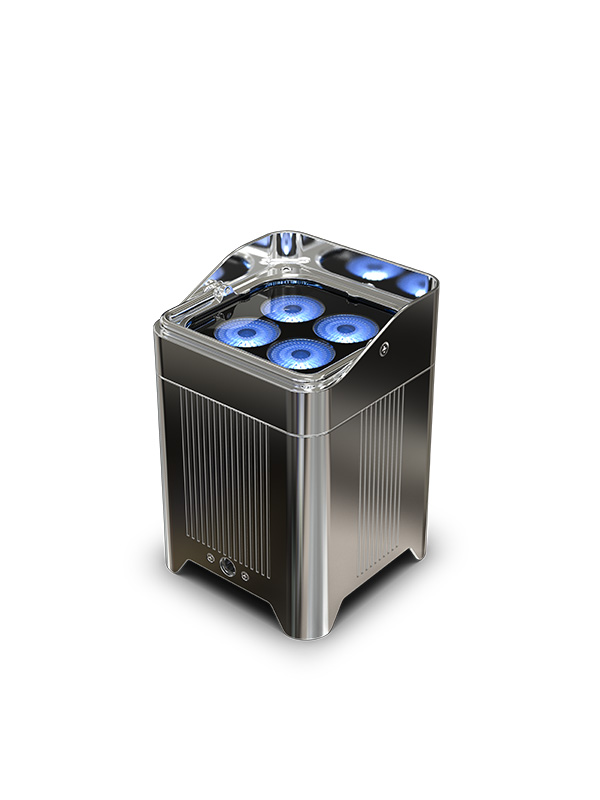

Power and Current (charging case): 345 W, 3.323 A @ 100 V, 60 Hz [10.2 A inrush]WELL Fit is a must for event lighting. A discrete, high powered LED up-lighter, this small battery powered wash light comes in a reflective chrome housing designed to blend into any decor. WELL Fit can be controlled wirelessly either by W-DMX or by an included IR remote; alternatively, it can be controlled manually from the OLED display on the fixture. All of these features combined make the WELL Fit a perfect solution for quick setup and distinguished accent lighting.


At a Glance

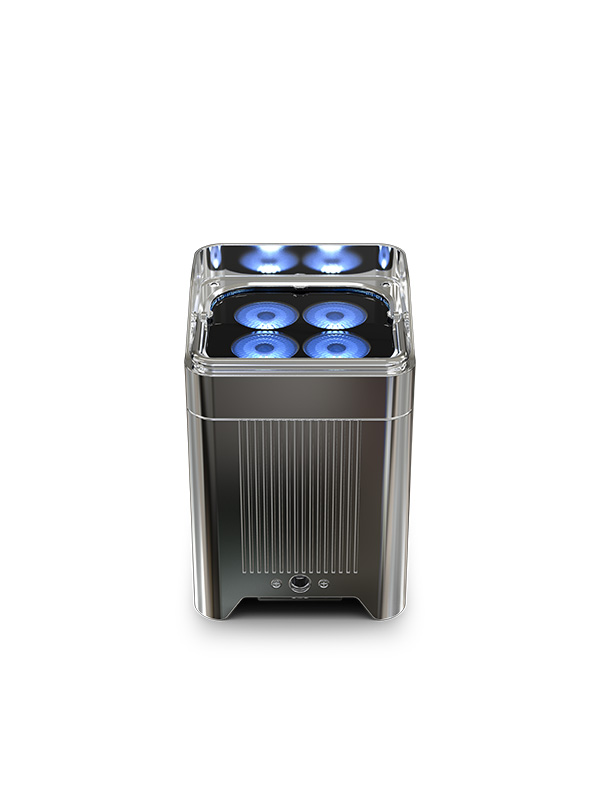

  • A completely wireless IP65 rated battery powered up-light with four high powered quad colored RGBA LEDs that is controlled by W-DMX or IR remote.

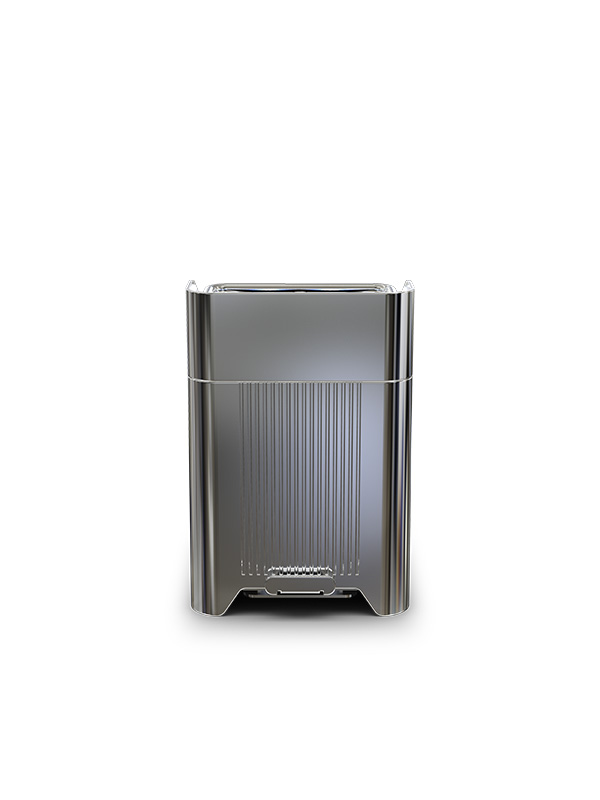

  • Chrome exterior for blending into its surroundings.

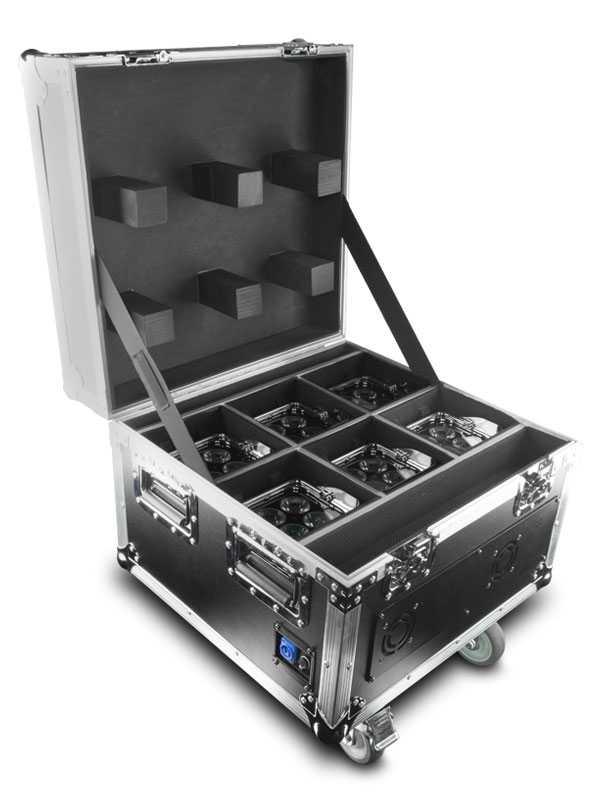

  • Ships with 6 slot drop in charging case for easy storage and re-charging of the battery.

  • 8 hours of operation at full and a quick 5 hours charging time for frequent use.

  • Built in automated programs recallable by IR, WDMX or manually.

  • M12 threaded insert for easy clamp installation and a Kensington lock position for securing your investment.

Specifications

Optical

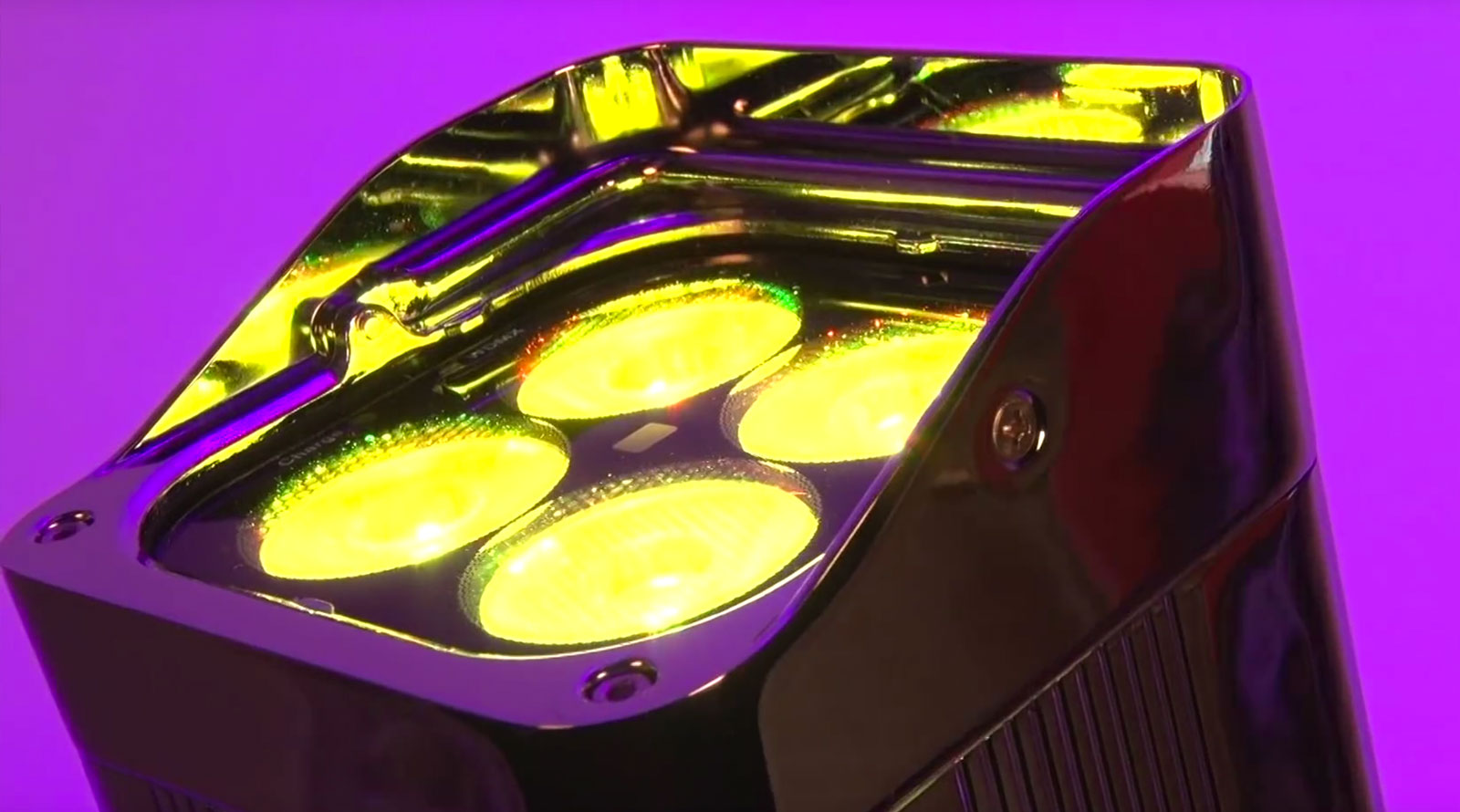

  • Light Source: 4 LEDs (quad- color RGBA) 10 W, (720 mA), 50,000 hours life expectancy).
  • Beam Angle: 10.8°
  • Field Angle: 19.6°
  • Illuminance (19.6°): 988 lux @ 5 m
  • PWM Frequency: 1200 Hz

Dynamic Effects

  • Color Macros: 5 macros
  • Dimmer: Electronic
  • Shutter/Strobe: Electronic
  • Strobe Rate: 0 to 24 Hz
  • Standalone Color Mixing: Yes
  • Color Temperature Presets: Yes
  • Dim Modes: 4
  • Built-in Automated Programs: Yes

Construction / Physical

  • Dimensions: 5.4 x 5.7 x 8 in (138 x 145 x 202 mm)
  • Dimensions (charging case): 20.4 x 18.5 x 21.2 in (519 x 470 x 540 mm)
  • Weight (single unit) 7.4 LB (3.4 kg)
  • Weight (charging case): 103.6 lb (47 kg)
  • Exterior Color: Chrome
  • Housing Material: Aluminum die-cast

Connections

  • Power Connection: Edison (Local) plug to Neutrik® powerCON
  • Power Input: Neutrik® powerCON®
  • Cable Length (power): 5 ft (1.5 m)

Control

  • Control Protocol: W-DMX™, IRC
  • DMX Channels: 3, 4, 6 or 10
  • Modes/Personalities: 5 personalities (4Ch, 6Ch, 10Ch, HSV, HSI)

Electrical

  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power Linking: 4 units @ 120 V; 7 units @ 208 V; 8 units @ 230 V
  • Power and Current (single unit charging): 60 W, 0.641 A @ 100 V, 60 Hz
  • Power and Current (charging case): 345 W, 3.323 A @ 100 V, 60 Hz
  • Power and Current (single unit charging): 58 W, 0.535 A @ 120 V, 60 Hz
  • Power and Current (charging case): 334 W, 2.750 A @ 120 V, 60 Hz
  • Power and Current (single unit charging): 51 W, 0.363 A @ 208 V, 60 Hz
  • Power and Current (charging case): 322 W, 1.584 A @ 208 V, 60 Hz
  • Power and Current (single unit charging): 54 W, 0.342 A @ 230 V, 50 Hz
  • Power and Current (charging case): 317 W, 1.422 A @ 230 V, 50 Hz
  • Power and Current (single unit charging): 54 W, 0.335 A @ 240 V, 50 Hz
  • Power and Current (charging case): 311 W, 1.363 A @ 240 V, 50 Hz

Battery

  • Battery type: Lithium Ion
  • Rechargeable: Yes
  • Battery Charge Time: 5 hours
  • Battery Life: (all on) 8 hours, (single LED) 20 hours
  • Battery Power: 14.8 V, 11 Ah

Certifications / Qualifications

  • CE, UKCA

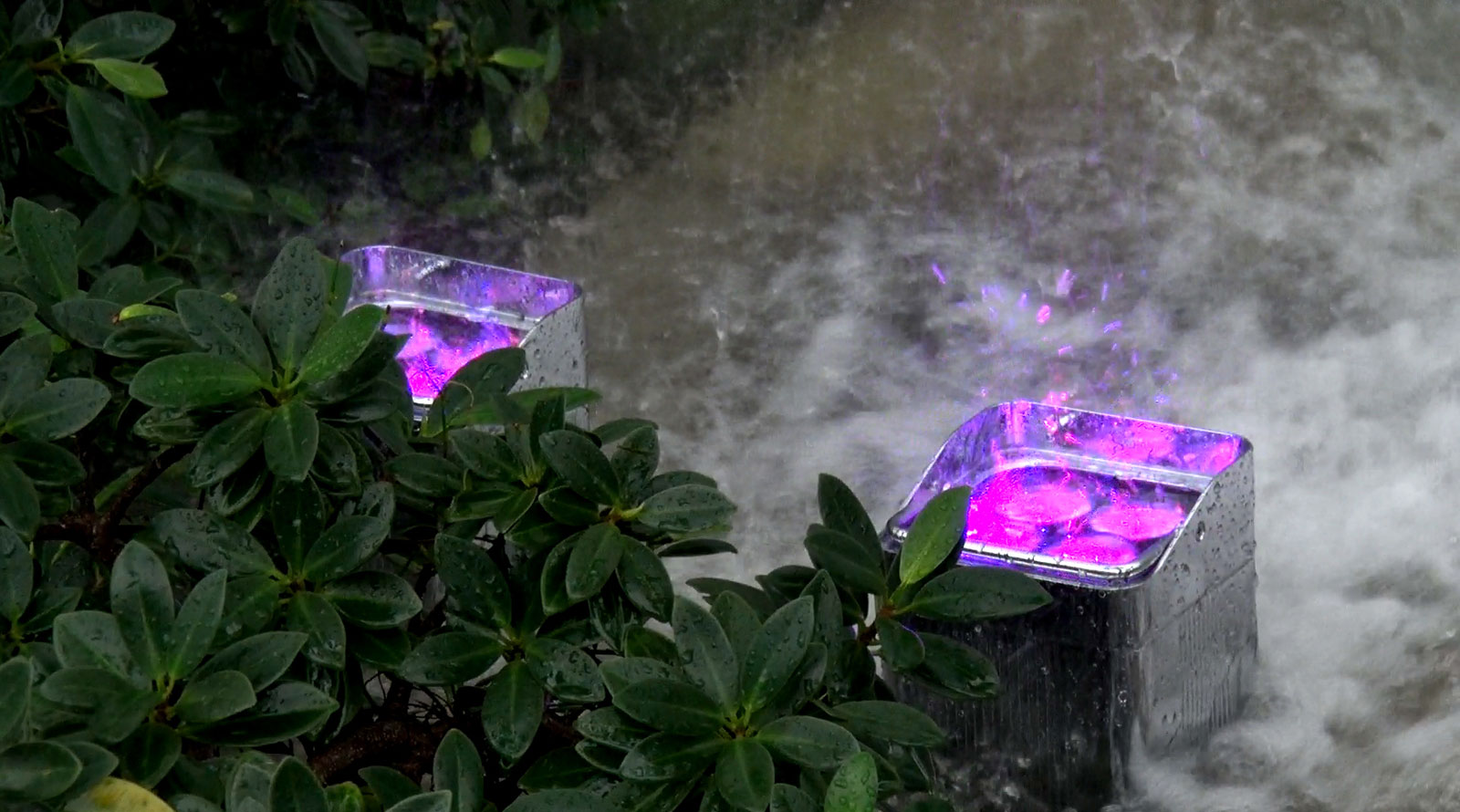

  • IP Rating: IP65, temporary outdoor/wet use

What's Included

  • WELLFITX6
  • (6) WELL FIT
  • (1) Charging case
  • (1) IR remote
  • (1) powerCON power cable with Edison plug
  • (1) QRG
  • (1) Warranty card
