WELL FIT X

The leading workhorse uplight in its class gets a host of upgrades that improve color mixing, size, weight and functionality. WELL FIT X offers increased lumen output, additional LEDs with improved optics and outstanding beam collimation, a filter pack for beam shaping, and a white metal slip cover for more décor matching possibilities. Roll into any production, indoors or out, with a road-worthy six-unit kit with built-in charging capability and the new ability to perform software updates to the fixtures while in their charging case.

BOOK A DEMO


CHAUVET CONNECT delivers dynamic and reliable control solutions when paired with WELL CONNECT. Available for iOS® in both phone and tablet versions and coming soon for Android.

At a Glance

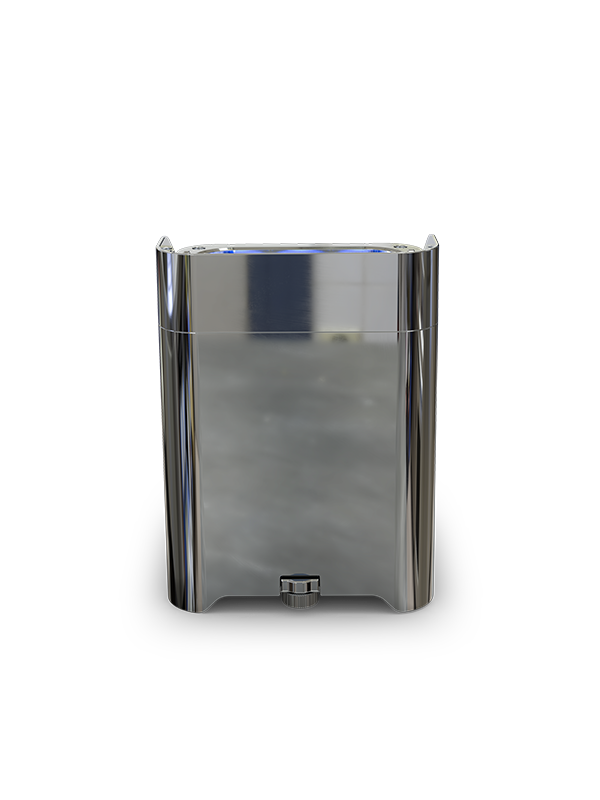

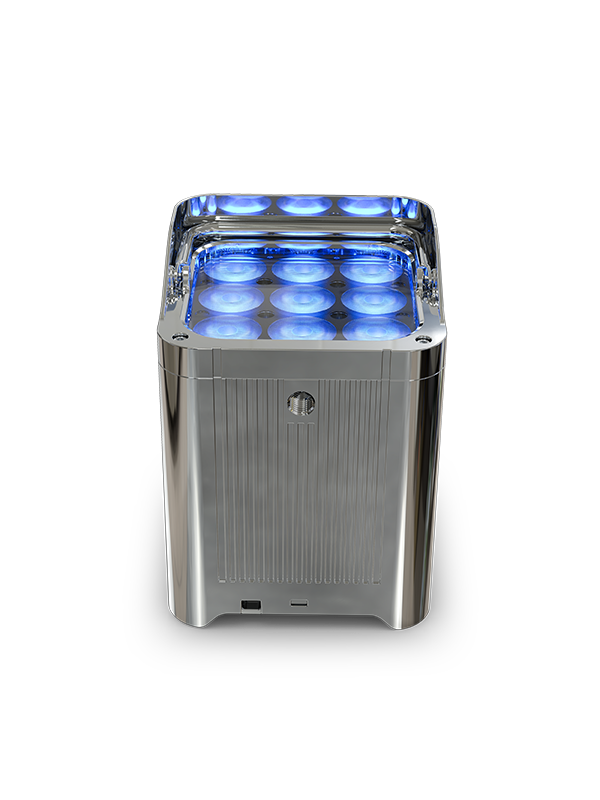

  • A fully realized kit of (6) battery operated chrome IP65-rated uplight-style fixtures with (9) RGB warm white LEDs, and a beam angle of 11.3 degrees

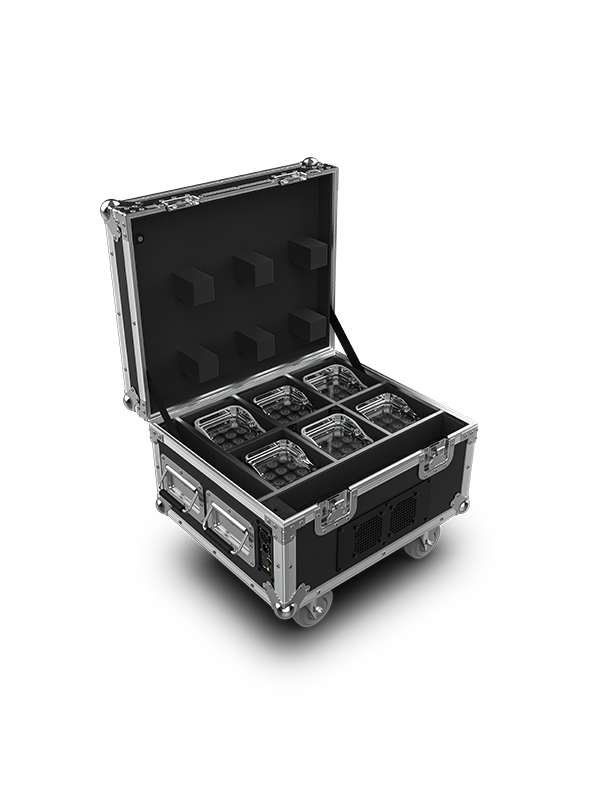

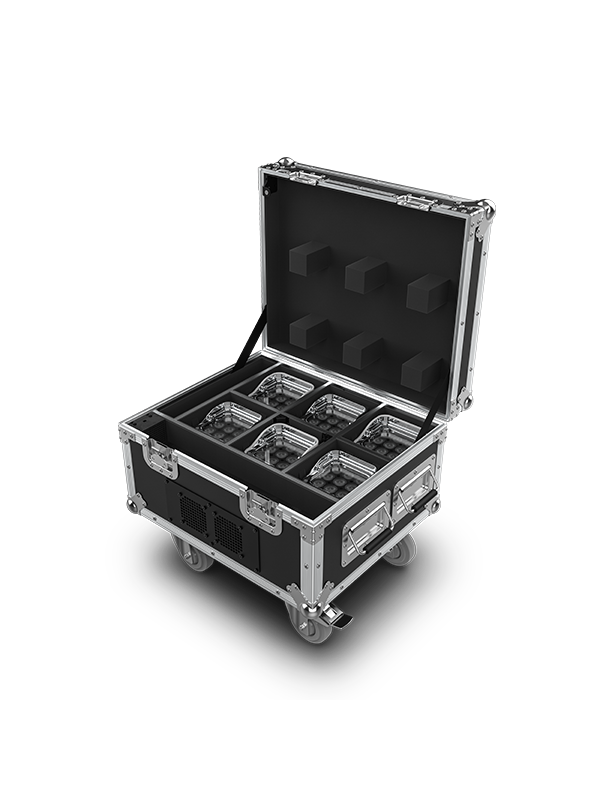

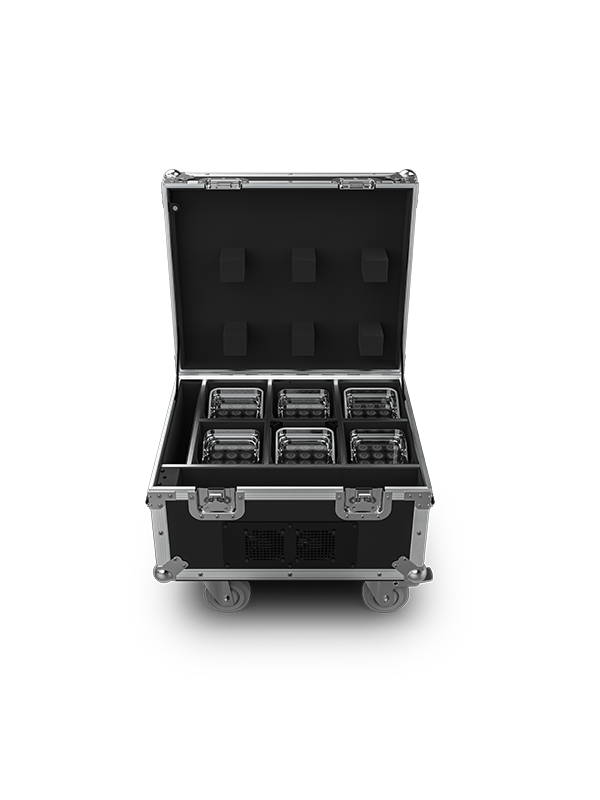

  • Charging case designed to charge with the lid closed to save warehouse space

  • Battery run time selections of 5, 8, 12, and 18 hours of operation at full output

  • Built-in battery charger allows fixture to operate while charging

  • Control over RDM, CRMX, or RF

  • Easy connection to WELL CONNECT box and CHAUVET CONNECT app

  • USB-C port for convenient software updates

  • Pressure equalizing M6 Gore valve

  • Adjustable front foot for adjusting fixture angle

  • Kensington lock position

  • Built-in safety cable attachment point

  • Easy-to-read OLED display

  • Built-in theft alarm (audio and visual notification)

  • Built-in PWM adjustment

  • Included RF remote

  • Included 6 pack charging case

Specifications

Optical

  • Light Source: 9 LEDs (RGBWW) 7.5 W, (556 mA), 50,000 hours life expectancy
  • Color Temperature (range): 2600 to 10,000K
  • Beam Angle: 11.5°
  • Field Angle: 21.1°
  • Lumens: 1762 lm (OFF battery setting)
  • Illuminance: 1087 lux @ 5 m (OFF battery setting)
  • Lumens: 1944 lm (5-hour battery setting)
  • Illuminance: 1205 lux @ 5 m (5-hour battery setting)
  • Lumens: 1233 lm (8-hour battery setting)
  • Illuminance: 764 lux @ 5 m (8-hour battery setting)
  • Lumens: 821 lm (12-hour battery setting)
  • Illuminance: 507 lux @ 5 m (12-hour battery setting)
  • Lumens: 550 lm (18-hour battery setting)
  • Illuminance: 339 lux @ 5 m (18-hour battery setting)
  • Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4000 Hz, 6,000 Hz, 25000 Hz

Dynamic Effects

  • Dimmer: Electronic
  • Shutter/Strobe: Electronic
  • Strobe Rate: 0 to 30 Hz
  • Standalone Color Mixing: Yes
  • Color Temperature Presets: Yes
  • Dim Modes: 4
  • Dim Curves: 4
  • Built-in Automated Programs: Yes
  • Customizable Programs: No

Construction / Physical

  • Dimensions - Fixture: 4.9 x 4.9 x 6.9 in (126 x 126 x 176 mm)
  • Dimensions – 6 pack case: 21.8 x 18.5 x13.5 in (554 x 470 x 345 mm)
  • Weight (single unit) 7.0 LB (3.2 kg)
  • Exterior Color: Chrome
  • Housing Material: Aluminum diecast

Connections

  • Power Connection: 5.5mm right-angle barrel jack
  • Cable Length (charger): 8.5 ft (2.6m) (sold separately)
  • Power Input (charging case): Seetronic TRUE1 IP65
  • Power Output (charging case): Seetronic TRUE1 IP65
  • Software Connection: USB-C

Control

  • Control Protocol: RDM, CRMX, NFC, RF
  • DMX Channels: 5, 8, or 12
  • Modes/Personalities: 3 personalities (5Ch, 8Ch, 12Ch)
  • Wireless WDMX “G” Compatibility: G4S
  • Wireless Lumen Radio Compatibility: CRMX

Electrical

  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Single unit
    • Power and Current (single unit charging): 57 W, 0.95 A @ 100 V, 60 Hz
    • Power and Current (single unit charging): 58 W, 0.79 A @ 120 V, 60 Hz
    • Power and Current (single unit charging): 56 W, 0.47 A @ 208 V, 60 Hz
    • Power and Current (single unit charging): 55 W, 0.44 A @ 230 V, 50 Hz
    • Power and Current (single unit charging): 55 W, 0.421 A @ 240 V, 50 Hz
  • 6 Pack case
    • 3 units @ 120 V; 4 units @ 208 V; 5 units @ 230 V
    • Power and Current:253W, 4.33A @ 100V
    • Power and Current: 251W, 3.68A @ 120V
    • Power and Current: 254W, 2.52A @ 208V
    • Power and Current: 254W, 2.3A @ 230V
    • Power and Current: 255W, 2.15A @ 240V

Battery

  • Battery type: Lithium Ion
  • Rechargeable: Yes
  • Battery Charge Time: 1.6 hours
  • Battery Life: 3hr, 5hr, 8hr, 12hr
  • Battery Power: 25.9 V, 4.4 Ah

Certifications / Qualifications

  • CE, FCC, UKCA
  • IP Rating: IP65, temporary outdoor/ wet use (fixture)
  • IP Rating: IP20 (case)
  • Temperature (startup): -4 °F to 113 °F (-20 °C to 45 °C)
  • Temperature (operating): -22 °F to 113 °F (-30 °C to 45 °C)

What's Included

  • (6) WELL FIT X
  • (1) 6 slot charging case
  • (1) basic RF controller
  • (1) True 1 power cable
  • (1) QRG
