WELL CONNECT

Designed to work seamlessly with the CHAUVET CONNECT app, the compact battery-powered WELL CONNECT wireless transceiver enables app-driven flexibility and robust data transmission. Whether paired with WELL fixtures or making an entire lighting system wireless, WELL CONNECT offers unmatched portability, versatility, and ease of use for event professionals and system integrators. Reliable W-DMX/CRMX transmission and direct playback in a rugged, professional-grade package.


CHAUVET CONNECT delivers dynamic and reliable control solutions when paired with WELL CONNECT. Available for iOS® in both phone and tablet versions and coming soon for Android.

At a Glance

  • Wireless Control Hub: Compact, battery-powered Bluetooth and W-DMX/CRMX transceiver designed to control WELL fixtures or any DMX lighting system.

  • App-Driven Operation: Pairs seamlessly with the CHAUVET CONNECT app on iOS and Android for intuitive wireless control of scenes and effects.

  • Flexible Output Options: Supports both wireless & wired DMX protocols, offering reliable signal distribution for any setup.

  • 12-Hour Battery Life: Integrated lithium-ion battery delivers all-day wireless operation; USB-C port provides continuous power when needed.

  • Onboard Playback: Trigger pre-programmed scenes directly from the unit’s display—no console required.

  • Rugged & Road-Ready: Durable aluminum housing and M12 threaded bolt ensure quick, secure mounting in demanding environments.

  • Smart Firmware Management: Web-based UI allows for easy firmware updates and configuration.

Specifications

Construction / Physical

  • Dimensions: 6.89 x 7.01 x 2.56 in (175 x 178 x 65 mm)
  • Weight: 1.8 lb (0.9 kg)
  • Exterior Color: Black
  • Housing Material: Aluminum alloy

Connections

  • Power Input: USB-C

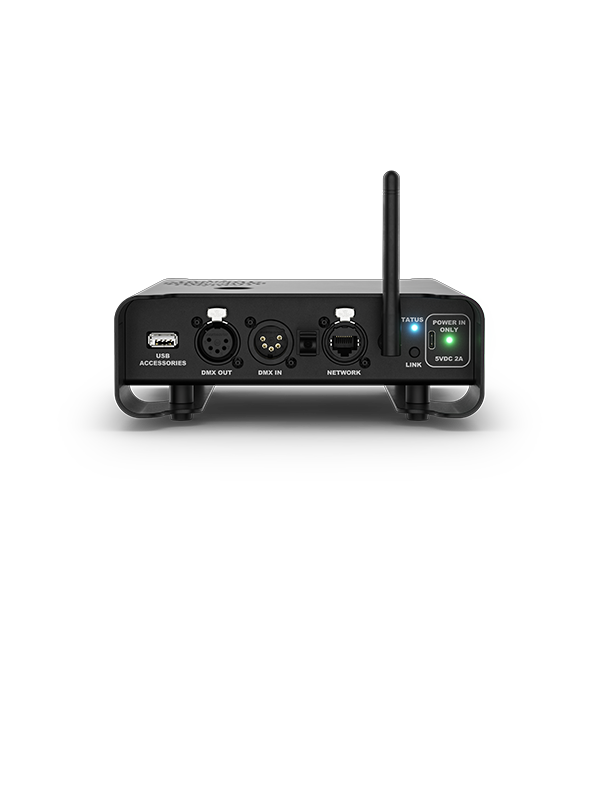

  • Data Connectors: 5-pin XLR IN/OUT, USB-A Female, RJ45

Control

  • Control Protocol: Chauvet CONNECT app, Art-Net, DMX, W-DMX, sACN

Electrical

  • Input Voltage: 5 VDC, 2A via USB-C

Battery

  • Battery type: Lithium Ion
  • Rechargeable: Yes
  • Battery Charge Time: 8 hours
  • Battery Life: 12 hours
  • Battery Power: 12 V, 24 Ah

Certifications / Qualifications

  • CE, FCC, UKCA
  • IP Rating: IP20, dry location
  • Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

What's Included

  • WELL CONNECT
  • EPSU USB-A
  • USB-A to USB-C cable

Required Accessories

  • Required Software: Chauvet CONNECT app

Optional Accessories

  • VIP Signal Distributor, VIP Media Server
