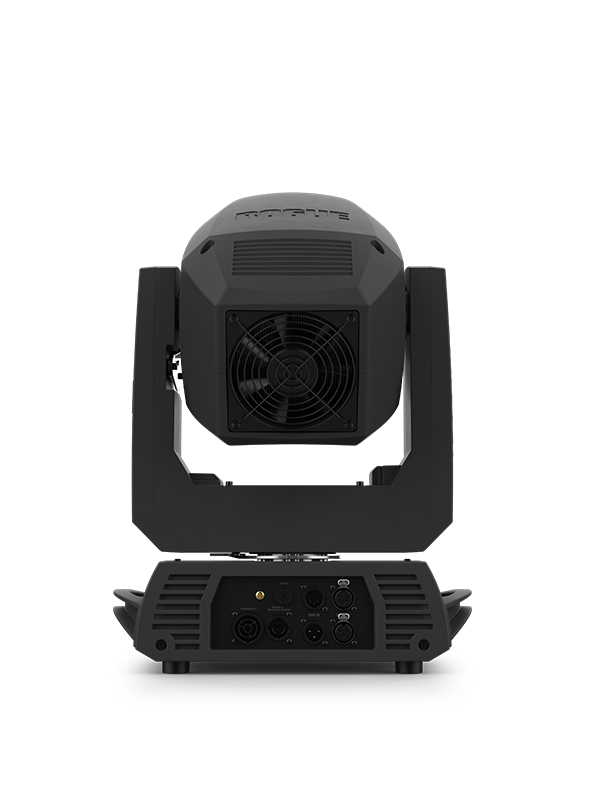

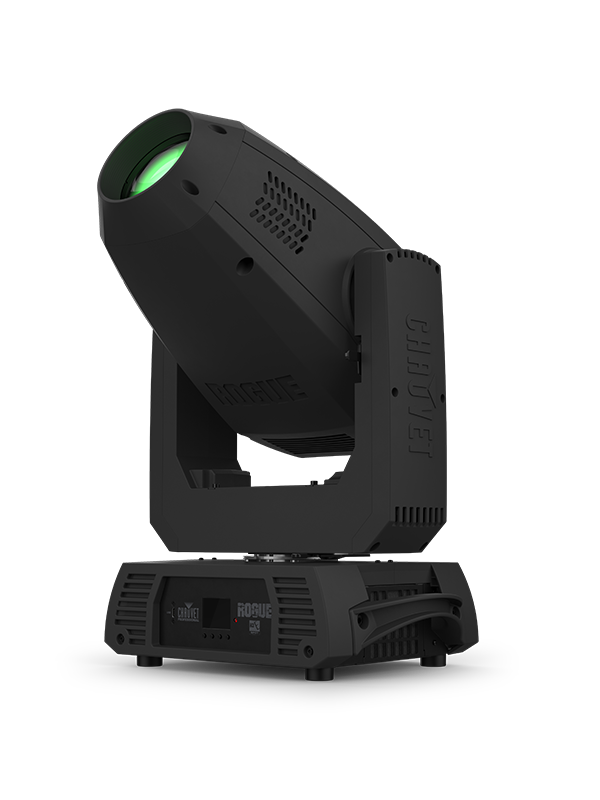

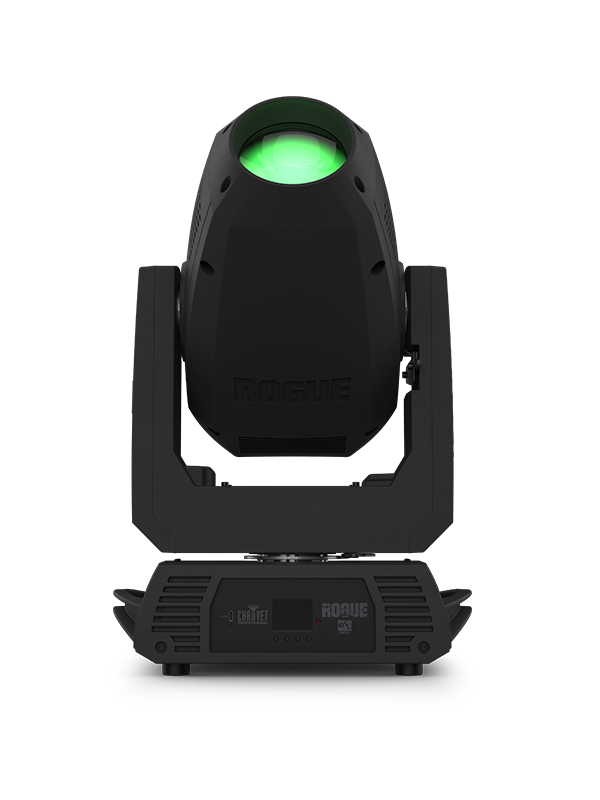

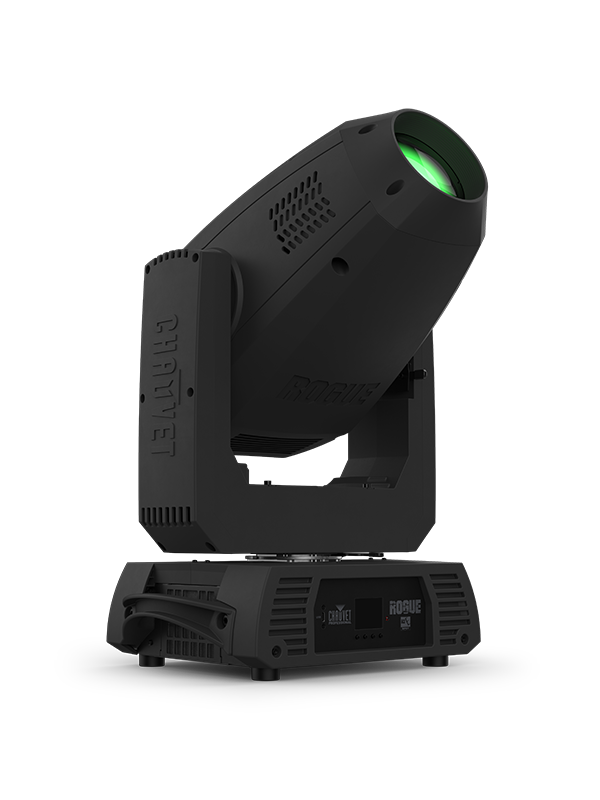

ROGUE R3E Spot

Rogue R3E Spot features an expansive 8.4° to 42.8° zoom in a compact, lightweight moving yoke spot. Its intensely bright 350W LED light engine combines high output with a full effects arsenal: dual gobo wheels (one rotating with interchangeable gobos + one static) for creating custom gobo morphing looks; dual color wheels each with eight brilliant colors + white + split colors; 3-facet rotating prism for stunning aerial effects; and motorized iris and frost for beam shaping. Selectable LED max output settings enable matching brightness with legacy Rogue movers in your rig.


At a Glance

  • A fully featured compact and light weight moving yoke spot fixture with an Intense 350 W LED light engine, two gobo wheels, one rotating, and one static, a 3-facet prism wheel, frost, Zoom and two color wheels.

  • 16-bit dimming of master dimmer for smooth control of fades

  • Perfect gobo morphing between gobo wheels

  • Two color wheels with 8 colors, split color ability, and continuous variable speed scrolling

  • Two gobo wheels: one fixed scrolling wheel and one rotating, interchangeable, scrolling wheel

  • Iris, 3-facet prism, and frost for beam control

  • 8.4° to 42.8° Zoom range

  • True 1 compatible power input/output connections for power linking.

  • 3- and 5-pin DMX input/output connections

  • RDM enabled for remote addressing and trouble shooting.

  • Selectable LED maximum output to match legacy Rogue R1X Spots

  • Selectable PWM settings to maintain flicker-free operation on camera.

  • Simple and complex DMX channel profiles for programming versatility

Specifications

Optical

  • Light Source: 1LEDs (CW) 350 W, (5 A), 8527 K, 50,000 hours life expectancy.
  • Color Temperature (at full) 8527 K
  • Front lens diameter: 90mm
  • CRI: 68.2
  • Beam Angle: 8.4° to 33°
  • Field Angle: 10.1° to 39.3°
  • Cutoff Angle: 11.5° to 42.8°
  • Zoom Range: 8.4° to 42.8°
  • Lumens – Source: 24,500
  • Lumens – Output: 15,705
  • Illuminance (7°): 35,405 lux @ 5 m
  • Illuminance (42.8°): 2,492 lux @ 5 m
  • Selectable PWM: 600 Hz, 1,200 Hz, 2000 Hz, 4000 Hz, 6,000 Hz, 15,000 Hz

Dynamic Effects

  • Pan and Tilt: 540°/270°
  • Pan and Tilt Ranges: 180°, 360°, 540° pan/90°, 180°, 270° tilt
  • Colors (1): 8 + white, split colors, continuous scroll at variable speeds
  • Colors (2): 8 + white, split colors, continuous scroll at variable speeds
  • Gobos (1): 7 + open (7 metal), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
  • Gobos (2): 8 + open (8 metal), continuous scroll at variable speeds
  • Gobo Size: Gobo Wheel 1 (rotating); size: 20 mm (outside), 16 mm (image), 1.5 mm (max. thickness)
  • Gobo Size: Gobo Wheel 2 (static): size: 24 mm (outside), 16 mm (image), 0.6 (max. thickness)
  • Dimmer: Electronic
  • Shutter/Strobe: Electronic
  • Zoom: Motorized
  • Focus: Motorized
  • Frost: Motorized
  • Iris: Motorized
  • Prism: 3 Facets, motorized, rotating
  • Strobe Rate: 0 to 25 Hz
  • Move in Black: Yes

Construction / Physical

  • Dimensions: 13.77 x 9.44 x 23.03 in (350 x 240 x 585 mm)
  • Weight: 34 lb (15.4 kg)
  • Exterior Color: Black
  • Housing Material: Aluminum die-cast, High-impact flame-retardant polymer, Steel
  • Software update: USB-C

Connections

  • Power Connection: Edison (local) plug to Seetronic Powerkon IP65
  • Power Input: Seetronic Powerkon IP65
  • Power Output: Seetronic Powerkon IP65
  • Data Connectors: 3- and 5-pin XLR
  • Cable Length (power): 5 ft (1.5 m)
  • Software Connection: USB-C

Control

  • Control Protocol: DMX, RDM
  • DMX Channels: 19 or 25
  • Modes/Personalities: 2 personalities (19, 25)

Electrical

  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power Linking: 4 units @ 120 V; 8 units @ 208 V; 8units @ 230 V; 9 units @ 240 V
  • Power and Current: 535 W, 4.541 A @ 120 V, 60
  • Power and Current: 522 W, 2.576 A @ 208 V, 60 Hz
  • Power and Current: 523 W, 2.345 A @ 230 V, 50 Hz

Certifications / Qualifications

  • CE, MET, FCC, UKCA
  • IP Rating: IP20, dry location
  • Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)
  • Noise Level (Idle): 4.1 dB(A) @ 1 m
  • Noise Level (Max): 35.0 dB(A) @ 1 m
  • Noise Level (Auto): 33.3 dB(A) @ 1 m
  • Noise Level (Eco): 31.2 dB(A) @ 1 m
  • Noise Level (Full): 40.2 dB(A) @ 1 m

What's Included

  • Rogue R3E Spot
  • Seetronic PowerKon power cord
  • 2 140D Omega brackets with mounting hardware

Optional Accessories

  • Clamps
  • Neutrik powerCON cables
  • Neutrik etherCON cables
  • DMX Cables
  • Flight Cases
