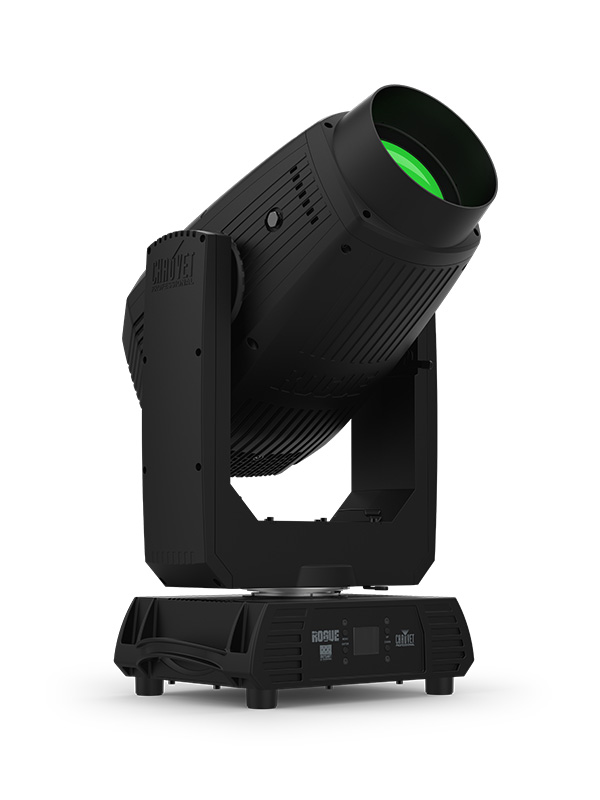

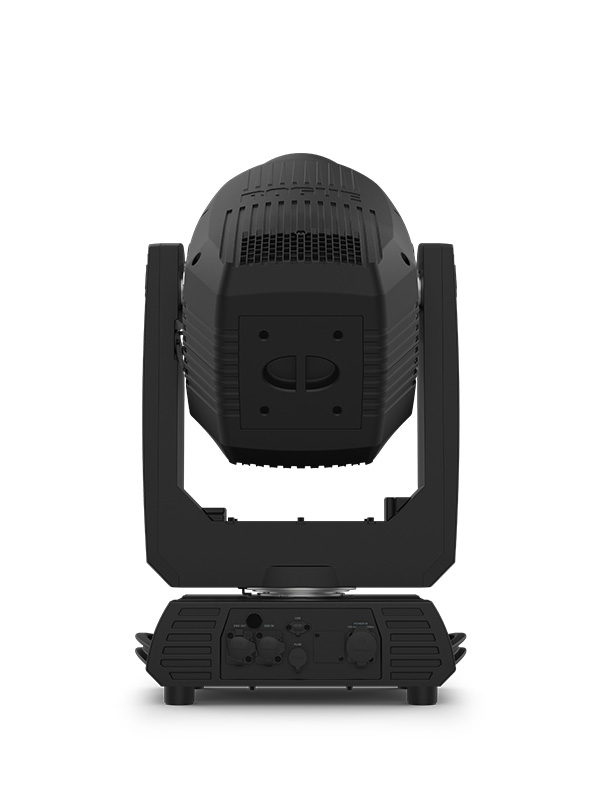

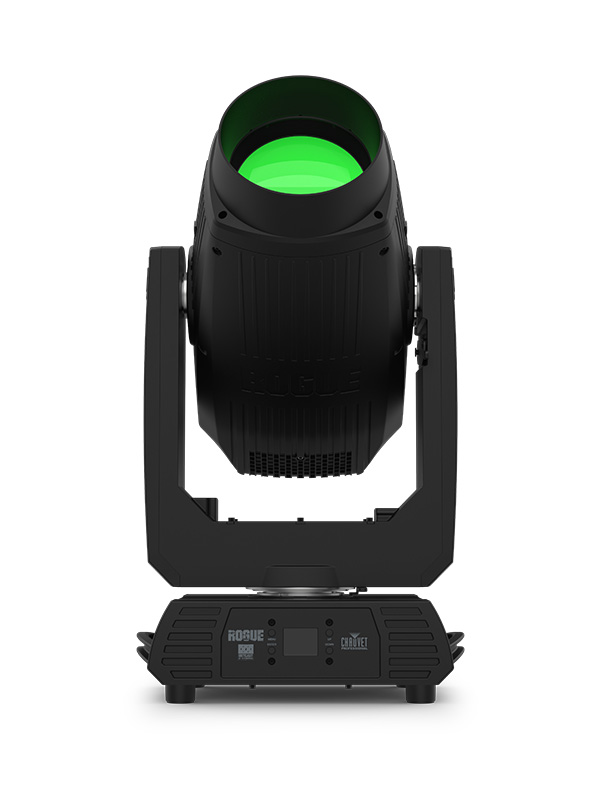

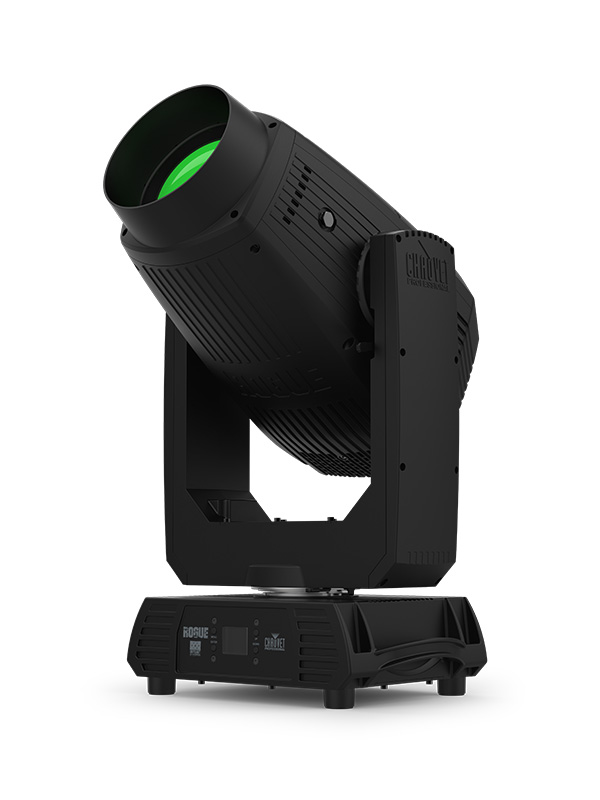

Rogue Outcast 2 Hybrid

Rogue Outcast 2 Hybrid is a rugged IP65-rated Spot/Beam/Wash moving head with a lightweight alloy body housing a sophisticated optical system that delivers incredible brightness and a refined linear zoom that smoothly spans an expansive range of narrow to wide beam angles in every mode. The intense output of its 400W 6500K lamp can be precisely focused to project sharp midair beams and perfectly crisp spots or subtly softened with its frost and beam flattening features. Create stunning looks with dual gobo wheels and layerable prisms or shape luscious color washes with this versatile Outcast.


At a Glance

  • Fully featured, IP65 rated, high powered Spot/Beam/Wash combination fixture with an Ushio 400 W, 6500 K with 6,000 hour life expectancy lamp, 2 gobo wheels, 2 layerable prisms, large zoom range, and lightweight aluminum/magnesium housing

  • Individually controllable and layerable 5 facet linear and 8 facet round prisms for maximizing visual impact

  • Frost and beam flattening options for even light distribution

  • Tight 0.9° narrow beam angle for focused air effects

  • Linear zoom of 0.9° to 20.7° in beam mode, 1.4° to 37.2°in spot mode and 5.4° to 41.7°in wash mode for coverage in any application

  • 9 rotating and 13 static gobos for massive visual effect

  • DMX and RDM protocol control

  • True 1 compatible power input

  • Easy to read OLED display with simple, effective menu options

  • Simple and complex DMX channel profiles for programming versatility

  • USB-C port for uploading software

Specifications

Optical

  • *Test lab conditions. May vary depending on several factors including but not limited to: Environmental conditions, power/voltage, usage patterns, (on/off power cycling), control, and dimming.
  • Light Source: Ushio NSL-400L W lamp, 8000 K, 6,000 hours life expectancy
  • Color Temperature (at full): 7009K
  • Front Lens size: 160mm
  • CRI: 86.1
  • Beam Angle: 1.4° to 14.5° (Spot mode)
  • Field Angle: 2.8° to 30° (Spot mode)
  • Cutoff Angle: 3.5° to 37.2° (Spot mode)
  • Beam Angle: 0.9° to 6.7° (Beam mode)
  • Field Angle: 1.7° to 18.1° (Beam mode)
  • Cutoff Angle: 2.1° to 20.7° (Beam mode)
  • Beam Angle: 5.4° to 32.1° (Wash mode)
  • Field Angle: 9.5° to 39.4° (Wash mode)
  • Cutoff Angle: 11.9° to 41.7° (Wash mode)
  • Zoom Range (Spot mode):1.4° to 37.2°
  • Zoom Range (Beam mode): 0.9° to 20.7°
  • Zoom Range (Wash mode): 5.4° to 41.7°
  • Lumens – Output: 16,033
  • Illuminance (1.4°) : 790,297lux @ 5 m (Spot mode)
  • Illuminance (37.2°) : 6,787 lux @ 5 m (Spot mode)
  • Illuminance (0.9°) : 180,594 lux @ 15 m (Beam mode)
  • Illuminance (20.7°) : 2,158 lux @ 15 m (Beam mode)
  • Illuminance (9.1°) : 30,289 lux @ 5 m (Wash mode)
  • Illuminance (41.7°)1,309 lux @ 5 m (Wash mode)

Dynamic Effects

  • Pan and Tilt: 540°/260°
  • Pan and Tilt Ranges: 540°, 360°, 180° pan/260°, 180°, 90° tilt
  • Colors: 13 + White, split colors, continuous scroll at variable speeds
  • Gobos (1): 9 + open (9 glass), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
  • Gobos (2): 13 + open (13 metal), continuous scroll at variable speeds
  • Gobo Size: Gobo Wheel 1 (rotating): 16 mm (outside), 12 mm (image), 1.1 mm (max. thickness)
  • Dimmer: Motorized
  • Shutter/Strobe: Motorized
  • Zoom: Motorized
  • Focus: Motorized
  • Frost: Motorized
  • Prism (1): 5 Facets, motorized, rotating
  • Prism (2): 8 Facets, motorized, rotating
  • Move-in-Black: Yes

Construction / Physical

  • Dimensions: 14.41 x 10.04 x 27.76 in (366 x 255 x 705 mm)
  • Weight: 54.4 lb (24.7 kg)
  • Exterior Color: Black
  • Housing Material: Aluminum alloy, Aluminum diecast, High-impact flame-retardant polymer

Connections

  • Power Connection: Bare-wired to Seetronic Powerkon IP65
  • Power Input: Seetronic Powerkon IP65
  • Data Connectors: 5-pin IP rated
  • Cable Length (power): 5 ft (1.5 m)

Control

  • Control Protocol: DMX, RDM
  • DMX Channels: 20 or 25
  • Modes/Personalities: 2 personalities (20, 25)

Electrical

  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power and Current: 581 W, 4.95 A @ 120 V, 60 Hz
  • Power and Current: 565 W, 2.76 A @ 208 V, 60 Hz
  • Power and Current: 568 W, 2.53 A @ 230 V, 50 Hz

Certifications / Qualifications

  • CE, MET, CB, UKCA
  • IP Rating: IP65, temporary outdoor/wet use
  • Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

What's Included

  • Rogue Outcast 2 Hybrid
  • Seetronic Powerkon IP65 power cord
  • 2 Omega brackets with mounting hardware

Optional Accessories

  • Clamps
  • DMX Cables
  • Flight Cases
