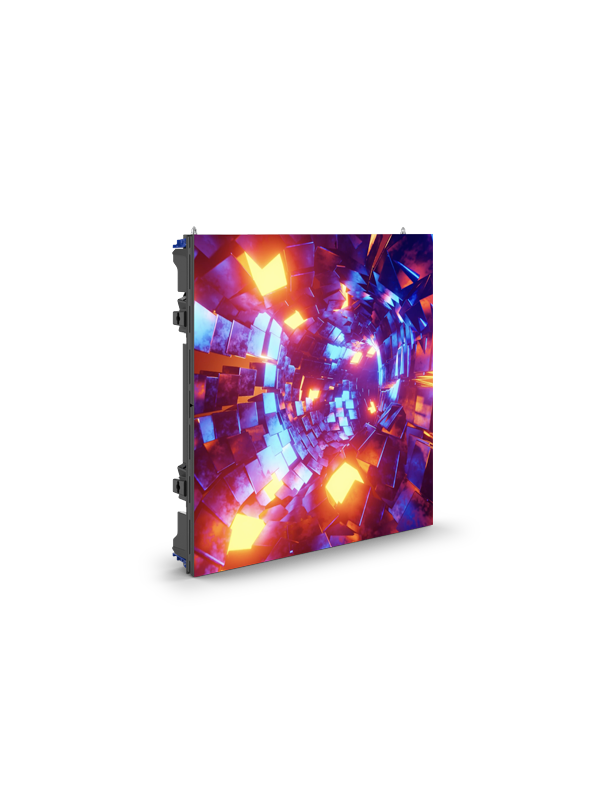

REM 3IP SQ

REM 3IP SQ is a bright 4500 NITS indoor/outdoor hybrid video wall solution with a 3.9mm pitch, integrated convex/concave curving capabilities, and universal magnetic LED modules. Its DCI-P3 color gamut LEDs offer 26% more color possibilities compared to standard sRGB/Rec.709 LEDs. With high-speed 7680Hz LED drivers, A10s Pro Novastar Receiving cards, and low latency, REM 3IP SQ offers top-tier on-camera and live performance for broadcast, outdoor rental markets as well as indoor stages and events.


At a Glance

  • 3.9 mm pitch, ultra-high resolution, indoor/outdoor video panel in convenient 500 mm (tall) by 500 mm (wide) form factor.

  • Map and scale your wall with the Novastar MX40 Pro sender

  • Operating in the DCI-P3 color space and driven via the premium A10s Pro receiver card from Novastar, black frame, white reflector LEDs accurately reproduce video at 22-bit+ grayscale and a wide color gamut

  • High performance LED drivers deliver 7,680 Hz refresh rate for camera-friendly operation in high-demand applications

  • Hot-swap magnetic LED modules with onboard factory calibration storage offers chroma, brightness, and the new thermal calibration for premium performance and uniformity of the panels

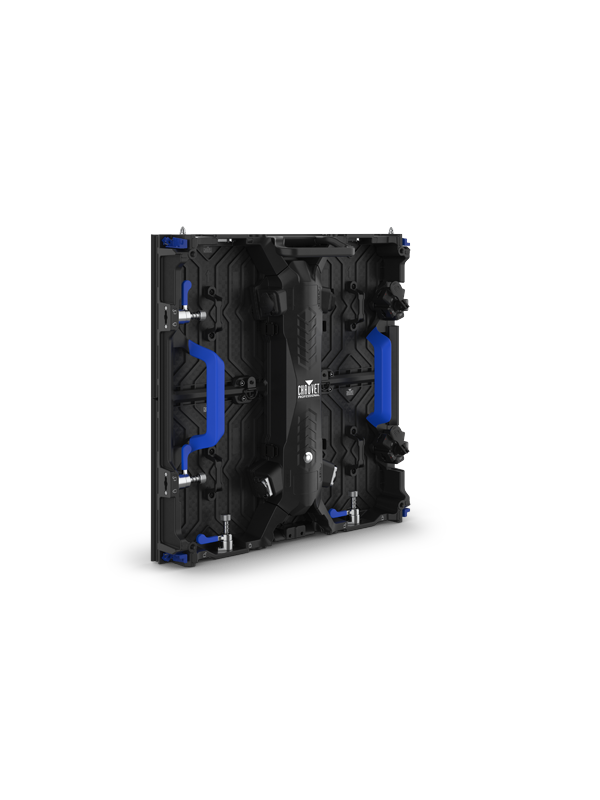

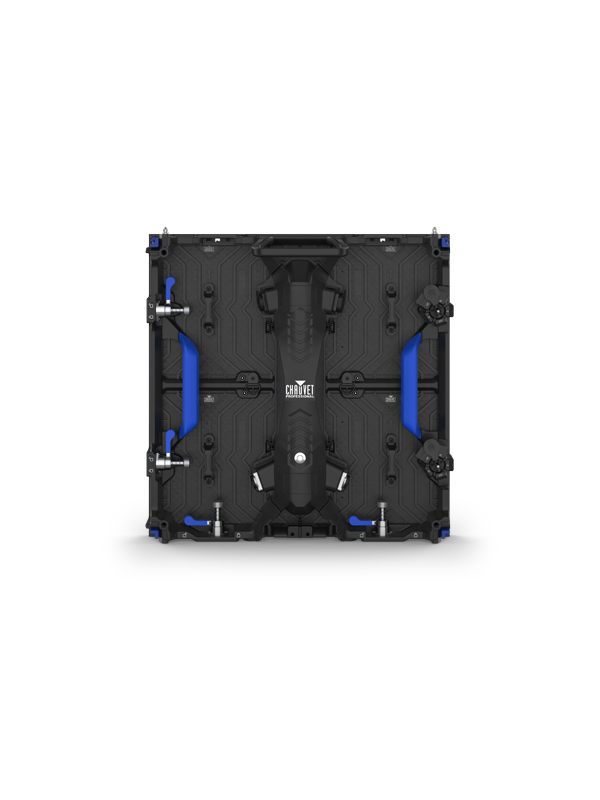

  • Specialized frame design allows for overhead hanging, ground stacking, and wall mounting, which maximizes the design for multiple applications

  • Corner protectors and specialized LED board design offers impact resistance up to 3x that of other panels, and resilient led mask design optimizes viewing angle and uniformity without exposing the LEDs to front or side impacts

  • Strong, magnetic assisted hanging makes setting up the panels fast and easy with minimal crew

  • Specialized anti-reflective coating applied to the front of LED modules ensures optimal viewing comfort

  • Ground support system available

Specifications

Optical

  • Light Source: 32,768 LEDs (tri-color RGB) SMD 1921 (Black frame, white reflector), 100,000 hours life expectancy
  • Color Wavelength: red (620 to 625 nm), green (512 to 532 nm), blue (460 to 475 nm)
  • Color Space: DCI-P3
  • Viewing Angle (H/V): 140°/140°
  • Calibrated Illuminance: 4,500 NITS
  • Maximum Illuminance: >5,000 NITS
  • Contrast Ratio: 18,500:1
  • Grayscale: 22-bit+
  • Receiver Card : A10s Pro
  • Drive Type : 1/16
  • Pixels: 128 x 128
  • Pixel Pitch: 3.9 mm
  • Minimum Viewing Distance: 7.5 ft (2.3 m)
  • Pixel Density: 65,536/m2
  • Display Refresh Rate: 7,680 Hz (S-PWM)

Construction / Physical

  • Dimensions: 19.69 x x.xx x 39.37 in (500 x xx.x x 1000 mm)
  • Weight: 18.2 lb (8.26 kg)
  • Threaded Bolt: M10, 1.5
  • Exterior Color: Black
  • Housing Material: Aluminum ADC12
  • LED Module Material: Glass filled Polycarbonate
  • Maximum vertical hang: 11 panels

Connections

  • Power Connection: Edison (local) plug to Seetronic® powerKON®
  • Power Input: Seetronic® powerKON®
  • Power Output: Seetronic® powerKON®
  • Data Connectors: Seetronic® etherKON®
  • Cable Length (signal extension): 4 ft (1.2 m)
  • Cable Length (power): 4 ft (1.2 m)
  • Cable Length (power extension): 6 ft (1.8 m)

Control

  • Control Protocol: Novastar VMP platform
  • Recommended Processor/Driver: Novastar MX40 Pro
  • Panel Resolution (L x H): 128 x 128
  • Maximum Panels/Novastar MX40 Pro (20 ports):
    • 24 Hz framerate
      • 8-bit video source: 100/port, up to 2,000/Processor/Sender
      • 10-bit video source: 75/port, up to 1,500/Processor/Sender
      • 12-bit video source: 50/port, up to 1,000/Processor/Sender
    • 30 Hz framerate
      • 8-bit video source: 80/port, up to 1,600/Processor/Sender
      • 10-bit video source: 60/port, up to 1,200/Processor/Sender
      • 12-bit video source: 40/port, up to 800/Processor/Sender
    • 60 Hz framerate
      • 8-bit video source: 40/port, up to 800/Processor/Sender
      • 10-bit video source: 30/port, up to 600/Processor/Sender
      • 12-bit video source: 20/port, up to 400/Processor/Sender
    • 120 Hz framerate
      • 8-bit video source: 20/port, up to 400/Processor/Sender
      • 10-bit video source: 15/port, up to 300/Processor/Sender
      • 12-bit video source: 10/port, up to 200/Processor/Sender
    • 144 Hz framerate
      • 8-bit video source: 16/port, up to 320/Processor/Sender
      • 10-bit video source: 12/port, up to 240/Processor/Sender
      • 12-bit video source: 8/port, up to 160/Processor/Sender
  • Maximum Panels Tall/ Novastar MX40 Pro: (adjust input/source resolution as needed): 8 @ 1080 height 10 @ 1344 height 13 @ 1680 height 16 @ 2160 height
  • Maximum Panels Wide/ Novastar MX40 Pro: (adjust input/source resolution as needed): 15 @ 1920 wide resolution 30 @ 3840 wide resolution 64 @ 8192 wide resolution

Electrical

  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power Linking: 11 units @ 120 V; 21 units @ 208 V; 23 units @ 230 V
  • Power and Current: 150 W, 1.25 A @ 120 V, 60 Hz
  • Power and Current: 150 W, 0.72 A @ 208 V, 60 Hz
  • Power and Current: 150 W, 0.65 A @ 230 V, 50 Hz

Certifications / Qualifications

  • CE, MET, FCC
  • MET Listing Number: E113093-1110, E113093-1125
  • US Safety: UL 60950-1
  • Canadian Safety: CSA C22.2 No. 60950-1
  • IP Rating: IP65, dry location
  • Thermal Dissipation @120V: 511 BTU per hour
  • Thermal Dissipation @ 208V: 511 BTU per hour
  • Thermal Dissipation @ 230V: 511 BTU per hour
  • Operating Temperature: -4 °F to 113 °F (-20 °C to 45 °C)

What's Included

  • 8 REM3IPSQ
  • 1 Seetronic® powerKON® power cord
  • 8 Seetronic® powerKON® power linking cords
  • 8 Seetronic® etherKON® signal linking cords
  • 5 pcs spare LED masks
  • User Manual

Required Accessories

  • Required Software: Nova VMP
  • Controller (required): Novastar MX40 Pro
  • Compatible Mounting Options: REM Rig Bar (0.5 m, 1 m lengths offered), M10, 1.5 bolt/clamp (rear or surface mounting), GROUNDSTACKKIT (floor mounting/stacking)

Optional Accessories

  • Clamps
  • Seetronic IP PowerKON cables
  • Neutrik etherCON cables
  • REM-RB100CMIP
  • REM-RB50CMIP
  • GROUNDSTACKKIT
  • MT07 Universal Module Removal Tool
