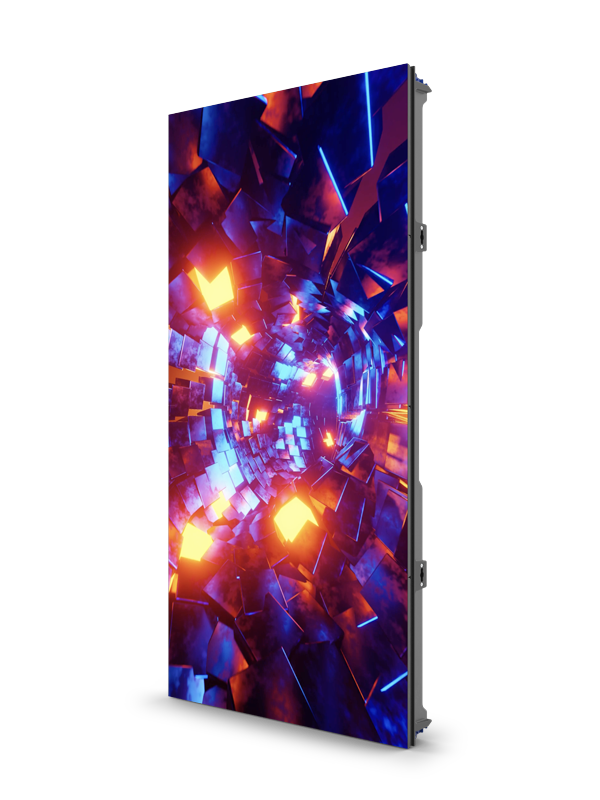

REM 3IP

REM 3IP is a bright 4500 NITS indoor/outdoor hybrid video wall solution with a 3.9mm pitch, integrated convex/concave curving capabilities, and universal magnetic LED modules. Its DCI-P3 color gamut LEDs offer 26% more color possibilities compared to standard sRGB LEDs. With high-speed 7680Hz LED drivers, A10s Pro Novastar Receiving cards, and low latency, REM 3IP offers top-tier performance and signal processing for outdoor rental markets as well as offering high quality indoor performance for live stages and events.


At a Glance

  • 3.9 mm pitch, high resolution, modular, indoor/outdoor hybrid video panel

  • Map and scale your wall with the Novastar MX40 Pro sender

  • Universal, magnetic LED modules for easy replacement and servicing

  • Magnetic-assisted hanging integrated into frames makes building a screen fast and easy with minimal labor/effort required

  • REM3IP offered in two physical sizes: 1 m x 0.5 m, 0.5 x 0.5 m (special order)

  • Integrated curving capabilities for concave and convex configurations

  • Spring-loaded corner protection for safe transportation and handling

  • Operating in the DCI-P3 color space and driven via the premium A10s Pro receiver card from Novastar, black frame, white reflector LEDs accurately reproduce video at 22-bit+ grayscale and a wide color gamut

  • High performance LED drivers deliver 7,680 Hz refresh rate for camera-friendly operation in high-demand applications

  • Low latency and HDR10 supported for VR/XR studio, live applications

  • Design allows for overhead hanging, ground stacking, and wall mounting, maximized for multiple applications

  • Specialized anti-reflective coating applied to the front of LED modules ensures optimal viewing comfort

  • Ground support/stacking system available in scalable road case-GROUNDSUPPORT2KIT

Specifications

Optical

  • Light Source: 32,768 LEDs (tri-color RGB) SMD 1921 (Black frame, white reflector), 100,000 hours life expectancy
  • Color Wavelength: red (615 to 630 nm), green (520 to 535 nm), blue (465 to 480 nm)
  • Color Space: DCI-P3
  • Viewing Angle (H/V): 140°/140°
  • Calibrated Illuminance: 4,500 NITS (calibrated)
  • Maximum Illuminance: >5,000 NITS (calibration disabled)
  • Contrast Ratio:
  • Grayscale: 22-bit+
  • Receiver Card : A10s Pro
  • Drive Type : 1/16
  • Pixels: 128 x 256
  • Pixel Pitch: 3.9 mm
  • Minimum Viewing Distance: 7.5 ft (2.3 m)
  • Pixel Density: 65,536/m2
  • Display Refresh Rate: 7,680 Hz (S-PWM)

Construction / Physical

  • Dimensions: 19.69 x 3.25 x 39.37 in (500 x 82.5 x 1000 mm)
  • Weight: 31.2 lb (14.15 kg)
  • Threaded Bolt: M10, 1.5
  • Exterior Color: Black
  • Housing Material: Aluminum ADC12
  • LED Module Material: Glass filled Polycarbonate
  • Maximum vertical hang: 11 panels

Connections

  • Power Connection: Edison (local) plug to Seetronic® powerKON®
  • Power Input: Seetronic® powerKON®
  • Power Output: Seetronic® powerKON®
  • Data Connectors: Seetronic® etherKON®
  • Cable Length (signal extension): 4 ft (1.2 m)
  • Cable Length (power): 4 ft (1.2 m)
  • Cable Length (power extension): 6 ft (1.8 m)

Control

  • Control Protocol: Novastar VMP platform
  • Recommended Processor/Driver: Novastar MX40 Pro
  • Panel Resolution (L x H): 128 x 256
  • Maximum Panels/Novastar MX40 Pro (20 ports):
    • 24 Hz framerate
      • 8-bit video source: 50/port, up to 1,000/Processor/Sender
      • 10-bit video source: 37/port, up to 740/Processor/Sender
      • 12-bit video source: 25/port, up to 500/Processor/Sender
    • 30 Hz framerate
      • 8-bit video source: 40/port, up to 800/Processor/Sender
      • 10-bit video source: 30/port, up to 600/Processor/Sender
      • 12-bit video source: 20/port, up to 400/Processor/Sender
    • 60 Hz framerate
      • 8-bit video source: 20/port, up to 400/Processor/Sender
      • 10-bit video source: 15/port, up to 300/Processor/Sender
      • 12-bit video source: 10/port, up to 200/Processor/Sender
    • 120 Hz framerate
      • 8-bit video source: 10/port, up to 200/Processor/Sender
      • 10-bit video source: 7/port, up to 140/Processor/Sender
      • 12-bit video source: 5/port, up to 100/Processor/Sender
    • 144 Hz framerate
      • 8-bit video source: 8/port, up to 160/Processor/Sender
      • 10-bit video source: 6/port, up to 120/Processor/Sender
      • 12-bit video source: 4/port, up to 80/Processor/Sender
  • Maximum Panels Tall/ Novastar MX40 Pro: (adjust input/source resolution as needed): 4 @ 1080 height 5 @ 1344 height 6 @ 1680 height 8 @ 2160 height
  • Maximum Panels Wide/ Novastar MX40 Pro: (adjust input/source resolution as needed): 15 @ 1920 wide resolution 30 @ 3840 wide resolution 64 @ 8192 wide resolution

    • Electrical

    • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
    • Power Linking: 5 units @ 120 V; 10 units @ 208 V; 11 units @ 230 V
    • Power and Current: 300 W, 2.5 A @ 120 V, 60 Hz
    • Power and Current: 300 W, 1.44 A @ 208 V, 60 Hz
    • Power and Current: 300 W, 1.3 A @ 230 V, 50 Hz

    Certifications / Qualifications

    • CE, MET, FCC
    • MET Listing Number: E113093-1110, E113093-1125
    • US Safety: UL 60950-1
    • Canadian Safety: CSA C22.2 No. 60950-1
    • IP Rating: IP65/IP54
    • Thermal Dissipation @120V: 1,024 BTU per hour
    • Thermal Dissipation @ 208V: 1,024 BTU per hour
    • Thermal Dissipation @ 230V: 1,024 BTU per hour
    • Operating Temperature: -4 °F to 122 °F (-20 °C to 50 °C)

    What's Included

    • 4 REM3IP
    • 1 Seetronic® powerKON® power cord
    • 4 Seetronic® powerKON® power linking cords
    • 4 Seetronic® etherKON® signal linking cords
    • 5 pcs spare LED masks
    • User Manual

    Required Accessories

    • Required Software: Nova VMP
    • Controller (required): Novastar MX40 Pro
    • Compatible Mounting Options: REM Rig Bar (0.5 m, 1 m lengths offered), M10, 1.5 bolt/clamp (rear or surface mounting), GROUNDSUPPORT2KIT (floor mounting)

    Optional Accessories

    • Clamps
    • Neutrik powerKON cables
    • Neutrik etherCON cables
    • REM-RB100CMIP
    • REM-RB50CMIP
    • GROUNDSUPPORT2KIT
    • MT07 Universal Module Removal Tool
