REM 1

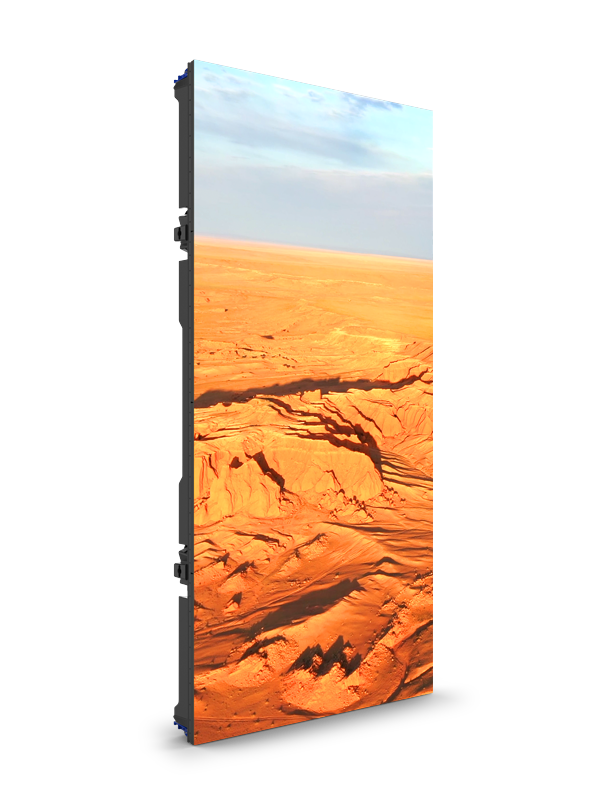

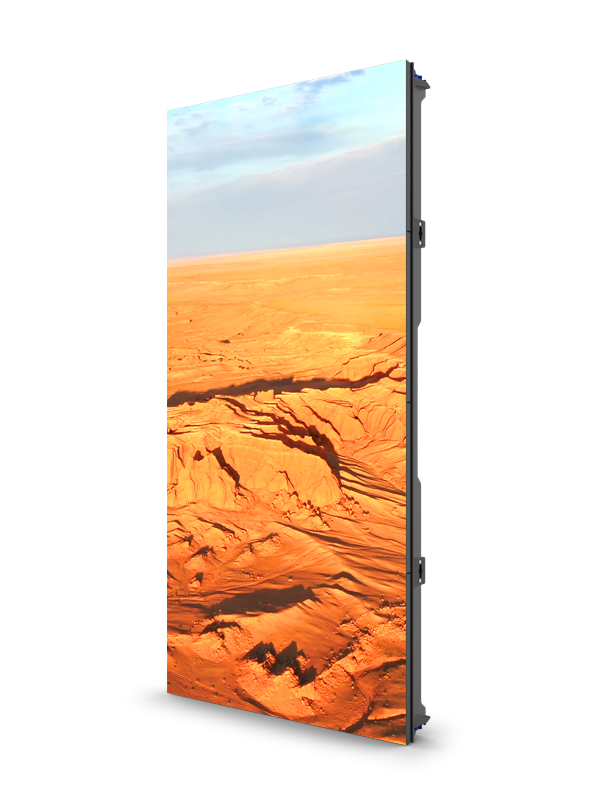

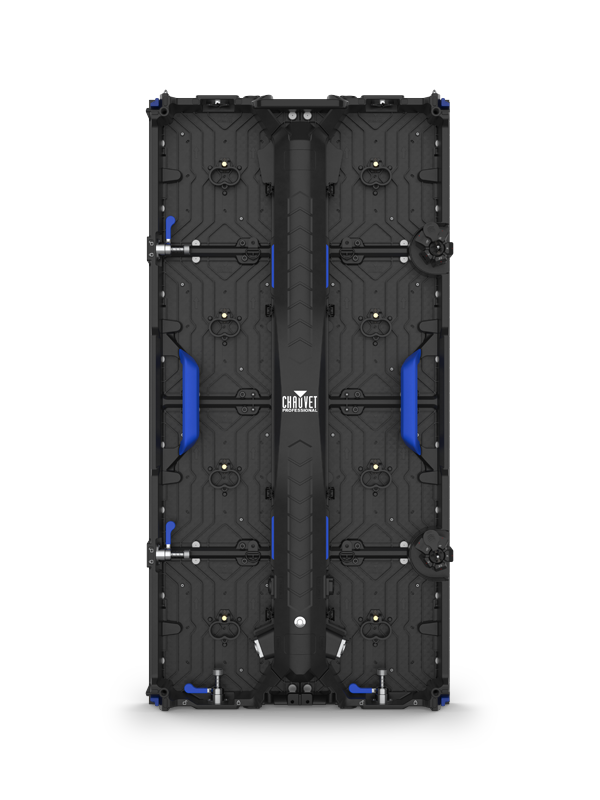

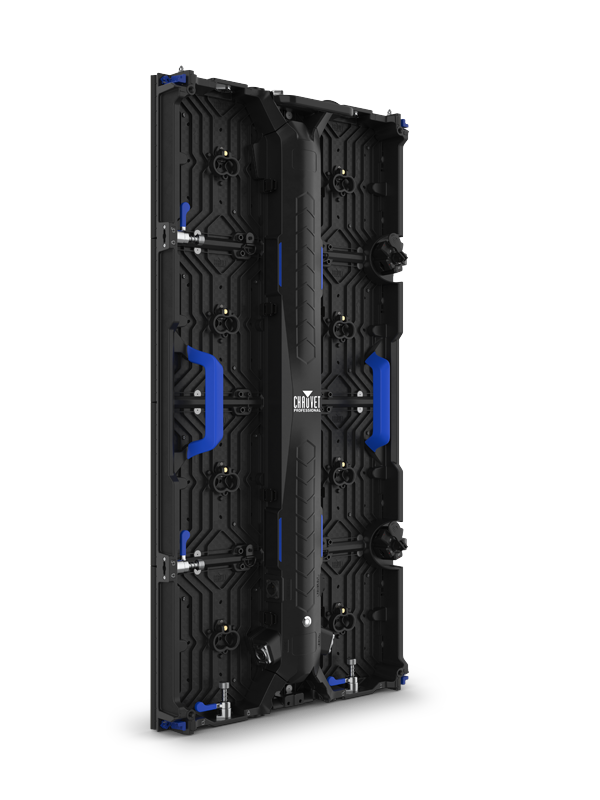

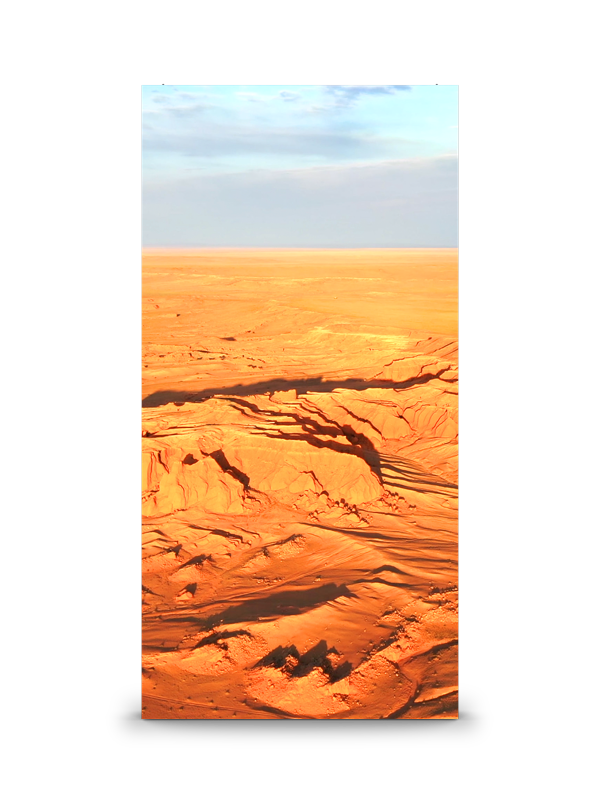

REM 1 is a high-performance indoor video wall solution with a 1.9mm pitch, integrated convex/concave curving capabilities, and universal magnetic LED modules. Its DCI-P3 color gamut LEDs offer 26% more color possibilities compared to standard sRGB LEDs. With high-speed 7680Hz LED drivers and A10s Pro Novastar Receiving cards, REM 1 offers top-tier performance and signal processing as well as offering high quality indoor performance for live stages with its low latency function.


At a Glance

  • 1.9 mm pitch, ultra-high resolution, modular, indoor video panel

  • Map and scale your wall with the Novastar MX40 Pro sender

  • Universal, magnetic LED modules for easy replacement and servicing

  • Magnetic-assisted hanging integrated into frames makes building a screen fast and easy with minimal labor/effort required

  • REM1 offered in two physical sizes: 1 m x 0.5 m, 0.5 x 0.5 m (special order)

  • Integrated curving capabilities for concave and convex configurations

  • Spring-loaded corner protection for safe transportation and handling

  • Operating in the DCI-P3 color space and driven via the premium A10s Pro receiver card from Novastar, black body LEDs accurately reproduce video at 22-bit+ grayscale and a wide color gamut

  • High performance LED drivers deliver 7,680 Hz refresh rate for camera-friendly operation in high-demand applications

  • Low latency and HDR10 supported for VR/XR studio, live applications

  • Design allows for overhead hanging, ground stacking, and wall mounting, maximized for multiple applications

  • Specialized anti-reflective coating applied to the front of LED modules ensures optimal viewing comfort

  • Ground support/stacking system available in scalable road case-GROUNDSUPPORT2KIT

Specifications

Optical

  • Light Source: 131,072 LEDs (tri-color RGB) SMD 1212, 100,000 hours life expectancy
  • LED Color Wavelength: red (620 to 625 nm), green (510 to 535 nm), blue (485 to 475 nm)
  • Color Space: DCI-P3
  • Viewing Angle (H/V): 140°/140°
  • Calibrated Illuminance: 800 NITS (calibrated)
  • Maximum Illuminance: >1,000 NITS (calibration disabled)
  • Contrast Ratio:
  • Grayscale: 22-bit+
  • Receiver Card : A10s Pro
  • Drive Type : 1/21
  • Pixels: 256 x 512
  • Pixel Pitch: 1.9 mm
  • Minimum Viewing Distance: 7.5 ft (2.3 m)
  • Pixel Density: 262,144/m2
  • Display Refresh Rate: 7,680 Hz (S-PWM)

Construction / Physical

  • Dimensions: 19.69 x x.xx x 39.37 in (500 x x.xx x 1000 mm)
  • Weight: 31.2 lb (14.15 kg)
  • Threaded Bolt: M10, 1.5
  • Exterior Color: Black
  • Housing Material: Aluminum ADC12
  • LED Module Material: Glass filled Polycarbonate
  • Maximum vertical hang: 11 panels

Connections

  • Power Connection: Edison (local) plug to Seetronic® powerKON®
  • Power Input: Seetronic® powerKON®
  • Power Output: Seetronic® powerKON®
  • Data Connectors: Seetronic® etherKON®
  • Cable Length (signal extension): 4 ft (1.2 m)
  • Cable Length (power): 4.6 ft (1.4 m)
  • Cable Length (power extension): 6 ft (1.8 m)

Control

  • Control Protocol: Novastar VMP platform
  • Recommended Processor/Driver: Novastar MX40 Pro
  • Panel Resolution (L x H): 256 x 512
  • Maximum Panels/Novastar MX40 Pro (20 ports):
    • HDR off, 24 Hz
    • 8-bit video source: 12/port, up to 240/Processor/Sender
    • 10-bit video source: 9/port, up to 180/Processor/Sender
    • 12-bit video source: 6/port, up to 120/Processor/Sender
      • HDR off, 30 Hz
      • 8-bit video source: 7/port, up to 140/Processor/Sender
      • 10-bit video source: 7/port, up to 140/Processor/Sender
      • 12-bit video source: 5/port, up to 100/Processor/Sender
        • HDR off, 60 Hz
        • 8-bit video source: 5/port, up to 100/Processor/Sender
        • 10-bit video source: 3/port, up to 60/Processor/Sender
        • 12-bit video source: 2/port, up to 40/Processor/Sender
          • HDR off, 120 Hz
          • 8-bit video source: 2/port, up to 40/Processor/Sender
          • 10-bit video source: 1/port, up to 20/Processor/Sender
          • 12-bit video source: 1/port, up to 20/Processor/Sender
            • HDR off, 144 Hz
            • 8-bit video source: 2/port, up to 40/Processor/Sender
            • 10-bit video source: 1/port, up to 20/Processor/Sender
            • 12-bit video source: 1/port, up to 20/Processor/Sender

Electrical

  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power Linking: 7 units @ 120 V; 12 units @ 208 V; 14 units @ 230 V
  • Power and Current: 240 W, 2.0 A @ 120 V, 60 Hz
  • Power and Current: 240 W, 1.15 A @ 208 V, 60 Hz
  • Power and Current: 240 W, 1.04 A @ 230 V, 50 Hz

Certifications / Qualifications

  • CE, MET, FCC
  • MET Listing Number: E113093-1110, E113093-1125
  • US Safety: UL 60950-1
  • Canadian Safety: CSA C22.2 No. 60950-1
  • IP Rating: IP30, dry location
  • Thermal Dissipation @ 120V: 819 BTU per hour
  • Thermal Dissipation @ 208V: 819 BTU per hour
  • Thermal Dissipation @ 230V: 819 BTU per hour
  • Operating Temperature: -4 °F to 122 °F (-20 °C to 50 °C)

What's Included

  • 4 REM1
  • 1 Seetronic® powerKON® power cord
  • 4 Seetronic® powerKON® power linking cords
  • 4 Seetronic® etherKON® signal linking cords
  • 5 pcs spare LED masks
  • User Manual

Required Accessories

  • Required Software: Nova VMP
  • Controller (required): Novastar MX40 Pro
  • Compatible Mounting Options: REM Rig Bar (0.5 m, 1 m lengths offered), M10 bolt/clamp (rear or surface mounting), GROUNDSUPPORT2KIT (floor mounting)

Optional Accessories

  • Clamps
  • Neutrik powerKON cables
  • Neutrik etherCON cables
  • REM-RB100CMIP
  • REM-RB50CMIP
  • GROUNDSUPPORT2KIT
  • MT07 Universal Module Removal Tool
