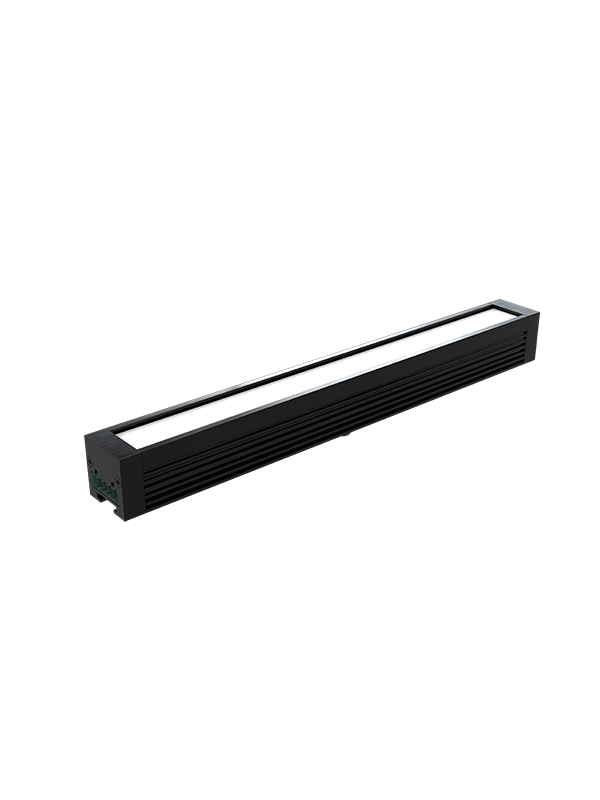

onAir Flex 12

Full spectrum LED soft catch light for short throw studio applications. Easily add a glint to eyes when photographing or filming. High quality 2800K-10000K white light as well as color from a lightweight DMX-controllable lighting accessory that weighs under 1 lb. Completely silent operation. Operated via onAir Flex Drive 2, offering ultra-smooth 16-bit dimming control and adjustable PWM to perform beautifully on camera.


At a Glance

  • Full spectrum LED soft catch light for short throw studio applications

  • High quality white light and color

  • Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera via onAir Flex Drive

  • Completely silent operation for use in studio applications

  • Ultra-smooth 16-bit dimming curves and speeds to complement any lighting scheme via onAir Flex Drive.

Specifications

Optical

  • Light Source: 12 LEDs (tri-color RGB) 1.5 W, (150 mA), 50,000 hours life expectancy.
  • Light Source: 12 LEDs (WW) 0.36 W, (150 mA), 50,000 hours life expectancy
  • Color Temperature (range): 2800 to 10000 K
  • Color Temperature (at full): 9190 K
  • CRI: 96
  • Beam Angle - Medium: 96.1° x 64.3°
  • Beam Angle - Light: 111° x 62°
  • Beam Angle - Heavy: 93.3° x 72.2°
  • Field Angle - Medium: 148.8° x 123.8°
  • Field Angle - Light: 149.8° x 126.3°
  • Field Angle - Heavy: 151.7° x 136°
  • Lumens - Medium: 765 lm
  • Lumens - Light: 810 lm
  • Lumens - Heavy: 734 lm
  • Illuminance - Medium : 17 lux @ 5 m
  • Illuminance - Light : 16 lux @ 5 m
  • Illuminance - Heavy : 15 lux @ 5 m
  • Selectable PWM: via onAir Flex Drive

Construction / Physical

  • Dimensions: 12.8 x 1.46 x 1.37 in (326 x 37 x 35 mm)
  • Shipping Dimensions: 15 x 6.5 x 4 in (381 x 165 x 102)
  • Weight: 0.975 lb (0.442 kg)
  • Exterior Color: Black
  • Housing Material: Extruded Aluminum

Connections

  • Power Connection: Phoenix connector to Bare-wire
  • Physical Linking: Phoenix connector to Bare-wire

Control

  • Control Protocol:DMX
  • DMX Channels: 8 or 10
  • Modes/Personalities: 8ch-RGBWx2, 10ch-RGBW+Dx2

Electrical

  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power and Current: 26 W, 0.28 A @ 120 V, 60 Hz
  • Power and Current: 24 W, 0.31 A @ 208 V, 60 Hz
  • Power and Current: 24 W, 0.29 A @ 230 V, 50 Hz

Cable

  • Connector: Phoenix
  • Pins: 5

Certifications / Qualifications

  • CE, MET, FCC, UKCA
  • IP Rating: IP20, dry location
  • Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

What's Included

  • OnAir Flex 12
  • 6cm Cable
  • 12cm Cable
  • Blanks Connectors
  • Light Filter
  • Heavy Filter

Required Accessories

  • onAir Flex Drive
