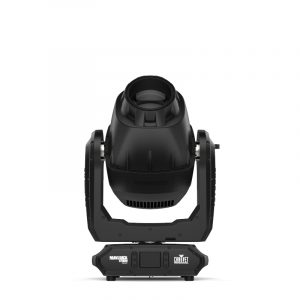

Maverick Storm 2 Profile M

With its full aluminum construction and C5M marine-grade finish, Maverick Storm 2 Profile M adds an extra layer of external corrosion resistance to an already rugged IP65 build. Internal optical components are protected by SunShield technology that comes on whenever the fixture powers down, resulting in a fully-armored fixture that also brings a full armory of features: precise shutter framing, expansive zoom, variable CMY + CTO color mixing, color wheel with CRI and CTB filters, static and rotating gobo wheels, five-facet prism, iris, and frost. A complete creative wheelhouse in a lightweight midsized powerhouse with the enhanced protection to perform extended duty in and near marine environments.


At a Glance

  • Fully featured, compact and lightweight IP65 580 W LED yoke profile fixture including CMY + CTO color mixing, a 4-blade framing shutter system with rotation, a color wheel, 10:1 zoom, a 5-facet prism wheel, 1 rotating and 1 static gobo wheel, integrated sun shield

  • C5M Paint application process and full aluminum construction for extended outdoor usage in and near marine environments

  • Included display cover for extended outdoor usage in and near marine environments

  • Stainless steel gland nuts for extended outdoor usage in and near marine environments

  • 16-bit dimming of master dimmer for smooth control of fades

  • Variable CMY + CTO color mixing system to create a wide pallet of colors

  • CRI and CTB filters on color wheel for added flexibility

  • One rotating, indexing and interchangeable slot and lock gobo wheel

  • One rotating static gobo wheel

  • RDM control over DMX for fixture reporting

  • 5.8° to 56.1° zoom range for variable beam sizes

  • Iris, 5-facet prism and frost for beam control

  • True 1 compatible power input

  • Integrated sun shield for protecting the optical path from sunlight when the fixture is off

  • Three setup menu presets and preset sync for cross loading to multiple like fixtures for easy shop setup

  • Battery backup display with auto-rotate depending on fixture orientation

Specifications

Optical

  • Light Source: 1 LEDs (CW) 588 W, (4.6 A), 7500 K, 50,000 hours life expectancy Color Temperature (at full): 7,242 K
  • Color Temperature (at full): 7,242 K
  • CRI: 71.4
  • CRI with CRI Filter: 90.3
  • Front Lens Diameter: 127 mm
  • Beam Angle: 5.8° to 43.2°
  • Field Angle: 7.2° to 54.2°
  • Cutoff Angle 7.7° to 56.1°
  • Zoom Range: 5.8° to 56.1°
  • Lumens – Source: 43,500
  • Lumens – Output: 25,840
  • Illuminance (6°) 70,007 lux @ 5 m
  • Illuminance (54.1°) 2,624 lux @ 5 m
  • Selectable PWM: 600 Hz, 1,200 Hz, 4,000 Hz, 6,000 Hz, 15,000 Hz

Dynamic Effects

  • Pan and Tilt: 540°/270°
  • Pan and Tilt Ranges: 540°, 360°, 180° pan/270°, 180°, 90° tilt
  • Colors: 7 (including CRI and CTB filters) + white, split colors, continuous scroll at variable speeds
  • Colors: CMY flags, CTO flag
  • Gobos (1): 7 + open (glass), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
  • Gobos (2): 9 + open (glass), continuous scroll at variable speeds
  • Gobo Size: Gobo Wheel 1 (rotating): 25.5 mm (outside), 18 mm (image), 1.1 mm (max. thickness)
  • Framing Shutters: 4 Blades, each with dual axis movement, Full blackout.
  • Framing Shutter rotation: +/- 60° rotation.
  • Dimmer: Electronic
  • Shutter/Strobe: Electronic
  • Zoom: Motorized
  • Focus: Motorized
  • Frost: Motorized
  • Iris: Motorized
  • Prism: 5 Facets, motorized, rotating
  • Strobe Rate: 0 to 20 Hz
  • Move-in-Black: Yes
  • Dim Curves: 4

Construction / Physical

  • Dimensions: 9.92 x 15.28 x 27.52 in (252 x 388 x 699 mm)
  • Weight: 70.2 lb (31.9 kg)
  • Exterior Color: C5M rated (White)
  • Housing Material: Aluminum diecast, High-impact flame-retardant polymer, Steel

Connections

  • Power Connection: Termination-ready bare-ended
  • Power Input: proprietary IP65
  • Data Connection: bare wired to proprietary IP65 input cable
  • Data input/output: Termination-ready bare-ended
  • Cable Length (power input): 5 ft (1.5 m)
  • Cable Length (hardwire connection): 6.6 ft (2 m)
  • Cable Length (signal in/out): 5 ft (1.5 m)
  • Cable Length (signal hardwire connection): 6.6 ft (2 m)

Control

  • Control Protocol: DMX, RDM, W-DMX
  • DMX Channels: 32 or 48
  • Modes/Personalities: 2 personalities (32, 48)

Electrical

  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power and Current: 837 W, 6.97 A @ 120 V, 60 Hz
  • Power and Current: 823 W, 3.97 A @ 208 V, 60 Hz
  • Power and Current: 822 W, 3.59 A @ 230 V, 50 Hz
  • Breaker Size: F15 A, 250 V

Certifications / Qualifications

  • CE, MET, FCC
  • IP Rating: IP65, temporary outdoor/wet use, with pressure equalizing M12 GORE valve
  • Temperature (Ambient): 4 °F to 113 °F (-20 °C to 45 °C)

What's Included

  • Maverick Storm 2 Profile (Marine)
  • Omega bracket with mounting hardware ( 2 Allen Key bolts)
  • Display cover

Optional Accessories

  • Professional Clamps : CTC-50HC, CTC-50HCN
  • Safety Cable: SC-07
  • DMX Cables
  • IP Rated Seetronic® Powerkon Extensions
  • UPLOAD 08 software uploader
  • Micro T-1 TRX G5 WDMX Transceiver
  • FLIGHT CASE TBA
