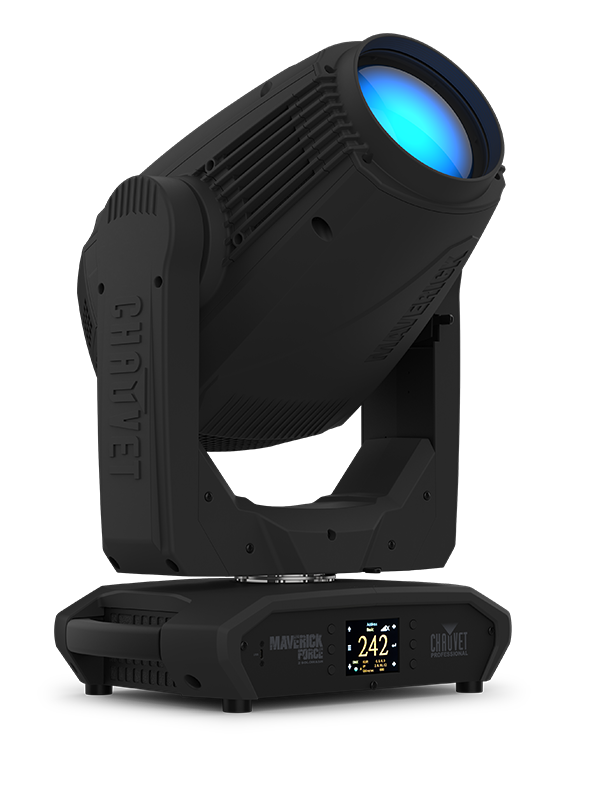

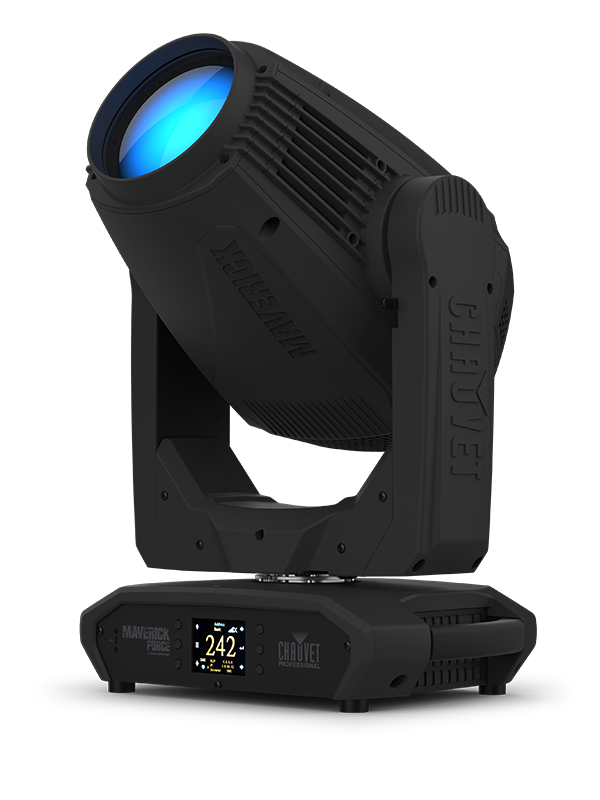

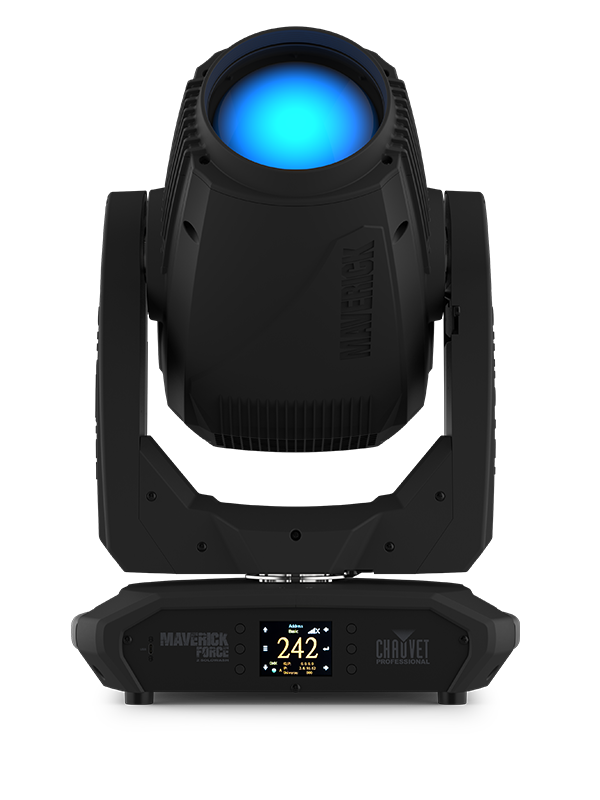

Maverick Force 2 SoloWash

A powerful single source 480W LED wash engineered to meet lighting designer demand for classic stage wash looks with the modern features LDs expect: CMY + CTO color mixing system offering a wide color palette, independent color wheel with CRI and CTB filters, expansive 8:1 zoom, rotating gobo wheel with interchangeable geometric gobos, linear 5-facet prism, and frost. Housed in a compact and lightweight design and calibrated to match the colors of other Force fixtures in the rig. Take control with DMX, RDM, sACN, Art-Net, or W-DMX.


At a Glance

  • Fully featured, compact and lightweight 480 W LED yoke single source wash fixture including CMY + CTO color mixing, a color wheel, zoom optics, and one rotating gobo wheel

  • 16-bit dimming of master dimmer for smooth control of fades

  • Variable CMY + CTO color mixing system to create a wide pallet of colors

  • CRI and CTB filters on color wheel for added flexibility

  • DMX, WDMX, sACN, and Art-Net for full flexibility of control options

  • RDM enabled for remote addressing and trouble shooting

  • 6.3° to 55.7°zoom range for variable beam sizes

  • Linear 5-facet prism, geometric gobos and frost for beam control

  • True 1 compatible power input

  • Three setup menu presets and preset sync for cross loading to multiple like fixtures for easy shop setup

  • USB slot for software uploads

  • Battery backup display with auto-rotate depending on fixture orientation

  • Fail Safe Ethernet connectivity allows for data to pass even if fixture power is lost

Specifications

Optical

  • Light Source: 1 LED (CW) 480 W (15 A), 50,000 hours life expectancy
  • Color Temperature (at full): 7308 K
  • Color Temperature (range): 7308 to 3007 K
  • CRI: 70.4 (with filter: 87.7)
  • Front Lens Diameter: 178 mm
  • Beam Angle: 6.3° to 32.8°
  • Field Angle: 9.3° to 49.5°
  • Cutoff Angle: 11.2° to 55.7°
  • Zoom Range: 6.3° to 55.7°
  • Lumens – Source: 39,200
  • Lumens – Output: 30,967
  • Illuminance (6.3°) : 91,362 lux @ 5 m
  • Illuminance (55.7°) : 3989 lux @ 5 m
  • Selectable PWM: 600 Hz, 1200 Hz, 2000 Hz, 4000 Hz, 6000 Hz, 15000 Hz

Dynamic Effects

  • Pan and Tilt: 540°/270°
  • Pan and Tilt Ranges: 540°, 360°, 180° pan/270°, 180°, 90° tilt
  • Colors: 7 + open, split colors, continuous scroll at variable speeds
  • Colors: CMY flags, CTO flag
  • Gobos: 7 + open (7 Metal), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
  • Dimmer: Electronic
  • Shutter/Strobe: Electronic
  • Zoom: Motorized
  • Focus: Motorized
  • Frost: Motorized
  • Iris: Motorized
  • Prism: 5 Facets, motorized, rotating
  • Strobe Rate: 0 to 20 Hz
  • Move-in-Black: Yes
  • Dim Curves: 5

Construction / Physical

  • Dimensions: 16.8 x 10.7 x 25.8 in (426 x 272 x 656 mm)
  • Weight: 53.4 lb (24.2 kg)
  • Exterior Color: Black
  • Housing Material: Aluminum diecast, High-impact flame-retardant polymer, Steel  

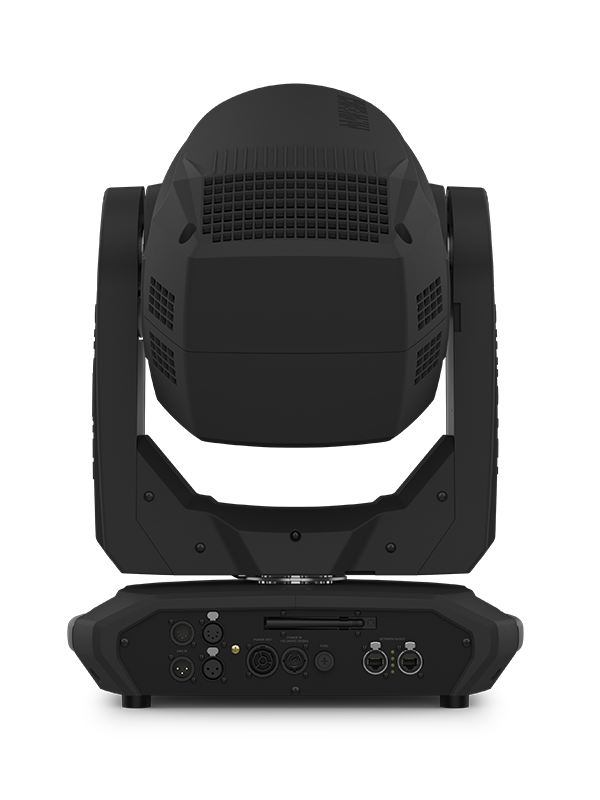

Connections

  • Power Connection: Seetronic Powercon IP65
  • Power Input/Output: Seetronic Powercon IP65
  • Data Connectors: 3-pin XLR, 5-pin XLR, Neutrik RJ45 Connectors in/out
  • Cable Length (power): 5 ft (1.5 m)
  • Software Connection: Type-C USB

Control

  • Control Protocol: Art-Net, sACN, RDM, DMX, W-DMX
  • DMX Channels: 21ch or 27ch
  • Art-Net/sACN Channels: 21ch or 27ch
  • Modes/Personalities: 2 personalities (21ch or 27ch)

Electrical

  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power Linking: 2 units @ 120 V; 3 units @ 208 V; 3units @ 230 V
  • Power and Current: 660 W, 5.57 A @ 120 V, 60 Hz
  • Power and Current: 649 W, 3.24 A @ 208 V, 60 Hz
  • Power and Current: 641 W, 3.07 A @ 230 V, 50 Hz

Battery

  • Battery type: Lithium Ion
  • Rechargeable: Yes
  • Battery Charge Time: 5 hours
  • Battery Life: 1 hours
  • Battery Power: 3.7 V, 500 mAh

Certifications / Qualifications

  • CE, MET, FCC, UKCA
  • IP Rating: IP20, dry location
  • Noise Level (Idle): 32.8 dB(A) @ 1 m
  • Noise Level (Max): 37.4 dB(A) @ 1 m
  • Noise Level (ECO): 35.1 dB(A) @ 1 m
  • Noise Level (Auto): 36.6 dB(A) @ 1 m
  • Noise Level (Full): 44.2 dB(A) @ 1 m
  • Temperature (Operating): 14 °F to 113 °F (-10 °C to 45 °C)

What's Included

  • Maverick Force 2 SoloWash
  • Seetronic Powercon IP65 power cord
  • (2) 140mm Omega brackets with mounting hardware

Optional Accessories

  • Clamps
  • Neutrik powerCON cables
  • Neutrik etherCON cables
  • DMX Cables
  • Flight Cases
