EPIX Strip Tour 50

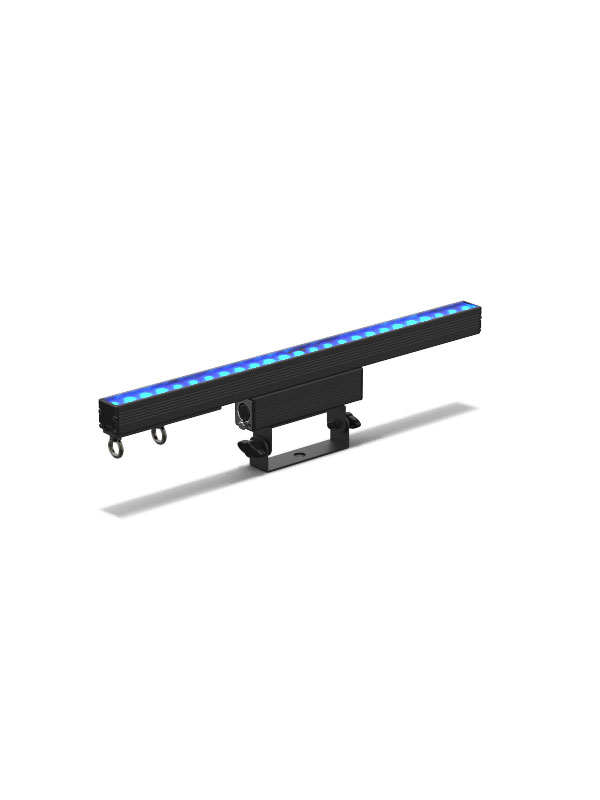

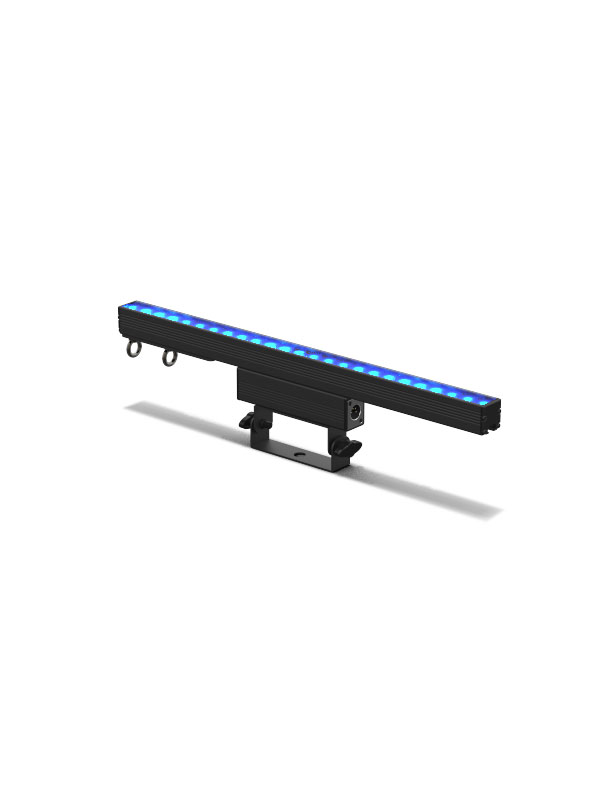

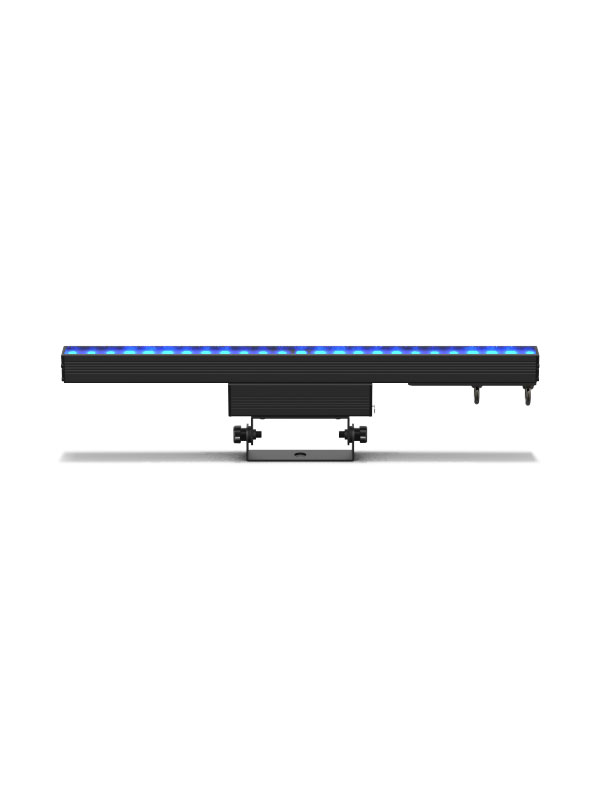

Épix Strip Tour 50 is a pixel-mapping ½ meter LED strip fixture, featuring 25 LEDs in a row. Power and control it through the Épix Drive 900 on Art-Net Kling-Net or sACN (streaming ACN). For added versatility and more creative options, a dome accessory is available to widen the viewing angle.


At a Glance

  • Pixel-mapping 1-meter 50 x 1 LED strip for showing video and/or motion graphics

  • Includes square milky filter (installed) for diffused output, round milky filter (included) for diffused output, and black stealth filter (included) for high contrast.

  • Versatile control options include Art-Net, Kling-Net, and sACN (streaming ACN) to support the touring, rental, and installation markets

  • Reduce programming time and increase application by using the alternate personalities of 7 channel, multi-section control (15- channels), or use the Pixel personality (75 channels) for use with video servers

  • Increase viewing angle by using the dome accessory

  • Epix Drive 900 required for operation

Specifications

Optical

  • Light Source: 50 LEDs (tri-color RGB) SMD 5050, 50,000 hours life expectancy
  • Viewing Angle: 125°
  • Viewing Angle (with optional dome accessory): 180°
  • Illuminance (white frost filter installed): 1,100 NITS
  • Illuminance (with optional dome accessory): 700 NITS
  • Illuminance (black stealth filter installed): 270 NITS
  • Pixels: 25 x 1
  • Pixel Pitch: 20 mm
  • Refresh Rate: 4,700 Hz

Construction / Physical

  • Dimensions: 19.68 x 1.2 x 4.7 in (500 x 30.5 x 119.5 mm)
  • Housing Material: Aluminum

Connections

  • Data Connectors: 4-pin XLR
  • Physical Linking: 36 inline Epix Strip Tour
  • Minimum required device linking cable size: 4 conductor (2 x 18 AWG, 2 x 20 AWG)
  • Total max. cable length (shielded cables) between Epix Drive 900 and last Epix Tour fixture: 210 ft (64 m)
  • Max. cable length (shielded cables) between Epix Drive 900 and first Epix Tour fixture: 65 ft (20 m)
  • Max. cable length (shielded cables) between Epix Tour fixtures: 60 ft (18 m)
  • Total max. cable length (unshielded cables) between Epix Drive 900 and last Epix Tour fixture: 300 ft (91 m)
  • Max. cable length (unshielded cables) between Epix Drive 900 and first Epix Tour fixture: 150 ft (45 m)
  • Max. cable length (unshielded cables) between Epix Tour fixtures: 100 ft (30 m)

Control

  • Control Protocol: Art-Net, Kling-Net, sACN
  • Control Channels Art-net, sACN : 75

Electrical

  • Power and Current: 7 W, 0.051 A @ 120 V, 60 Hz
  • Power and Current: 9 W, 0.046 A @ 208 V, 60 Hz
  • Power and Current: 8 W, 0.031 A @ 230 V, 50 Hz

Certifications / Qualifications

  • CE, MET
  • IP Rating: IP20, dry location
  • Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

What's Included

  • ÉPIX Strip Tour 50
  • White Frost Filter

Required Accessories

  • Required Software: CHAUVET LED Studio and Windows7
  • Controller (required): EPIX Drive 900, EPIX Drive 2000 IP
  • Accessories (required): VIP Driver
  • Compatible Mounting Options: M12 Bolt/Clamp

Optional Accessories
